Toyota Auris/Corolla HB(Jpp
2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General
Supported model
Data version 2022-09

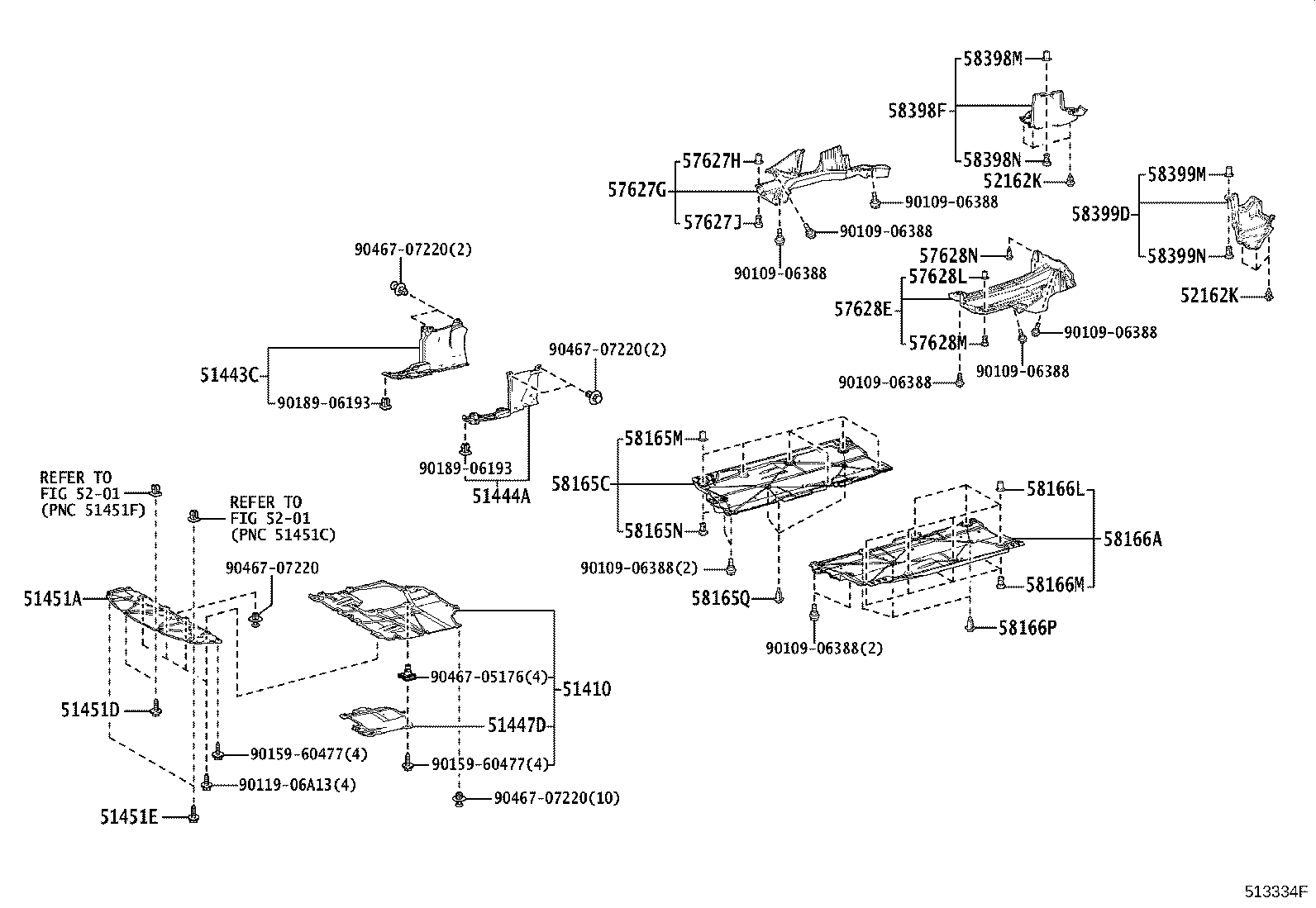

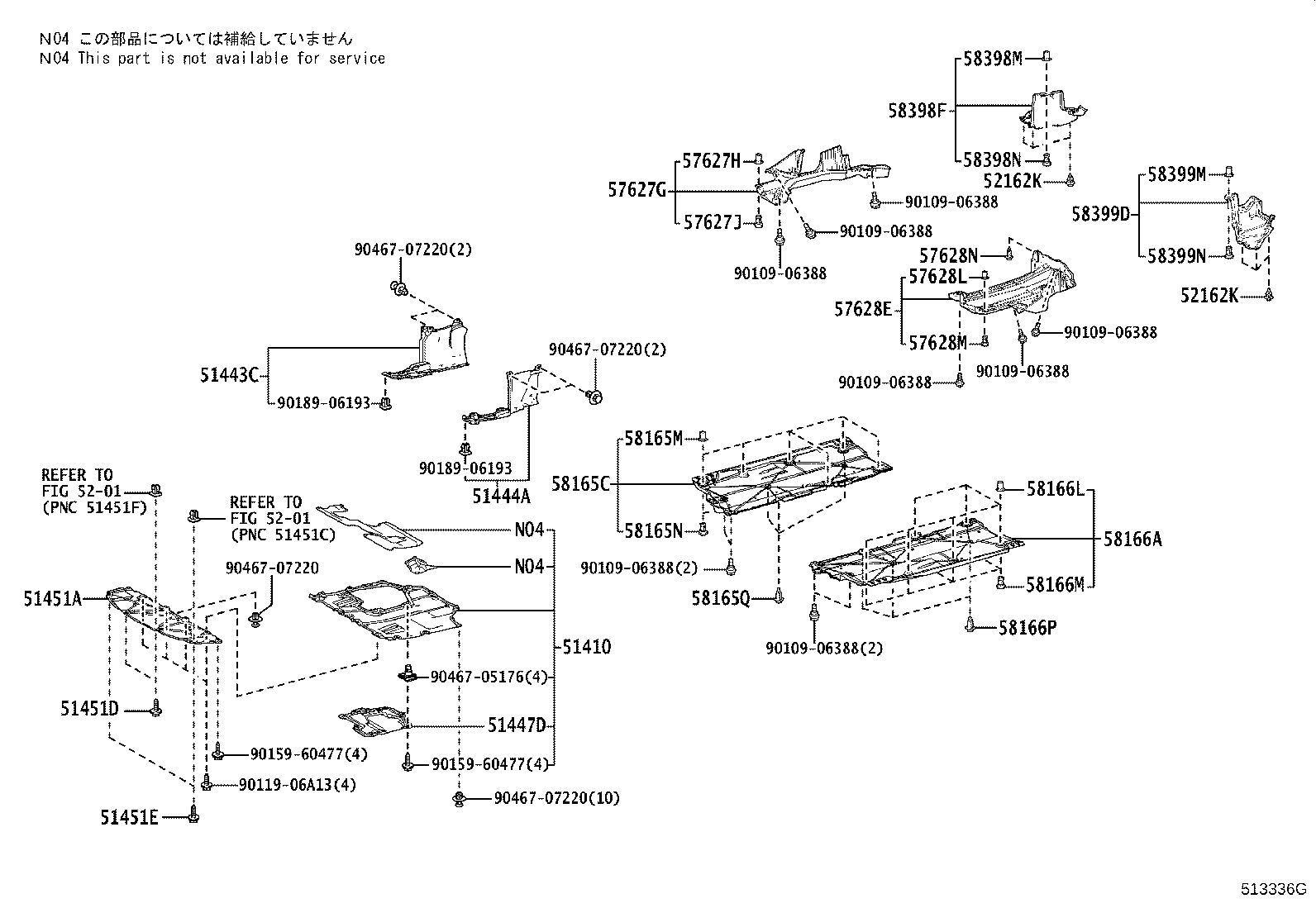

Suspension Crossmember & Under Cover
36 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 51107A | Reinforcement Sub-assy, Side Rail, Rear RH |
| 51108A | Reinforcement Sub-assy, Side Rail, Rear LH |
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51206A | Member Sub-assy, Rear Suspension |
| 51228G | Plate, Front Suspension Member |
| 51284 | Cover, Rear Suspension Member Hole |
| 51410 | Cover Assy, Engine Under, NO.1 |
| 51443C | Cover, Engine Under, Rear RH |
| 51444A | Cover, Engine Under, Rear LH |
| 51447D | Cover, Engine Under, NO.4 Center |
| 51451A | Cover, Engine Under, Center |
| 51451D | Screw, NO.1 |
| 51451E | Screw, NO.2 |
| 51618 | Guard, Front Differential Support, LH |
| 52162K | Piece, Rear Bumper |
| 57627G | Cover, Rear Floor Side Member, RH |
| 57627H | Clip, Rear Floor Side Member Cover, NO.1 |
| 57627J | Clip, Rear Floor Side Member Cover, NO.2 |
| 57628E | Cover, Rear Floor Side Member, LH |
| 57628L | Clip, Rear Floor Side Member Cover, NO.1 |
| 57628M | Clip, Rear Floor Side Member Cover, NO.2 |
| 57628N | Clip, Rear Floor Side Member Cover |
| 58165C | Cover, Front Floor, RH |
| 58165M | Clip, Front Floor Cover, NO.1 |
| 58165N | Clip, Front Floor Cover, NO.2 |
| 58165Q | Clip, Front Floor Cover |
| 58166A | Cover, Front Floor, LH |
| 58166L | Clip, Front Floor Cover, NO.1 |
| 58166M | Clip, Front Floor Cover, NO.2 |
| 58166P | Clip, Front Floor Cover |
| 58398F | Cover, Floor Under, NO.1 |
| 58398M | Clip, Floor Under Cover, NO.1 |
| 58398N | Clip, Floor Under Cover, NO.2 |
| 58399D | Cover, Floor Under, NO.2 |
| 58399M | Clip, Floor Under Cover, NO.1 |
| 58399N | Clip, Floor Under Cover, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
