Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

29 part groups · 6 illustrations

Illustrations

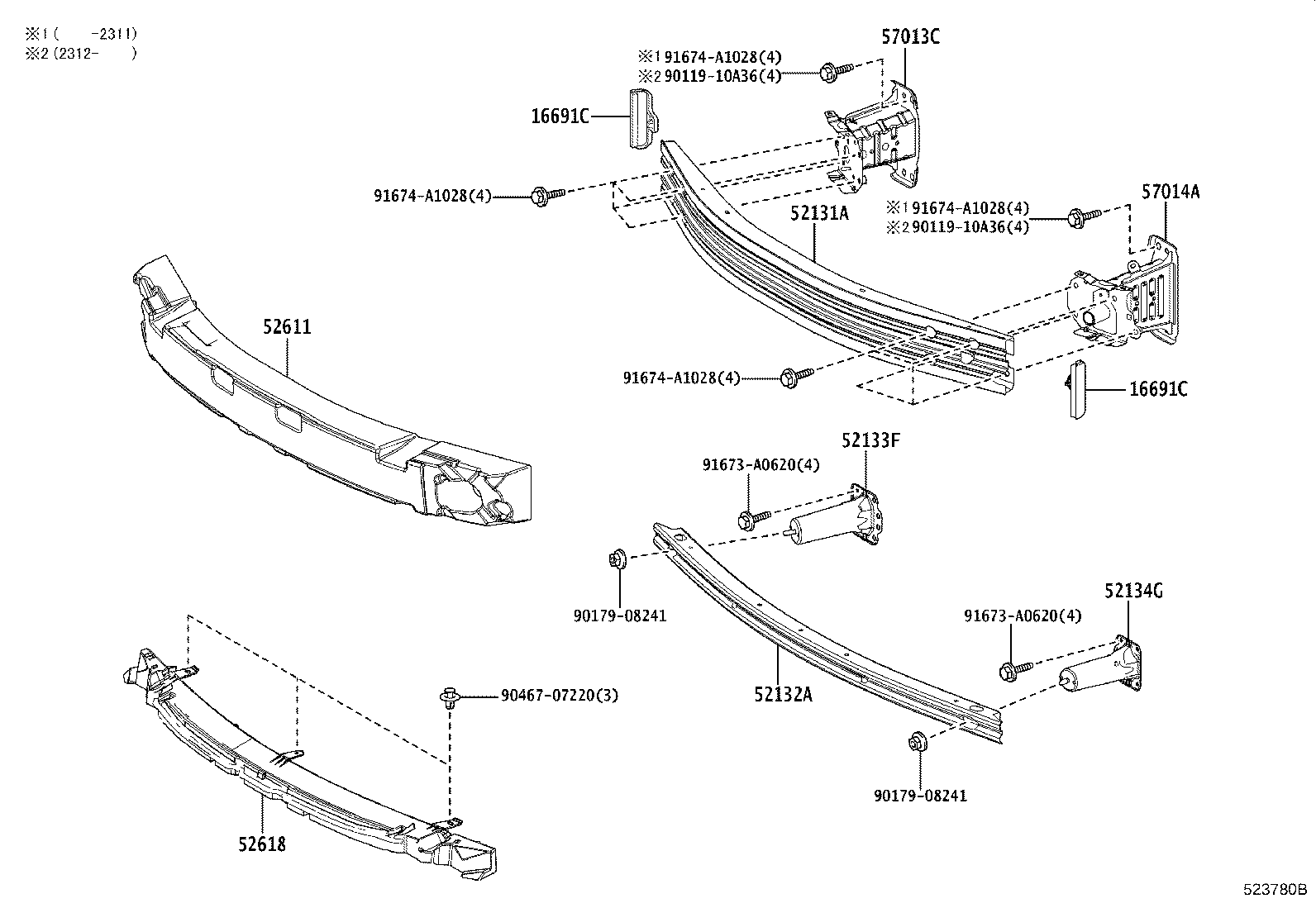

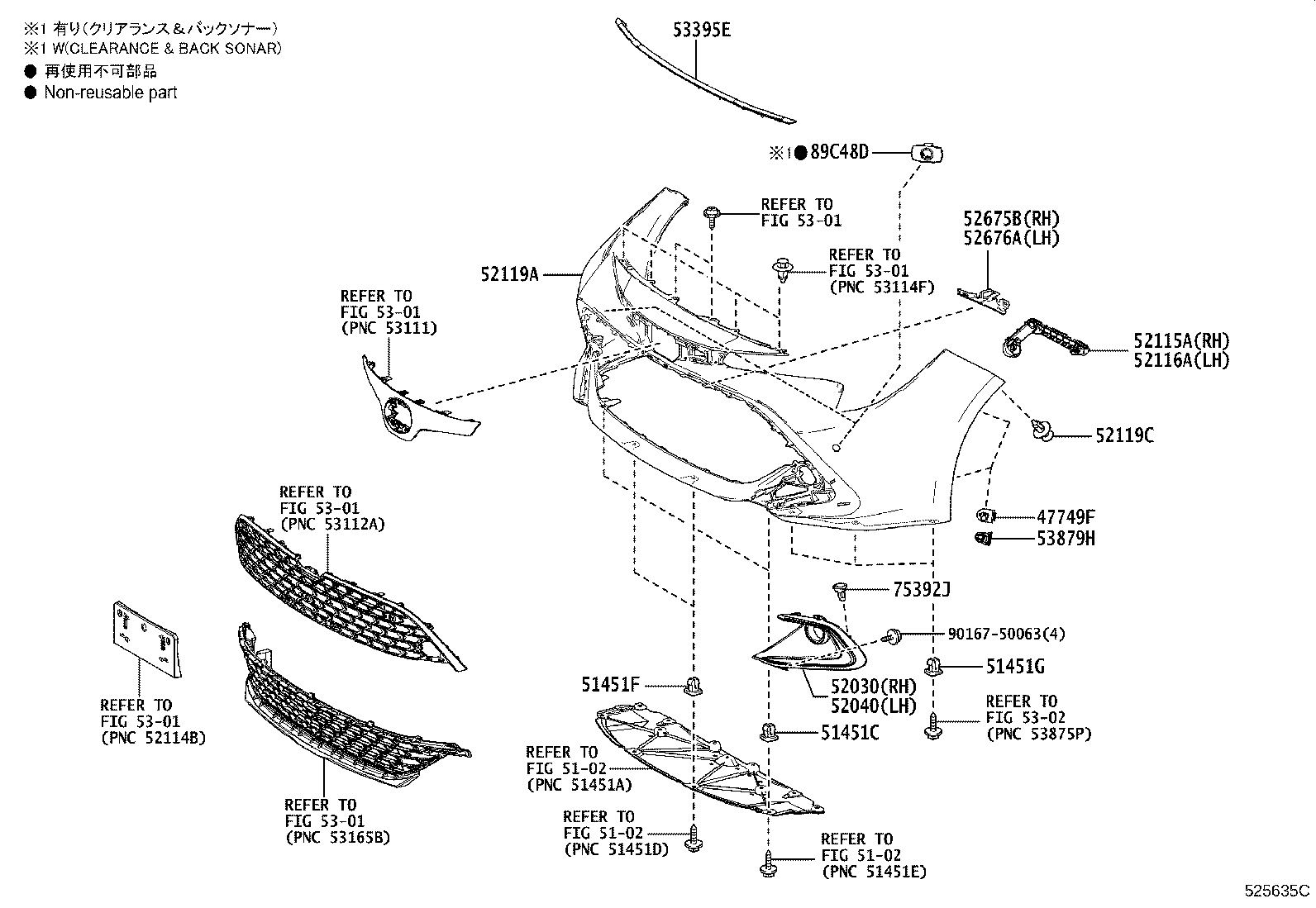

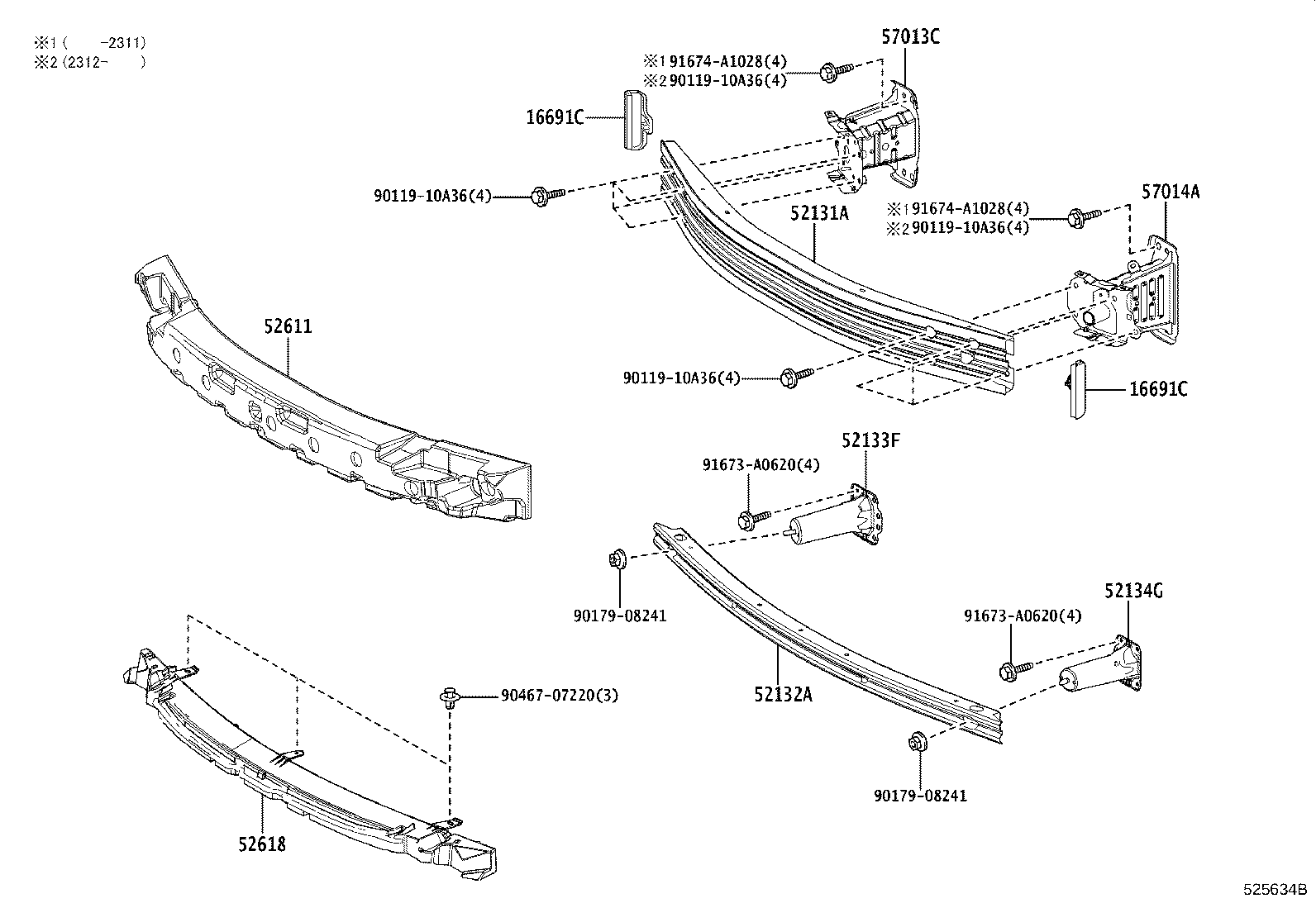

Figure 523776G 523776G 2018-06 → 2022-09 Figure 523776G 523776G 2018-06 → — Figure 523780B 523780B 2018-06 → 2022-09 Figure 523780B 523780B 2018-06 → — Figure 525635C 525635C 2022-09 → — Figure 525634B 525634B 2022-09 → —

Part groups

PNCDescription
16691C Plate, Radiator Side Air Guide, Front
47749F Clip, Pin Hold
51451C Grommet(FOR ENGINE UNDER COVER)
51451F Grommet, NO.1
51451G Grommet, NO.2
52030 Cover Assy, Front Bumper Hole, RH
52040 Cover Assy, Front Bumper Hole, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52119C Clip, Front Bumper Cover
52131A Reinforcement, Front Bumper
52132A Reinforcement, Front Bumper, NO.2
52133F Bracket, Front Bumper, RH
52134G Bracket, Front Bumper, LH
52611 Absorber, Front Bumper Energy
52618 Absorber, Front Bumper, Lower
52675B Support, Front Bumper Side, NO.1 RH
52676A Support, Front Bumper Side, NO.1 LH
52711A Garnish, Front Bumper
52712A Garnish, Front Bumper, LH
53395E Seal, Hood TO Front End Panel
53879H Retainer, Front Fender Liner
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
75392J Retainer, Outside Moulding
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
89C48D Retainer, Ultrasonic Sensor, Front Corner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
