Toyota Auris/Corolla HB(Jpp
2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General
Supported model
Data version 2022-09

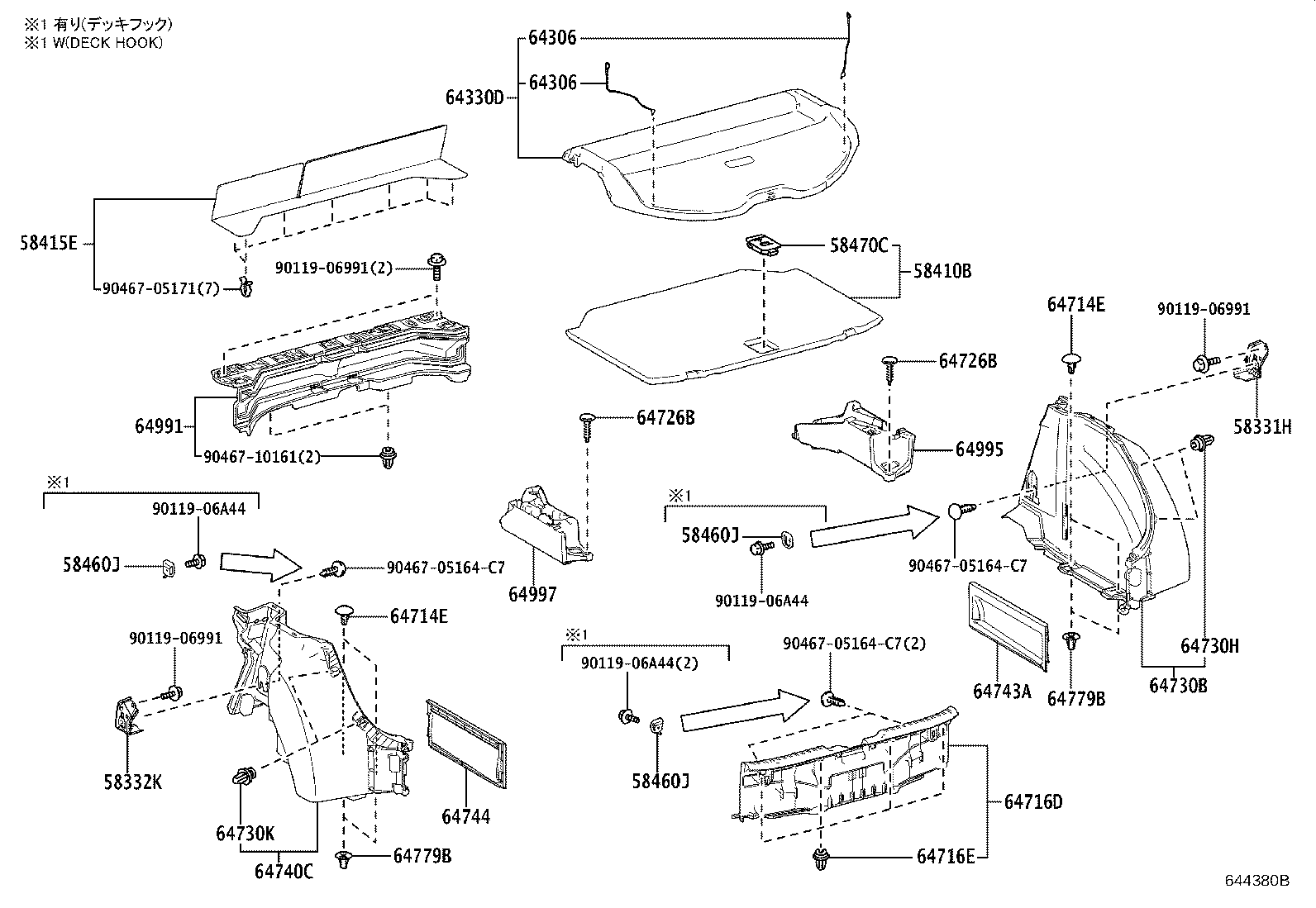

Deck Board & Deck Trim Cover
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58331H | Bracket, Luggage Compartment Trim, NO.1 |
| 58332K | Bracket, Luggage Compartment Trim, NO.2 |
| 58410B | Board Assy, Deck |
| 58415E | Board, Rear Floor, NO.1 |
| 58460J | Striker Assy, Luggage Hold Belt |
| 58470C | Handle Assy, Deck Board |
| 58570A | Mat Assy, Rear Floor |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64330D | Panel Assy, Package Tray Trim |
| 64714E | Clip(FOR DECK TRIM SIDE COVER) |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64726B | Clip, Deck Rear Trim |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64730K | Clip(FOR DECK SIDE TRIM PANEL) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64743A | Board, Deck Trim Side, Lower RH |
| 64744 | Board, Deck Trim Side, Lower LH |
| 64777J | Cushion, Spare Wheel |
| 64779B | Stopper, Spare Wheel Cover |
| 64991 | Box, Deck Floor, Front |
| 64995 | Box, Deck Floor, RH |
| 64997 | Box, Deck Floor, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
