Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

38 part groups · 7 illustrations

Illustrations

71F569 2018-06 → —

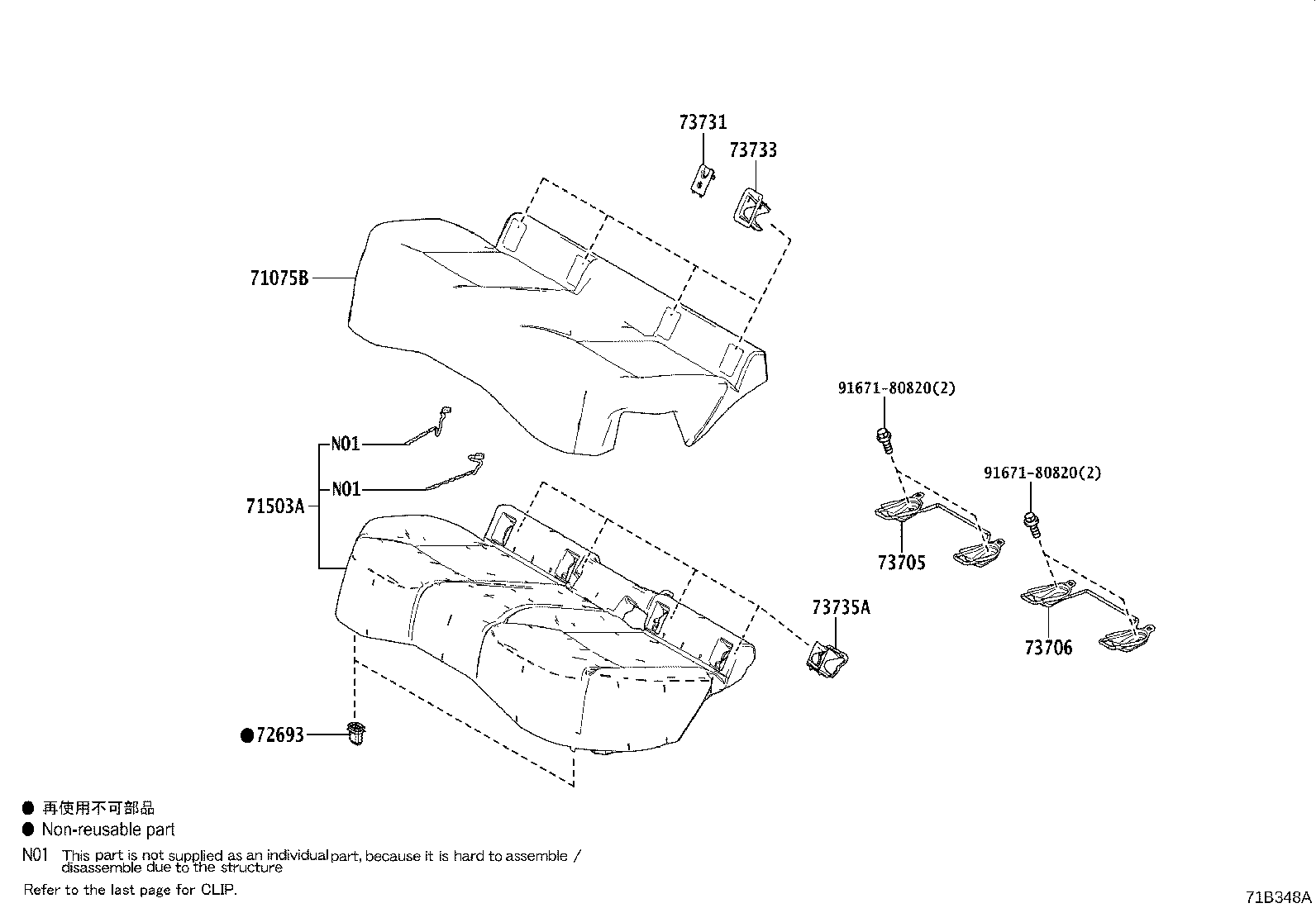

71B348A 2018-06 → —

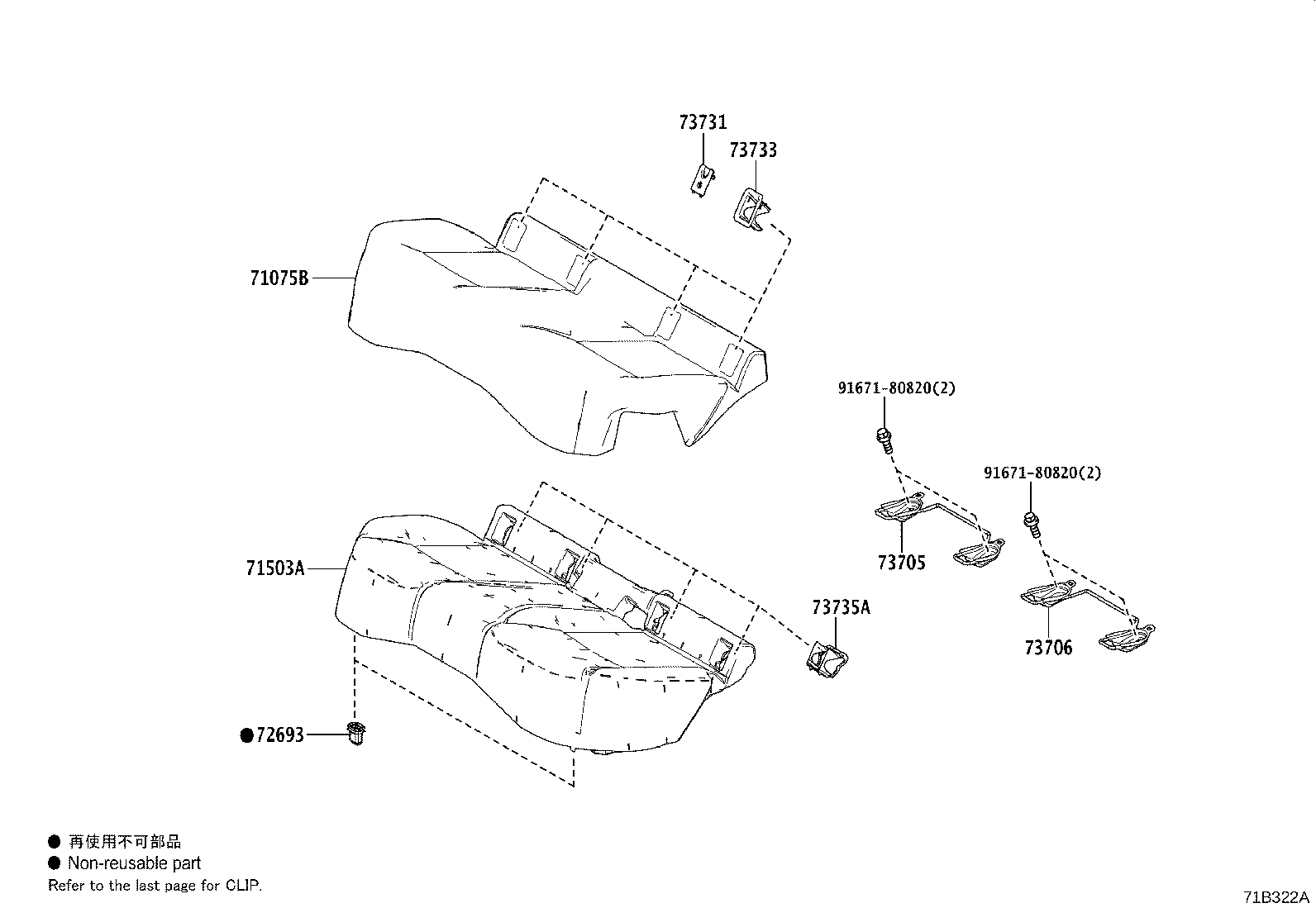

71B322A 2018-06 → —

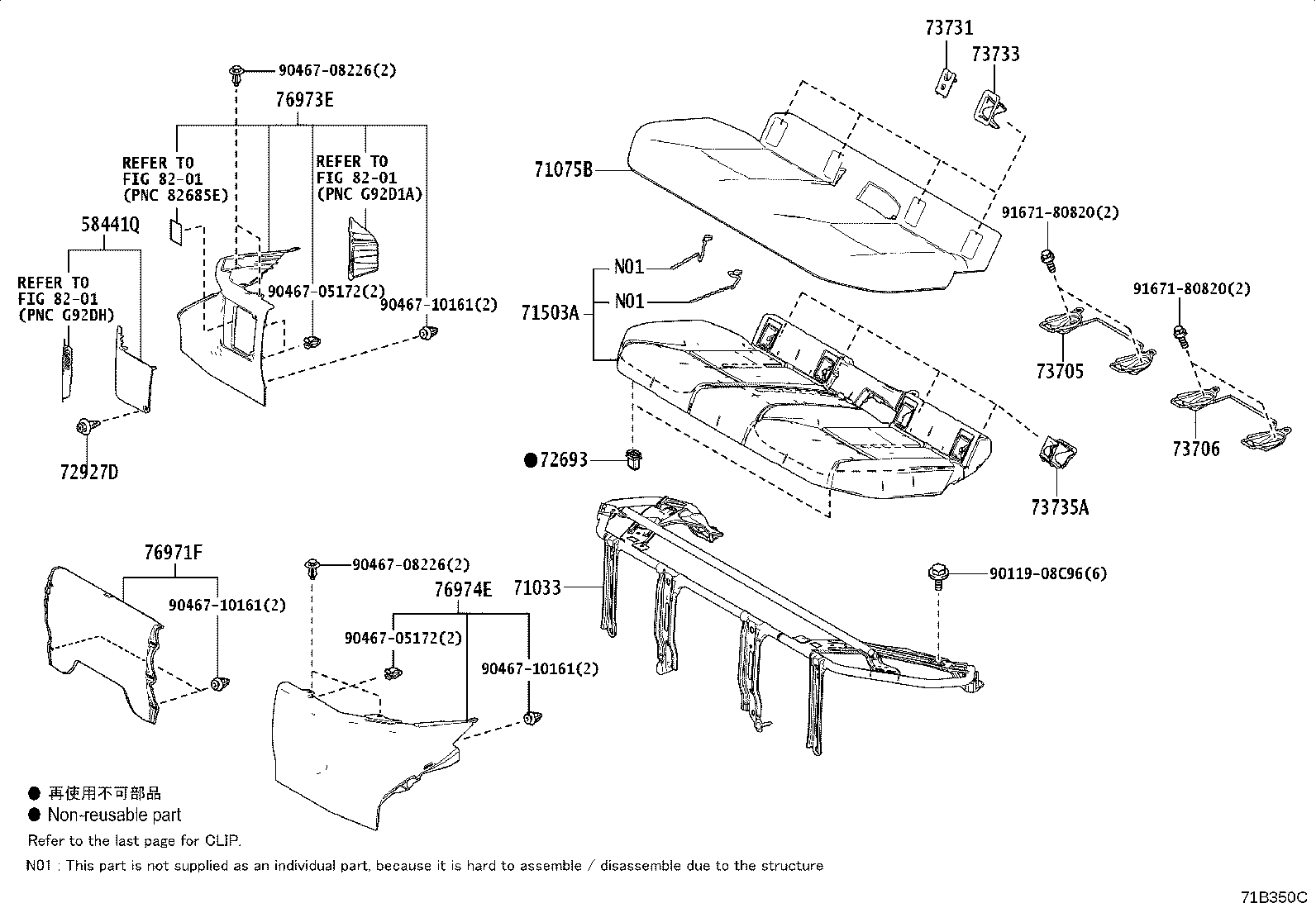

71B350C 2018-06 → 2022-08

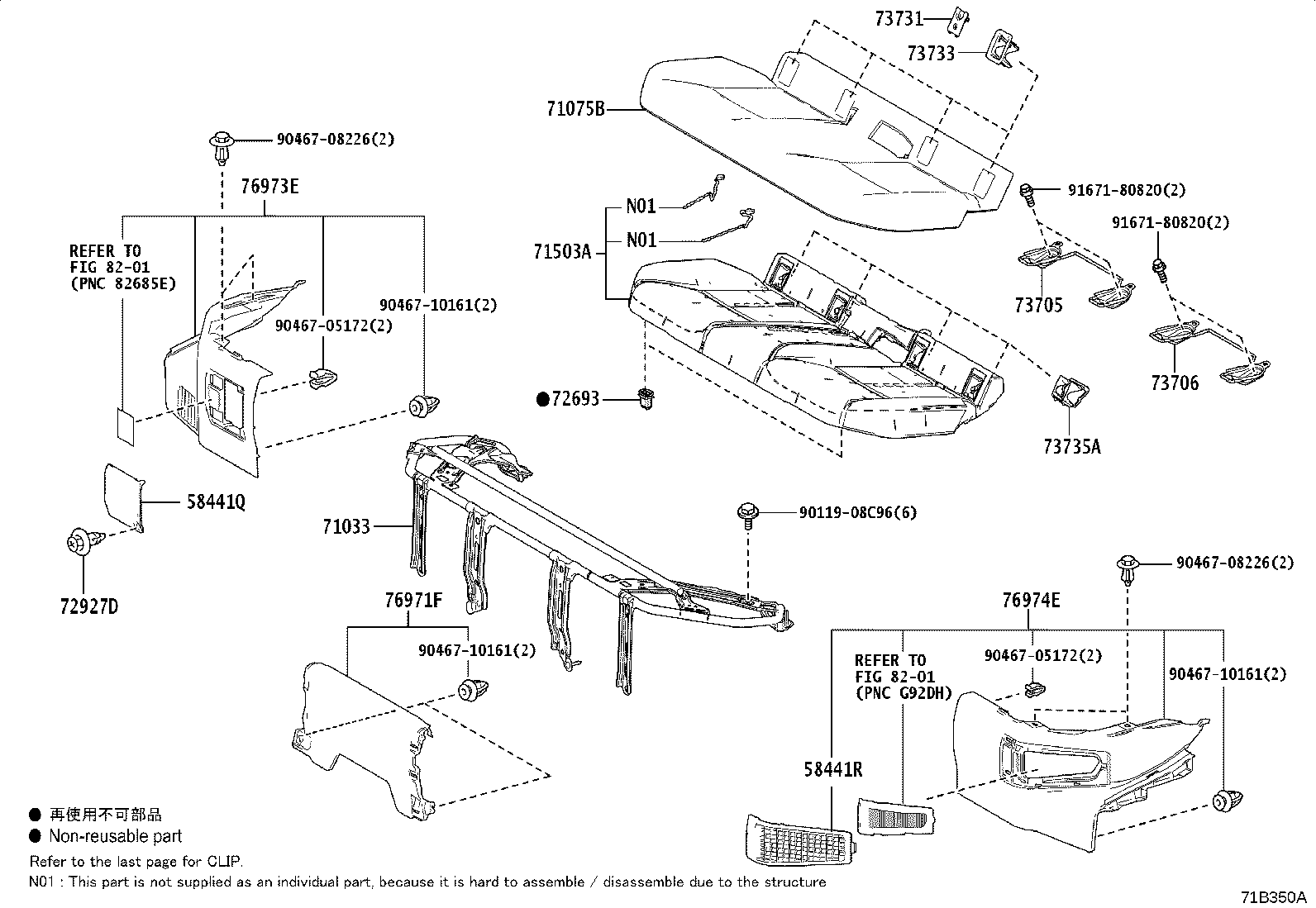

71F9L9A 2022-09 → —

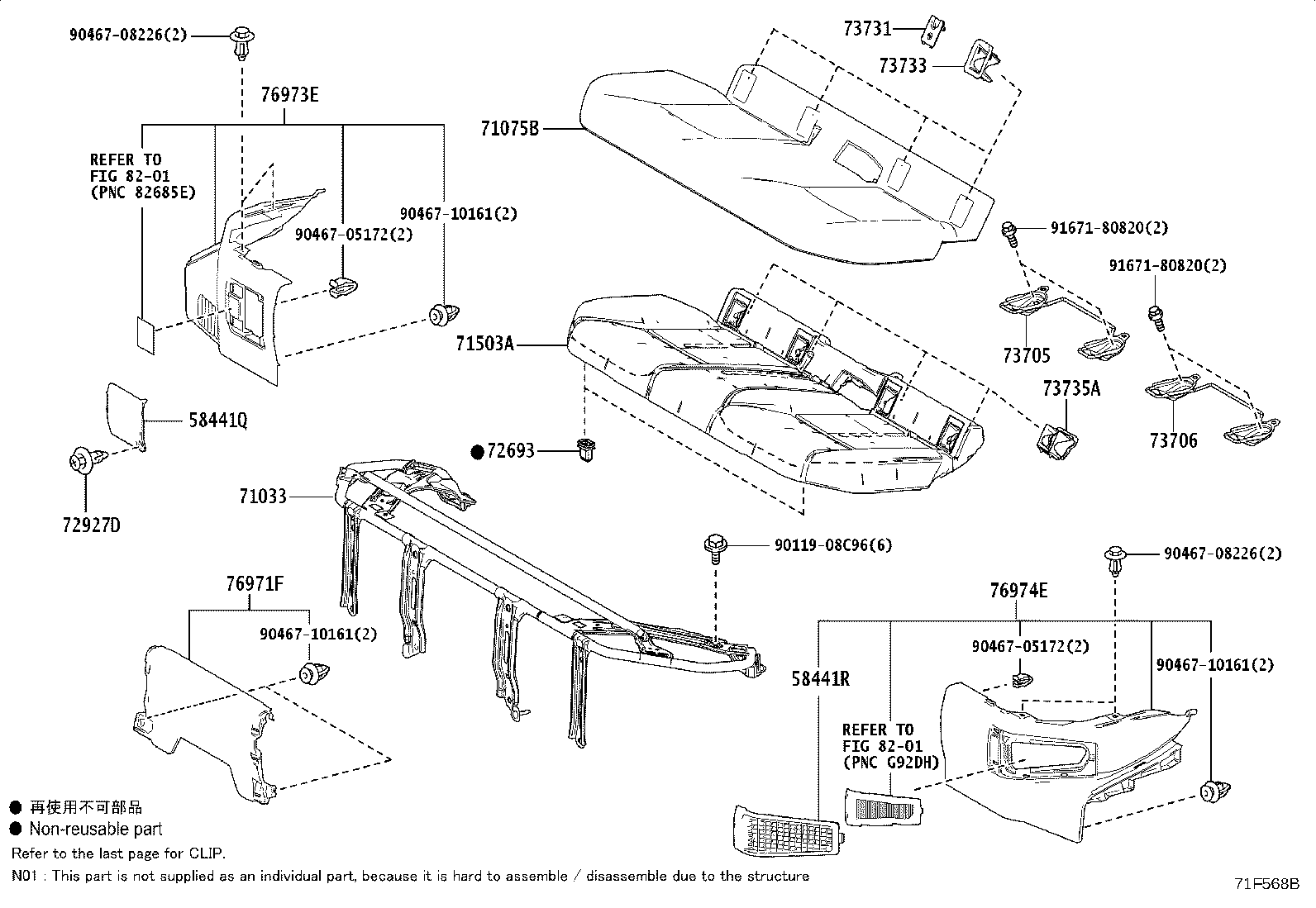

71F568B 2022-09 → —

71A615B 2018-06 → —

Part groups

PNC	Description
58441Q	Cover, Battery Service Hole, RH
58441R	Cover, Battery Service Hole, LH
71017	Frame Sub-assy, Rear Seatback, RH
71018	Frame Sub-assy, Rear Seatback, LH
71033	Leg Sub-assy, Rear Seat Cushion
71075B	Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S	Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S	Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C	Hinge Sub-assy, Rear Seatback, RH
71304C	Hinge Sub-assy, Rear Seatback, LH
71305A	Hinge Sub-assy, Rear Seatback, Center
71503A	Pad Sub-assy, Rear Seat Cushion
71651S	Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S	Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71701C	Board Sub-assy, Rear Seatback, RH
71702C	Board Sub-assy, Rear Seatback, LH
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
71960B	Headrest Assy, Rear Seat, Center
72061A	Base Sub-assy, Rear Seatback Lock, RH
72062	Base Sub-assy, Rear Seatback Lock, LH
72630C	Lock Assy, Rear Seatback, RH
72640A	Lock Assy, Rear Seatback, LH
72667	Bezel, Rear Seatback Lock, Upper
72693	Hook, Rear Seat Cushion Lock
72806D	Holder Sub-assy, Rear Seat Center Armrest Cup
72830	Armrest Assy, Rear Seat, Center
72839	Shim, Rear Seat Armrest Hinge
72868B	Cover, Center Armrest Hinge
72927D	Clip (FOR REAR SEAT CUSHION UNDER COVER)
73705	Bracket Sub-assy, Child Restraint Seat Anchor, RH
73706	Bracket Sub-assy, Child Restraint Seat Anchor, LH
73731	Cover, Child Restraint Seat
73733	Cover, Child Restraint Seat Base
73735A	Cup, Child Restraint Seat Guide
76971F	Cover, Rear Under
76973E	Cover, Rear Under Side, RH
76974E	Cover, Rear Under Side, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
