Toyota Auris/Corolla HB(Jpp
2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General
Supported model
Data version 2022-09
Armrest & Visor
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

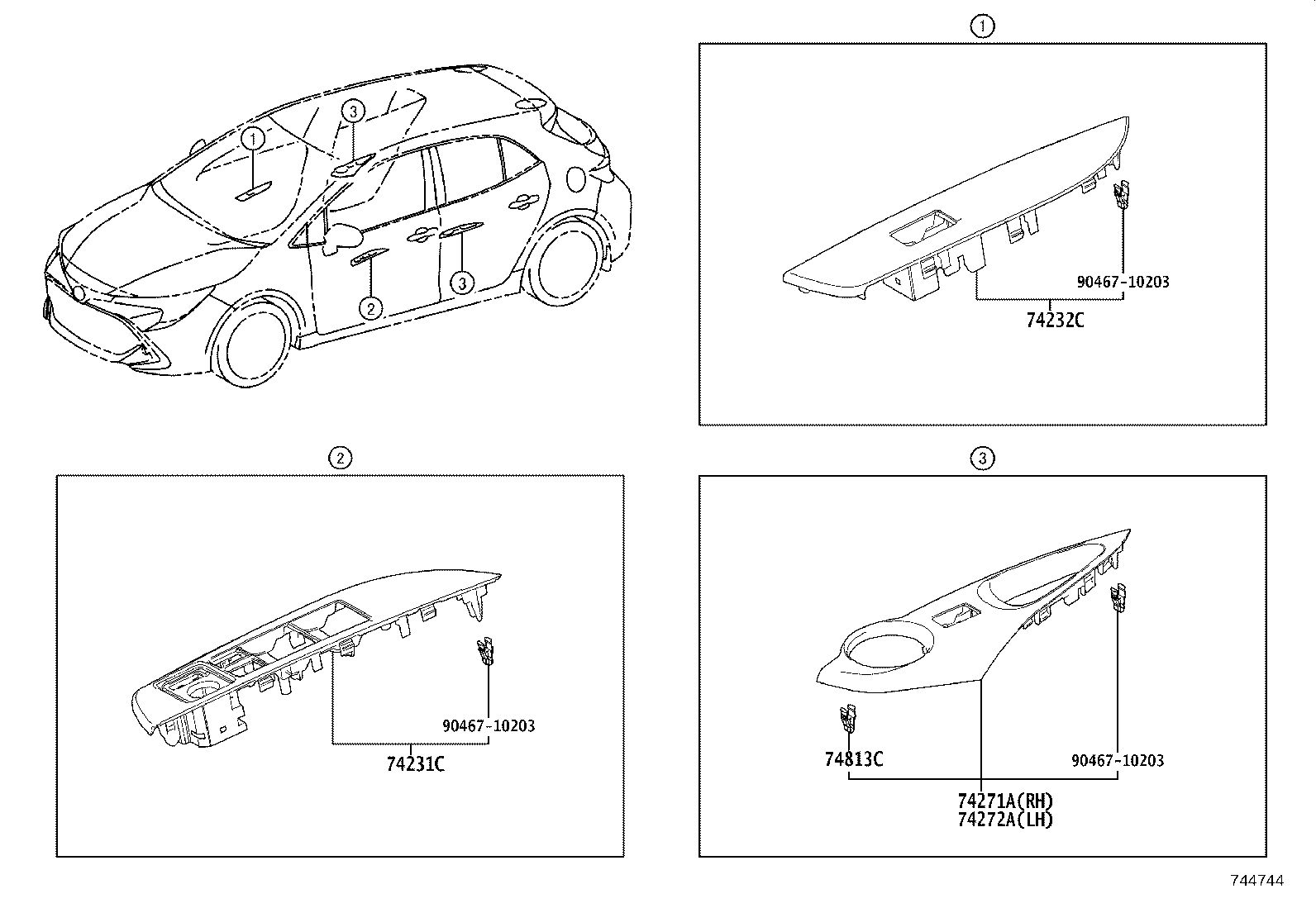

| 74231C | Panel, Front Door Armrest Base, Upper Driver Side |
| 74232C | Panel, Front Door Armrest Base, Upper Passenger Side |
| 74271A | Panel, Rear Door Armrest Base, Upper RH |
| 74272A | Panel, Rear Door Armrest Base, Upper LH |

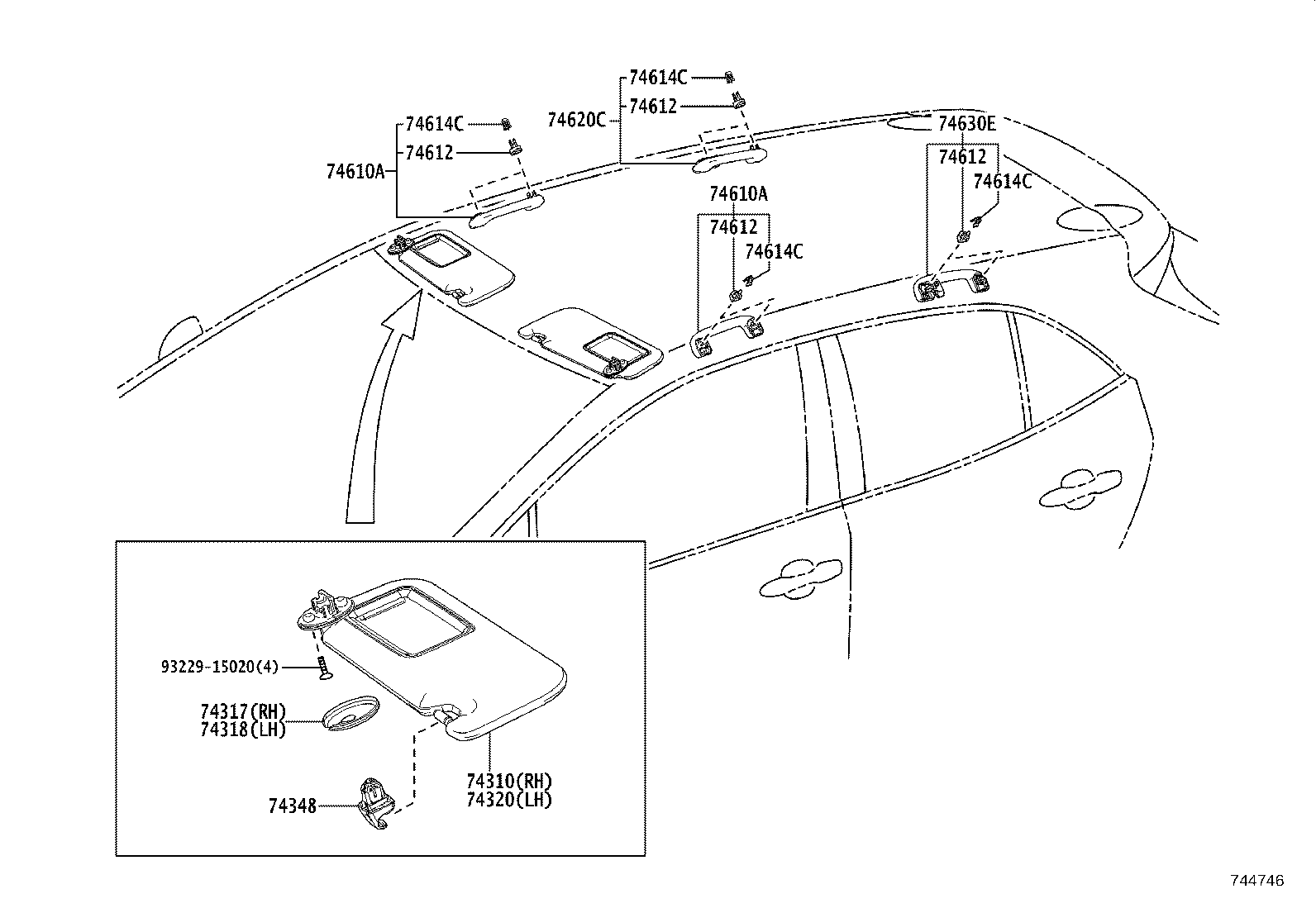

| 74310 | Visor Assy, RH |
| 74317 | Cover, Visor Bracket, RH |
| 74318 | Cover, Visor Bracket, LH |
| 74320 | Visor Assy, LH |
| 74348 | Holder, Visor |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74614C | Plate, Assist Grip Lock |
| 74620C | Grip Assy, Assist, Rear RH |
| 74630E | Grip Assy, Assist, Rear LH |
| 74813C | Clip |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
