Toyota Auris/Corolla HB(Jpp
2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General
Supported model
Data version 2022-09
Side Moulding
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75711B | Moulding, Front Door Belt, RH |
| 75712B | Moulding, Front Door Belt, LH |
| 75721A | Moulding, Rear Door Belt, RH |
| 75722A | Moulding, Rear Door Belt, LH |
| 75751A | Moulding, Front Door Window Frame, RH(FRONT PILLAR SIDE) |
| 75752A | Moulding, Front Door Window Frame, LH(FRONT PILLAR SIDE) |
| 75753 | Moulding, Front Door Window Frame, Upper RH |
| 75754A | Moulding, Front Door Window Frame, Upper LH |
| 75755A | Moulding, Front Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75756D | Moulding, Front Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75761B | Moulding, Rear Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75762B | Moulding, Rear Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75792 | Clip, Door Window Frame Moulding |

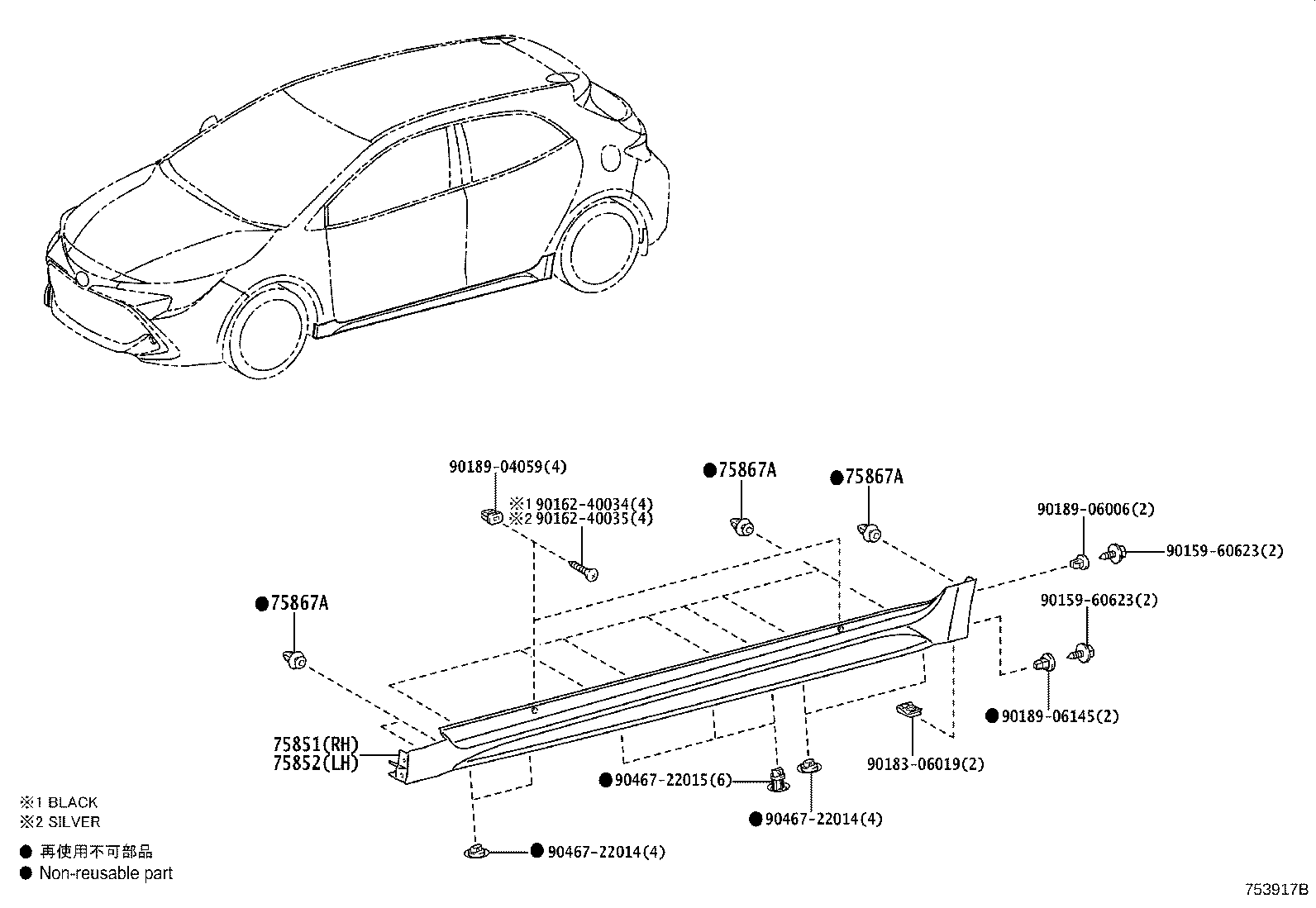

| 75851 | Moulding, Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 75867A | Clip, Rocker Panel Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
