Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Accelerator Link

1 part groups · 2 illustrations

Illustrations

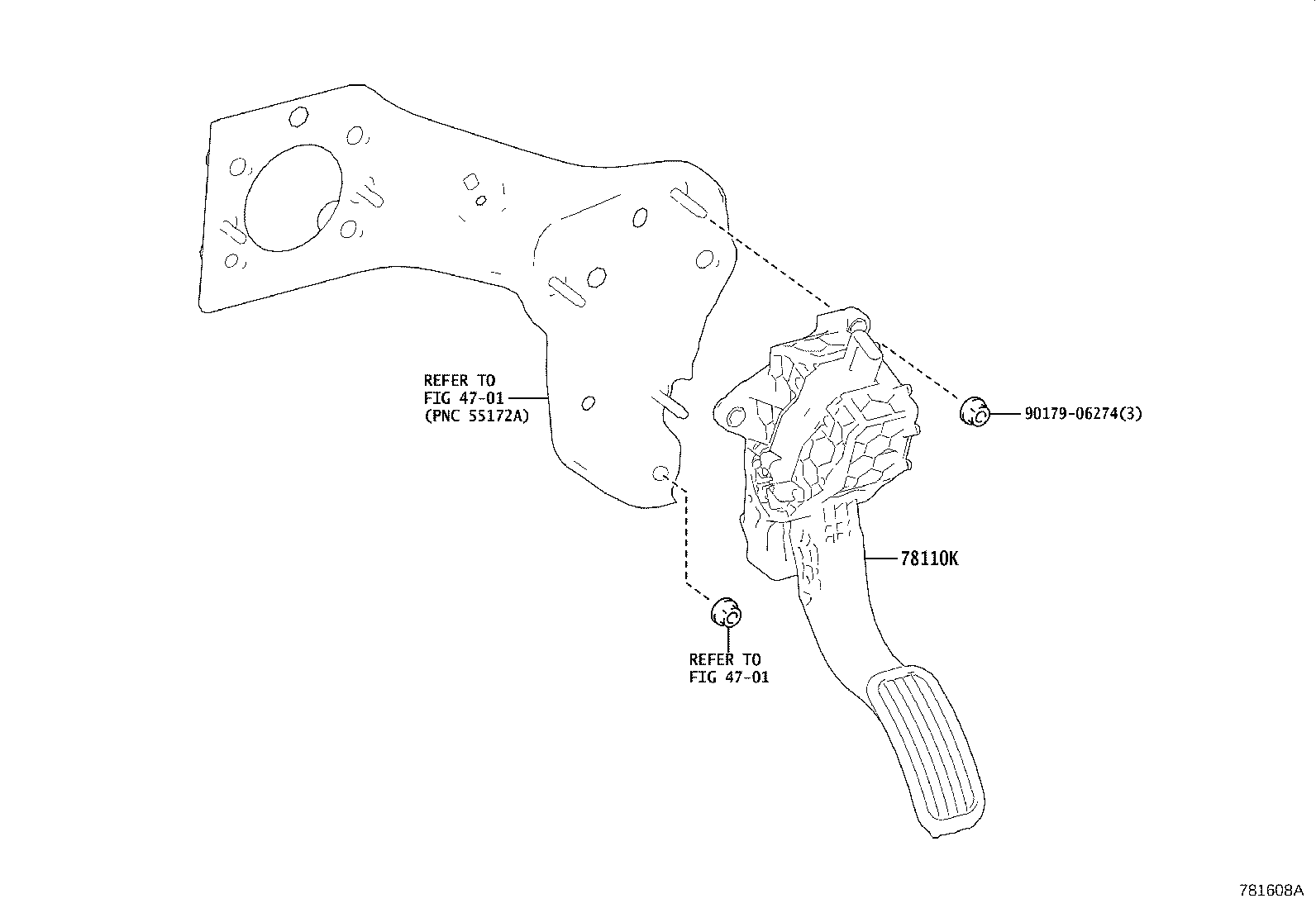

Figure 781607A 781607A 2018-06 → — Figure 781608A 781608A 2018-06 → —

Part groups

PNCDescription
78110K Rod Assy, Accelerator Pedal(W/SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
