Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

127 part groups · 54 illustrations

Illustrations

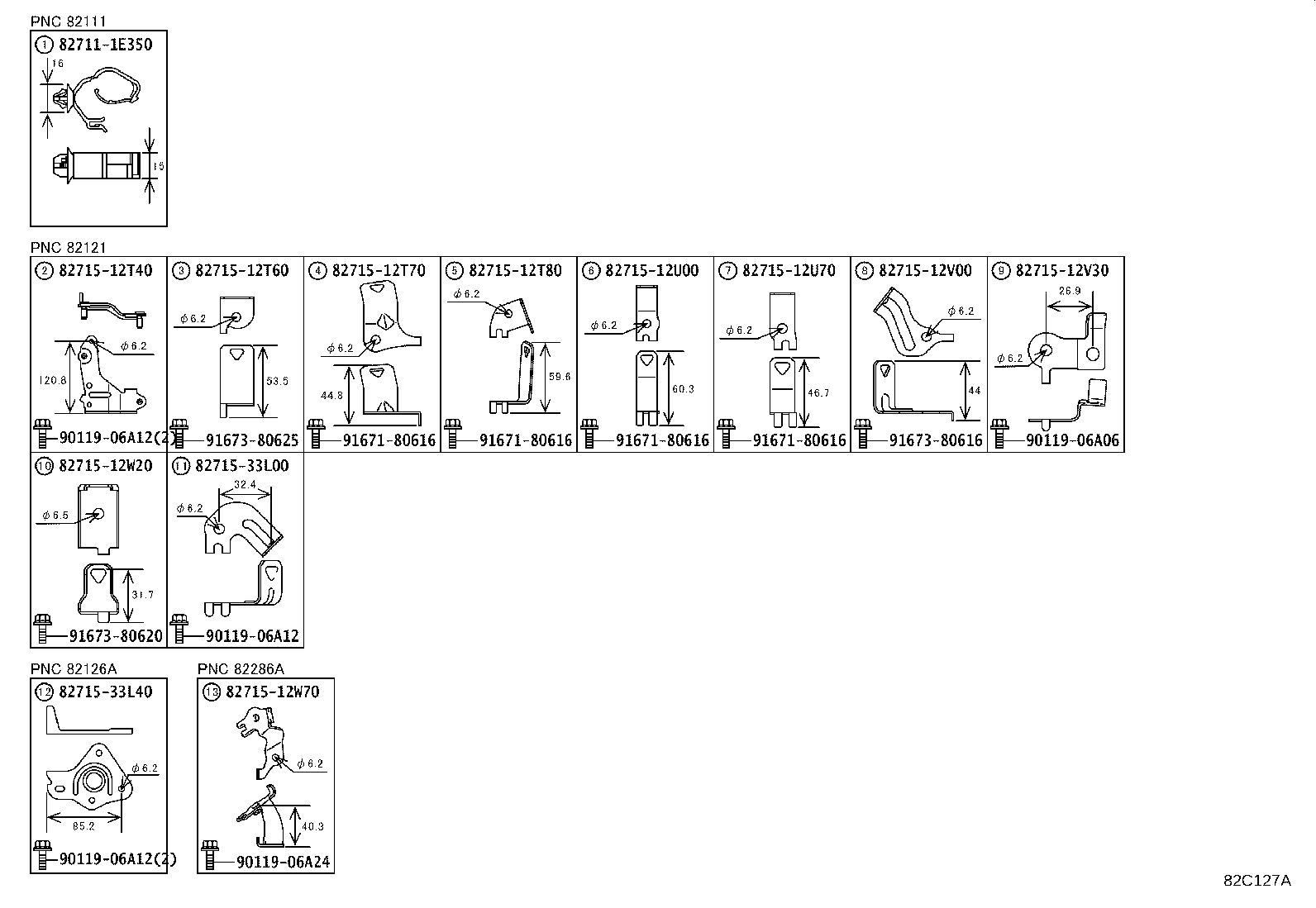

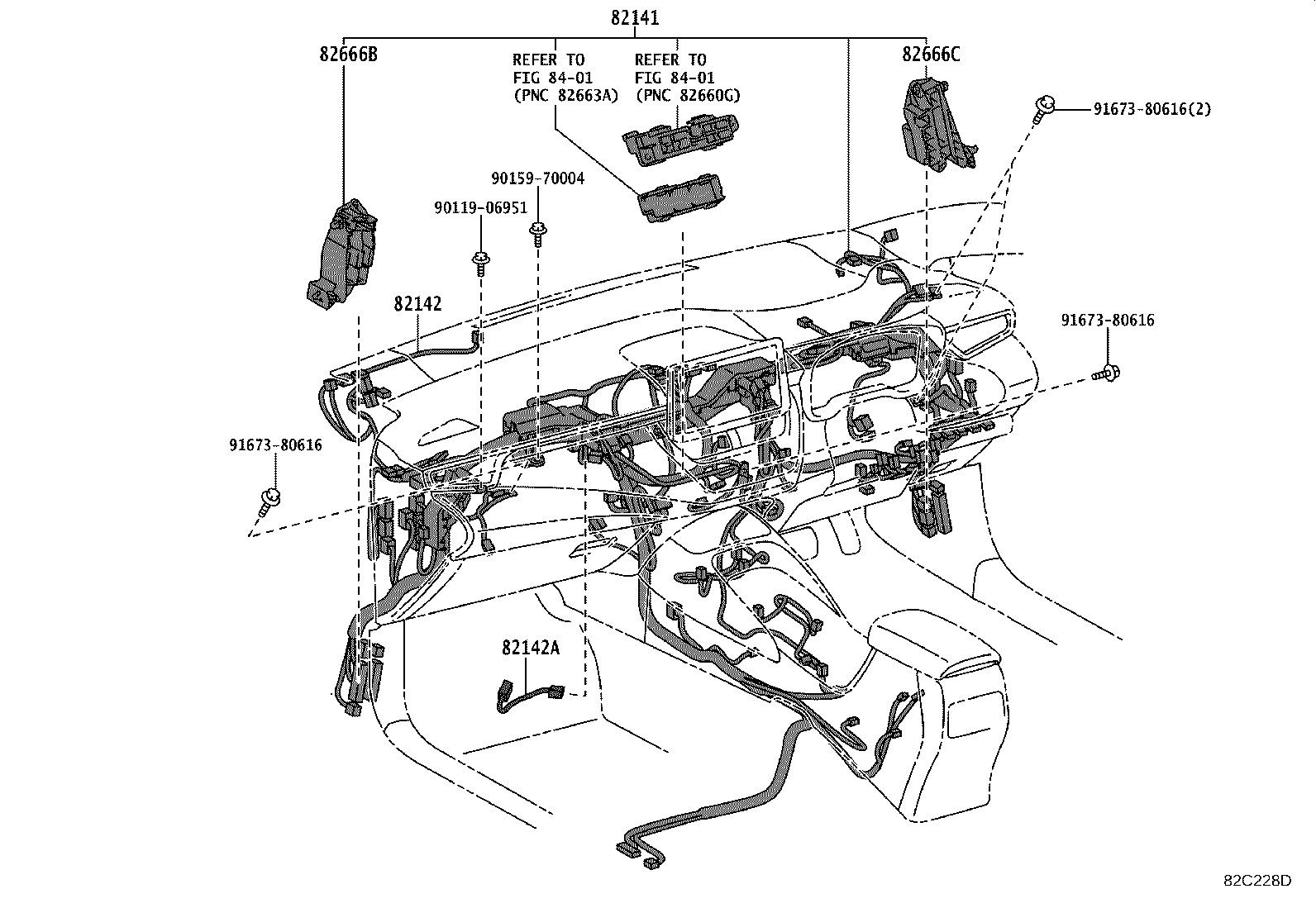

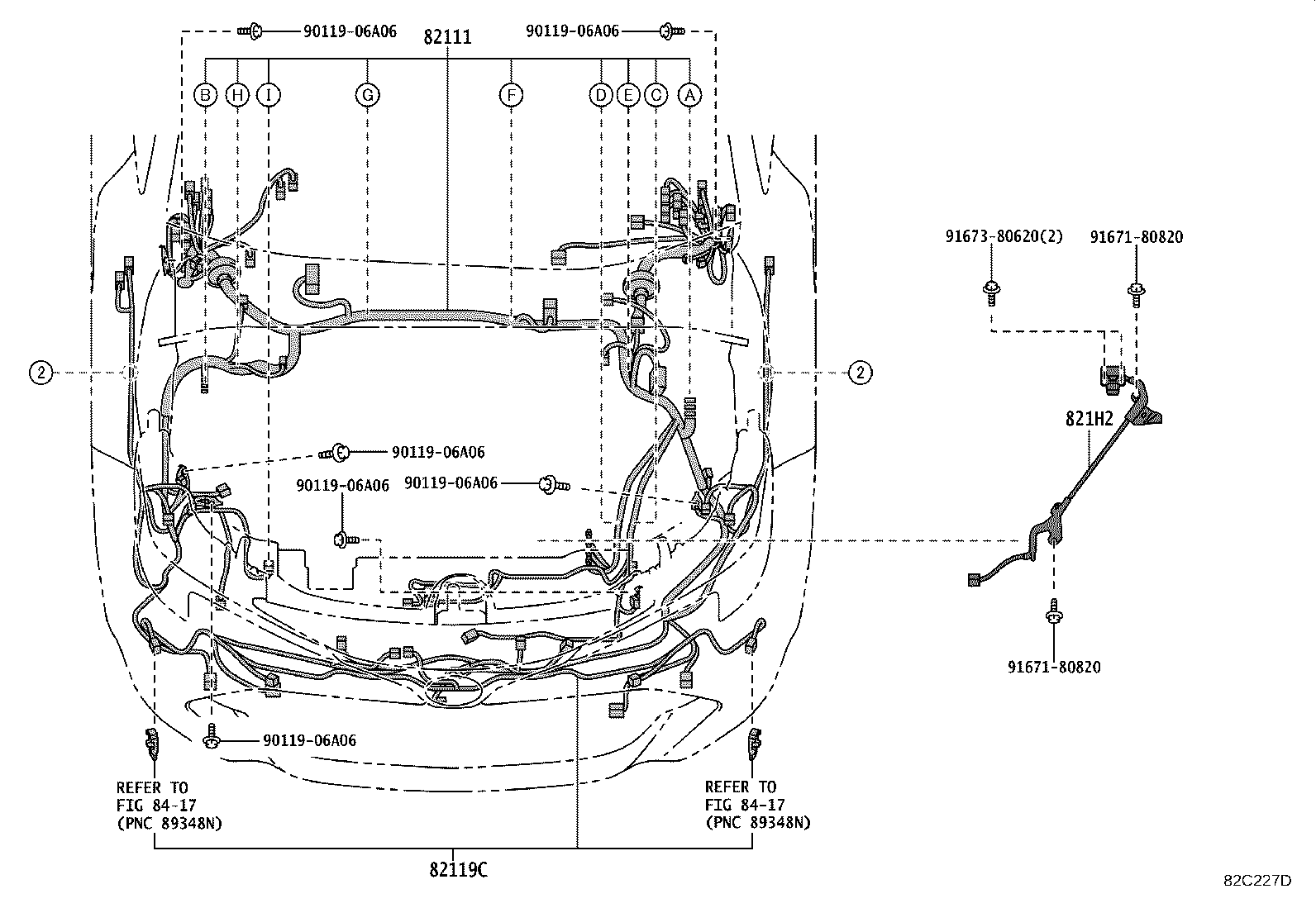

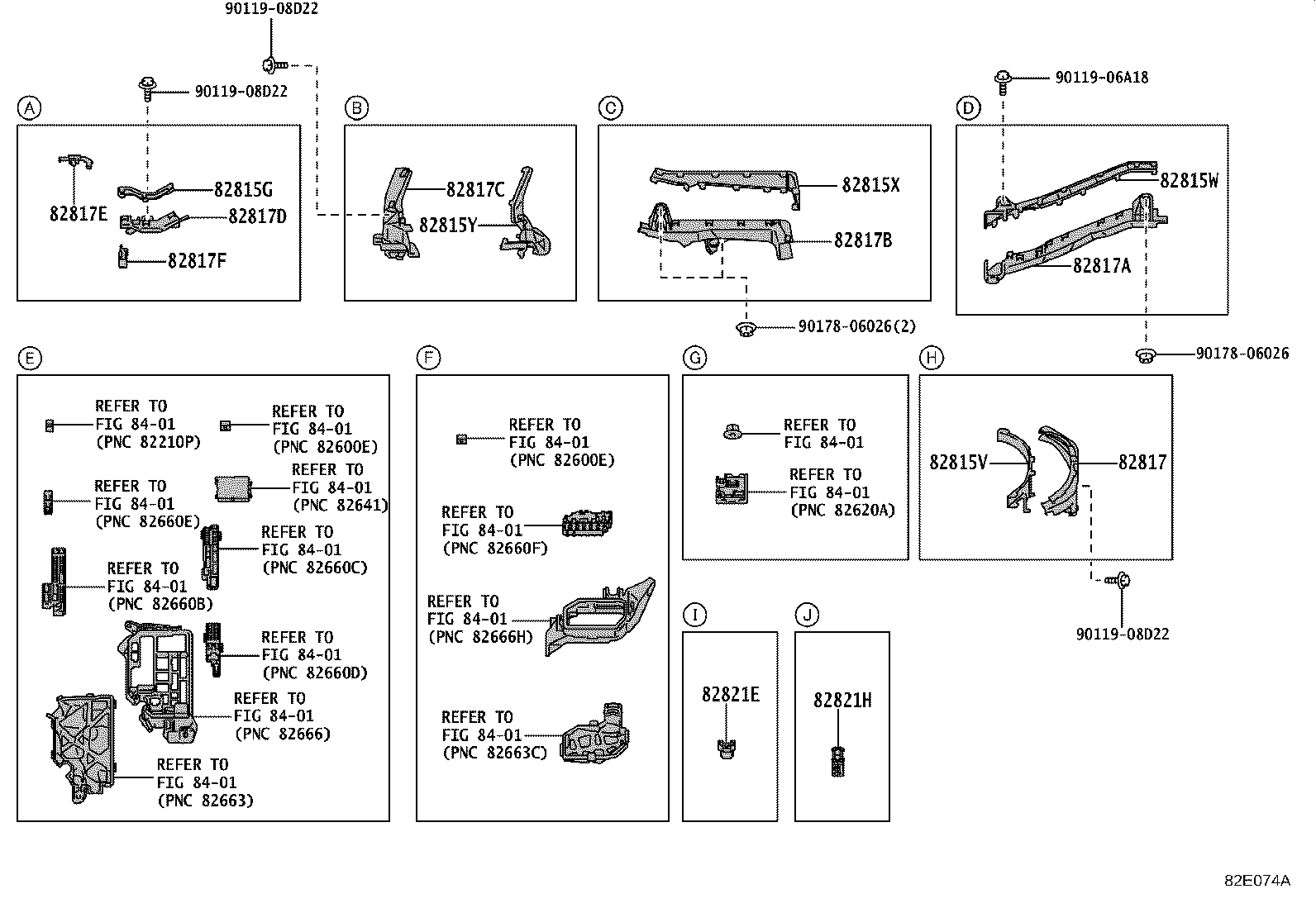

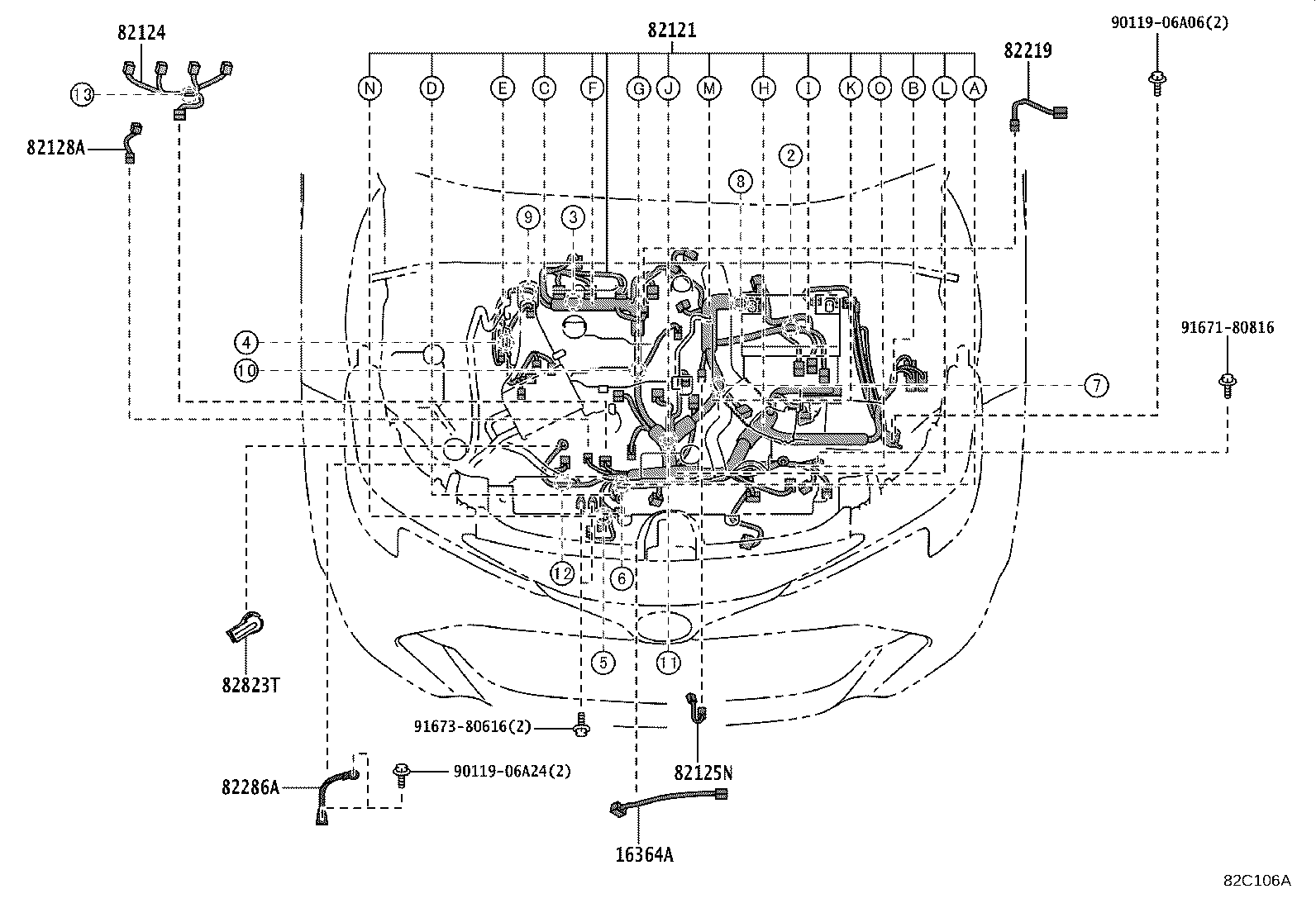

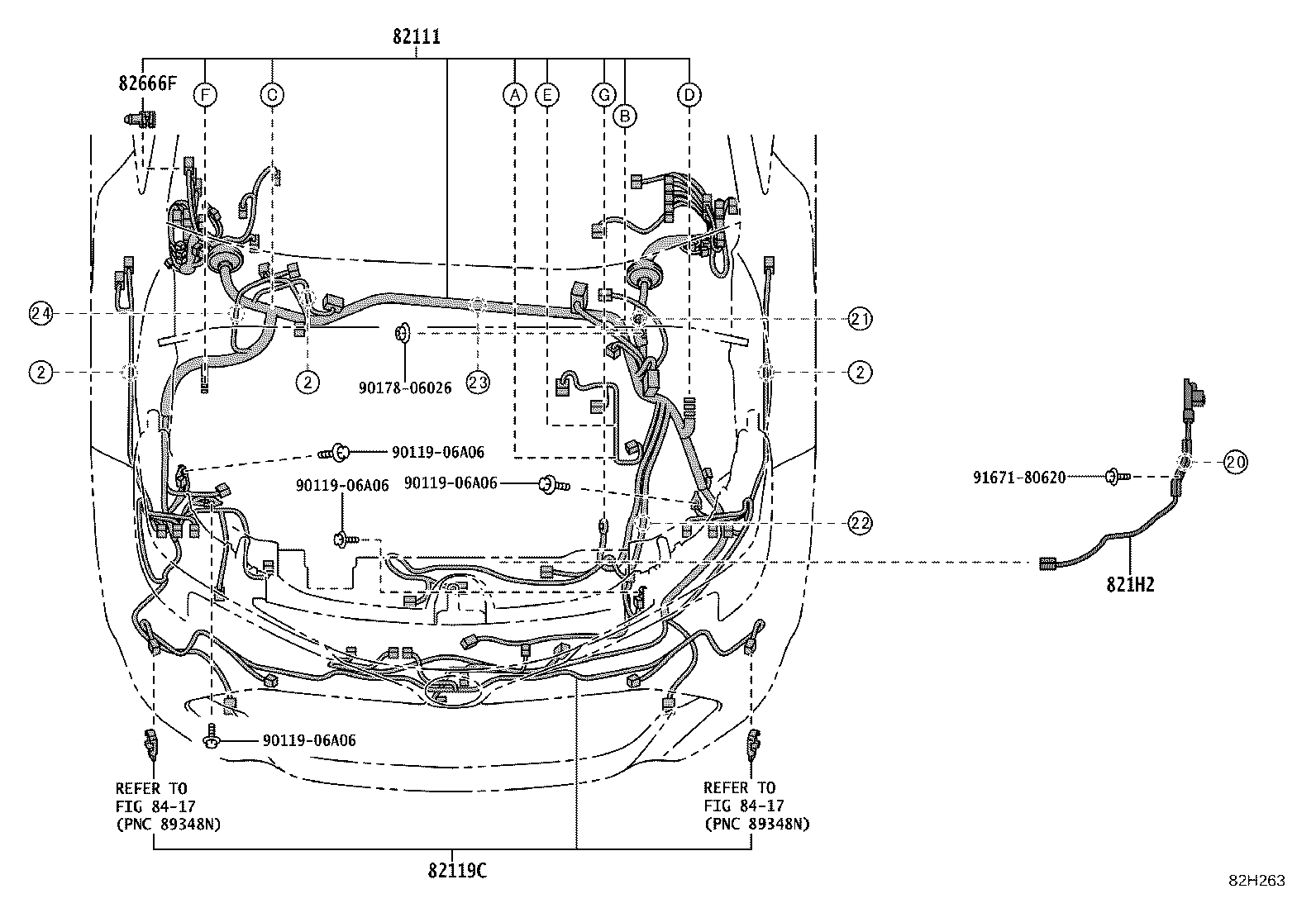

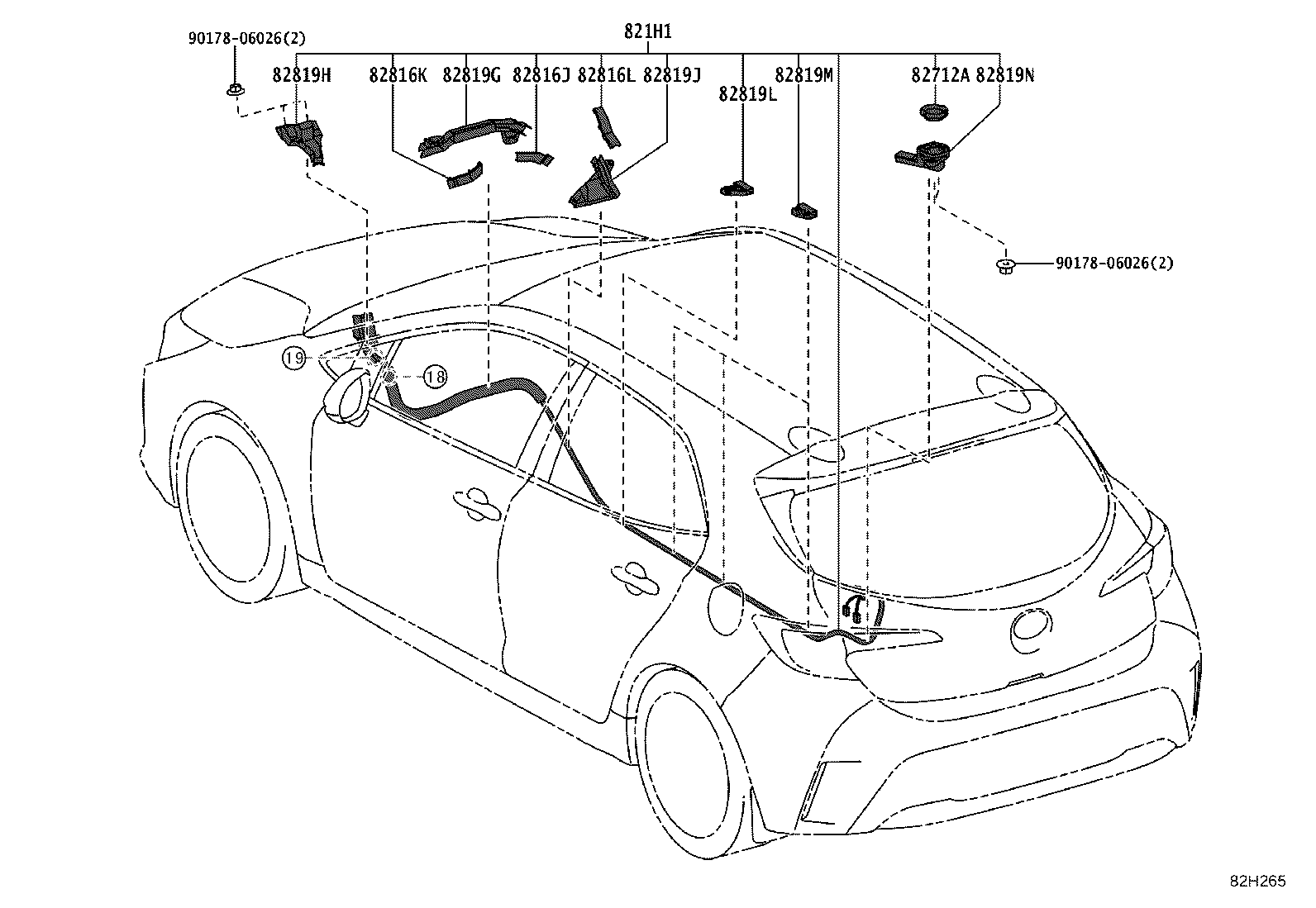

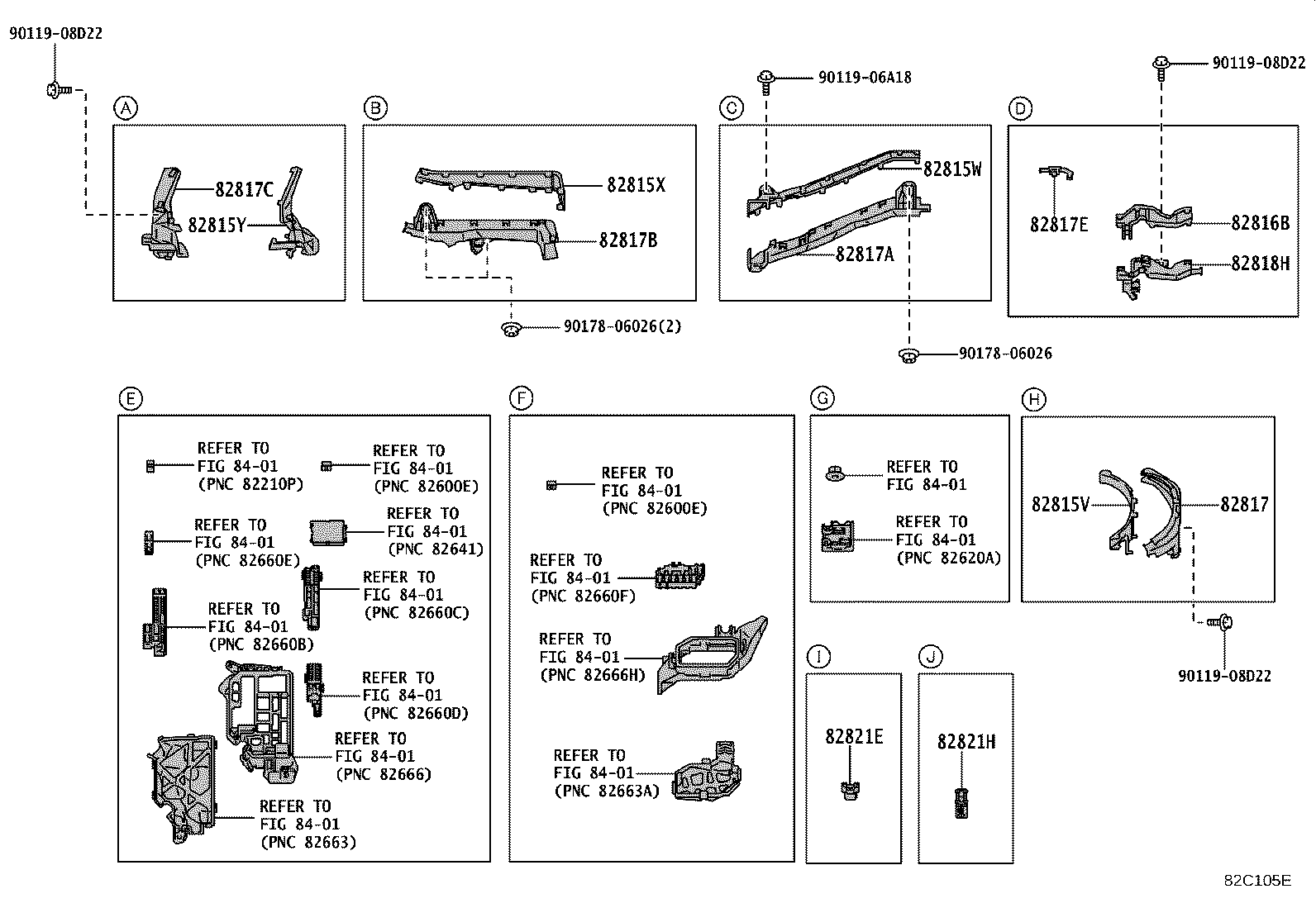

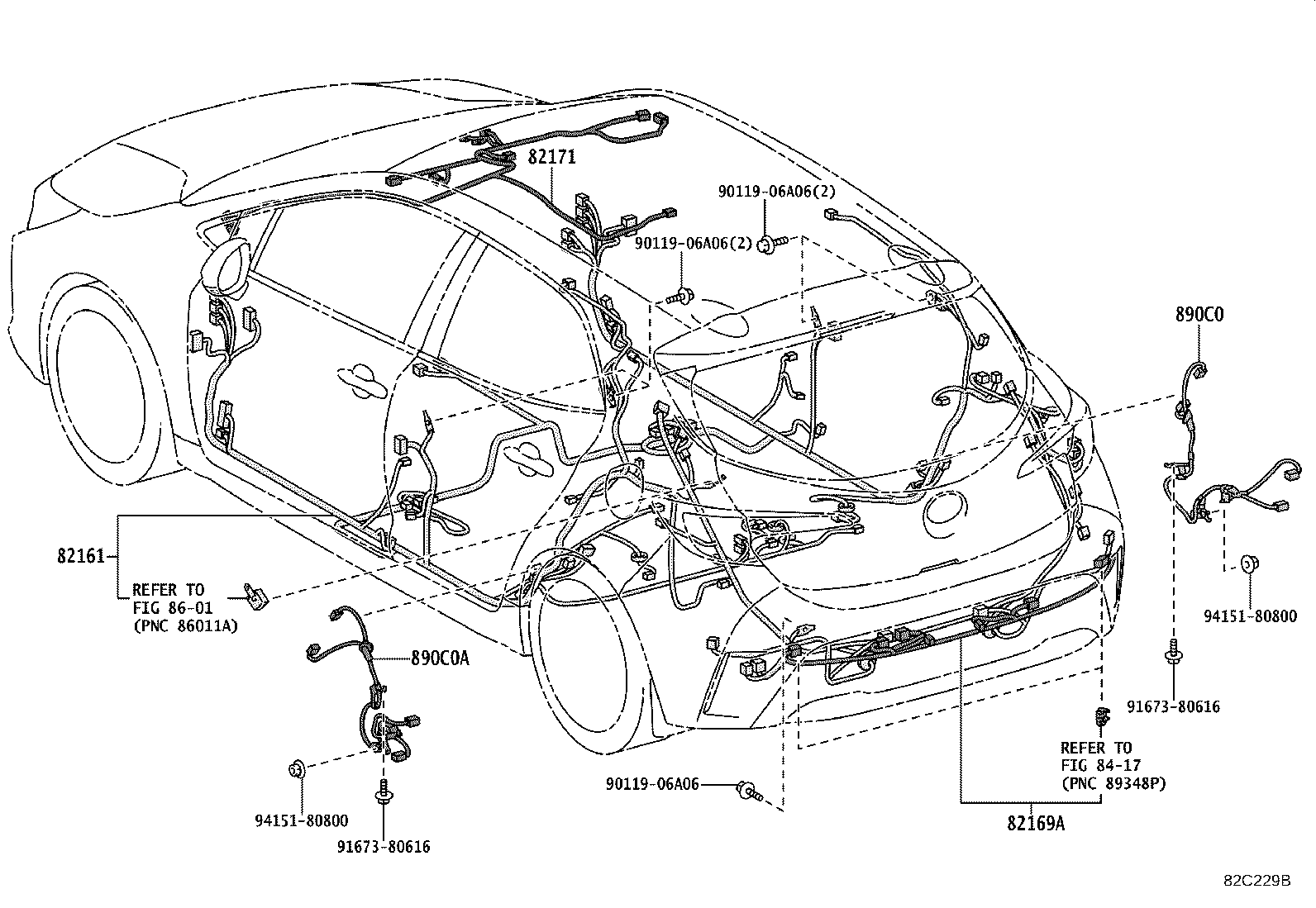

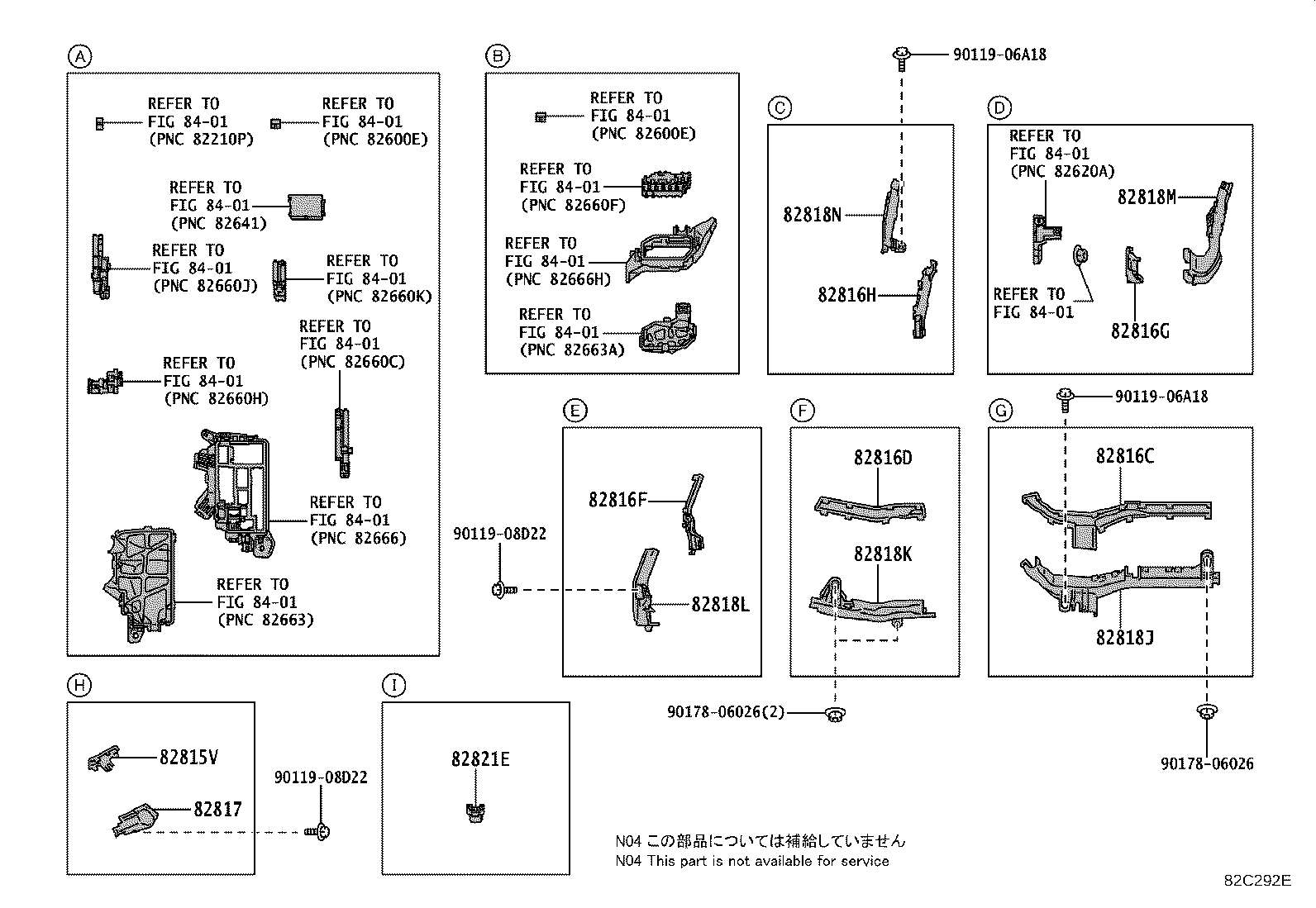

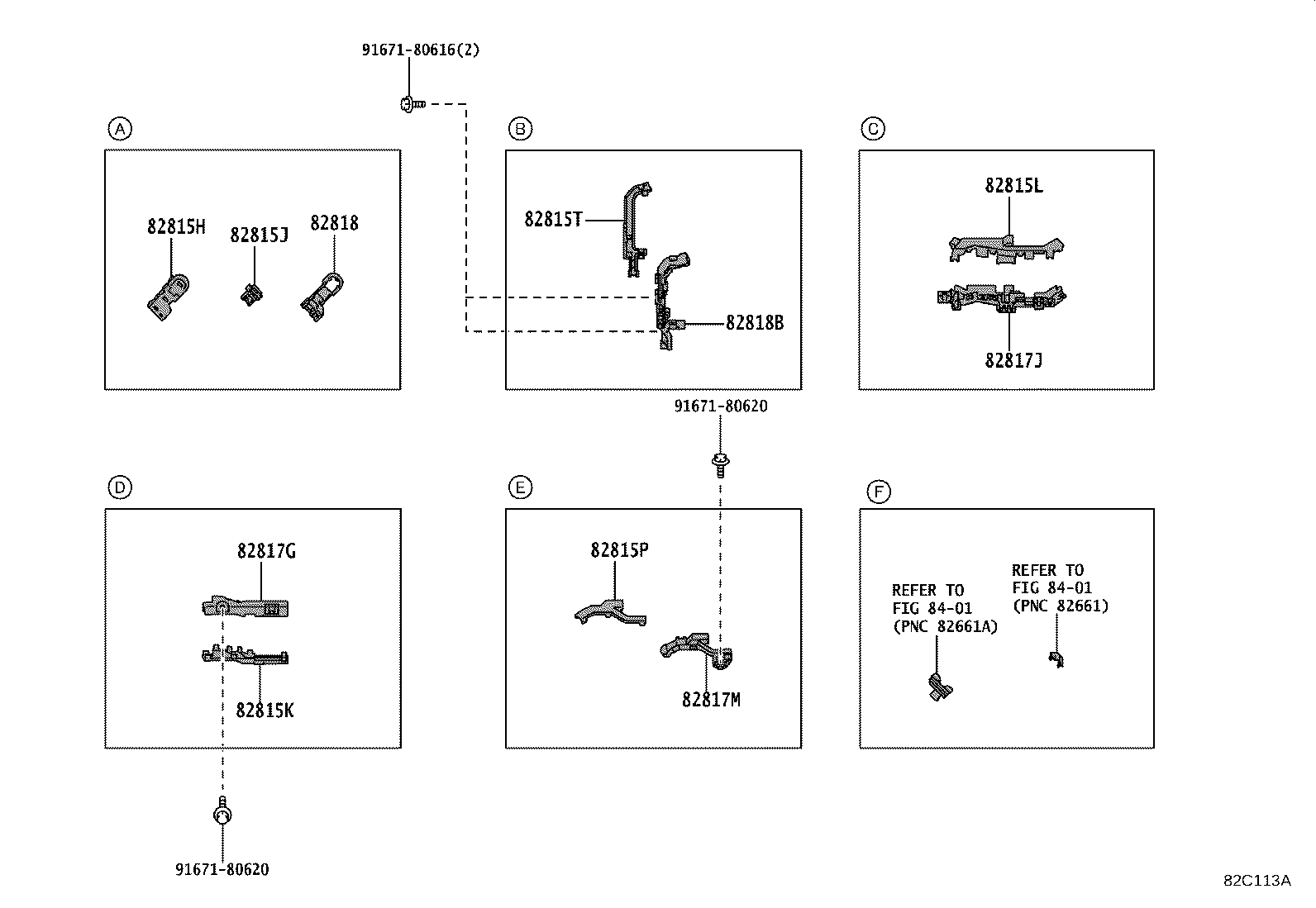

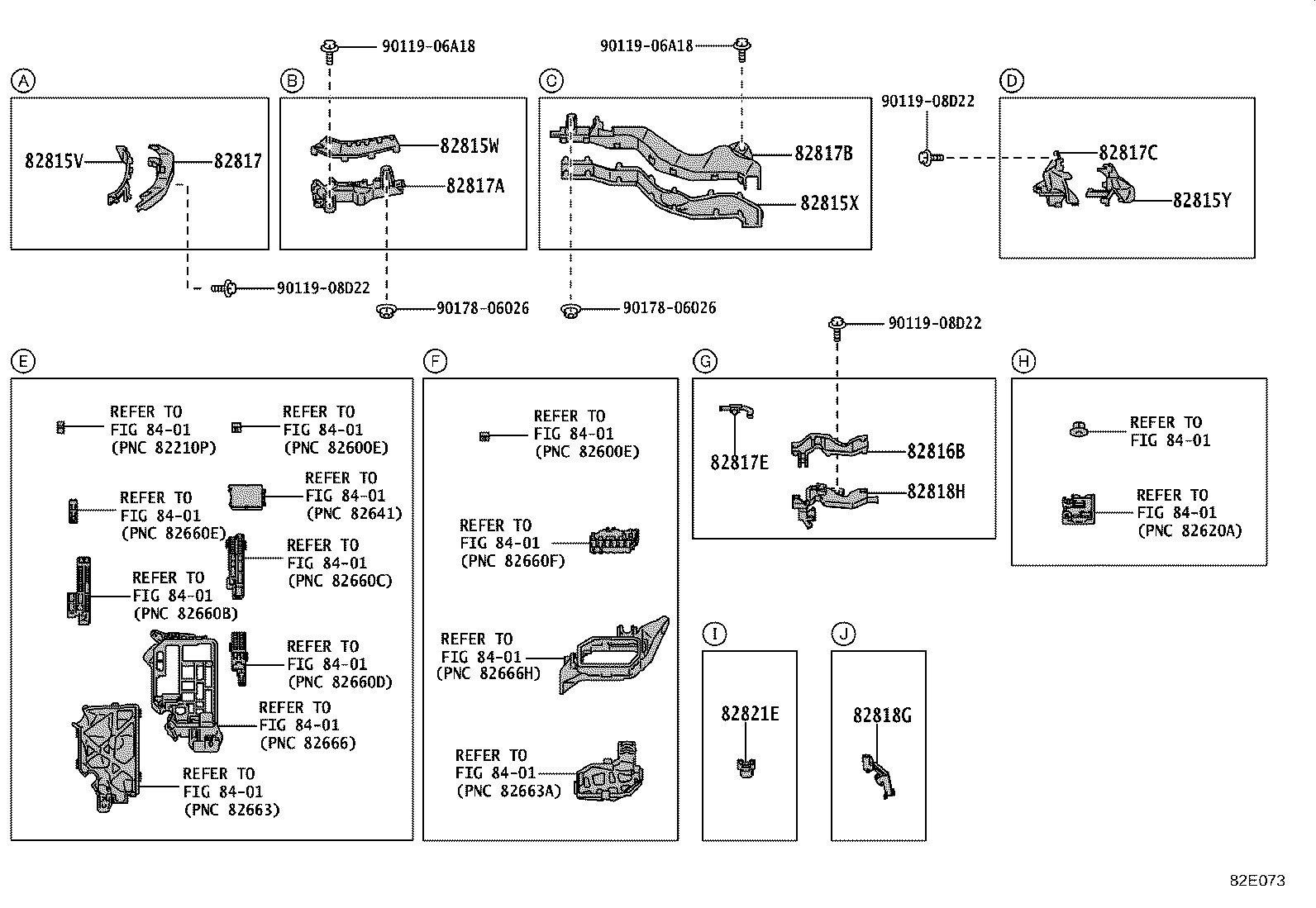

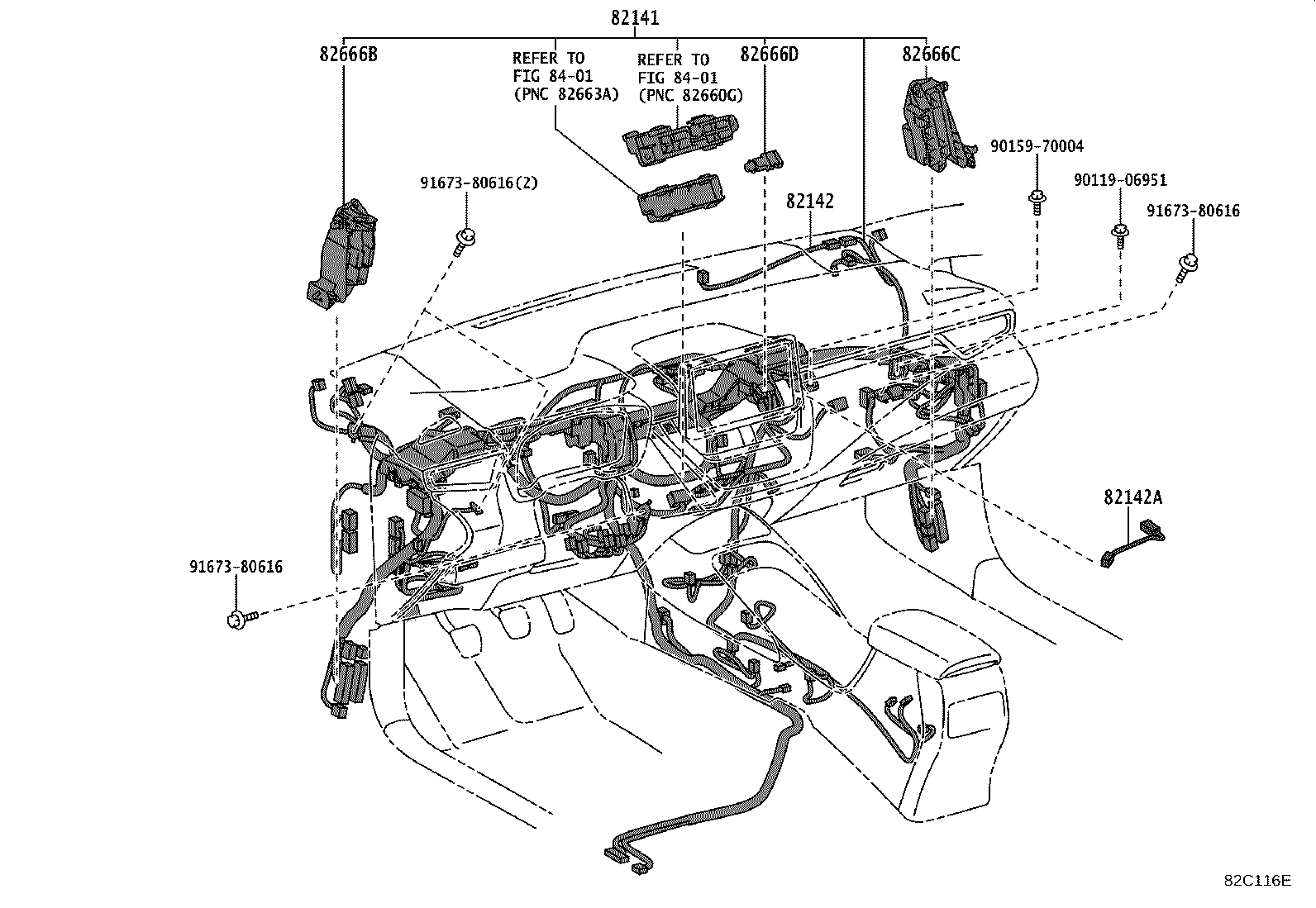

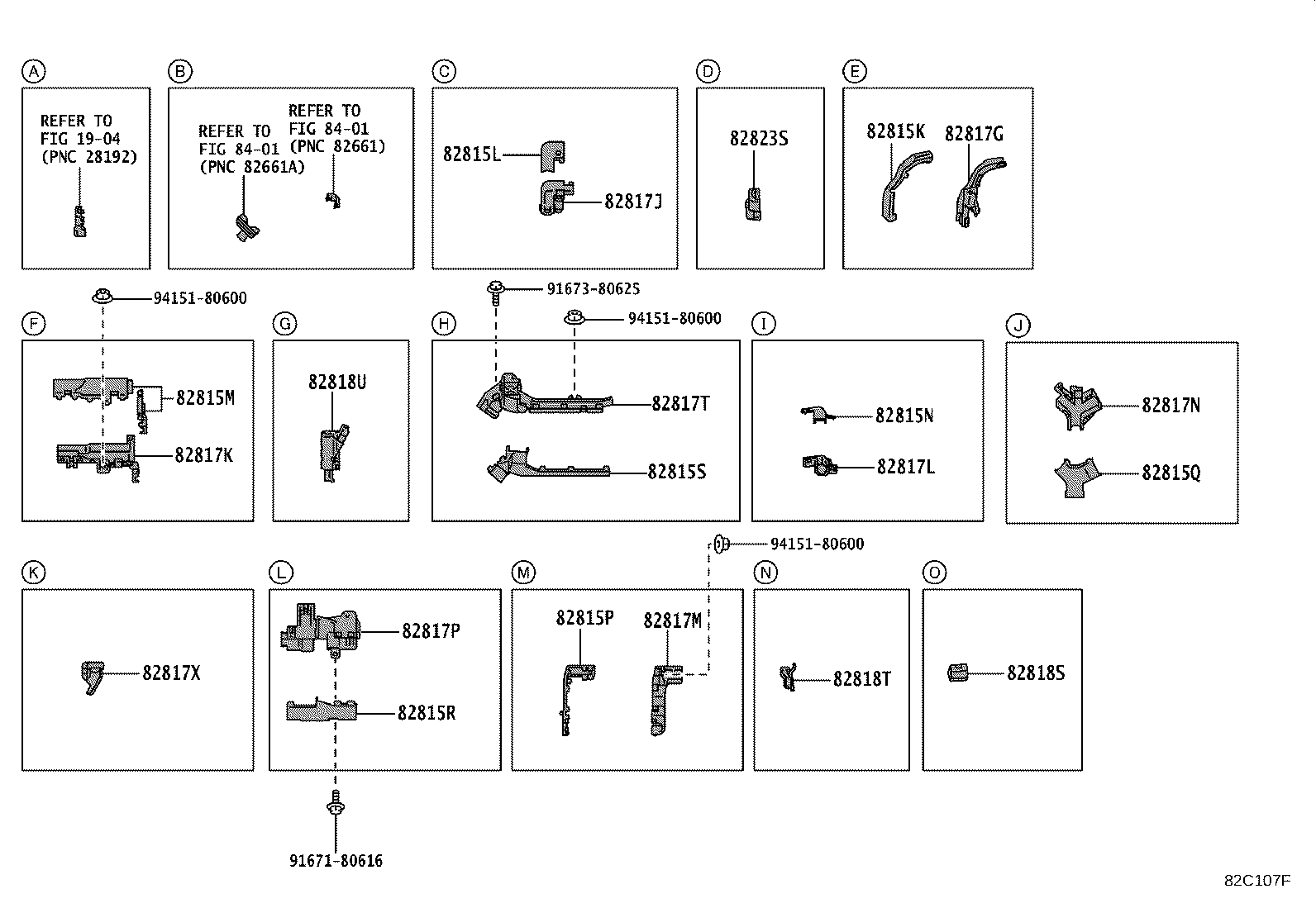

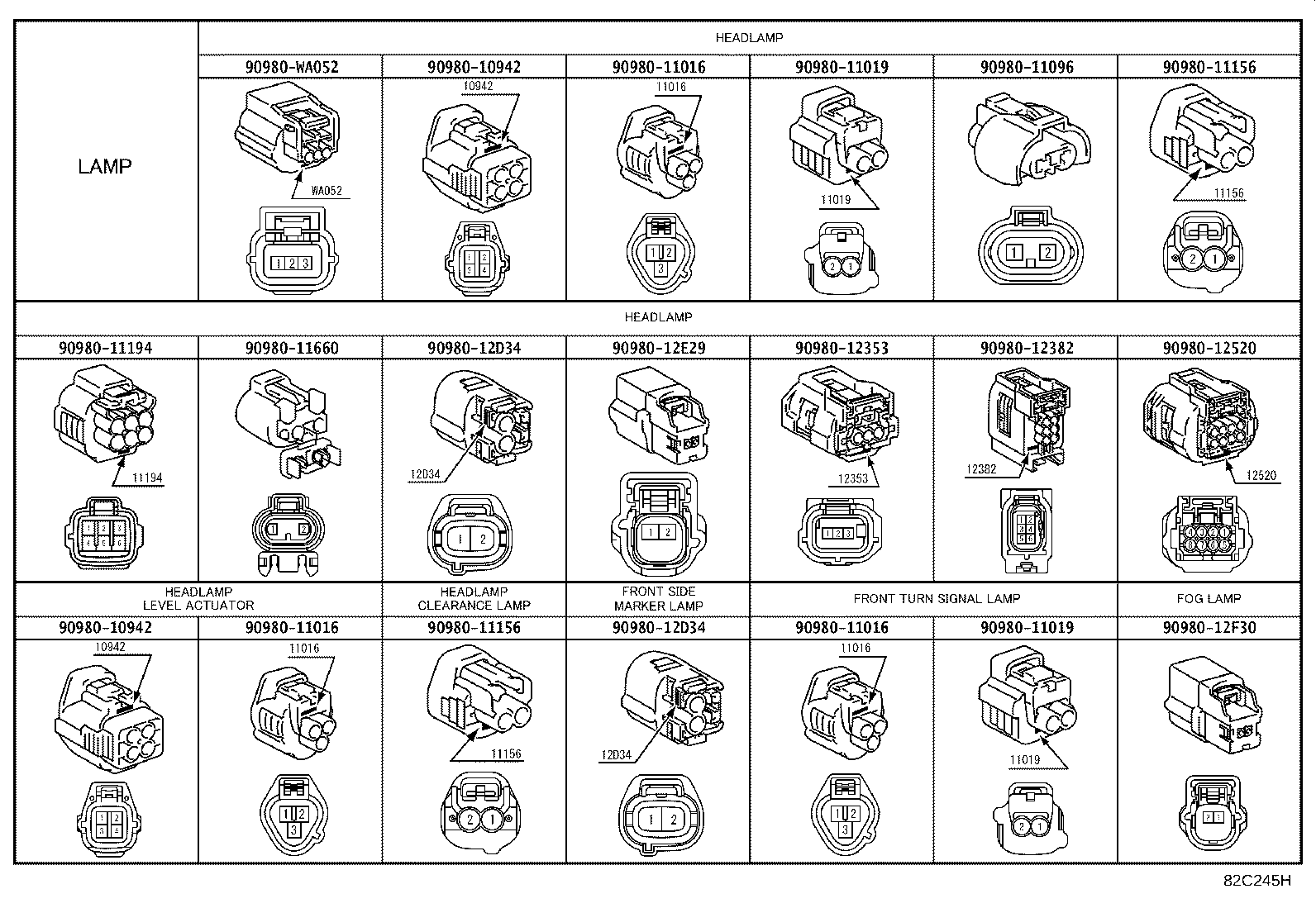

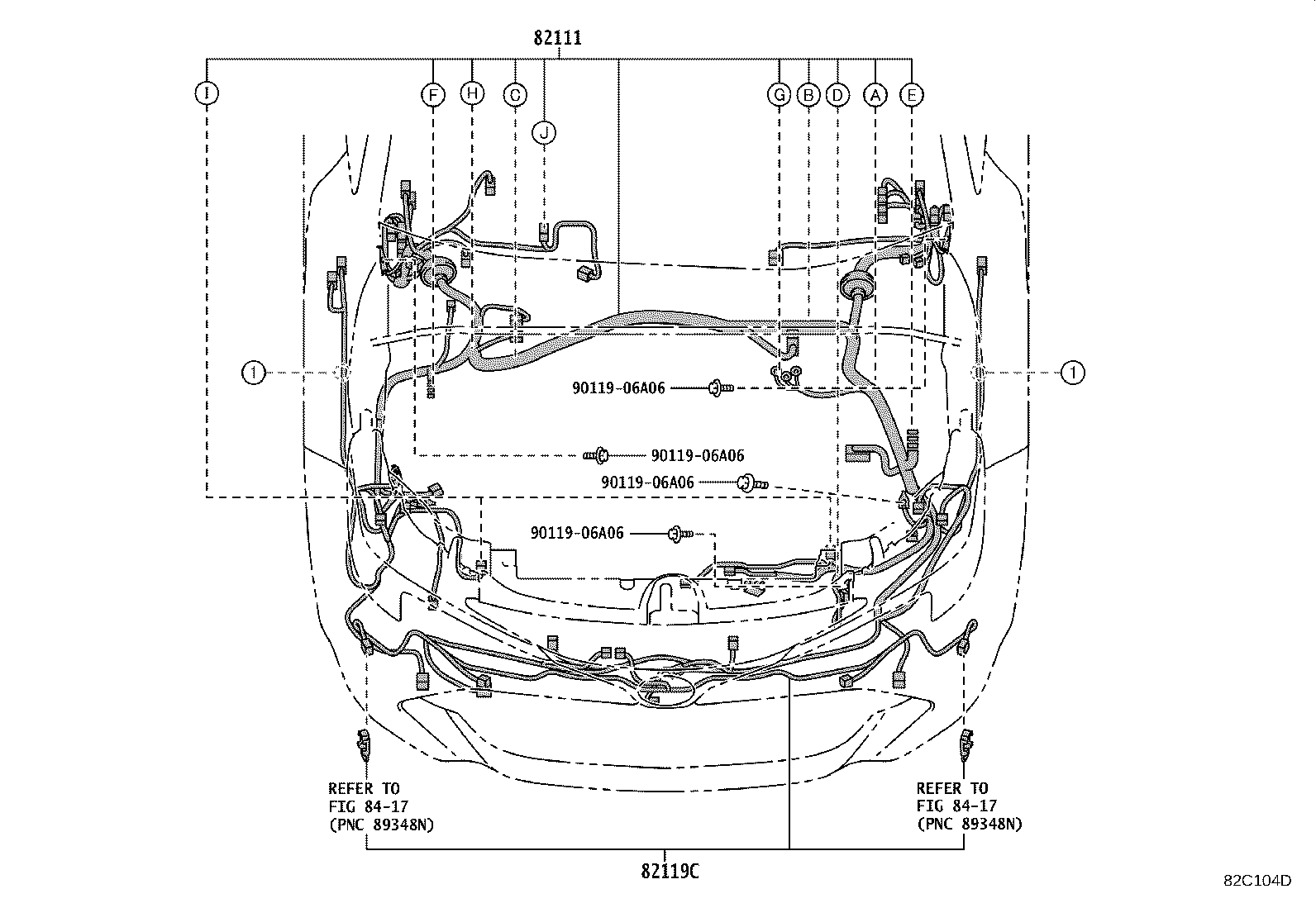

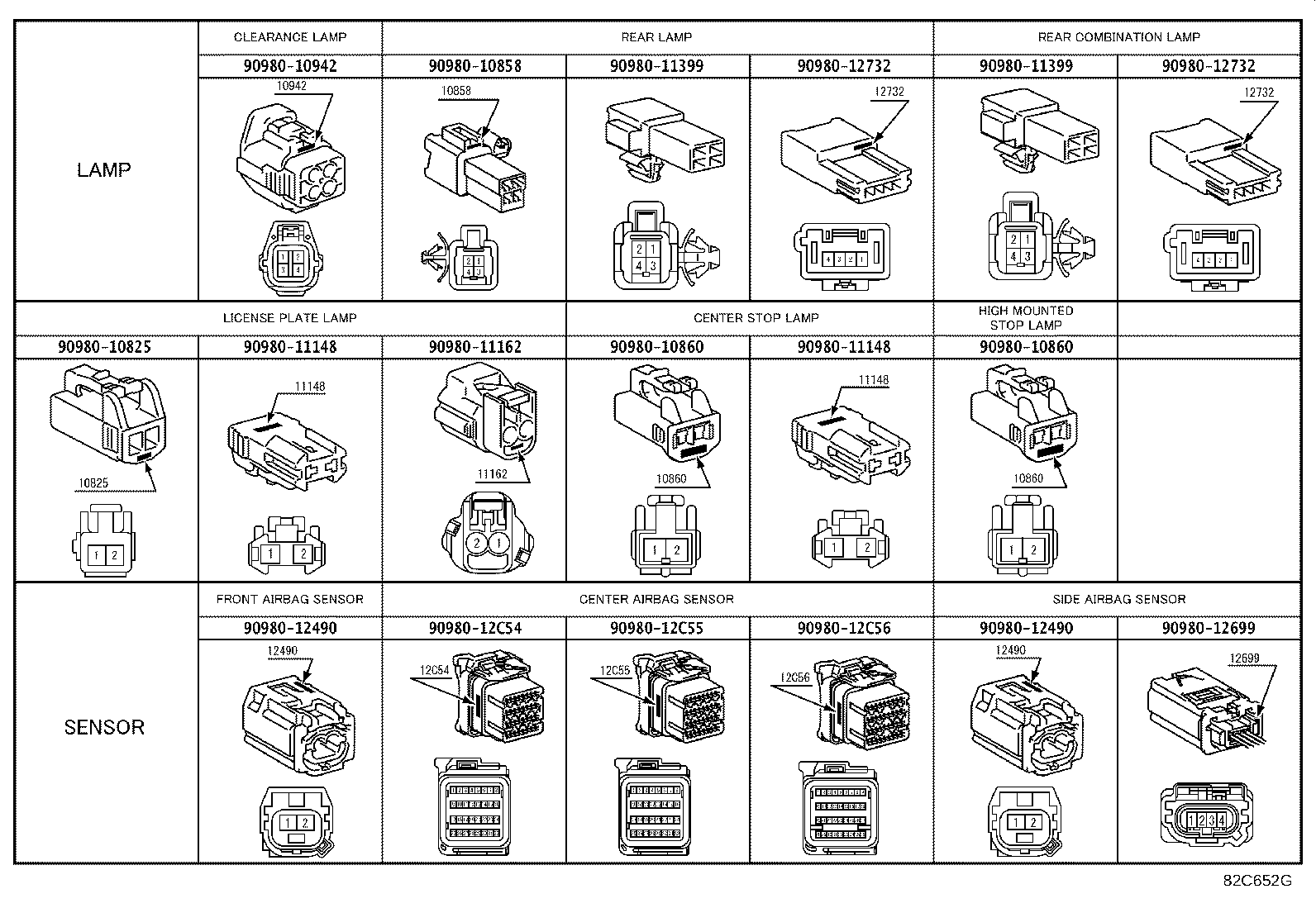

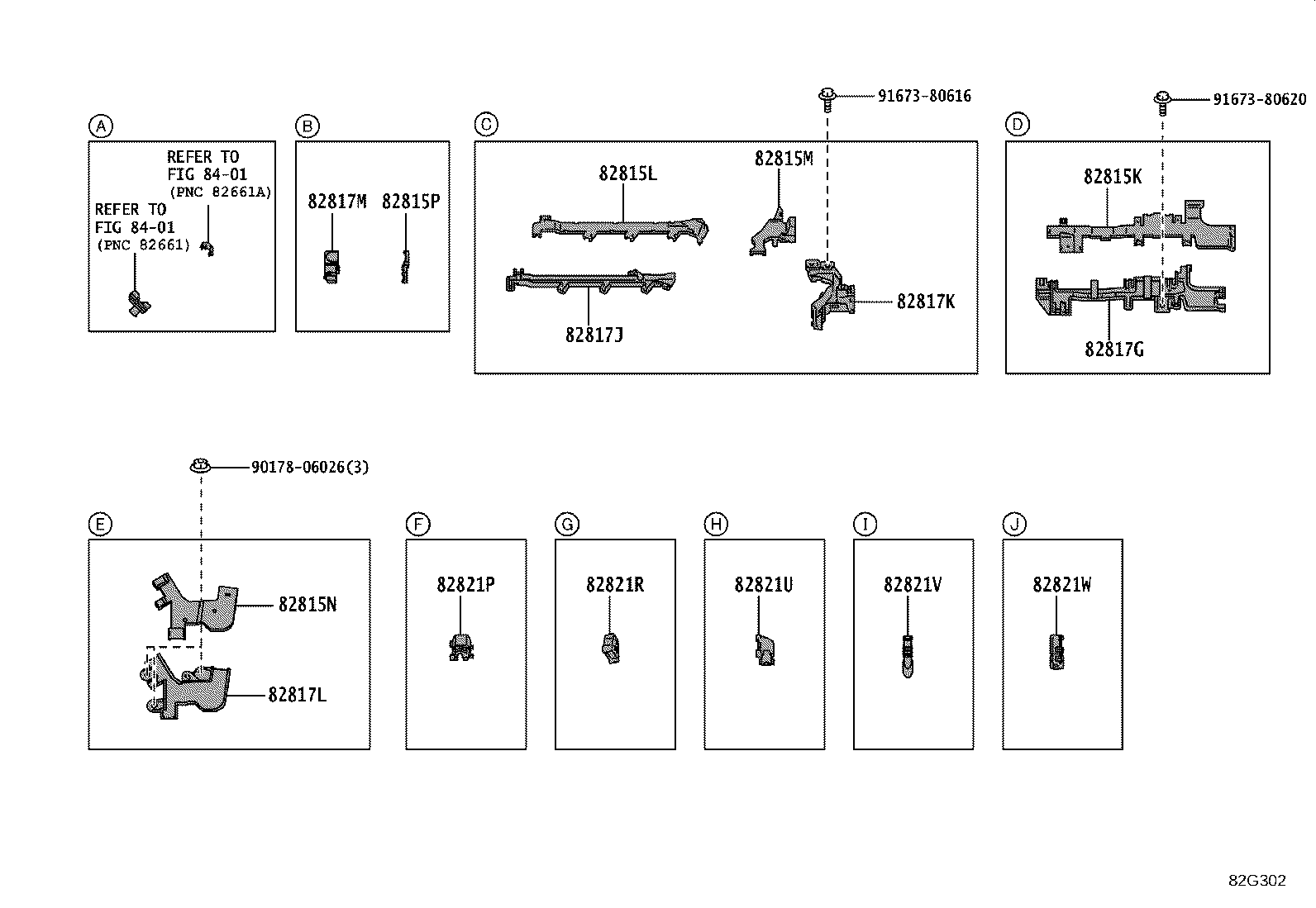

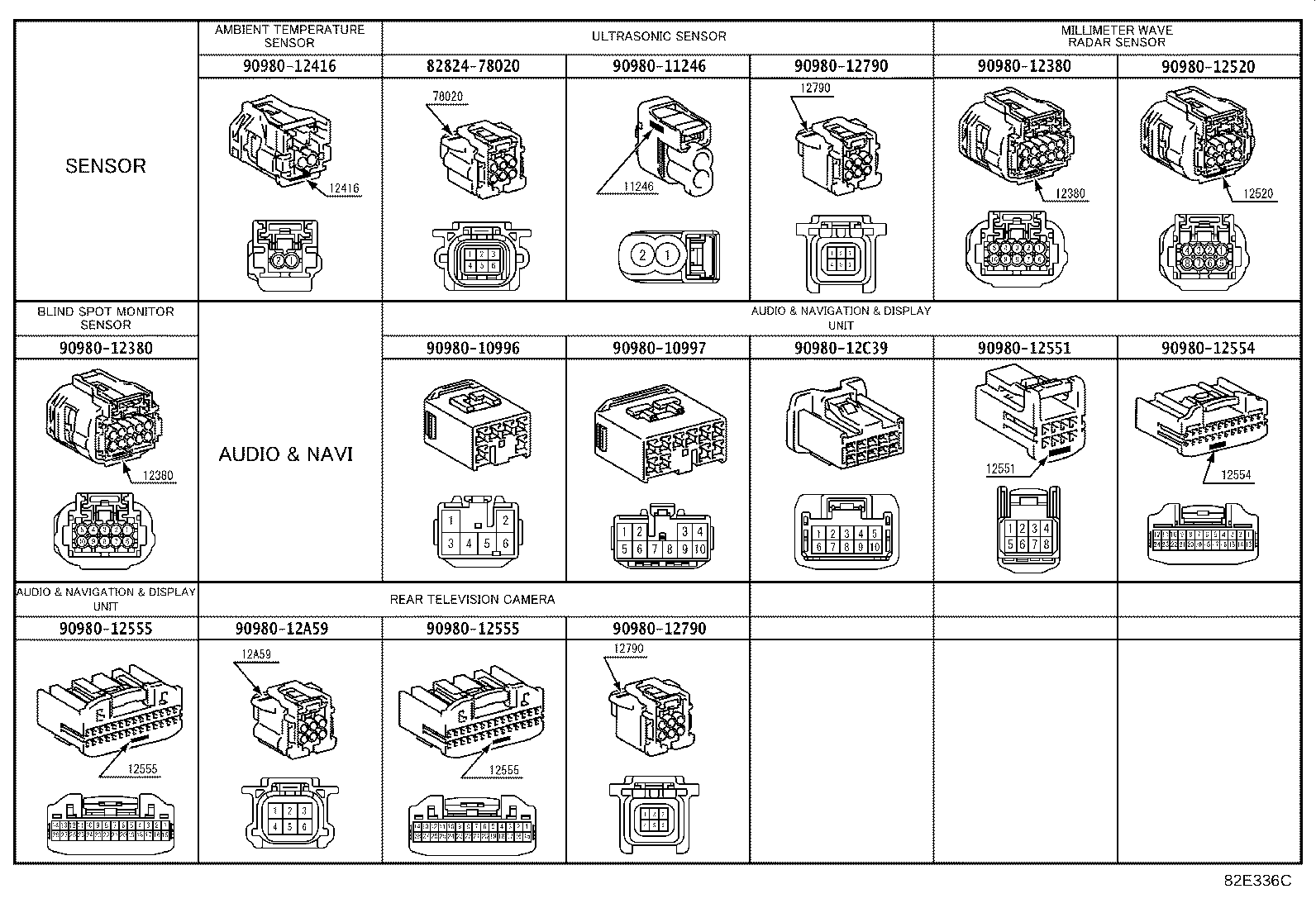

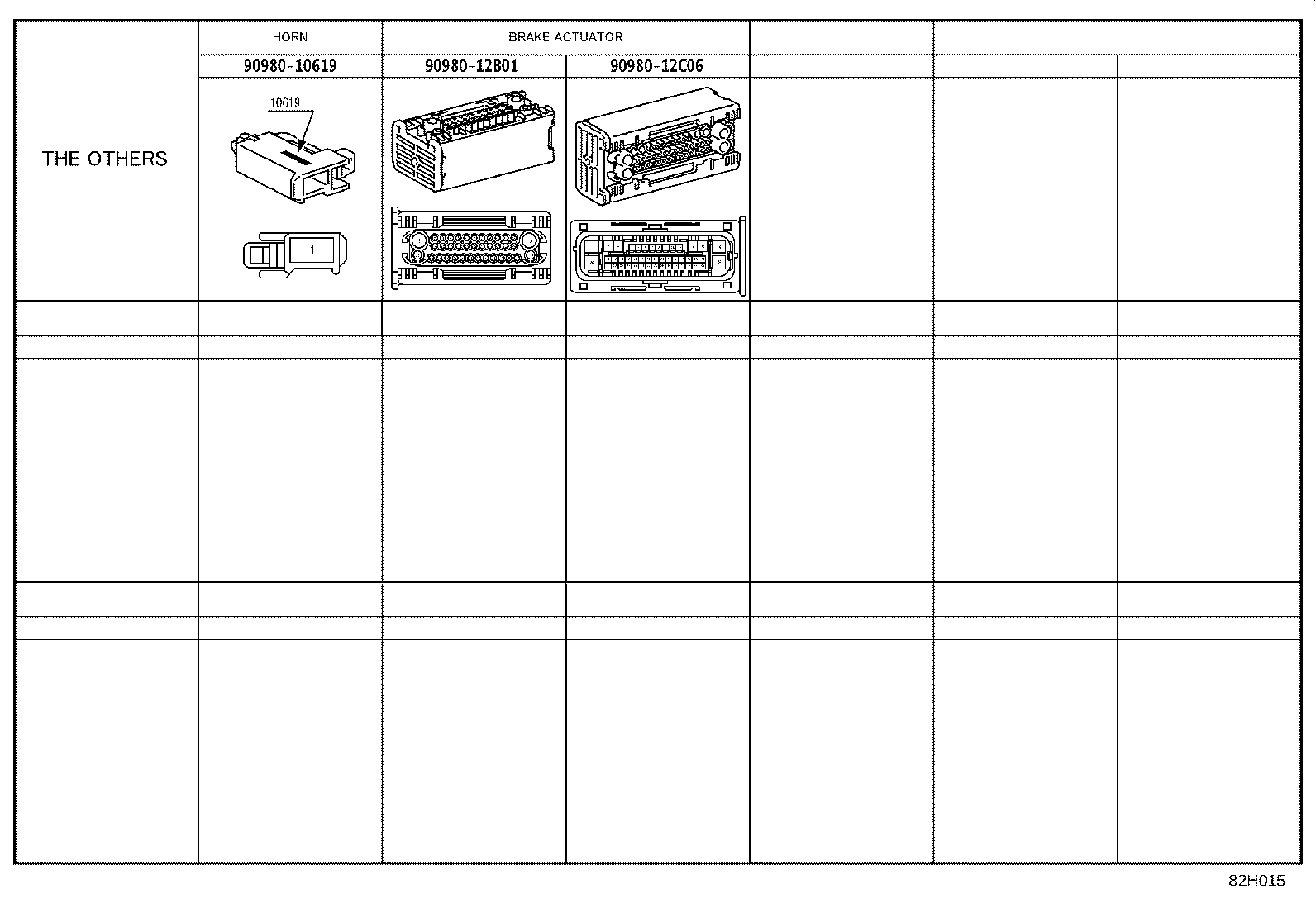

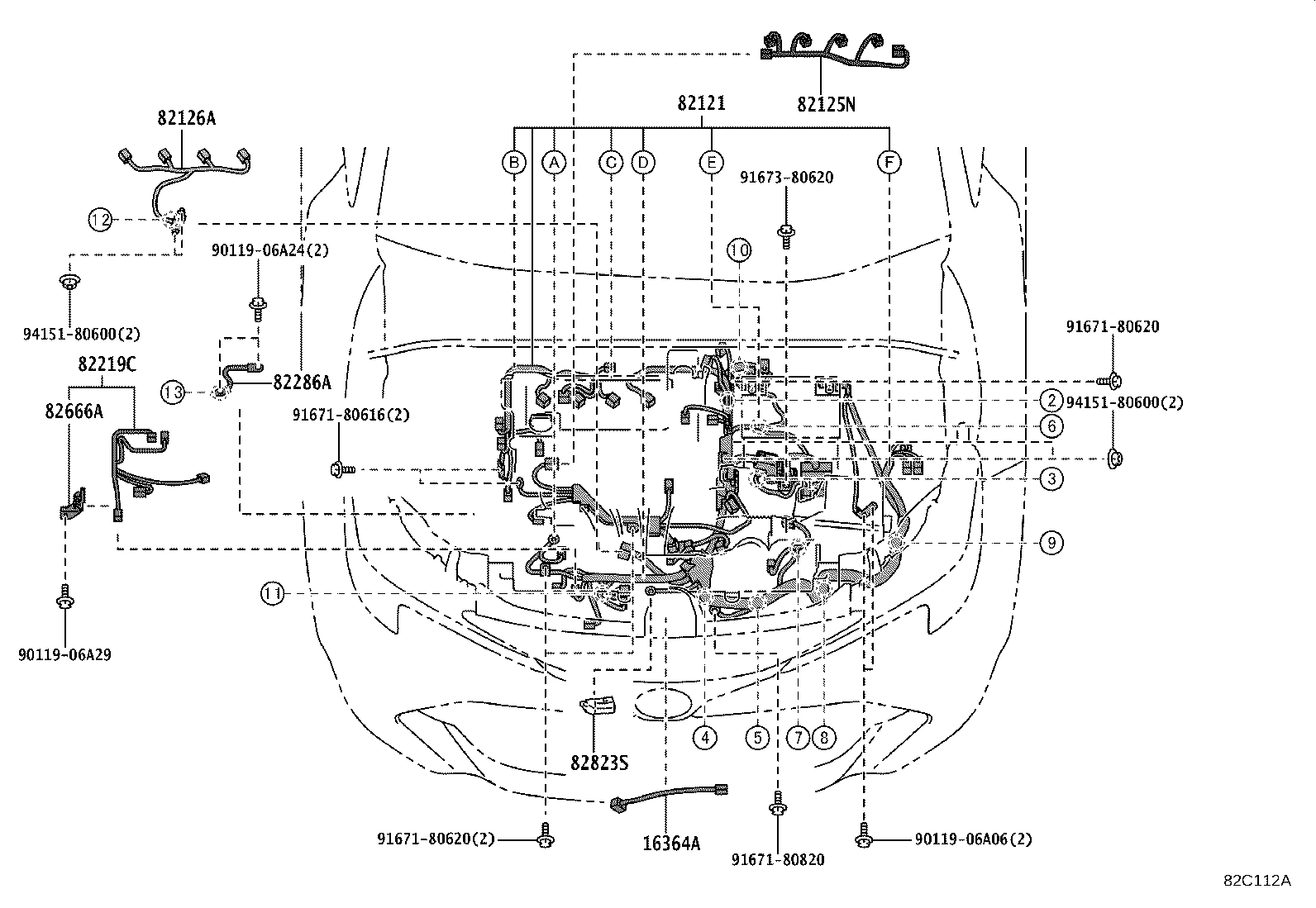

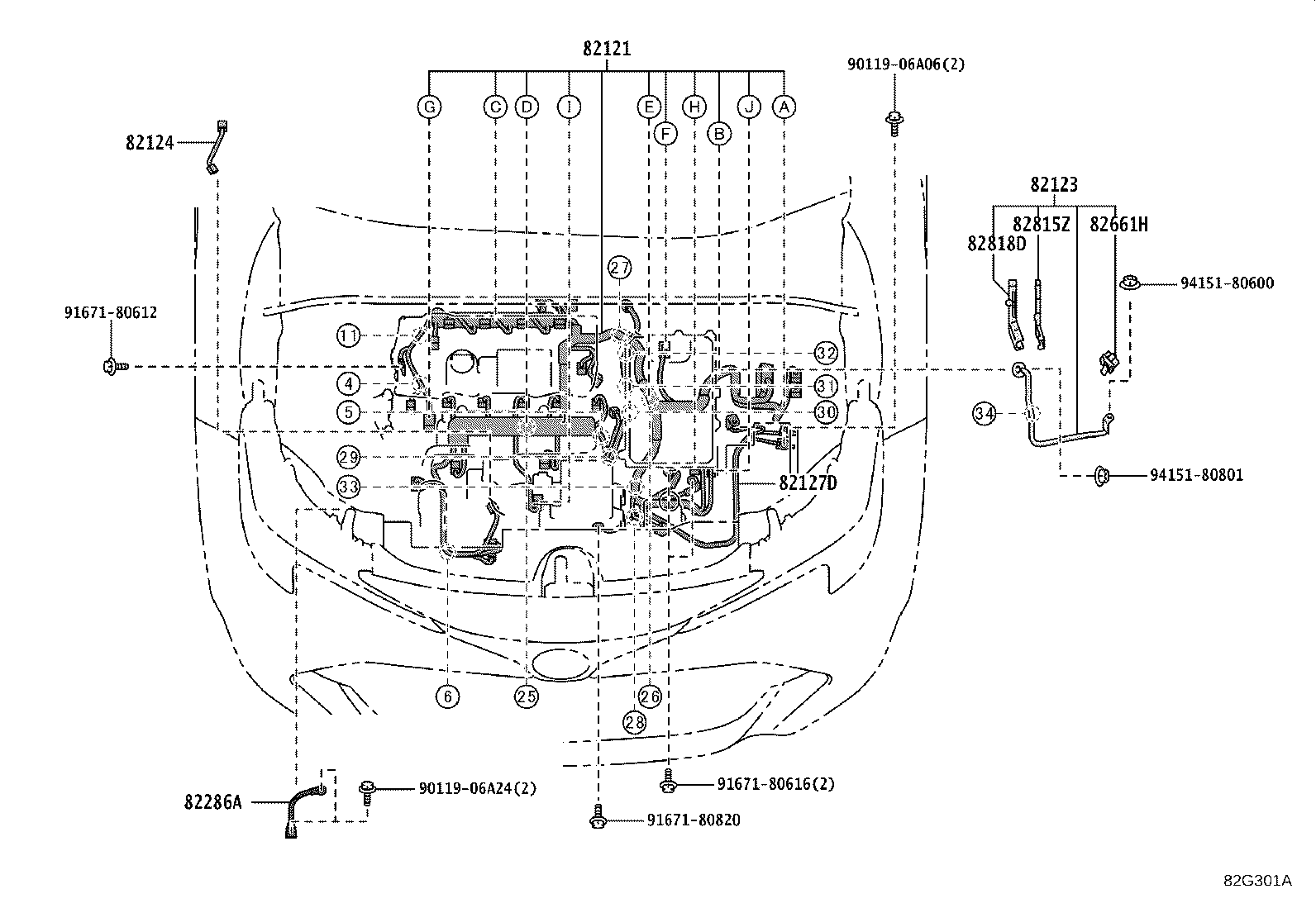

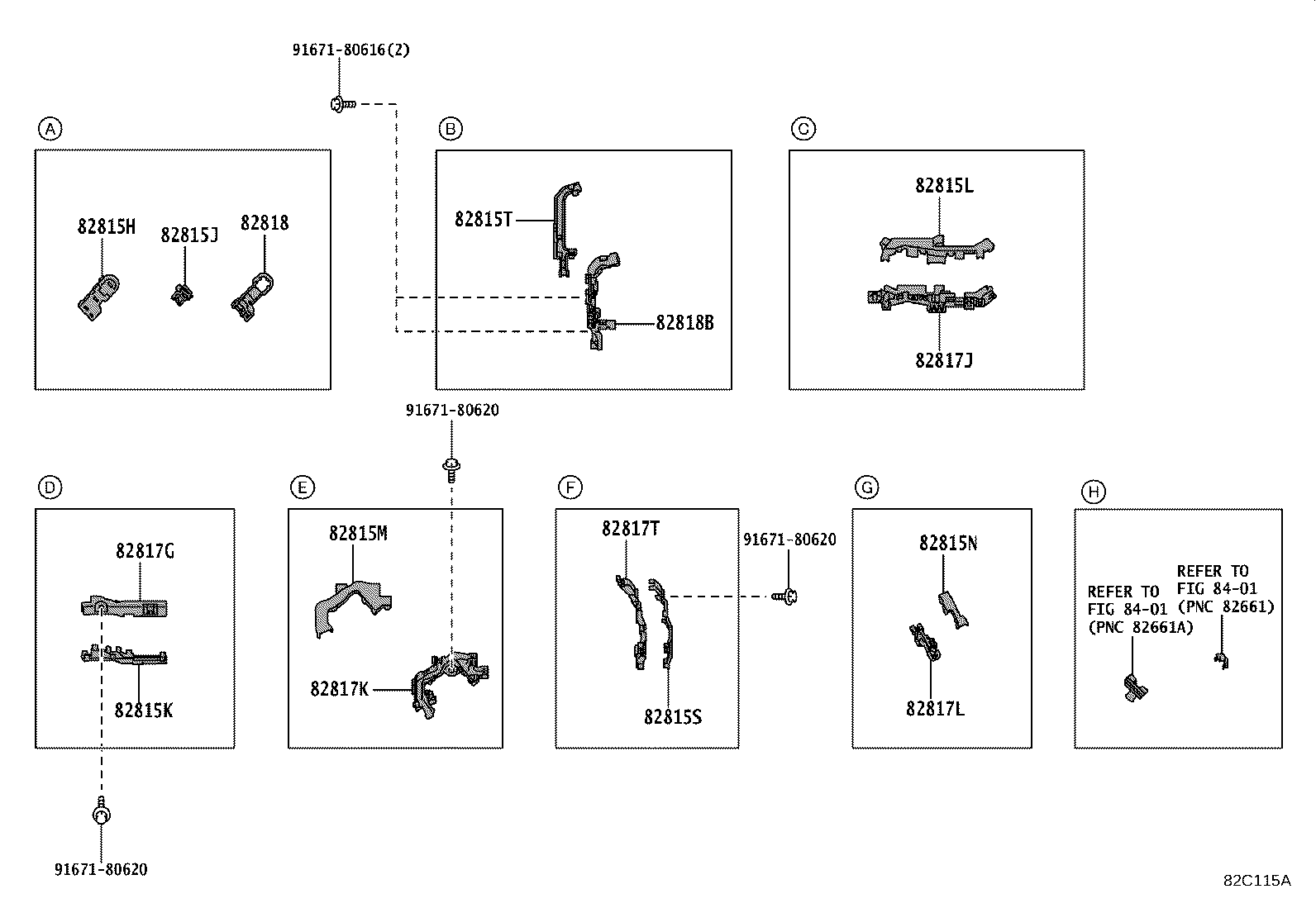

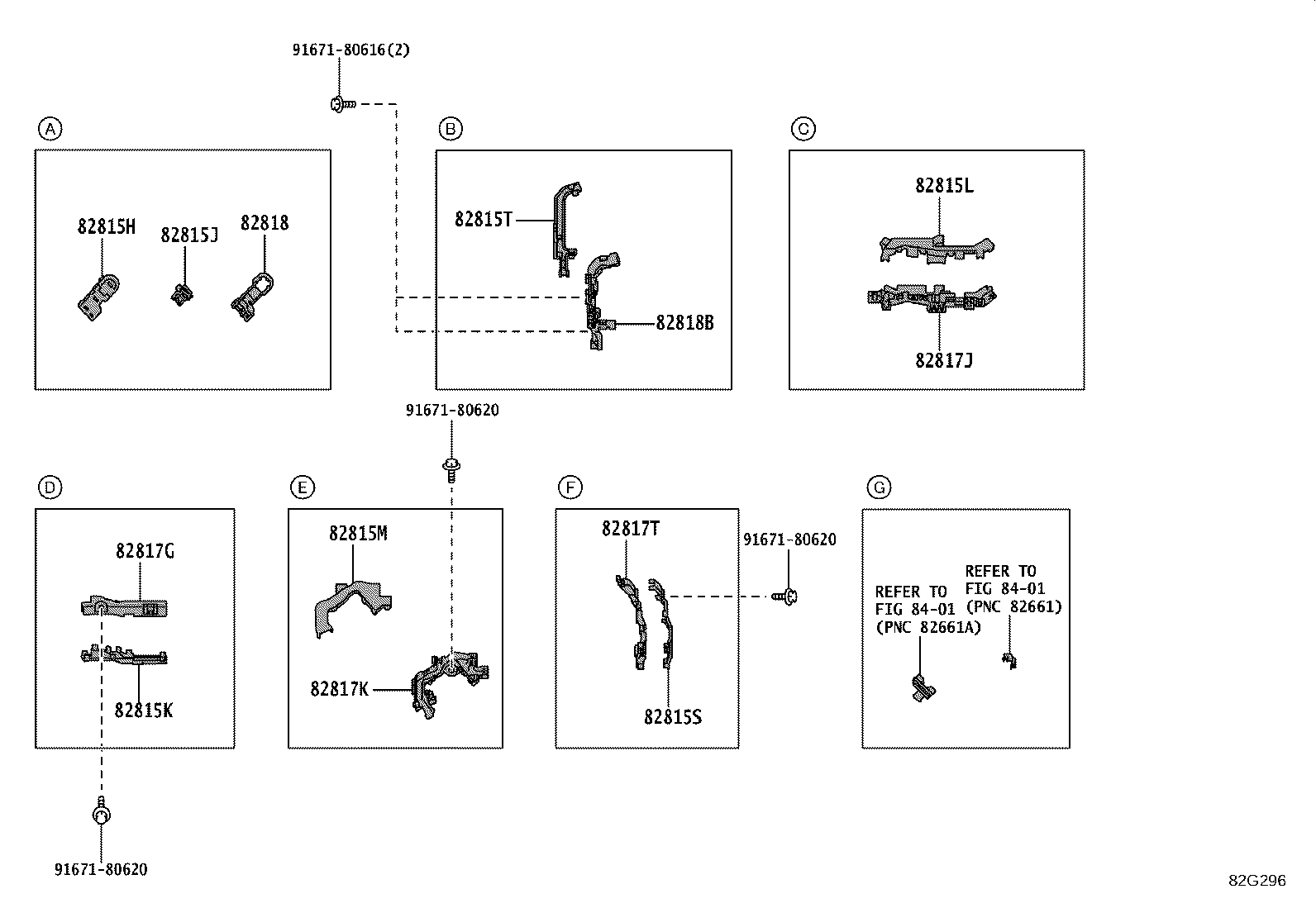

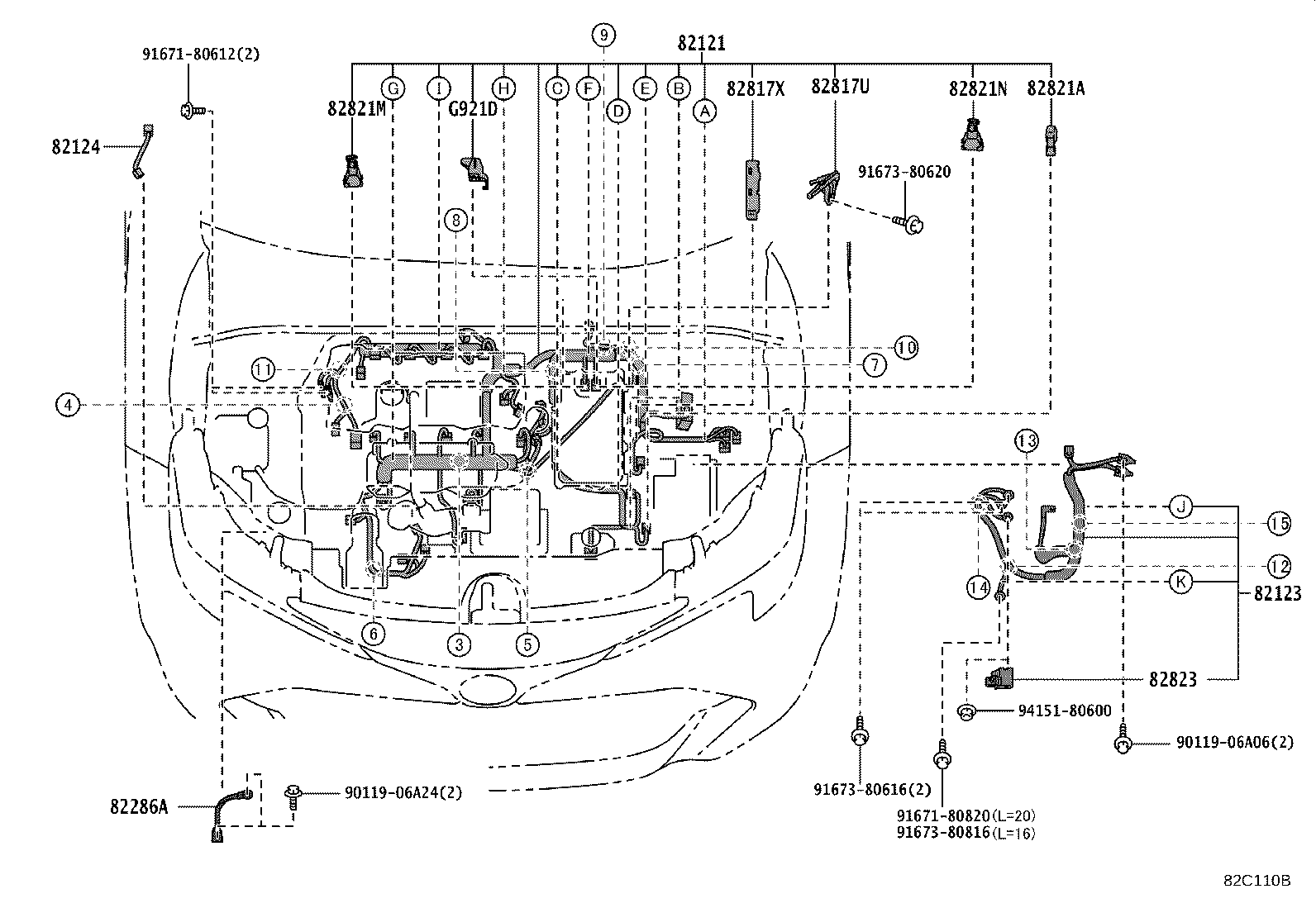

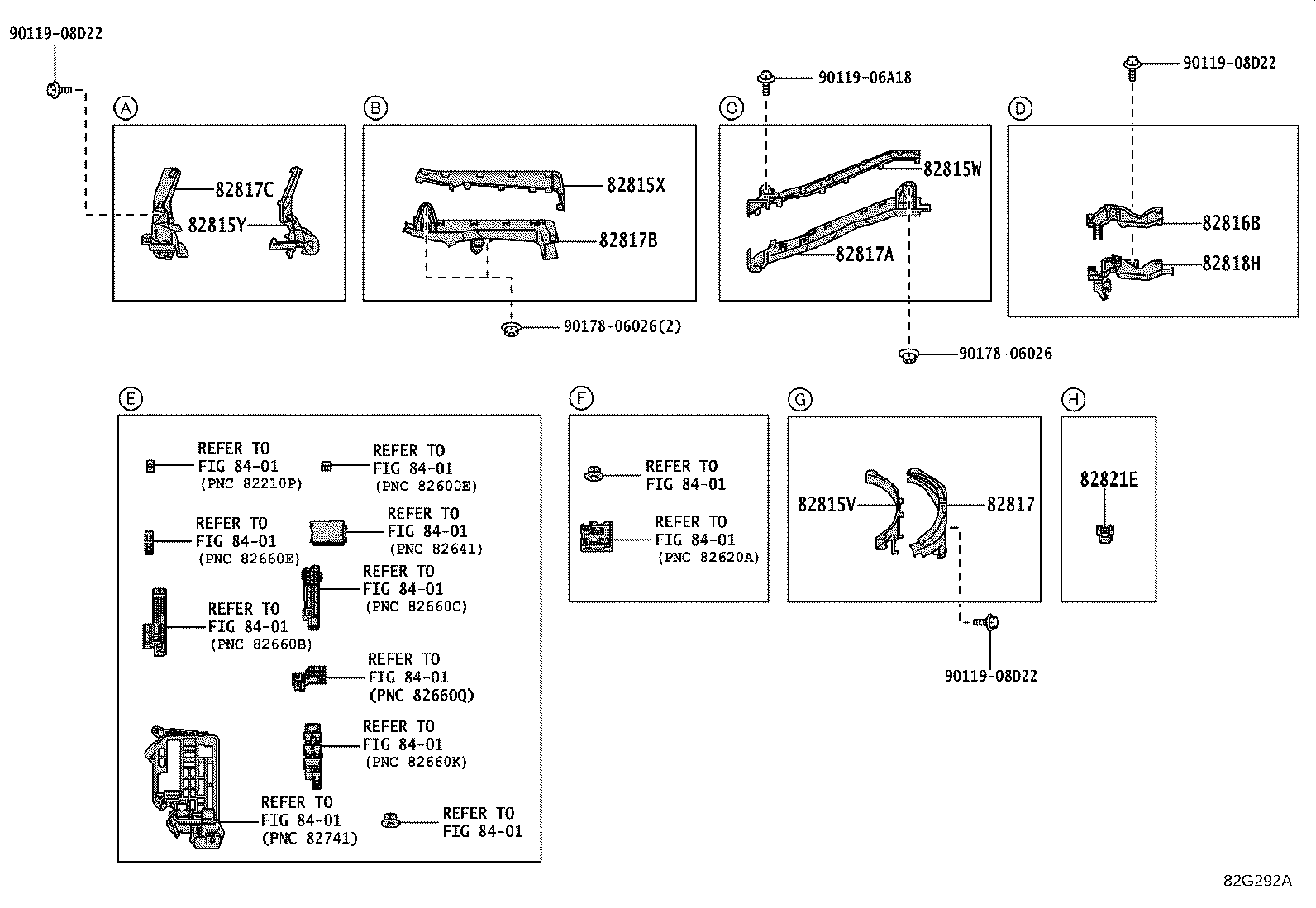

Figure 82C226B 82C226B 2018-06 → — Figure 82E074A 82E074A 2018-06 → — Figure 82C227D 82C227D 2018-06 → — Figure 82C292E 82C292E 2018-06 → — Figure 82C102A 82C102A 2018-06 → — Figure 82E073 82E073 2018-06 → — Figure 82C104D 82C104D 2018-06 → 2022-09 Figure 82C104D 82C104D 2018-06 → — Figure 82C105E 82C105E 2018-06 → 2022-09 Figure 82C105E 82C105E 2018-06 → — Figure 82G291 82G291 2022-09 → — Figure 82G292A 82G292A 2022-09 → — Figure 82H263 82H263 2022-09 → — Figure 82G294A 82G294A 2022-09 → — Figure 82C106A 82C106A 2018-06 → — Figure 82C107F 82C107F 2018-06 → — Figure 82C224A 82C224A 2018-06 → — Figure 82C109F 82C109F 2018-06 → — Figure 82C110B 82C110B 2018-06 → — Figure 82C111D 82C111D 2018-06 → — Figure 82C112A 82C112A 2018-06 → — Figure 82C113A 82C113A 2018-06 → — Figure 82C114A 82C114A 2018-06 → 2022-09 Figure 82C115A 82C115A 2018-06 → 2022-09 Figure 82G295 82G295 2022-09 → — Figure 82G296 82G296 2022-09 → — Figure 82G301A 82G301A 2022-09 → — Figure 82G302 82G302 2022-09 → — Figure 82C116E 82C116E 2018-06 → — Figure 82C228D 82C228D 2018-06 → 2022-09 Figure 82C228D 82C228D 2018-06 → — Figure 82H264 82H264 2022-09 → — Figure 82G369 82G369 2018-06 → 2022-09 Figure 82G369 82G369 2018-06 → — Figure 82G299 82G299 2022-09 → — Figure 82C229B 82C229B 2018-06 → 2022-09 Figure 82C229B 82C229B 2018-06 → — Figure 82C293A 82C293A 2018-06 → — Figure 82G300 82G300 2022-09 → — Figure 82C230 82C230 2018-06 → — Figure 82H265 82H265 2022-09 → — Figure 82C219 82C219 2018-06 → — Figure 82C124 82C124 2018-06 → — Figure 82D270 82D270 2020-06 → — Figure 82C125 82C125 2018-06 → — Figure 82C225A 82C225A 2018-06 → — Figure 82C126D 82C126D 2018-06 → — Figure 82C129B 82C129B 2018-06 → — Figure 82C127A 82C127A 2018-06 → — Figure 82C130A 82C130A 2018-06 → — Figure 82C245H 82C245H 2018-06 → — Figure 82C652G 82C652G 2018-06 → — Figure 82E336C 82E336C 2018-06 → — Figure 82H015 82H015 2018-06 → —

Part groups

PNCDescription
16364A Wire, Cooling Fan

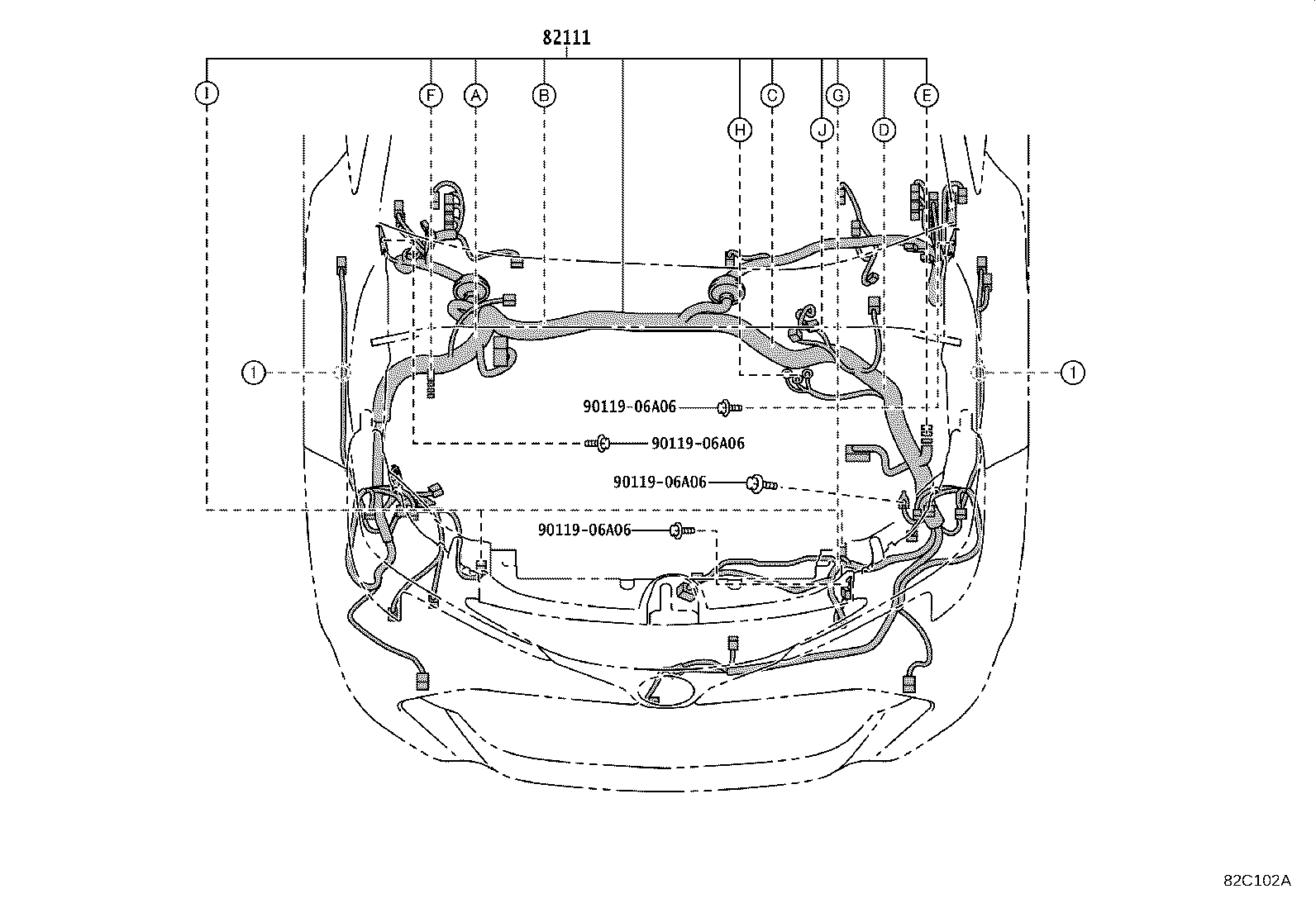

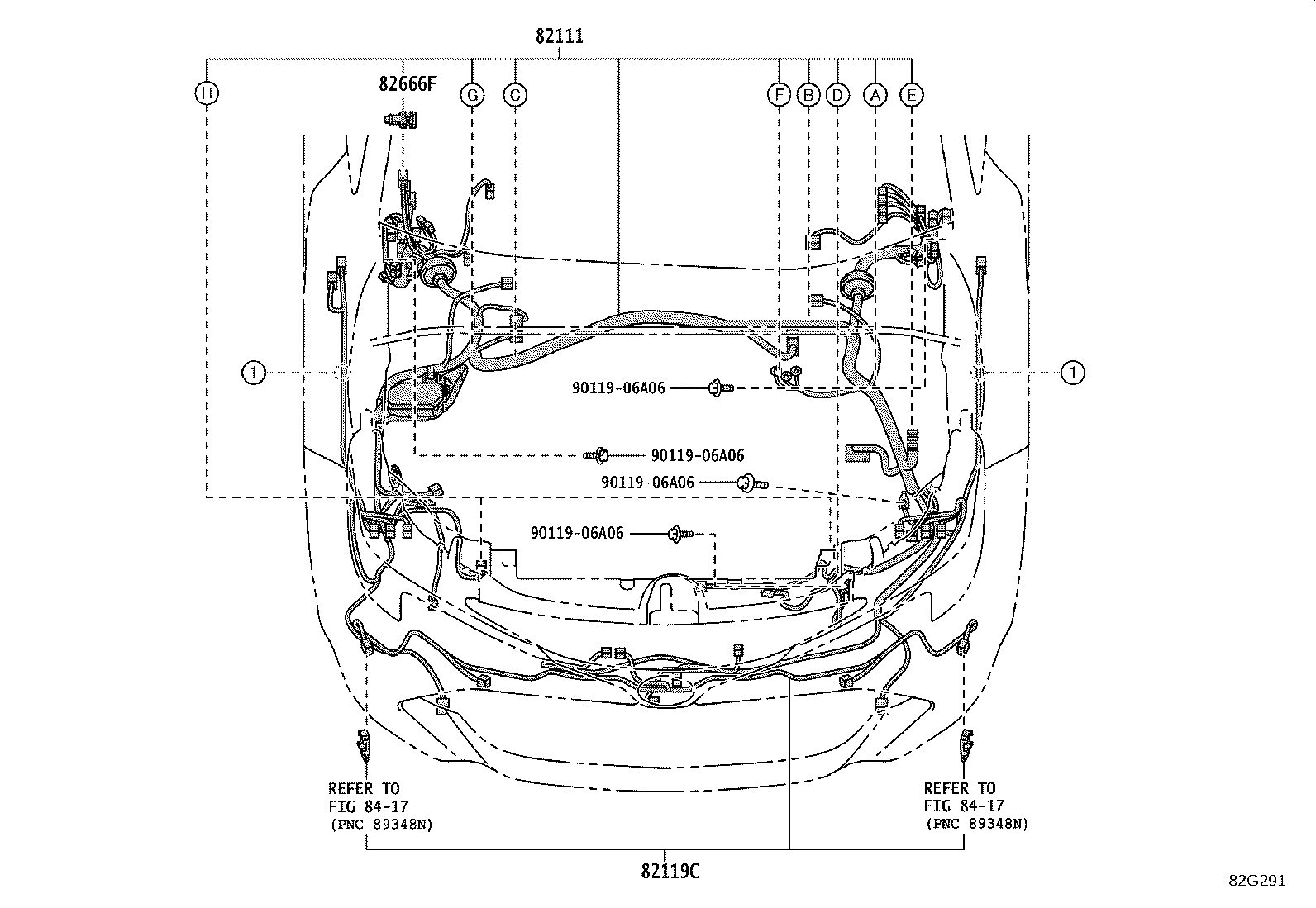

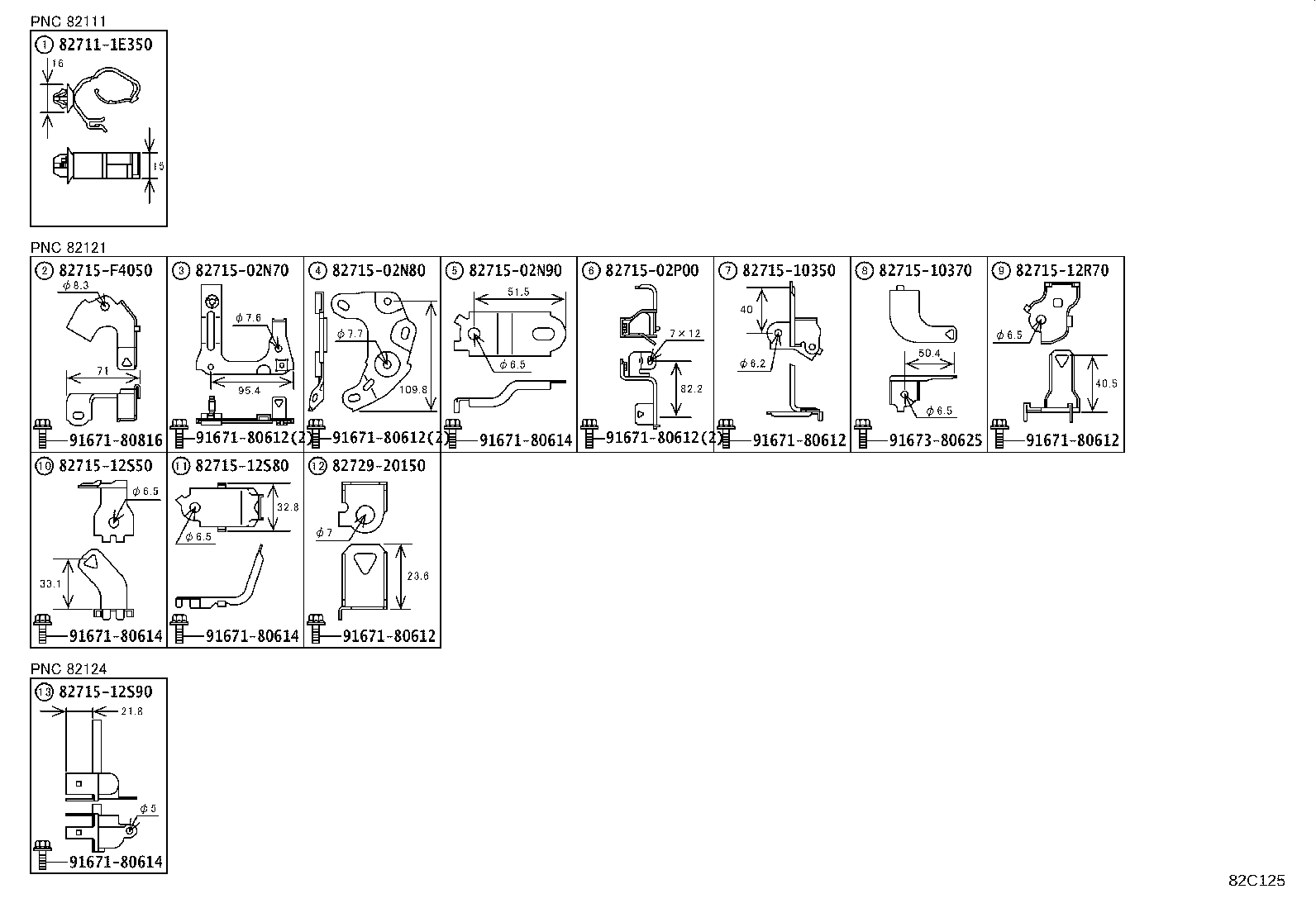

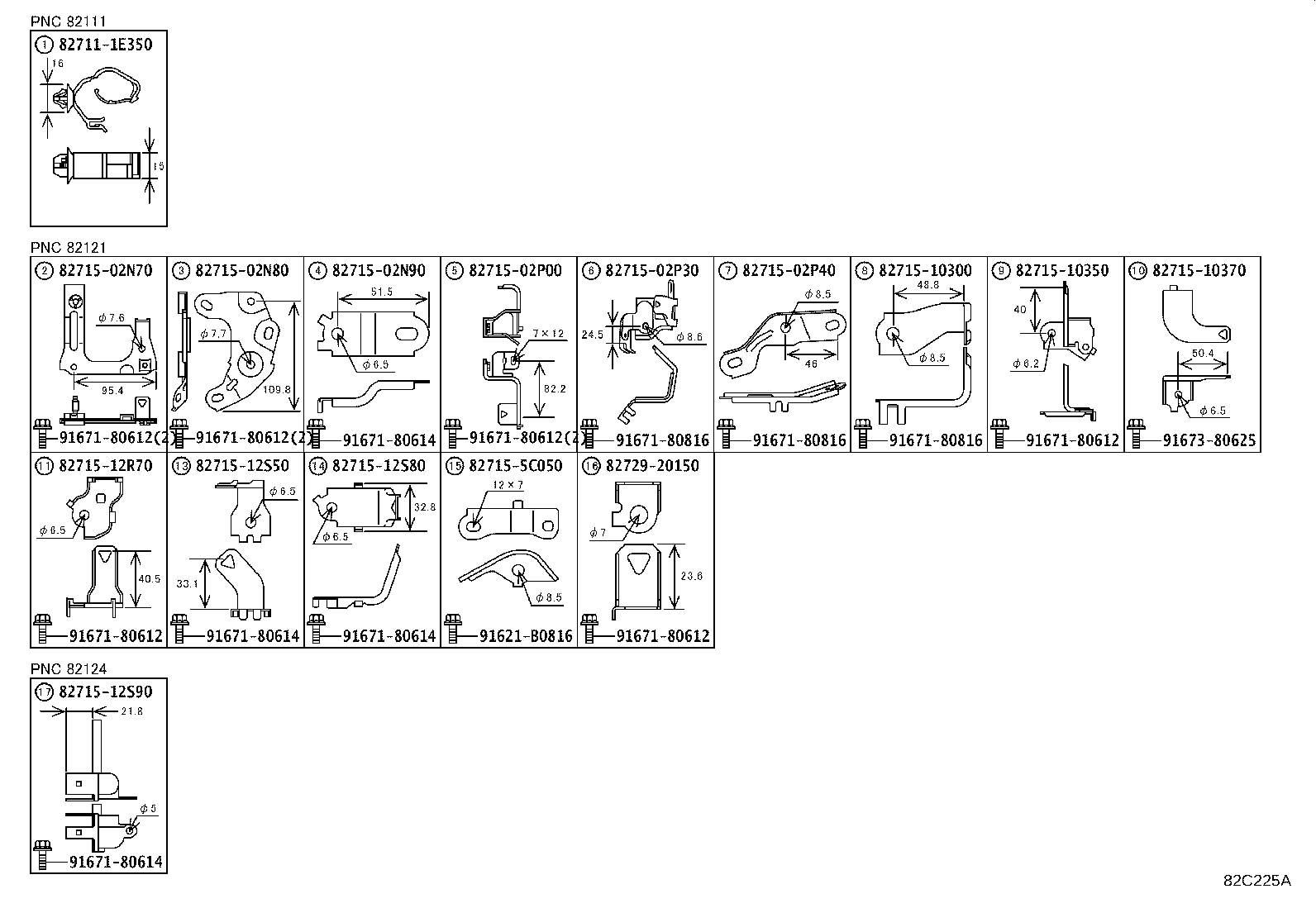

82111 Wire, Engine Room Main
82119C Wire, Engine Room, NO.5

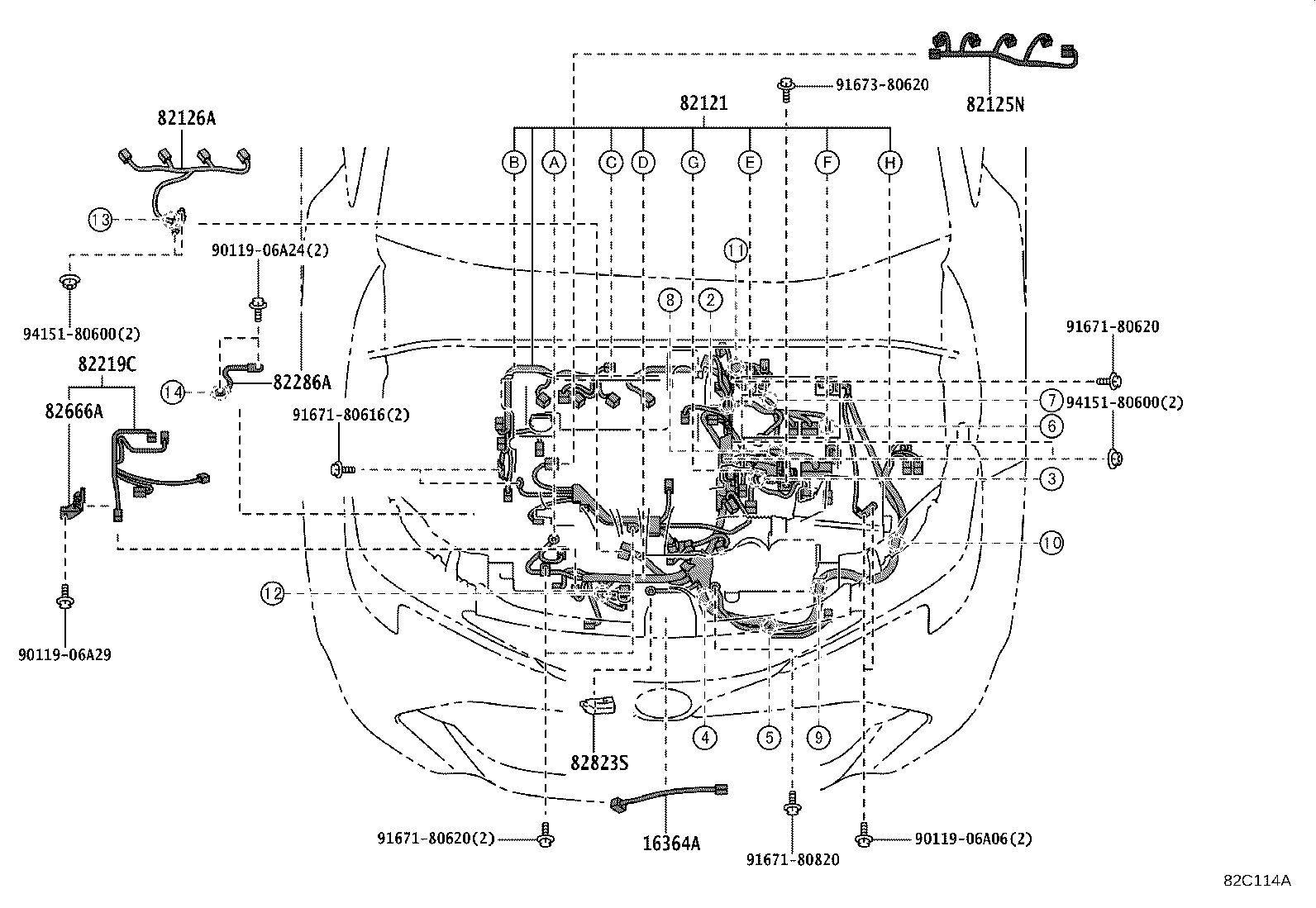

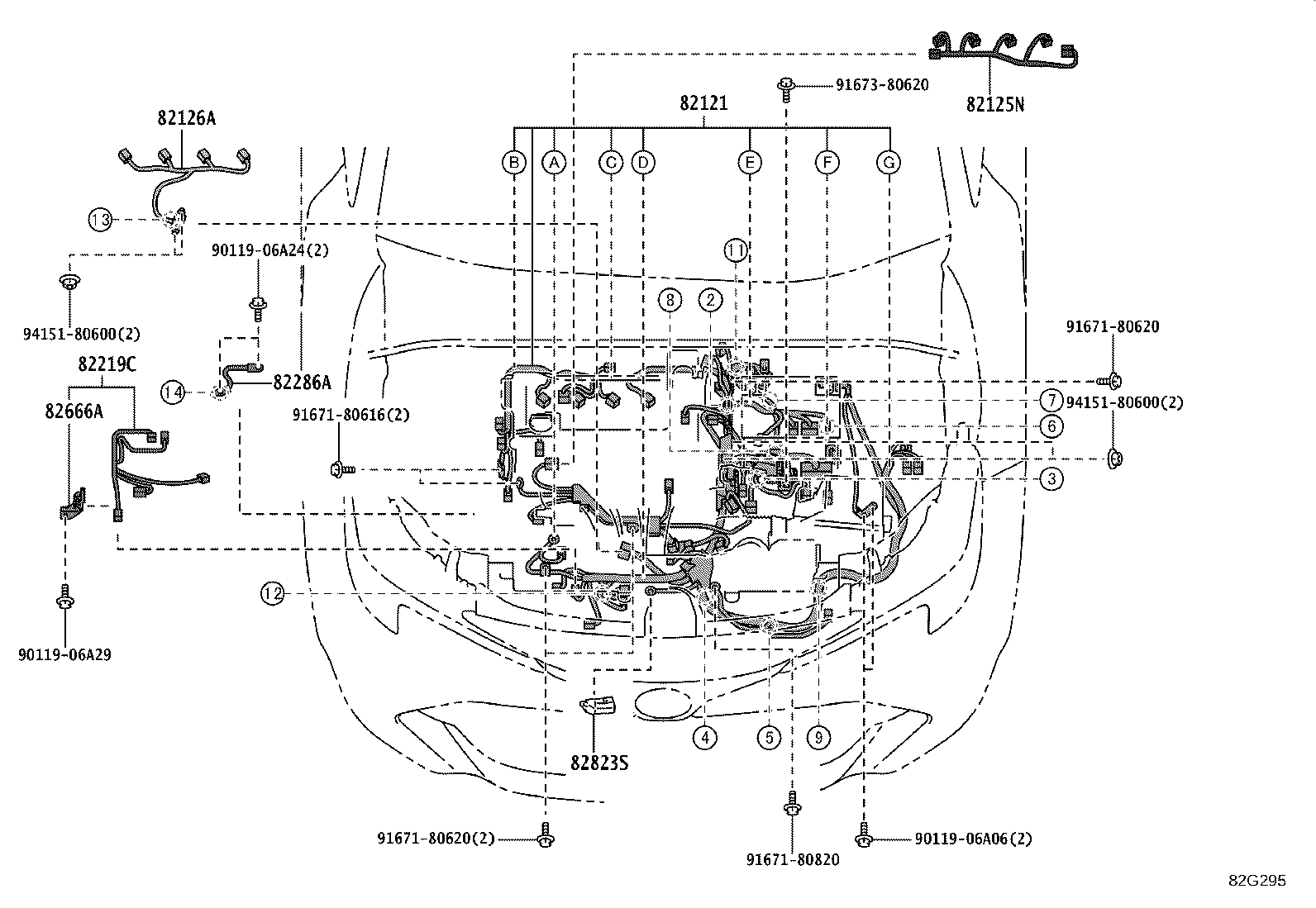

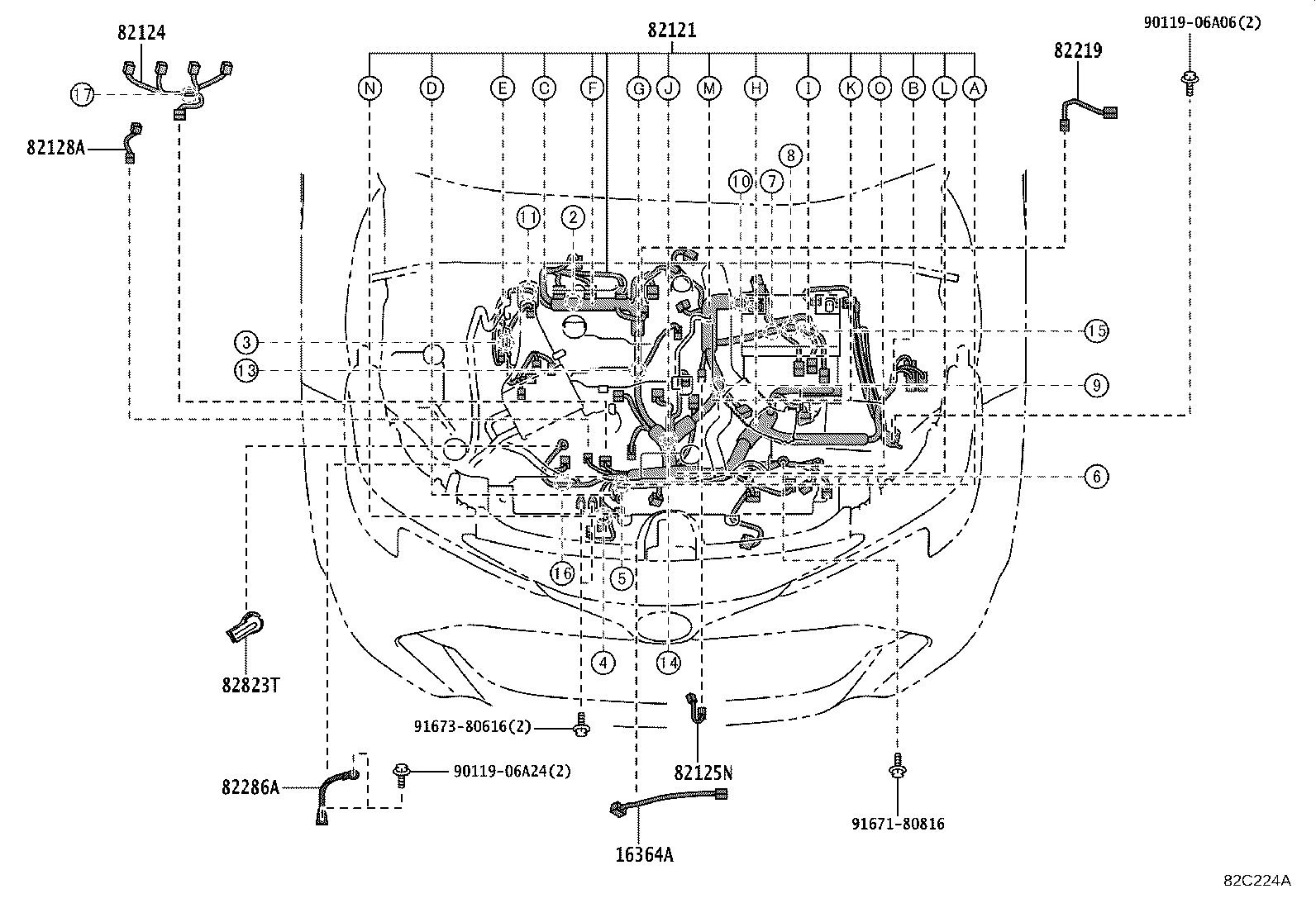

82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125N Wire, Engine, NO.5
82126A Wire, Engine, NO.6
82127D Wire, Engine, NO.7
82128A Wire, Engine, NO.8
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82142A Wire, Instrument Panel, NO.2

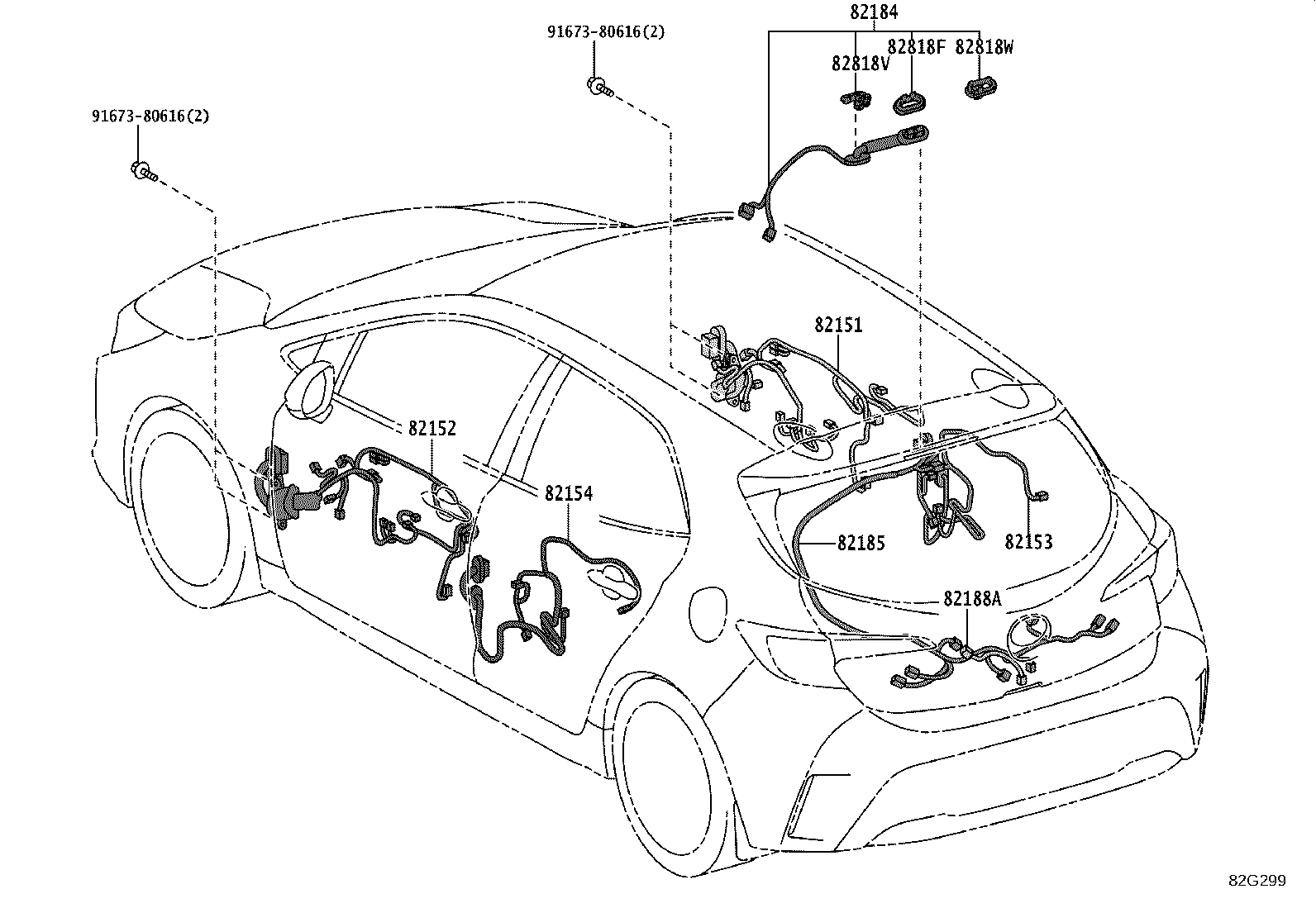

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

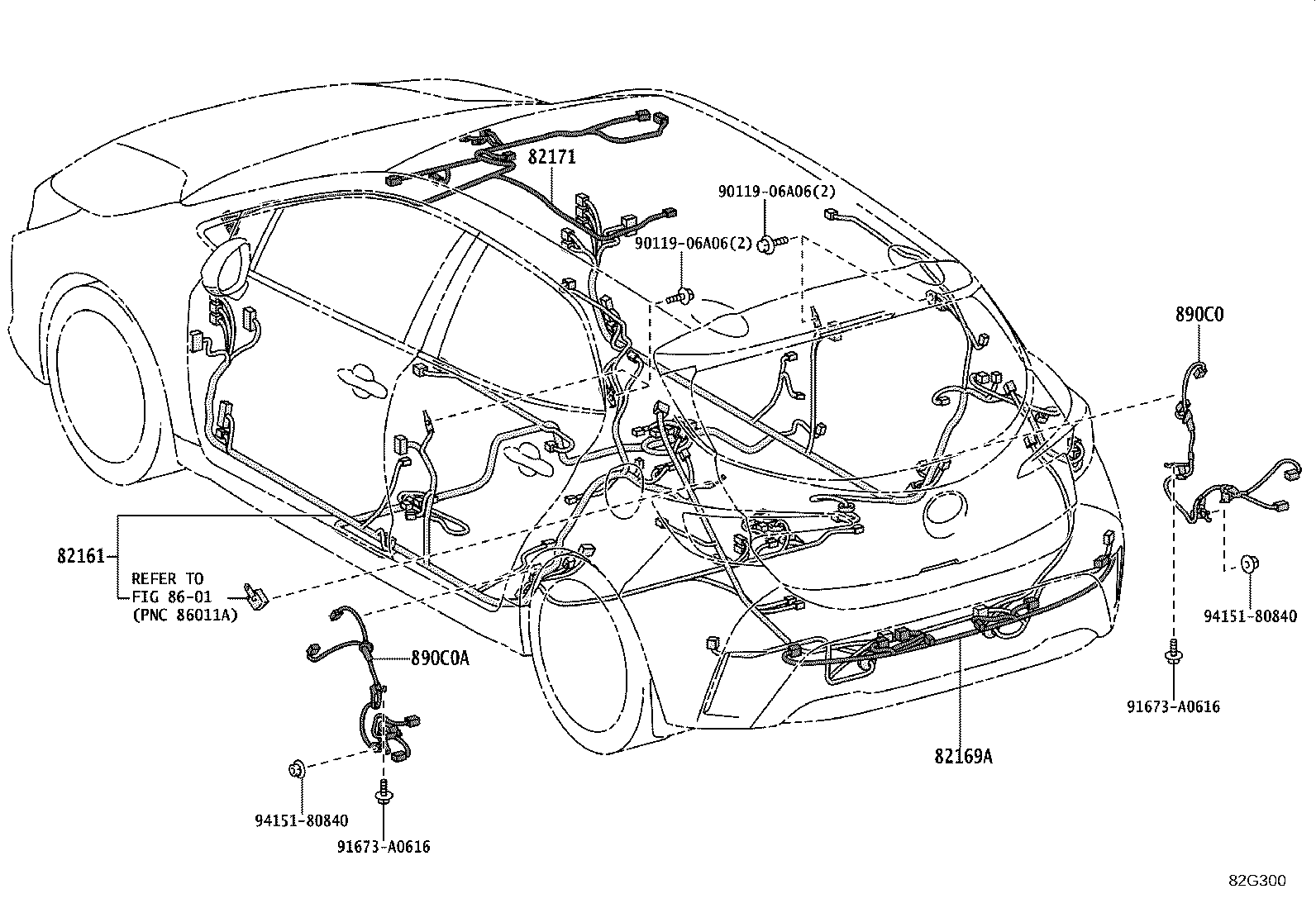

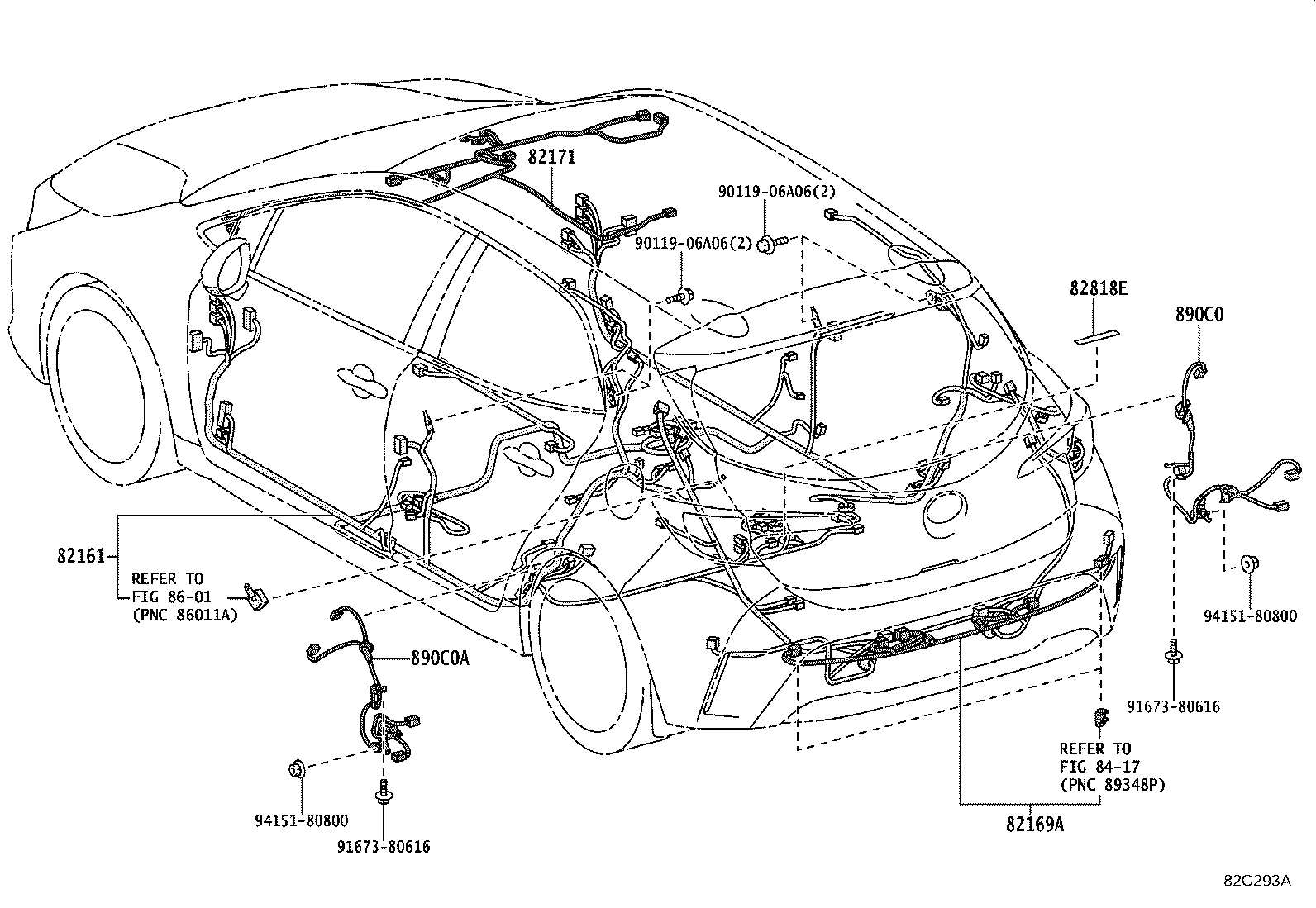

82161 Wire, Floor
82169A Wire, Floor, NO.6
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82188A Wire, Back Door, NO.3
82191 Wire, Front Seat, RH

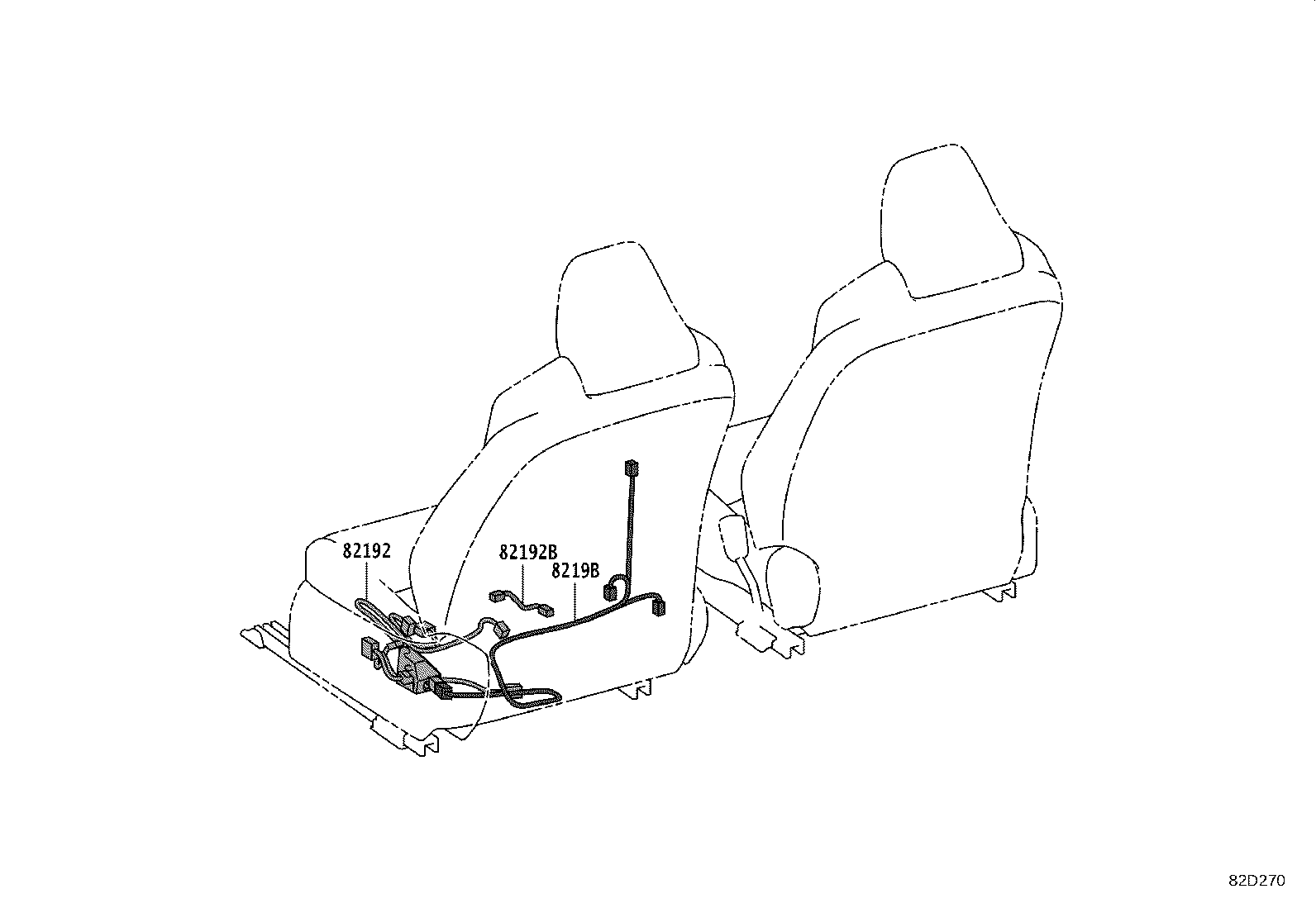

82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2

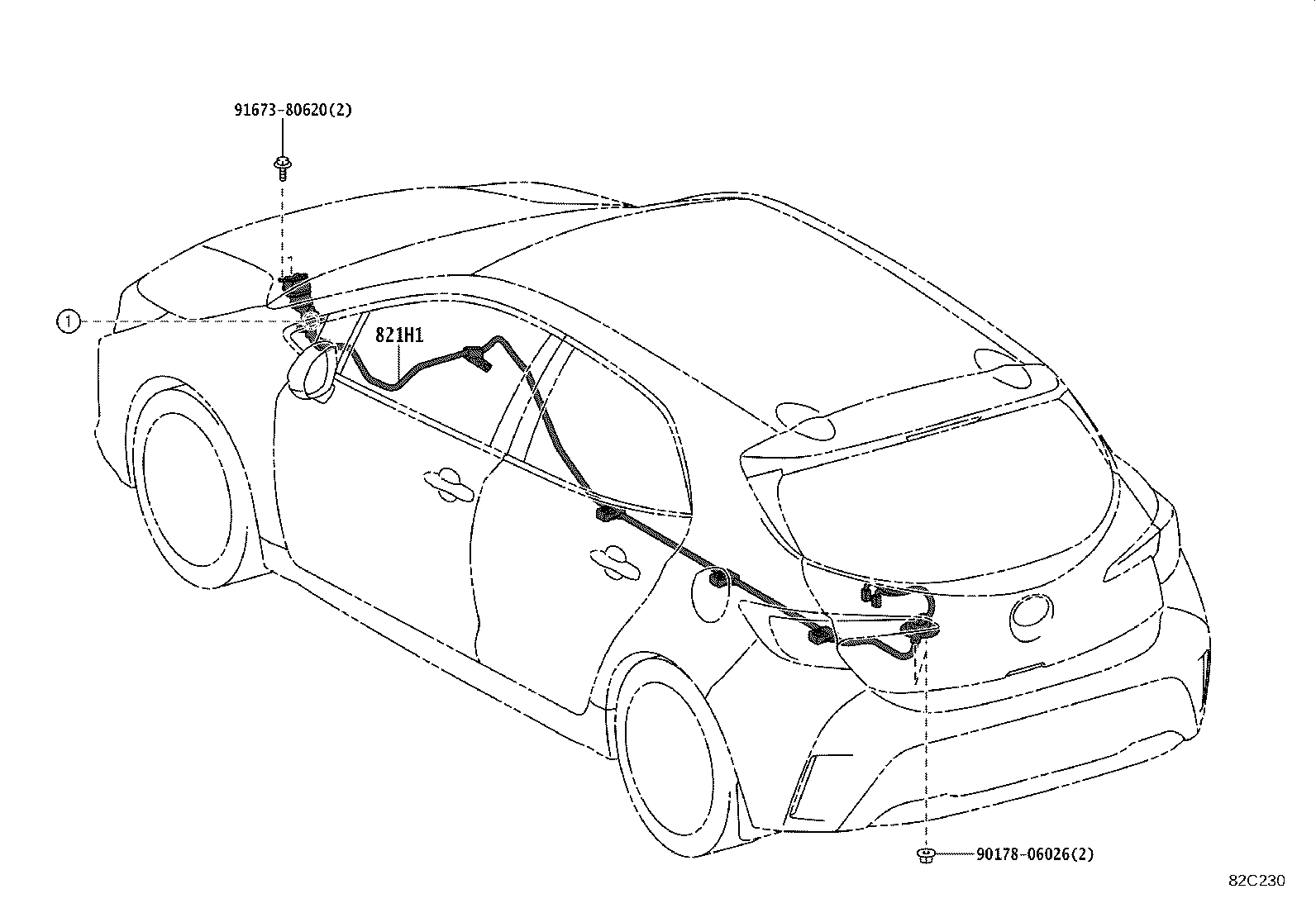

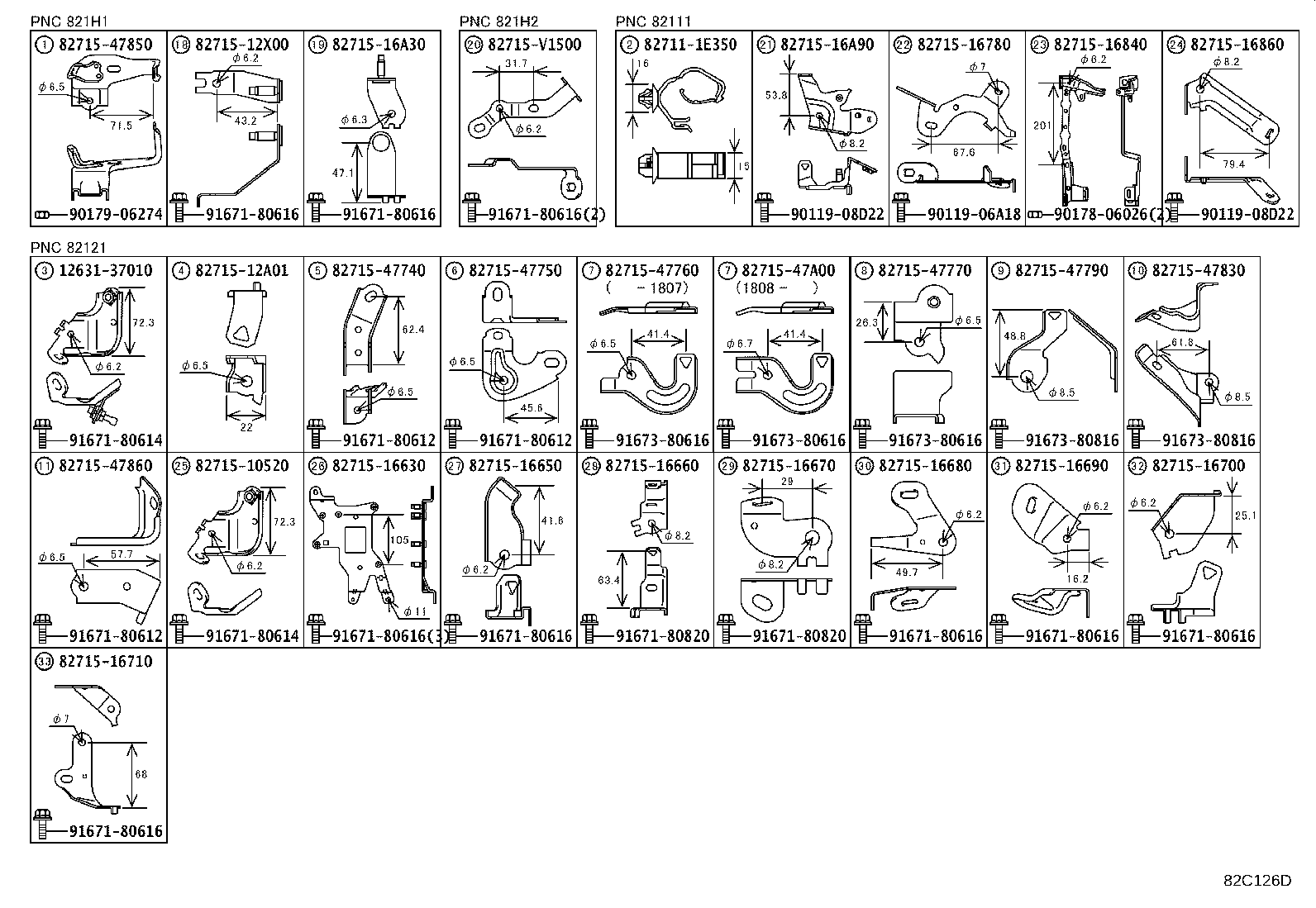

821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
82219 Wire, Thermo Sensor
82219C Wire, Sensor
82286A Wire, Earth, NO.2
82661H Cover, Relay Block
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9

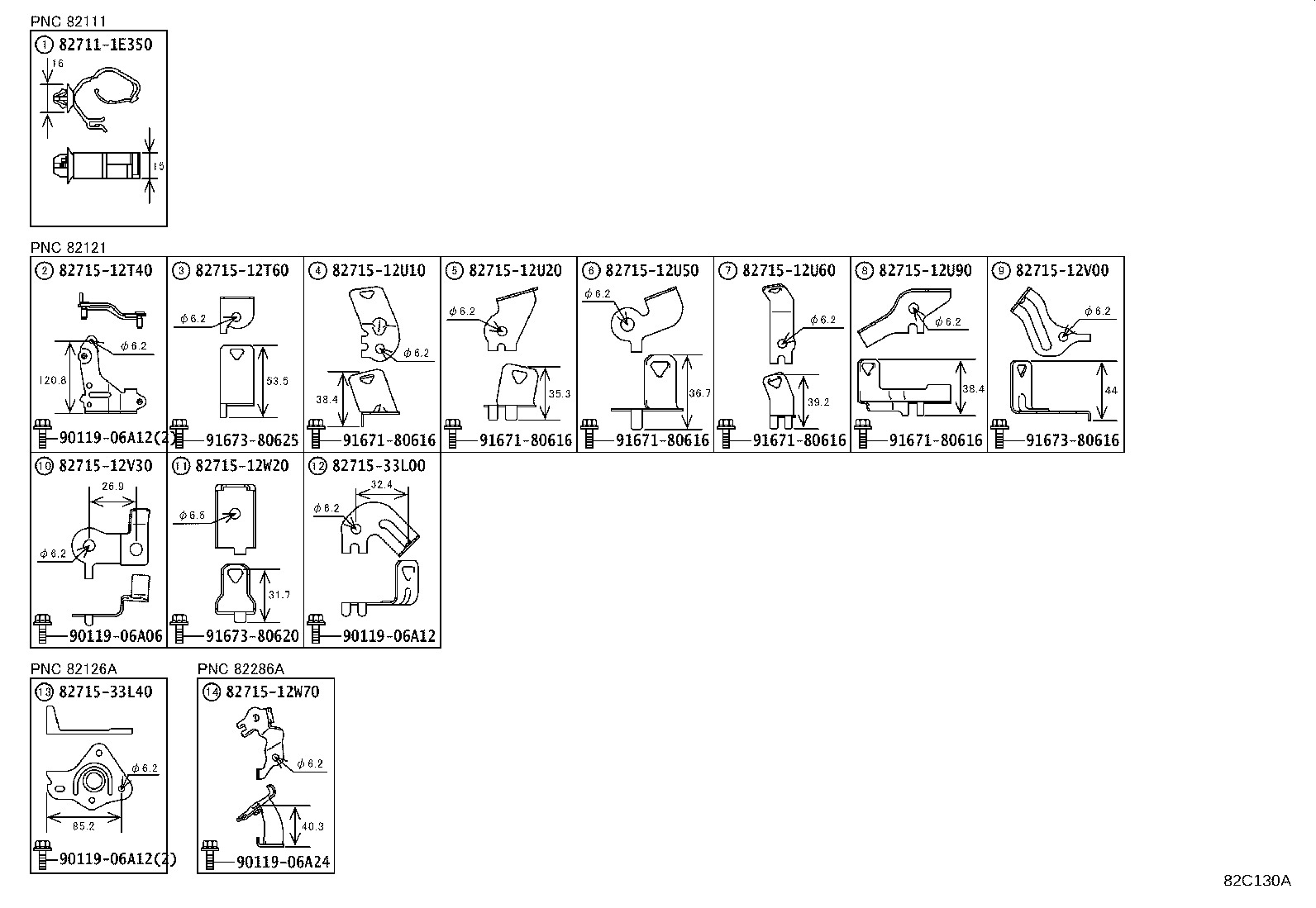

82712A Support, Wiring Harness
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815K Cover, Wiring Harness Protector, NO.8
82815L Cover, Wiring Harness Protector, NO.9
82815M Cover, Wiring Harness Protector, NO.10
82815N Cover, Wiring Harness Protector, NO.11
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82815R Cover, Wiring Harness Protector, NO.14
82815S Cover, Wiring Harness Protector, NO.15
82815T Cover, Wiring Harness Protector, NO.16
82815U Cover, Wiring Harness Protector, NO.17
82815V Cover, Wiring Harness Protector, NO.1
82815W Cover, Wiring Harness Protector, NO.2
82815X Cover, Wiring Harness Protector, NO.3
82815Y Cover, Wiring Harness Protector, NO.4
82815Z Cover, Wiring Harness Protector, NO.18
82816B Cover, Wiring Harness Protector, NO.1
82816C Cover, Wiring Harness Protector, NO.2
82816D Cover, Wiring Harness Protector, NO.3
82816F Cover, Wiring Harness Protector, NO.4
82816G Cover, Wiring Harness Protector, NO.5
82816H Cover, Wiring Harness Protector, NO.6
82816J Cover, Wiring Harness Protector, NO.7
82816K Cover, Wiring Harness Protector, NO.8
82816L Cover, Wiring Harness Protector, NO.9

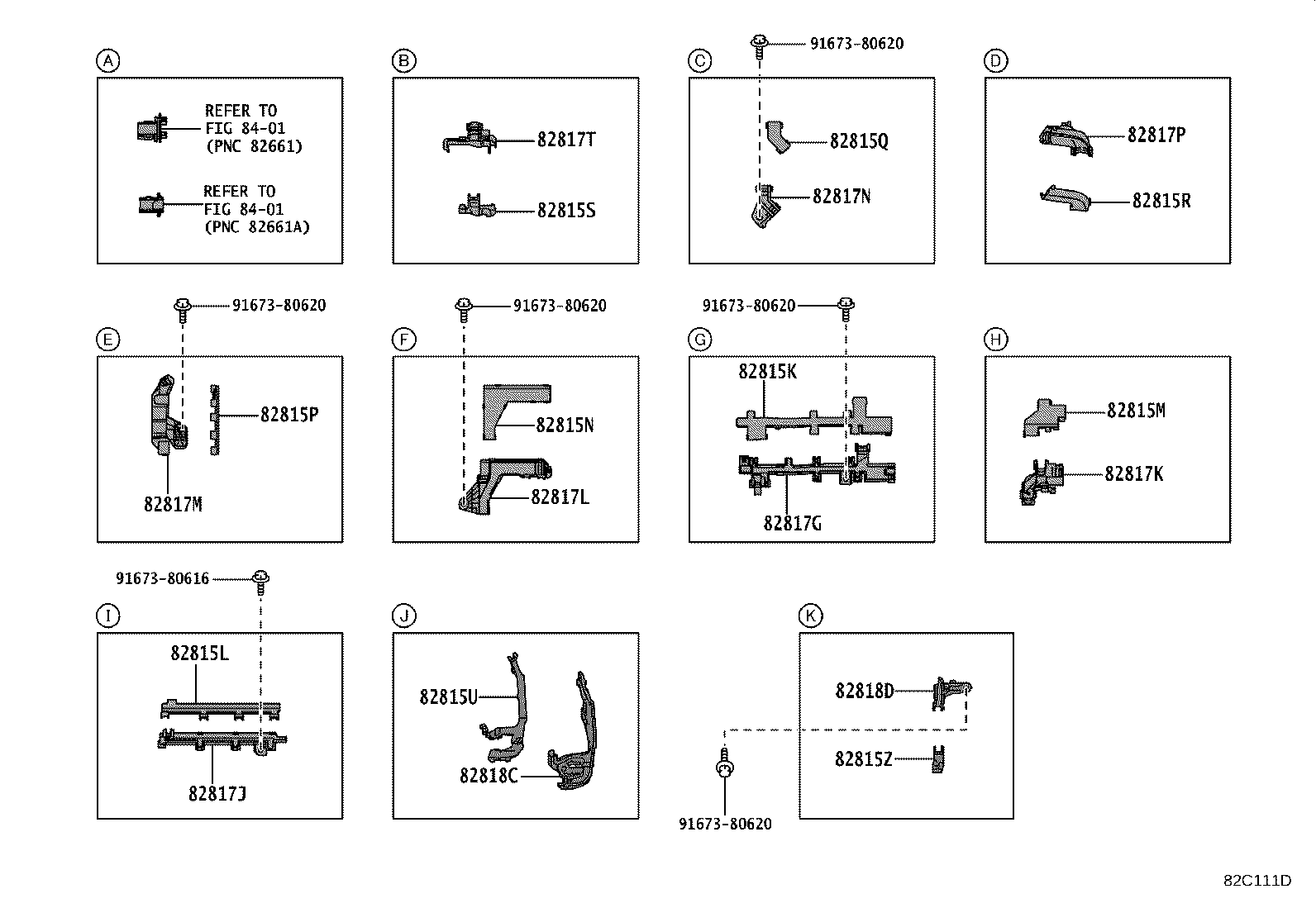

82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82817N Protector, Wiring Harness, NO.13
82817P Protector, Wiring Harness, NO.14
82817T Protector, Wiring Harness, NO.15
82817U Protector, Wiring Harness, NO.16
82817X Protector, Wiring Harness, NO.17
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82818C Protector, Wiring Harness, NO.4
82818D Protector, Wiring Harness, NO.5

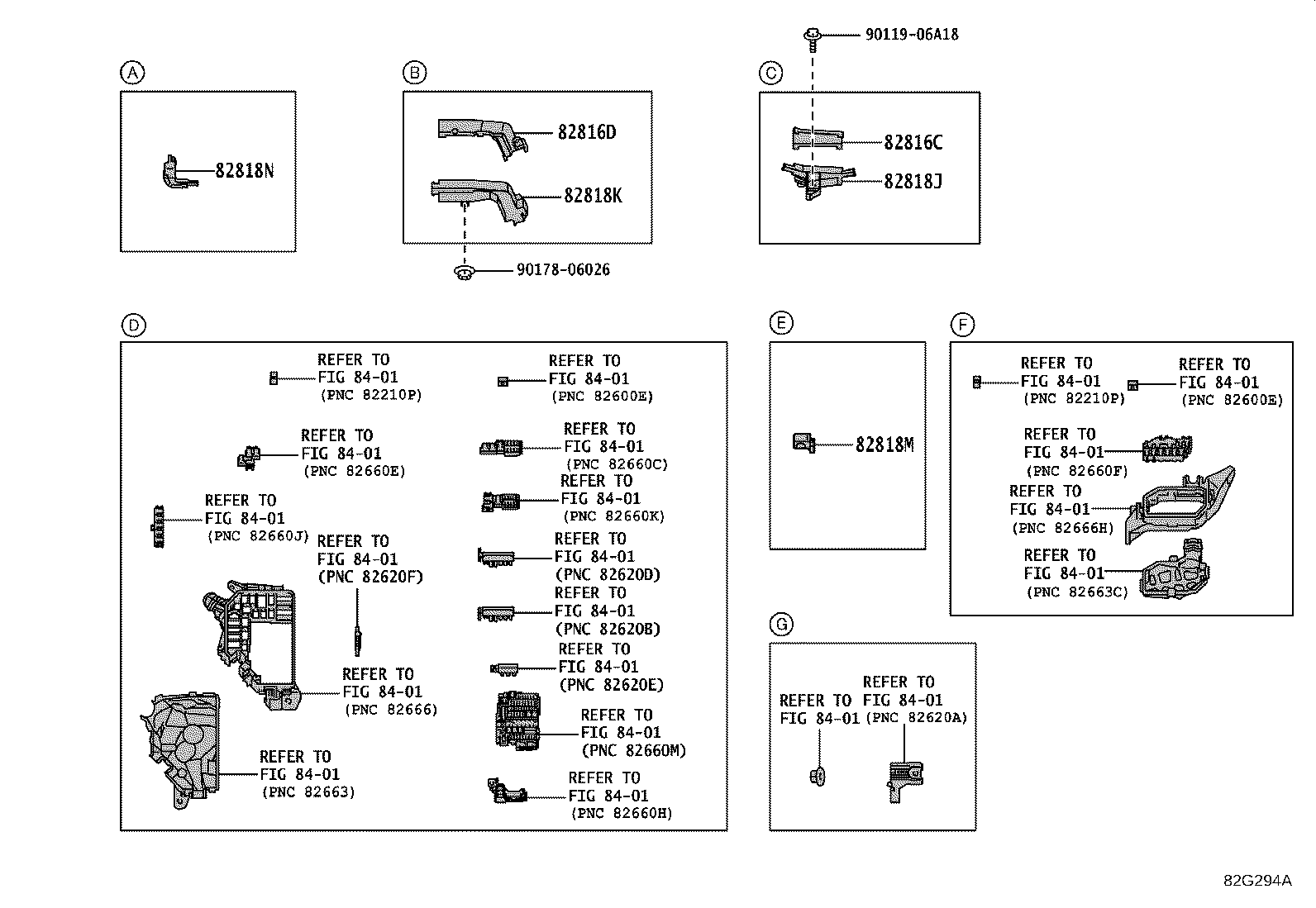

82818E Protector, Wiring Harness, NO.6
82818F Protector, Wiring Harness, NO.7
82818G Protector, Wiring Harness, NO.8
82818H Protector, Wiring Harness, NO.9
82818J Protector, Wiring Harness, NO.10
82818K Protector, Wiring Harness, NO.11
82818L Protector, Wiring Harness, NO.12
82818M Protector, Wiring Harness, NO.13
82818N Protector, Wiring Harness, NO.14
82818S Protector, Wiring Harness, NO.15
82818T Protector, Wiring Harness, NO.16
82818U Protector, Wiring Harness, NO.17
82818V Protector, Wiring Harness, NO.18
82818W Protector, Wiring Harness, NO.19
82819G Protector, Wiring Harness, NO.23
82819H Protector, Wiring Harness, NO.24
82819J Protector, Wiring Harness, NO.25
82819L Protector, Wiring Harness, NO.27
82819M Protector, Wiring Harness, NO.28
82819N Protector, Wiring Harness, NO.29
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82823 Cap, Terminal, NO.1
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824A Connector, Wiring Harness
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
G921D Protector, Inverter Connector Cover
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
