Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wireless Door Lock

9 part groups · 3 illustrations

Illustrations

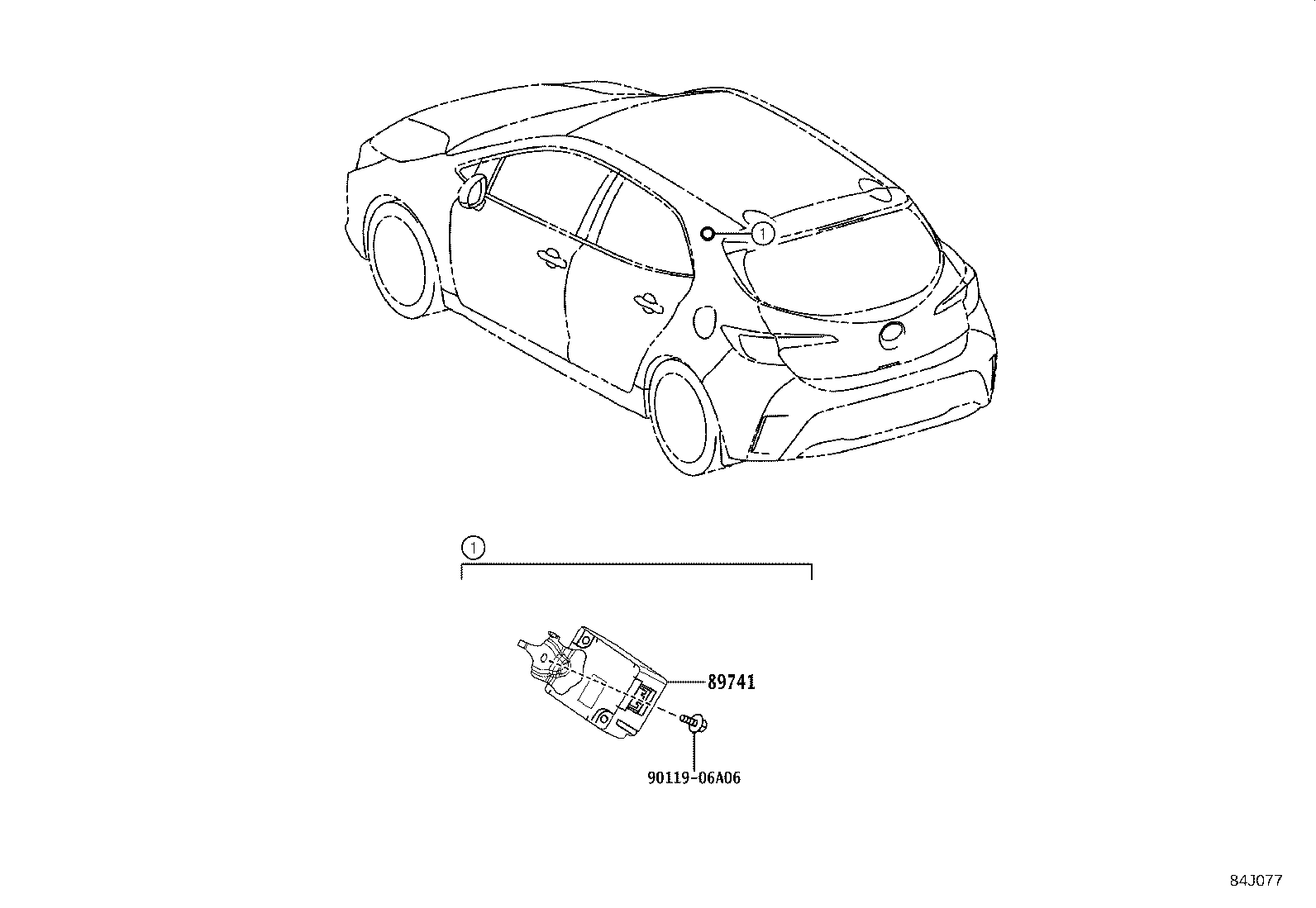

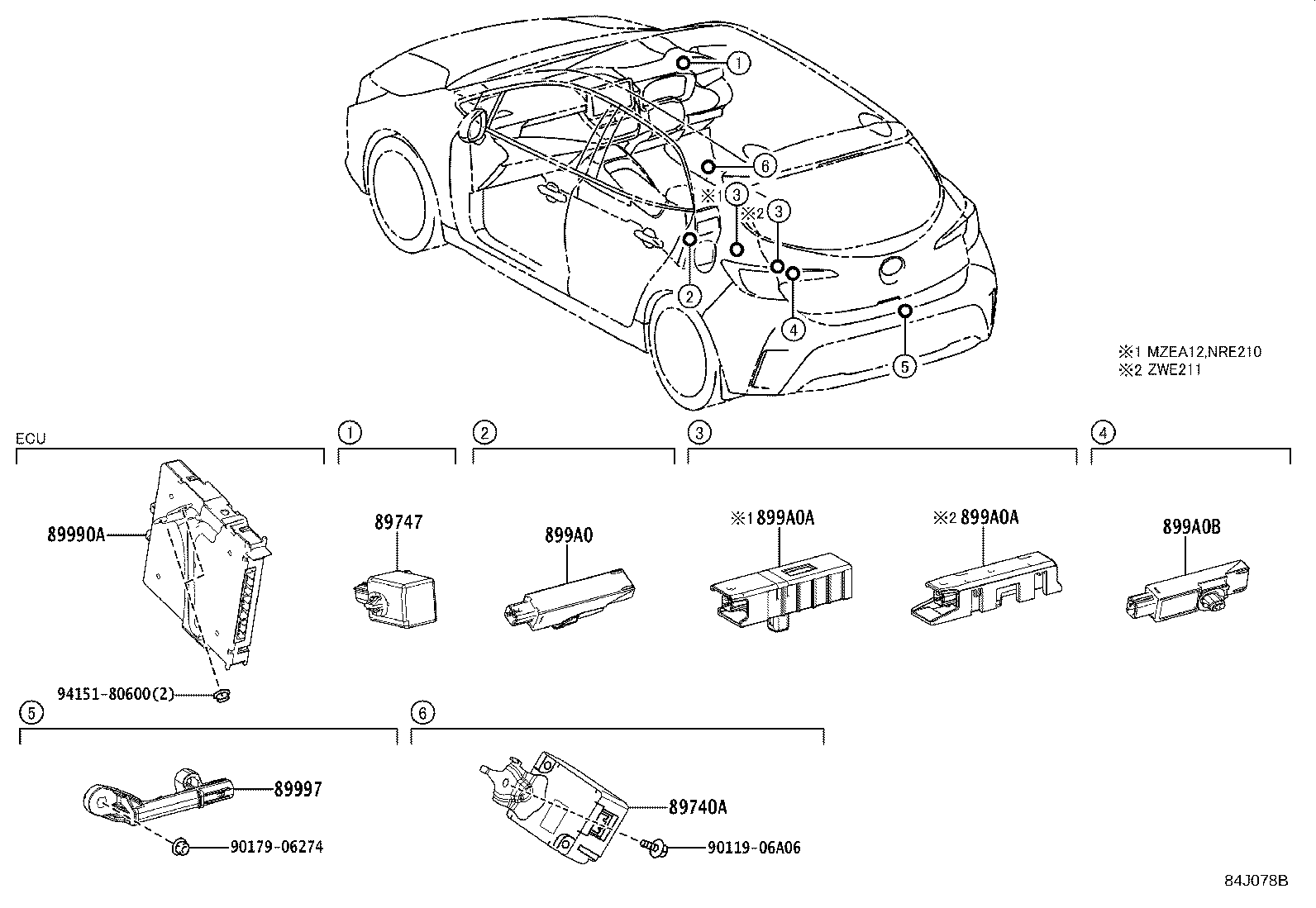

Figure 84J080B 84J080B 2018-06 → — Figure 84J078B 84J078B 2018-06 → — Figure 84J077 84J077 2018-06 → —

Part groups

PNCDescription
89740A Receiver Assy, Smart Door Control
89741 Receiver, Door Control
89747 Buzzer, Wireless Door Lock
897B0 Receiver Assy, Electrical Key & Tpms
89990A Computer Assy, Smart Key
89997 Antenna, Electrical Key
899A0 Antenna Assy, Indoor Electrical Key, NO.1
899A0A Antenna Assy, Indoor Electrical Key, NO.2
899A0B Antenna Assy, Indoor Electrical Key, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
