Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 3 illustrations

Illustrations

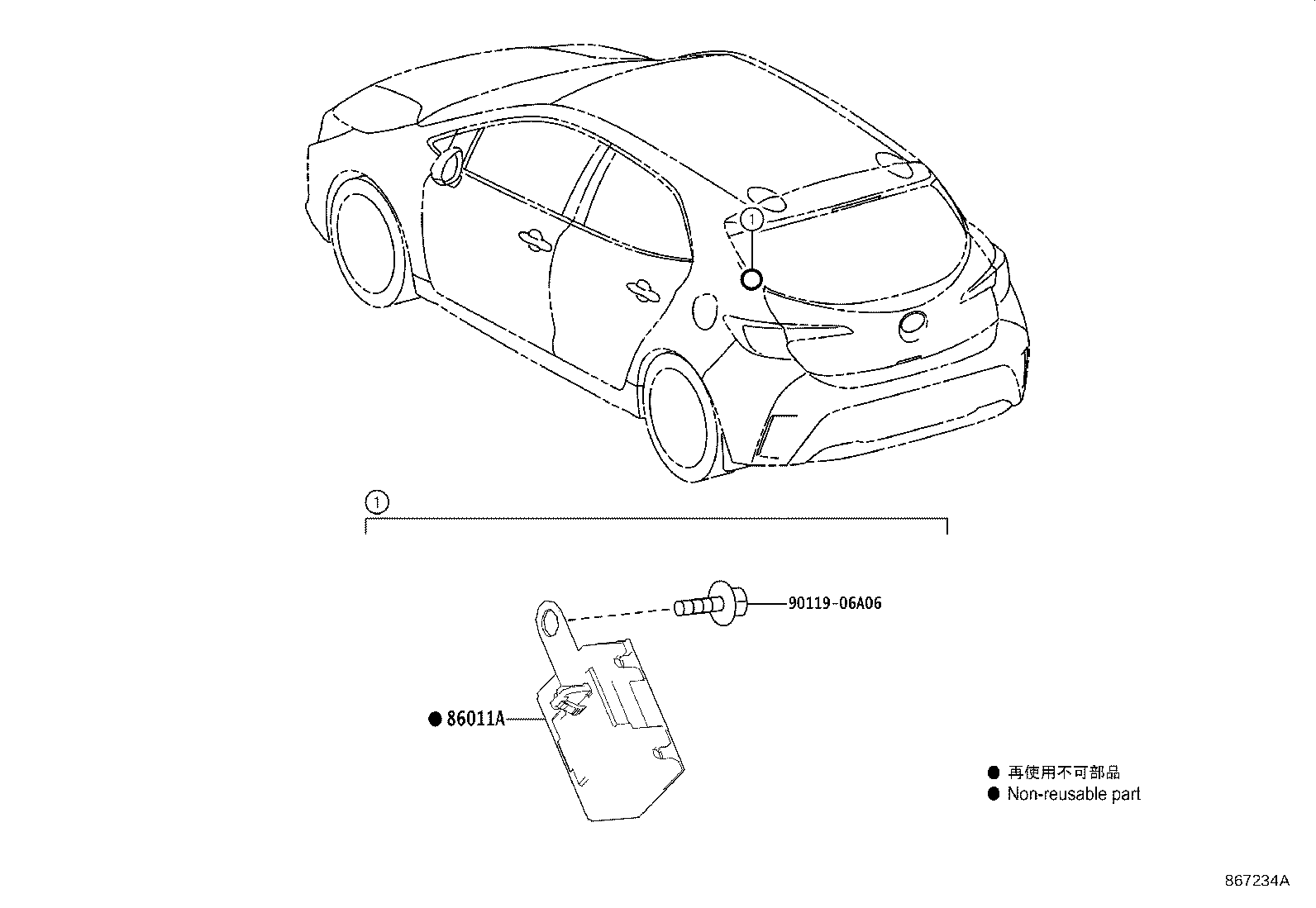

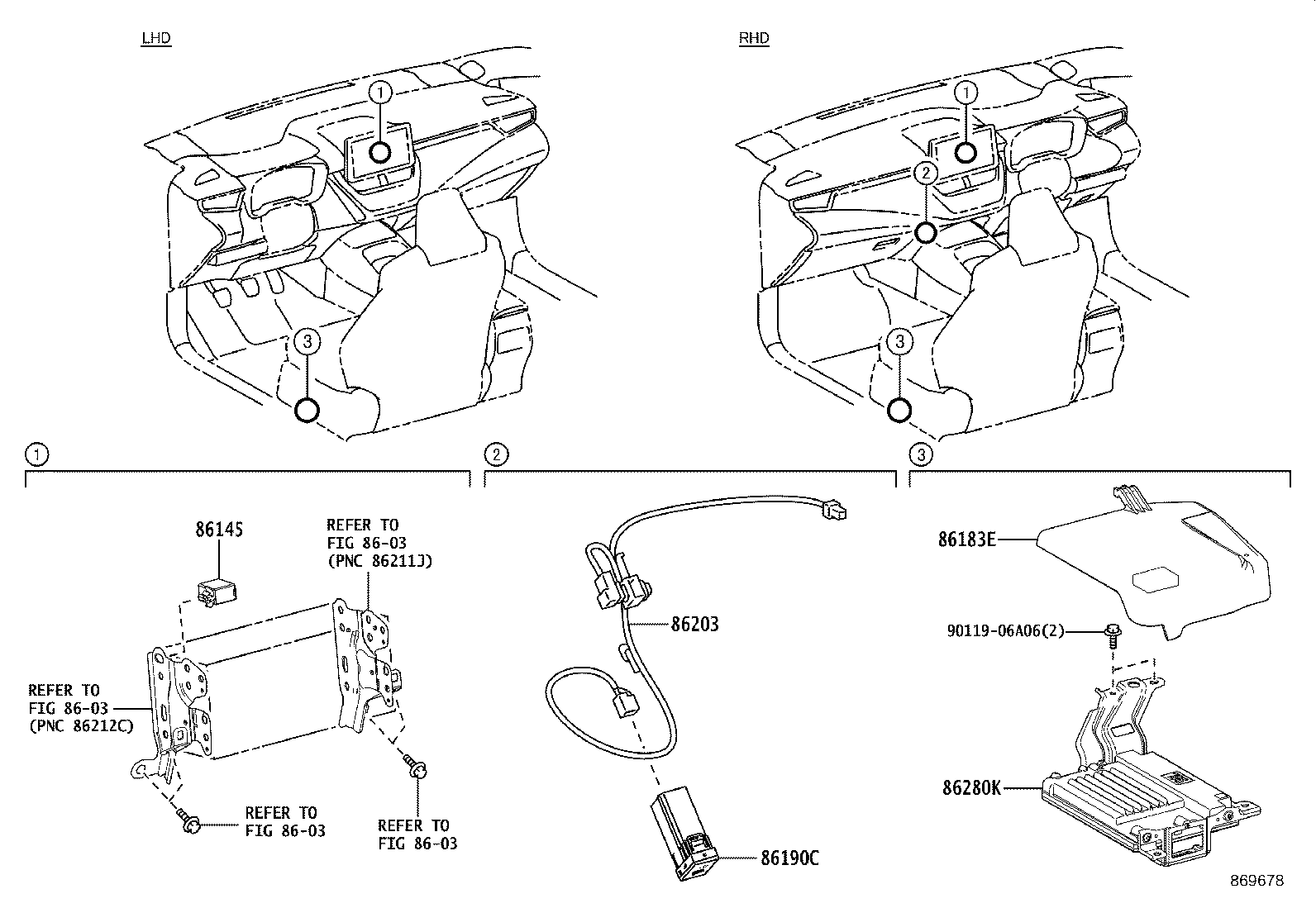

Figure 867231C 867231C 2018-06 → 2022-09 Figure 869678 869678 2022-09 → — Figure 867234A 867234A 2018-06 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86145 Connector, Antenna Male
86183E Cover, Audio Amplifier
86190C Adapter Assy, Stereo Jack, NO.1
86203 Wire, Radio
86280K Amplifier Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
