Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

4 part groups · 6 illustrations

Illustrations

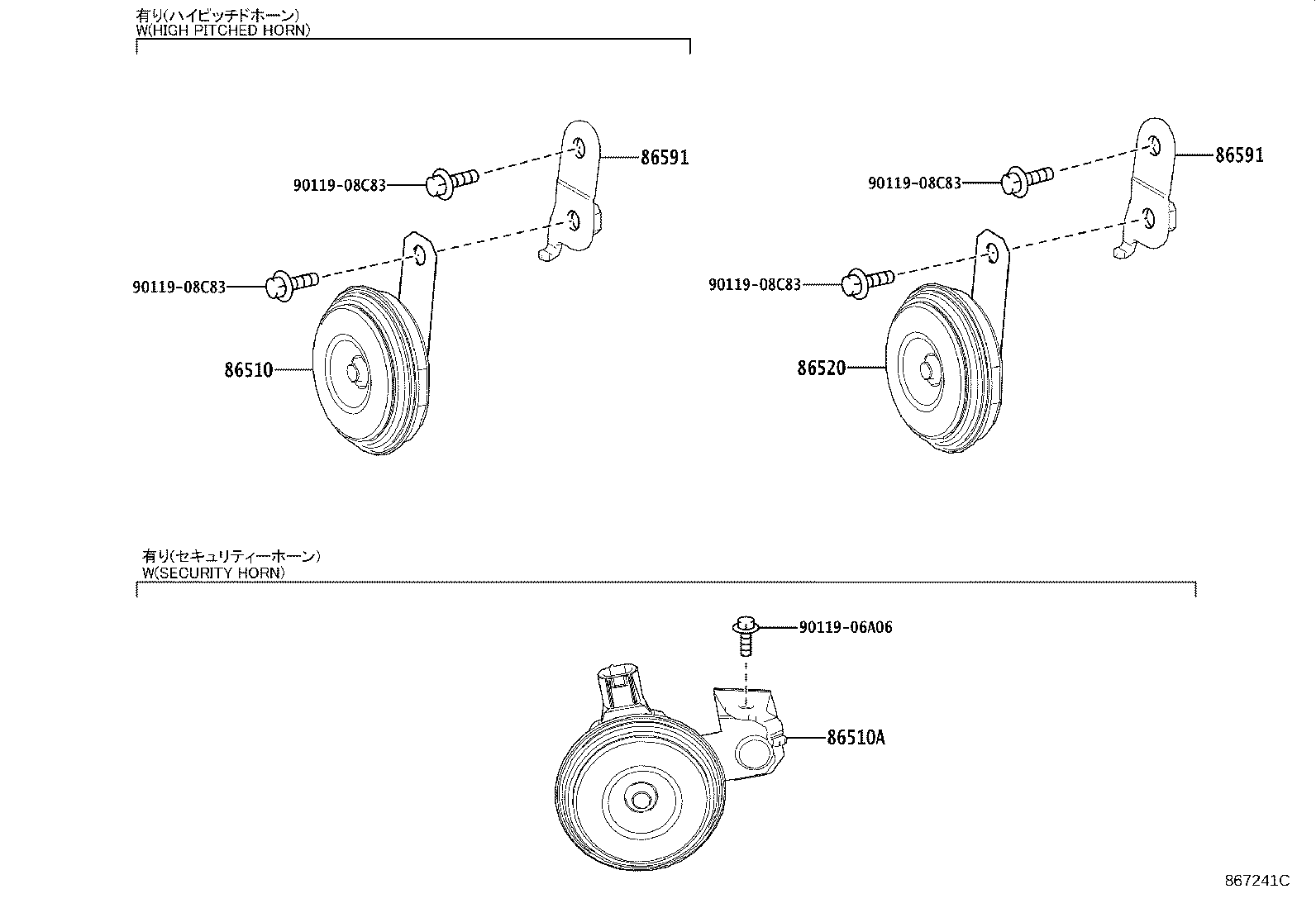

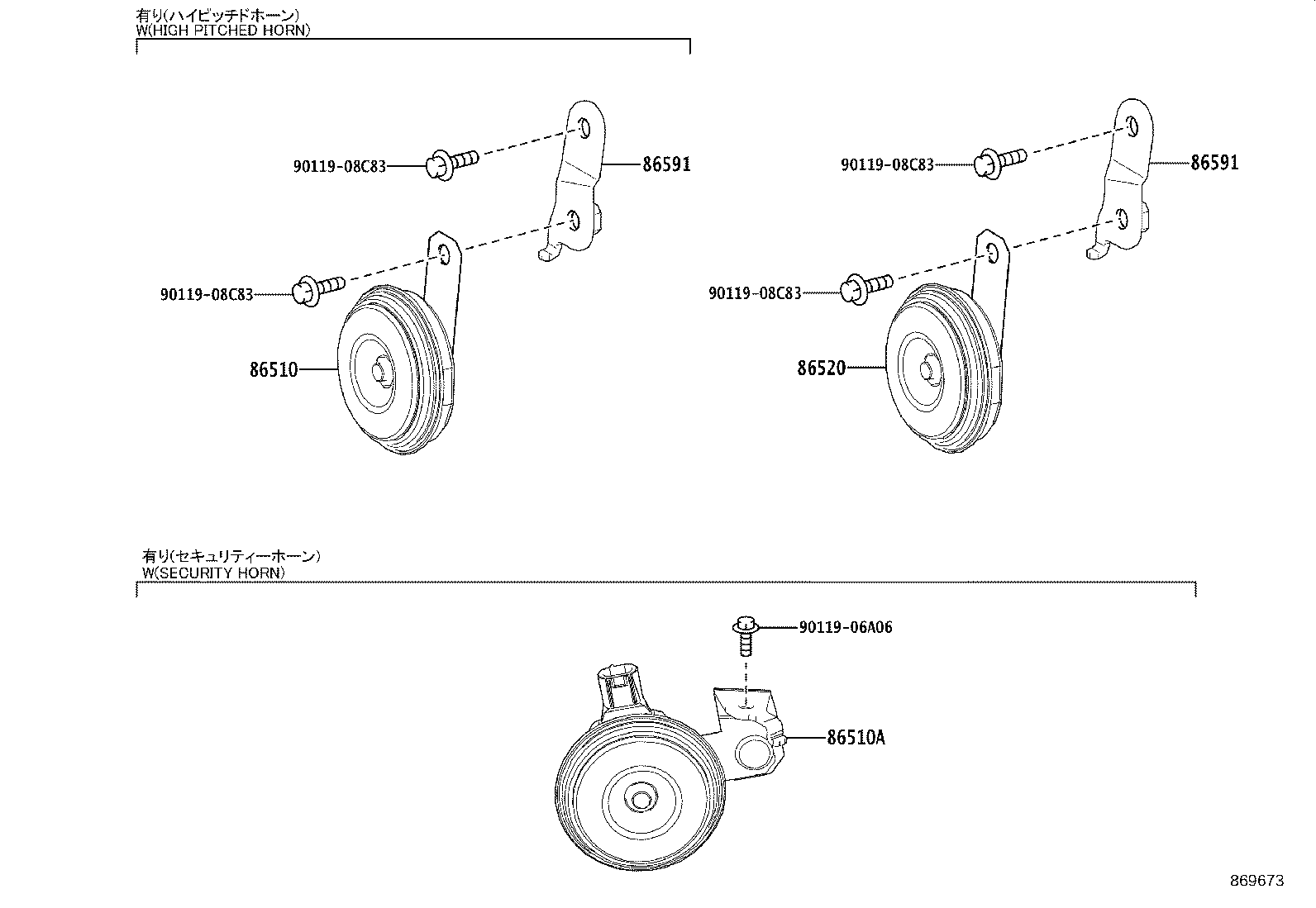

Figure 867242A 867242A 2018-06 → — Figure 867241C 867241C 2018-06 → — Figure 867243B 867243B 2018-06 → 2022-09 Figure 869673 869673 2022-09 → — Figure 869672A 869672A 2018-06 → — Figure 869675 869675 2022-09 → —

Part groups

PNCDescription
86510 Horn Assy, High Pitched
86510A Horn Assy, Security
86520 Horn Assy, Low Pitched
86591 Bracket, Horn
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
