Toyota Auris/Corolla HB(Jpp
2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General
Supported model
Data version 2022-09
Telephone & Mayday
8 part groups · 4 illustrations
Part groups

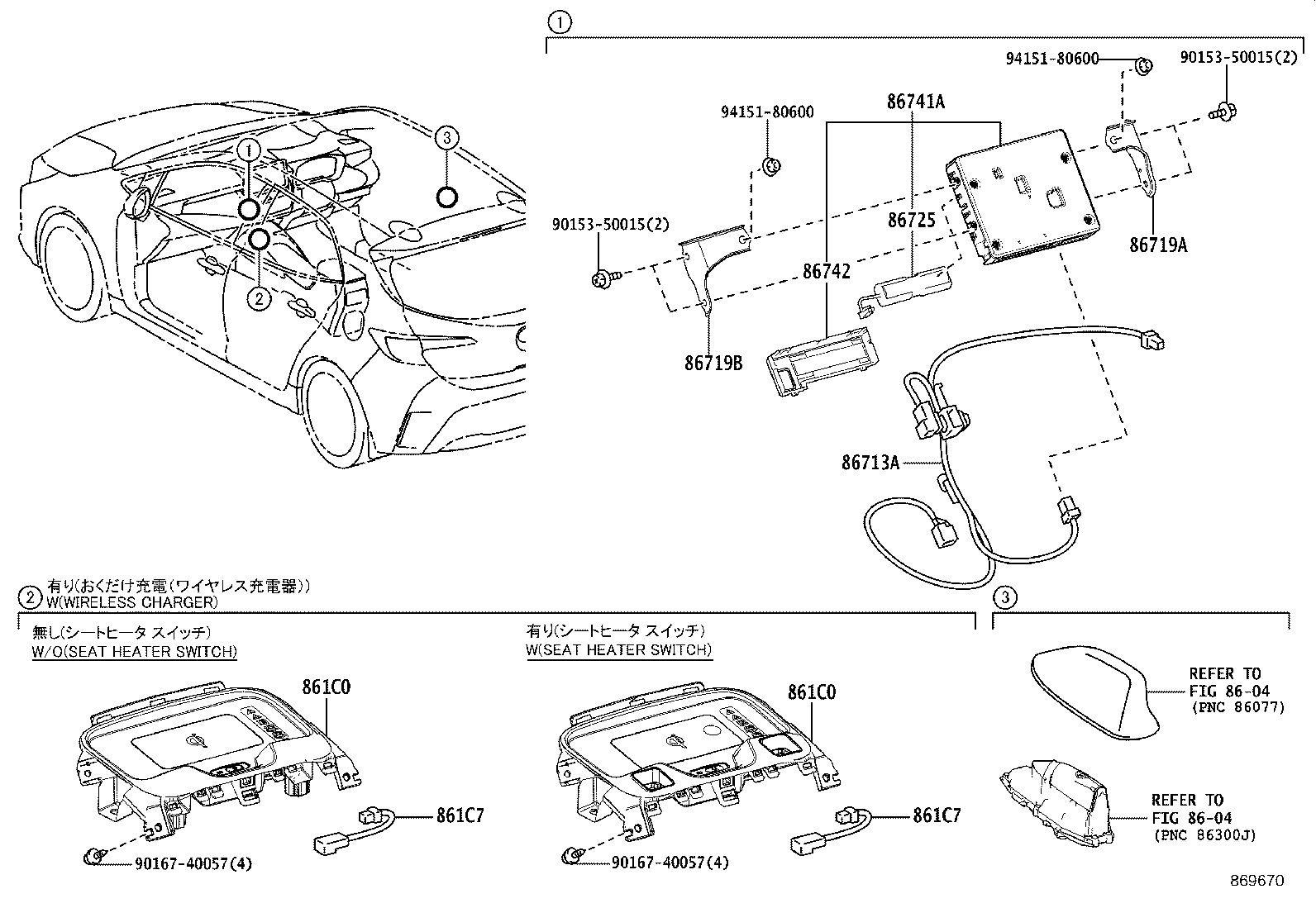

| PNC | Description |
|---|---|

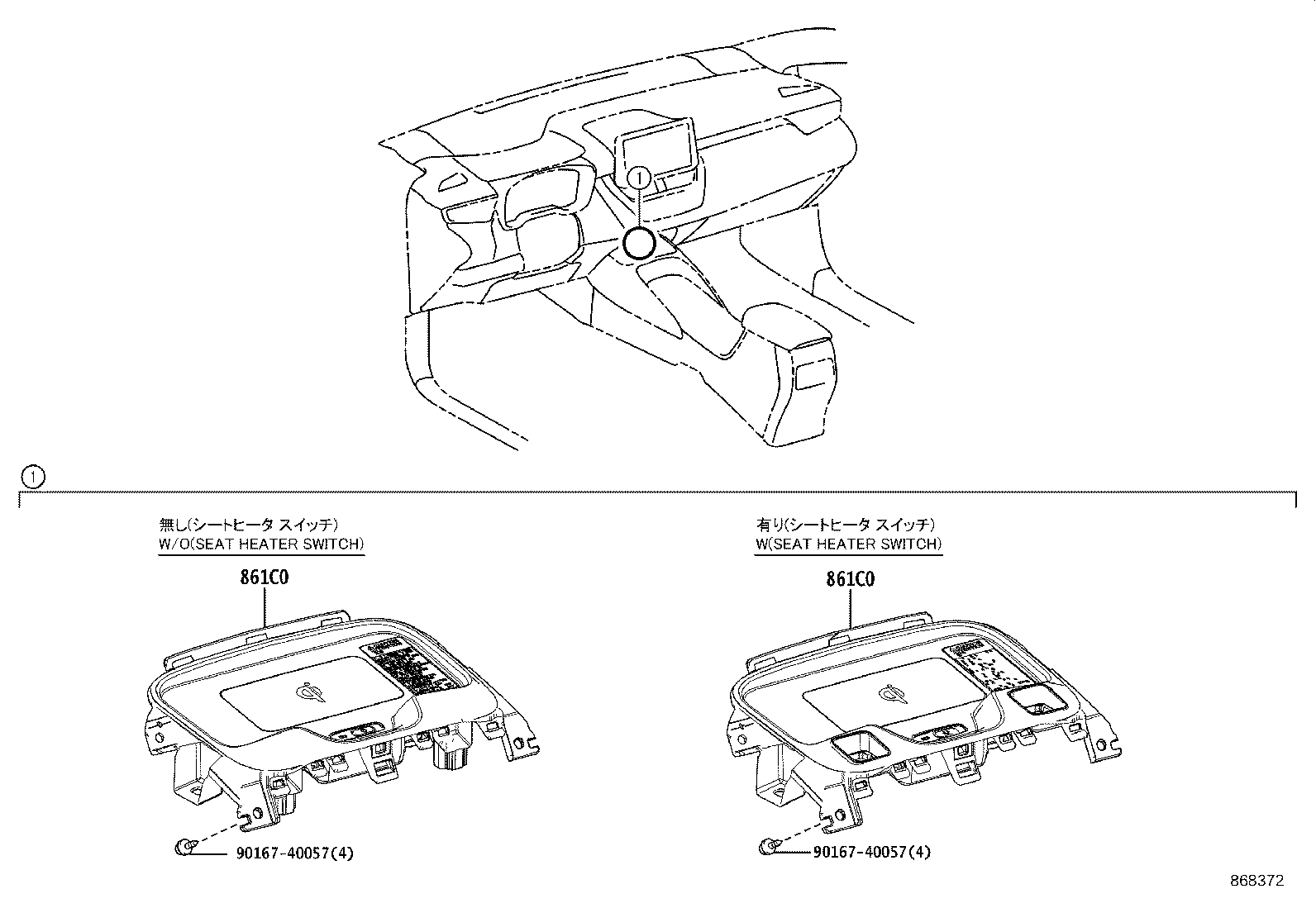

| 861C0 | Cradle Assy, Mobile Wireless Charger |
| 861C7 | Cord, Mobile Wireless Charger |
| 86713A | Wire, Telephone Computer, (TO TRANSCEIVER) |
| 86719A | Bracket, Telephone NO.1 |
| 86719B | Bracket, Telephone NO.2 |
| 86725 | Battery, Mobilephone |
| 86741A | Transceiver, Telematics |
| 86742 | Cover, Transceiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
