Toyota Auris/Corolla HB(Jpp
2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General
Supported model
Data version 2022-09
Heating & Air Conditioning - Control & Air Duct
22 part groups · 5 illustrations
Part groups

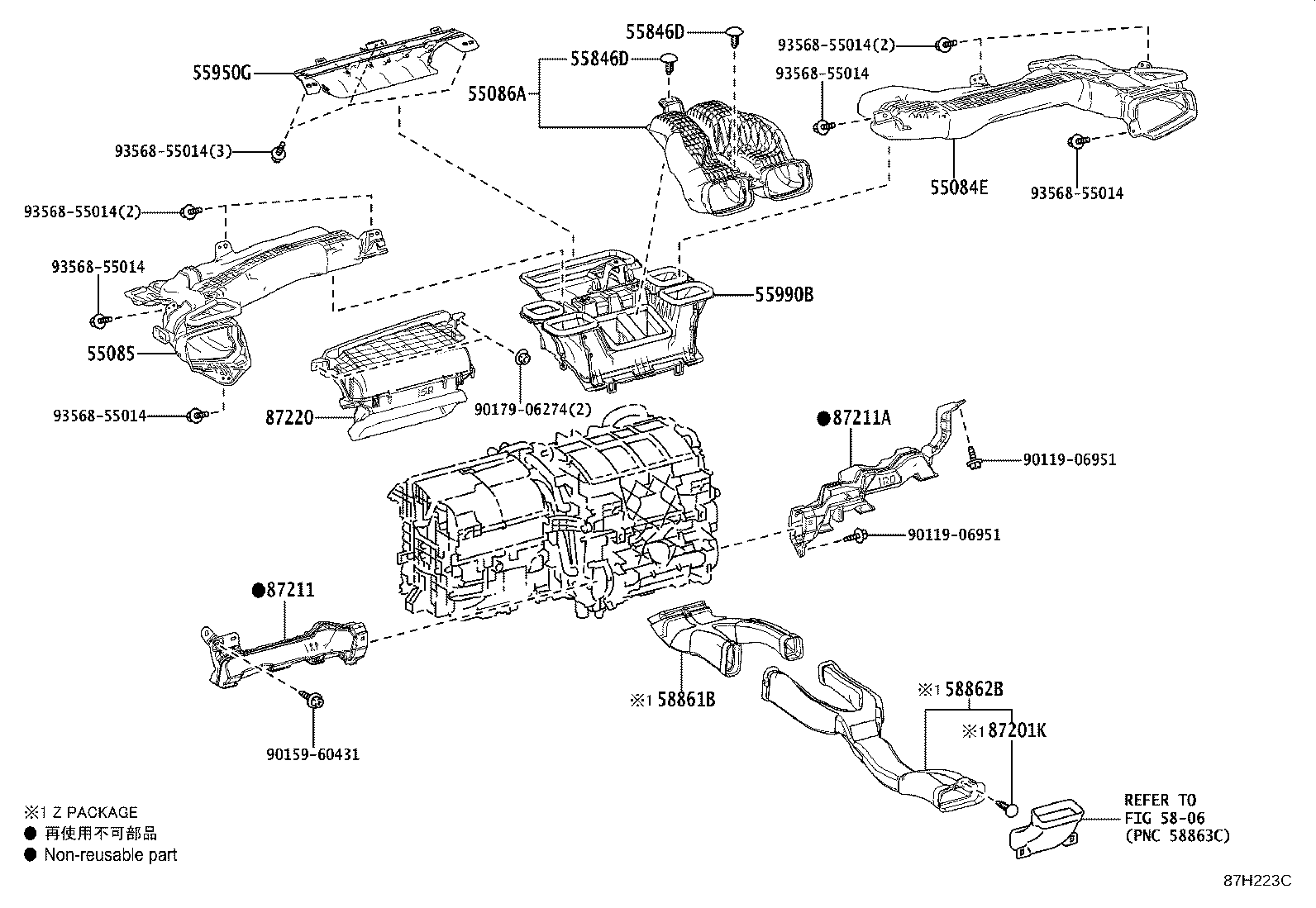

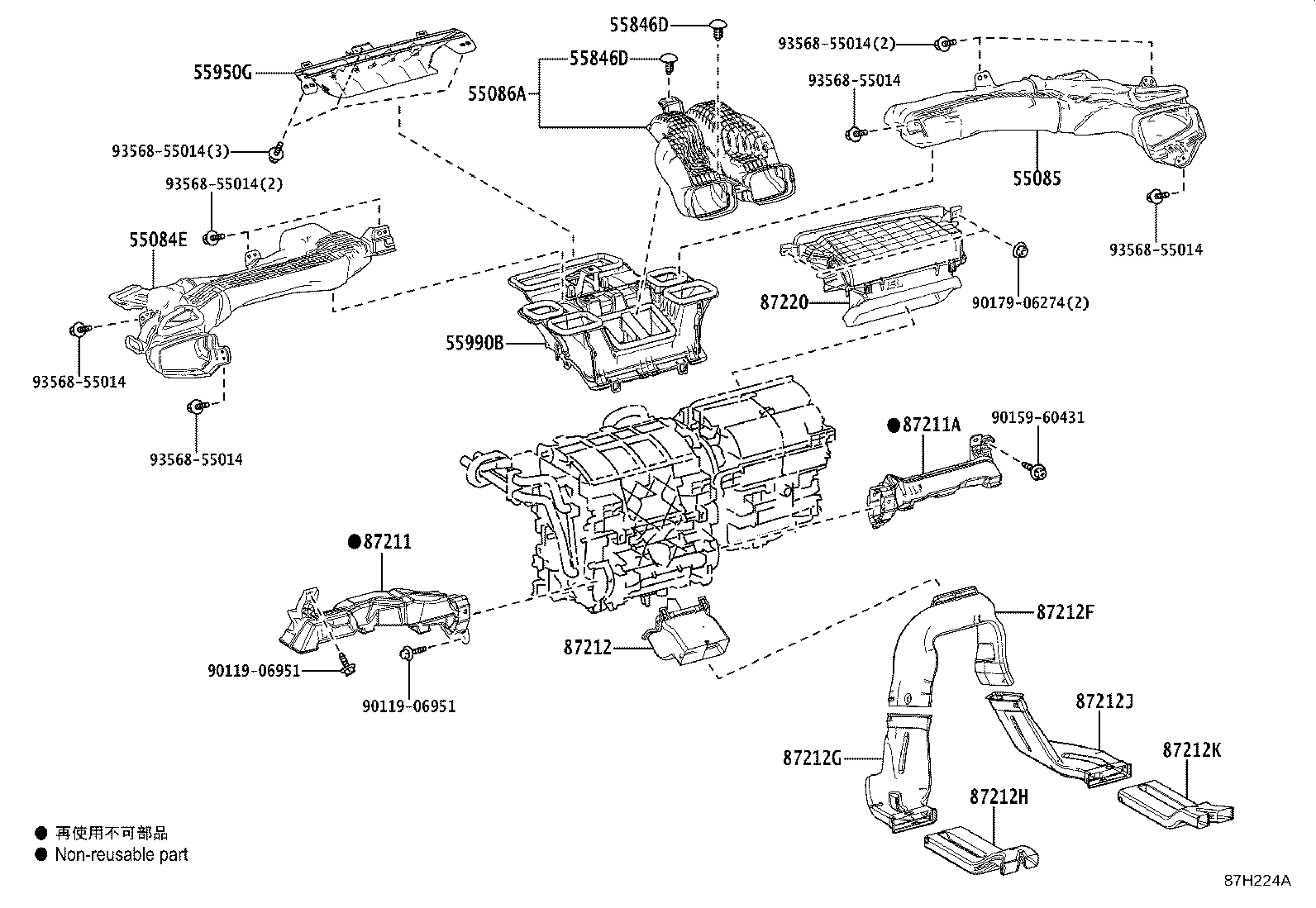

| PNC | Description |
|---|---|
| 55084E | Duct Sub-assy, Heater TO Register, NO.1 |
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55086A | Duct Sub-assy, Heater TO Register, Center |
| 55846D | Clip, Heater TO Register Duct |
| 55900 | Control Assy, Air Conditioner |
| 55950G | Nozzle Assy, Defroster |
| 55990B | Nozzle Assy, Defroster, Lower |
| 58861B | Duct, Console Box, NO.1 |
| 58862B | Duct, Console Box, NO.2 |
| 87201K | Clip (FOR AIR DUCT) |
| 87211 | Duct, Air, NO.1 |
| 87211A | Duct, Air, NO.2 |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87212H | Duct, Air, Rear NO.4 |
| 87212J | Duct, Air, Rear NO.5 |
| 87212K | Duct, Air, Rear NO.6 |
| 87220 | Duct Assy, Air |

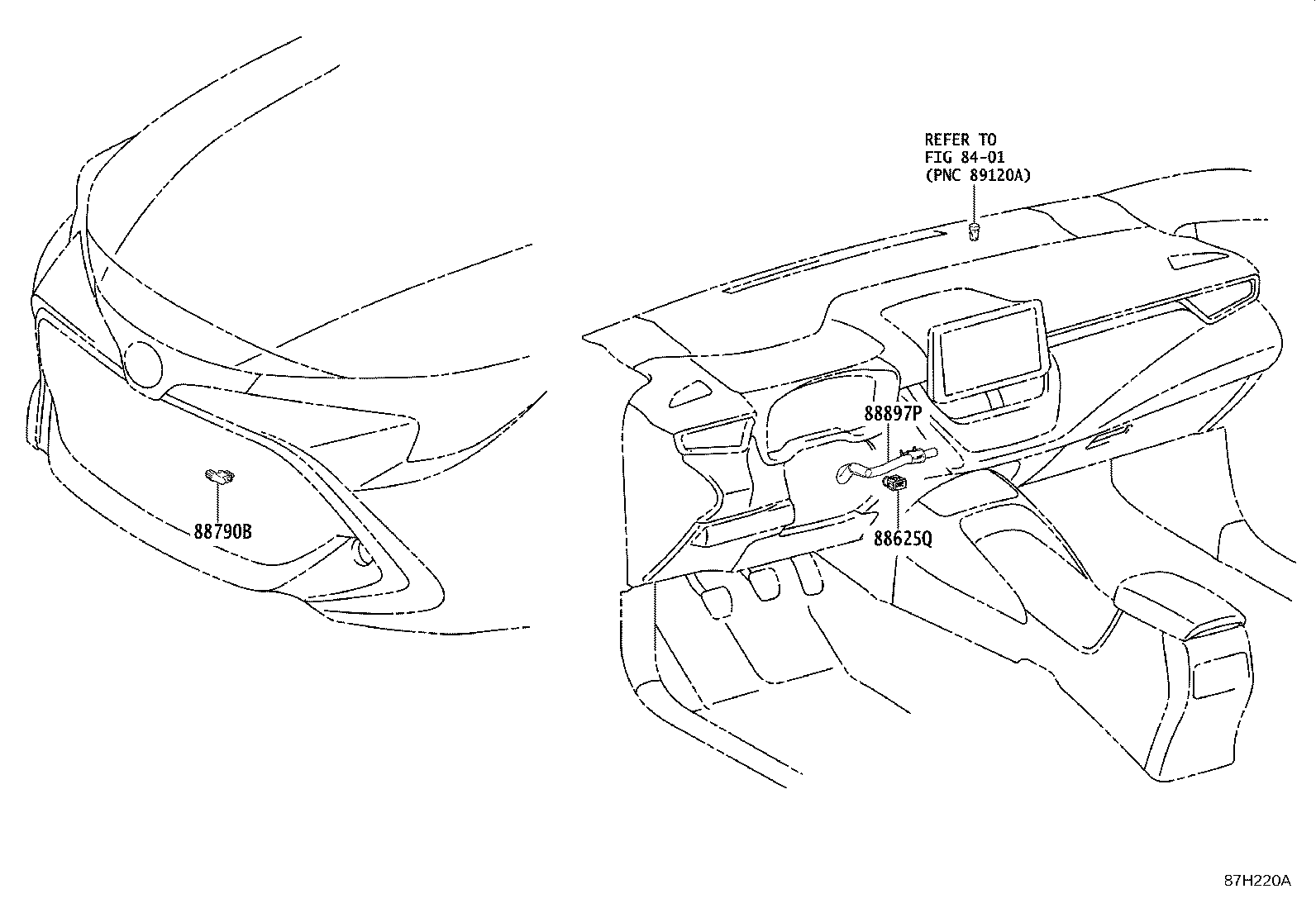

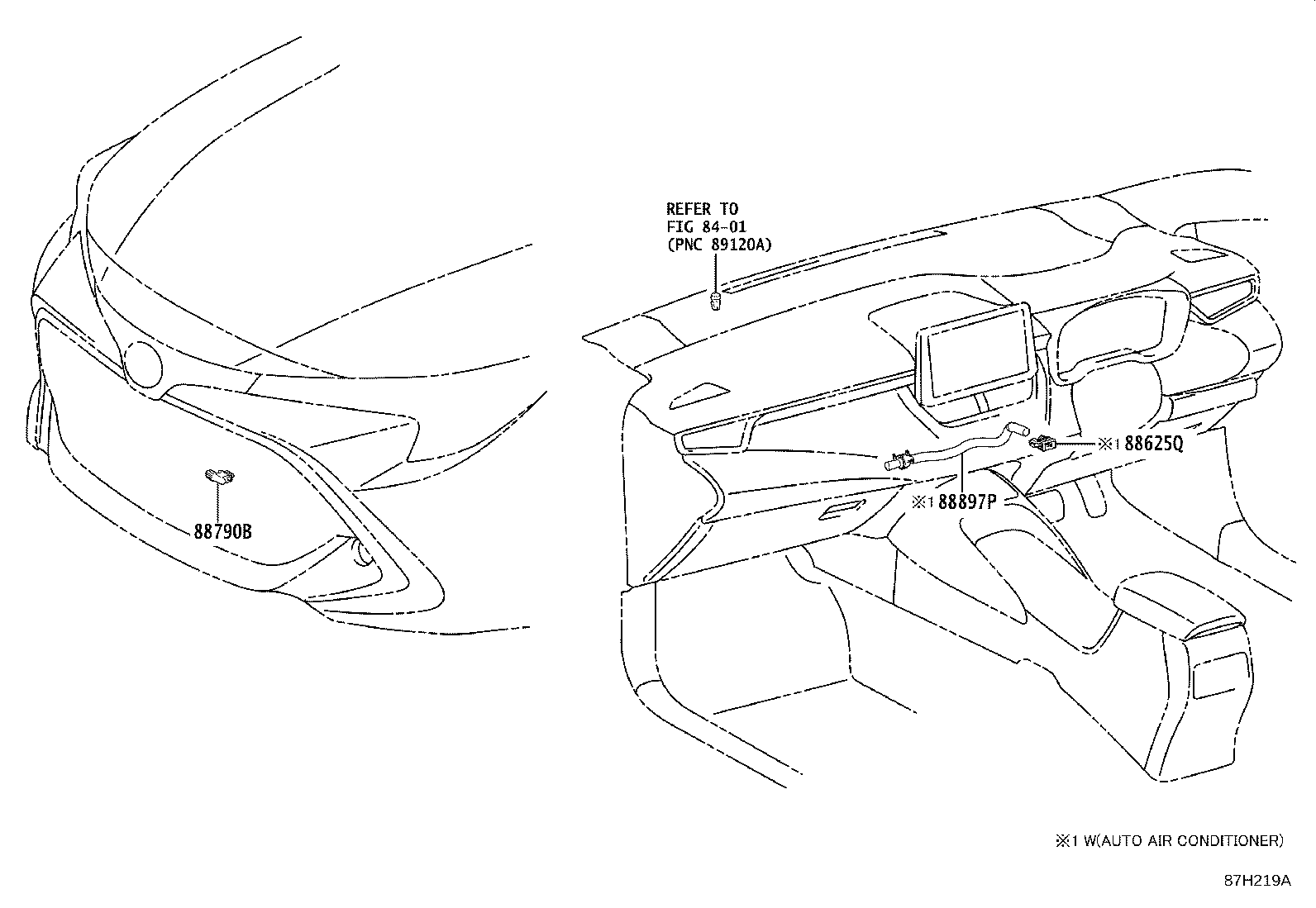

| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88790B | Thermistor Assy |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
