Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

4 part groups · 5 illustrations

Illustrations

Figure 87H196A

87H196A 2018-06 → —

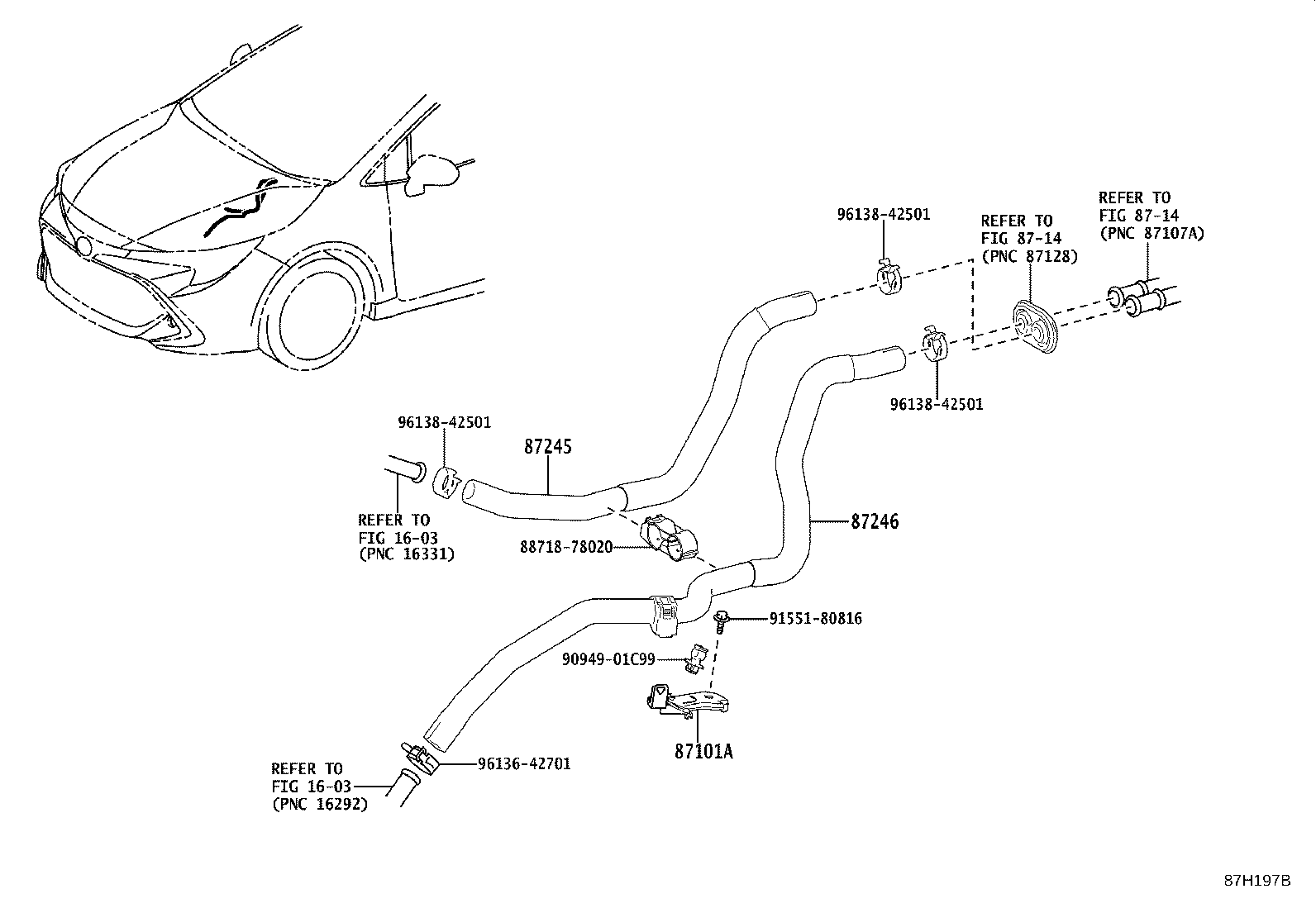

Figure 87H197B

87H197B 2018-06 → —

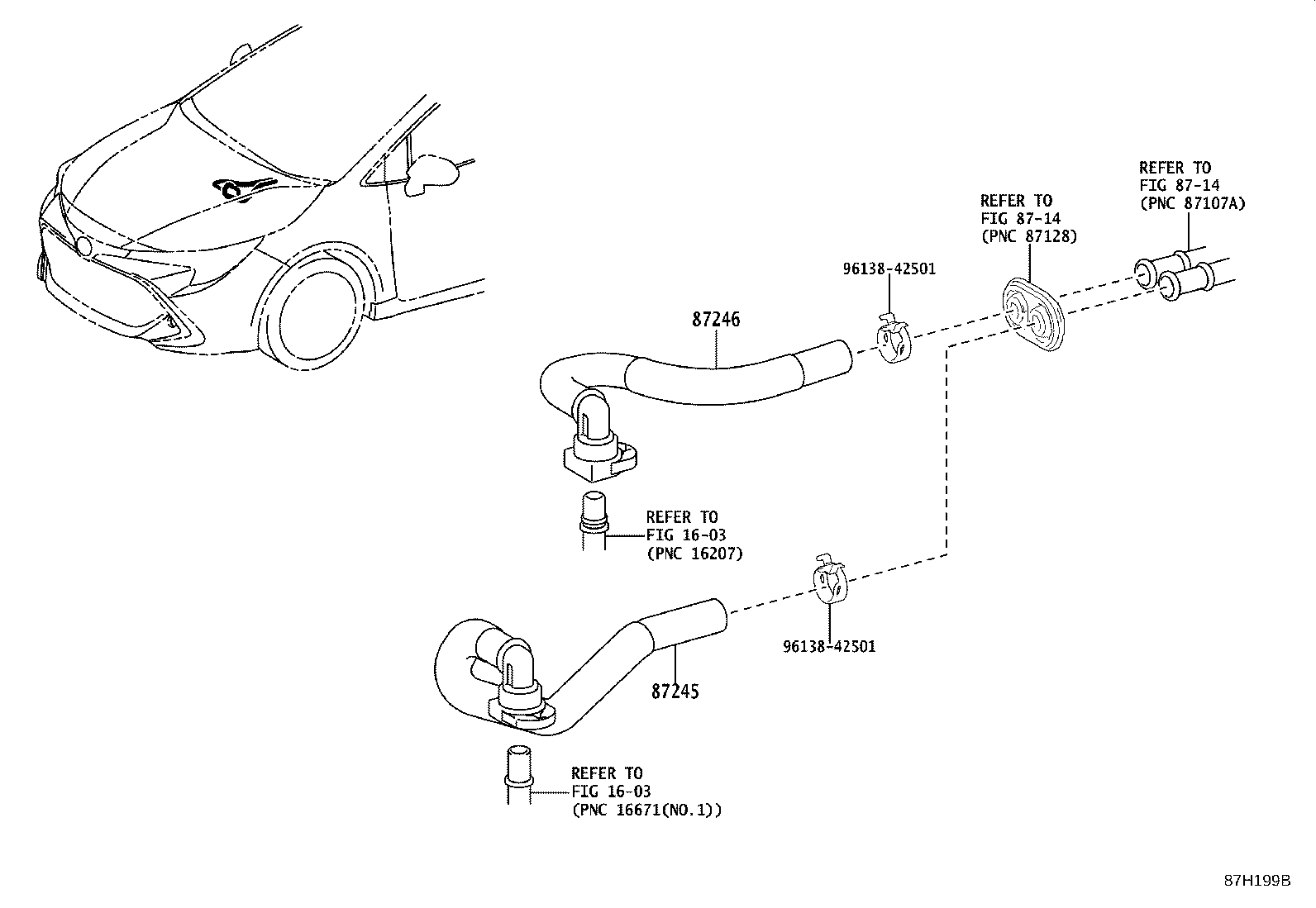

Figure 87H199B

87H199B 2018-06 → —

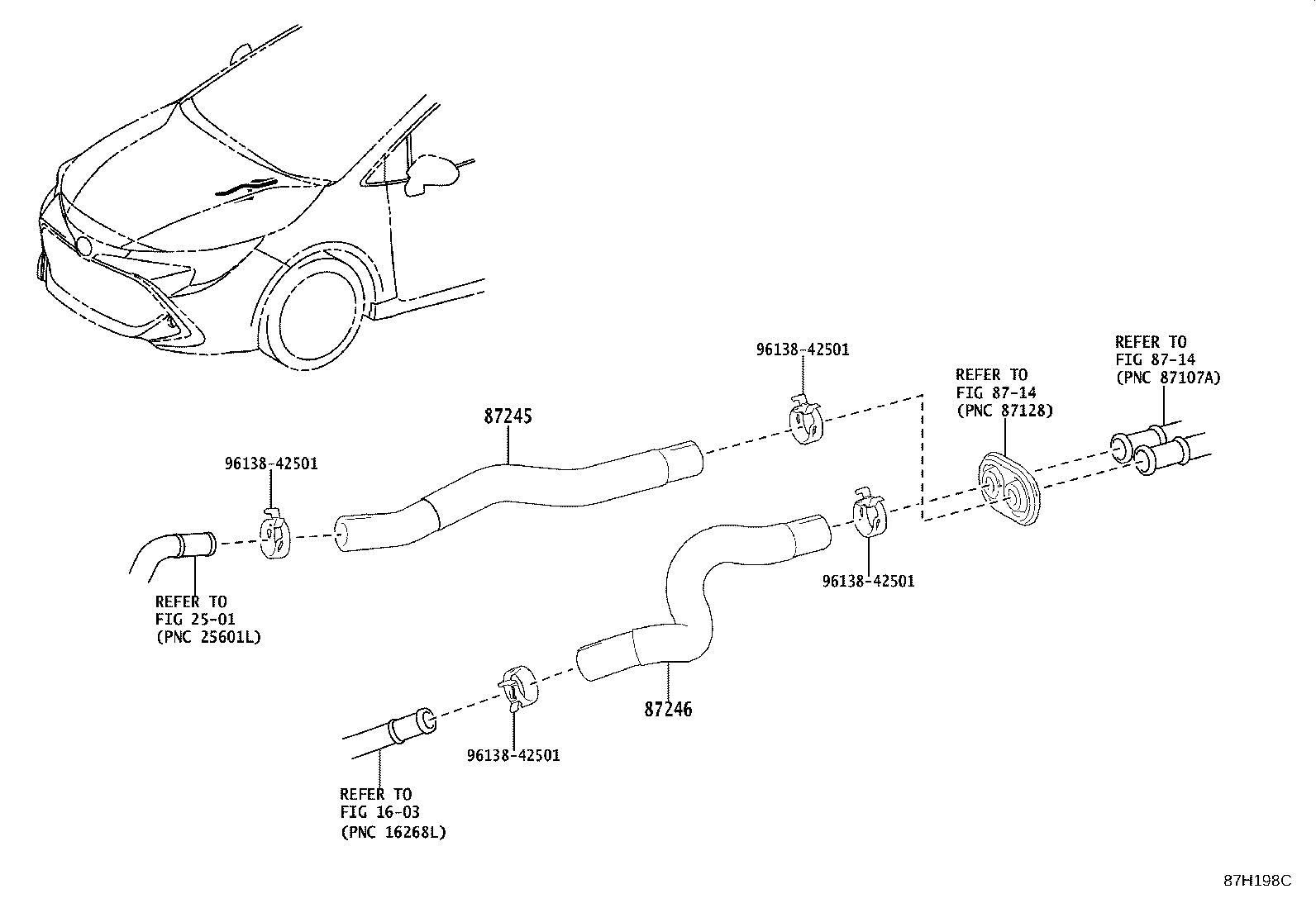

Figure 87H198C

87H198C 2018-06 → —

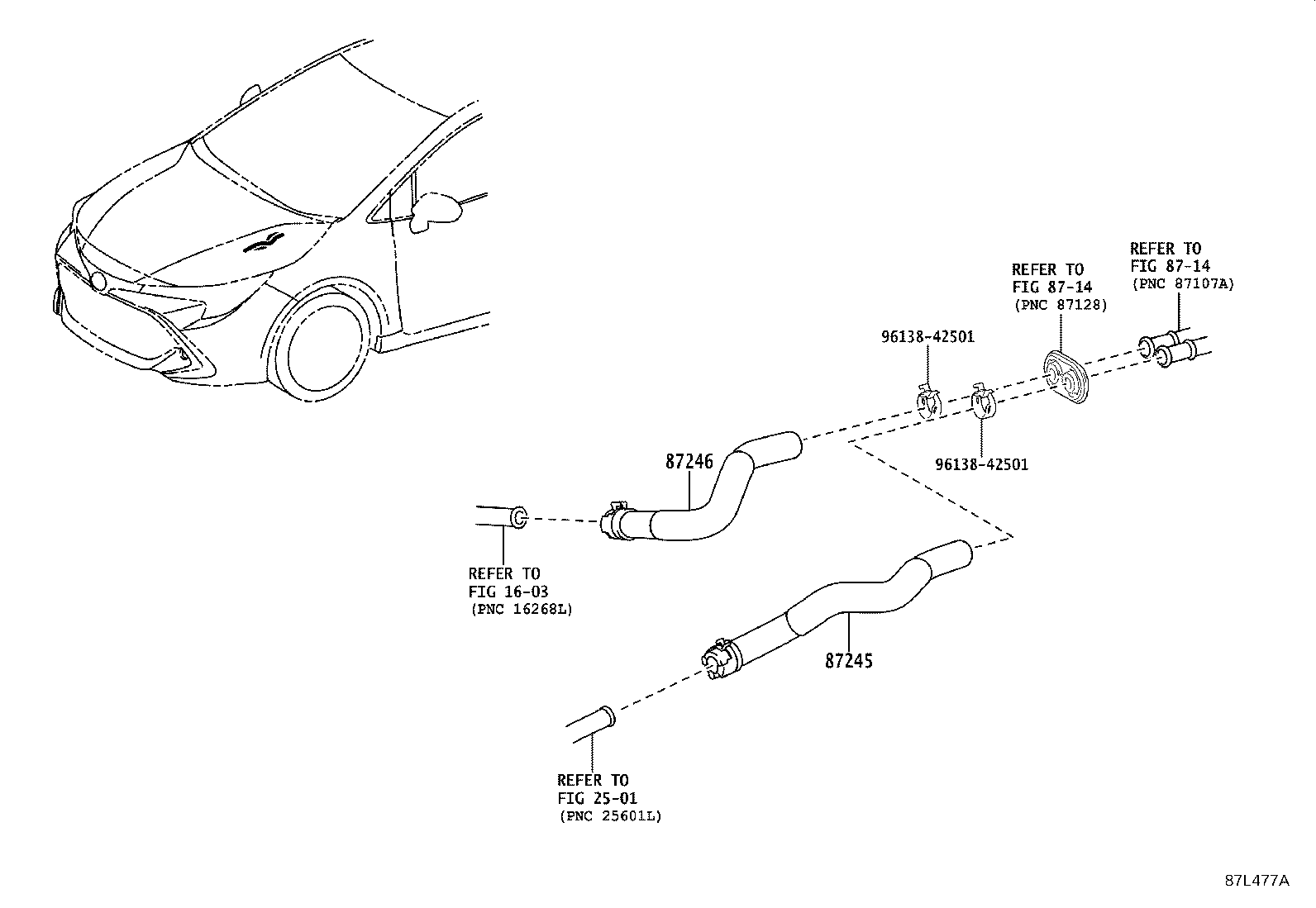

Figure 87L477A

87L477A 2022-09 → —

Part groups

PNC	Description
87101A	Bracket Sub-assy, Heater NO.1
87121F	Bracket, Heater
87245	Hose, Heater Water, Inlet
87246	Hose, Heater Water, Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
