Toyota Auris/Corolla HB(Jpp

2018-06 → present · chassis MZEA12,NRE210,ZWE21# · catalogue 165230 · General

Supported model Data version 2022-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

2 part groups · 3 illustrations

Illustrations

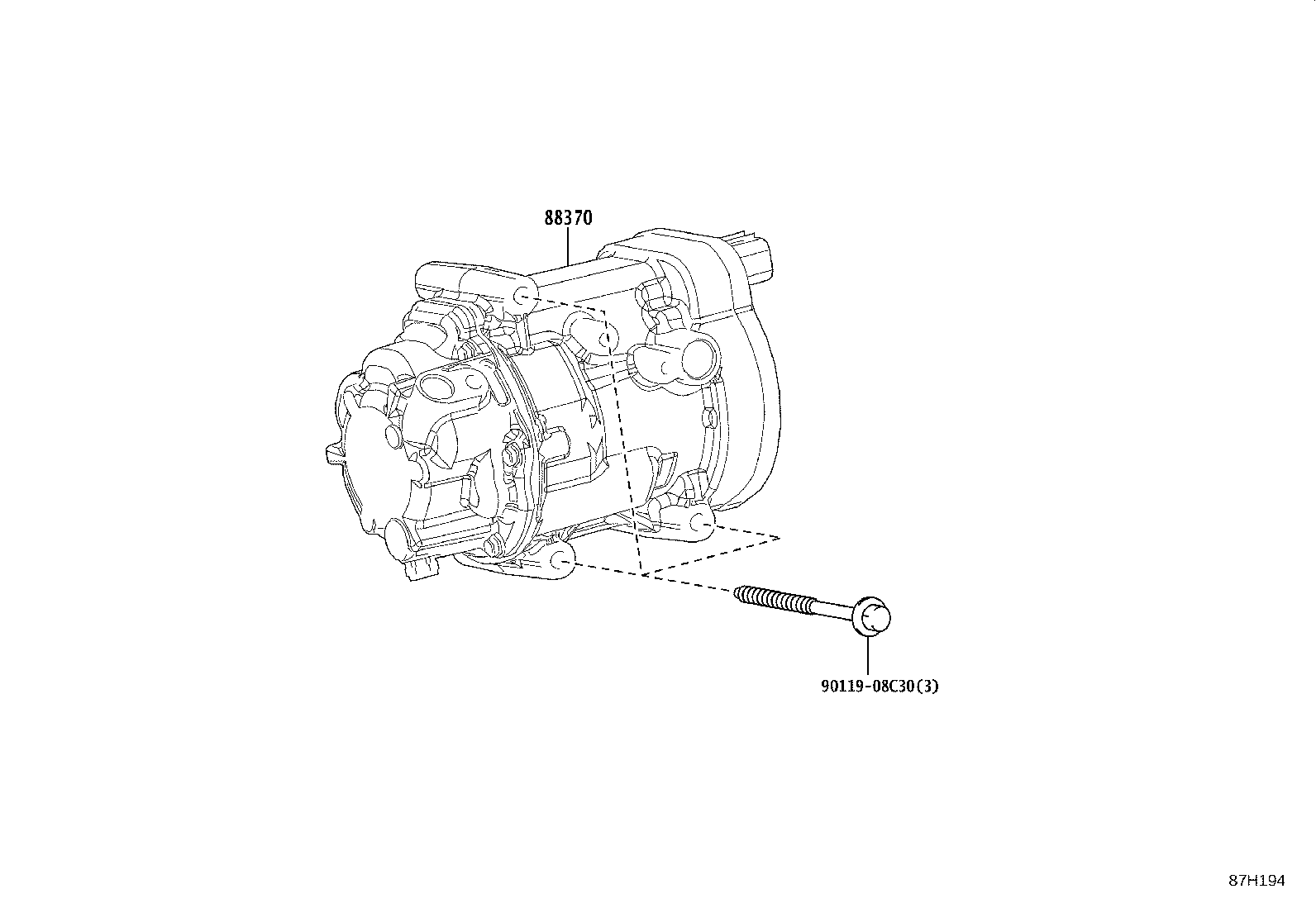

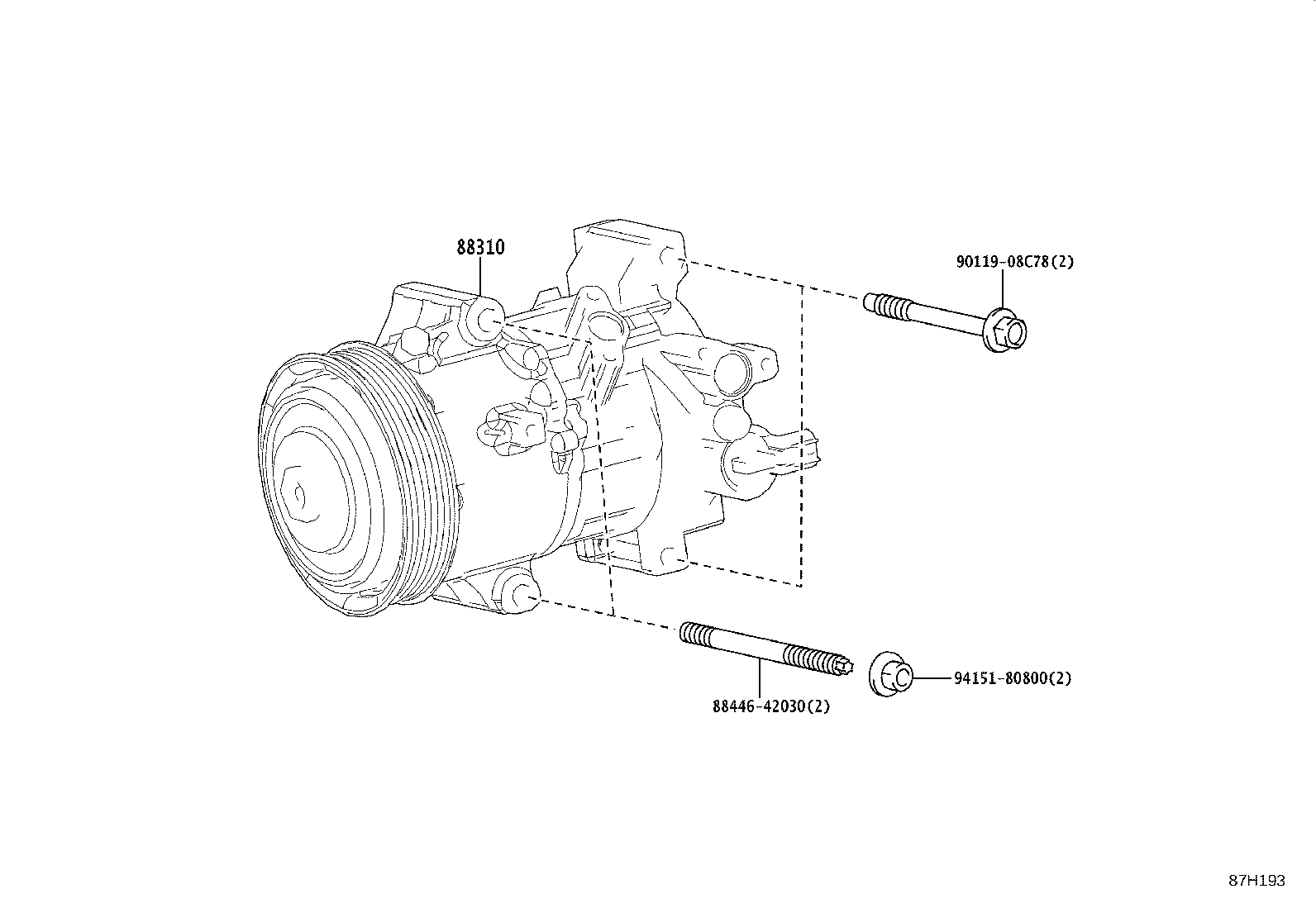

Figure 87H195 87H195 2018-06 → — Figure 87H193 87H193 2018-06 → — Figure 87H194 87H194 2018-06 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88370 Compressor Assy, W/Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
