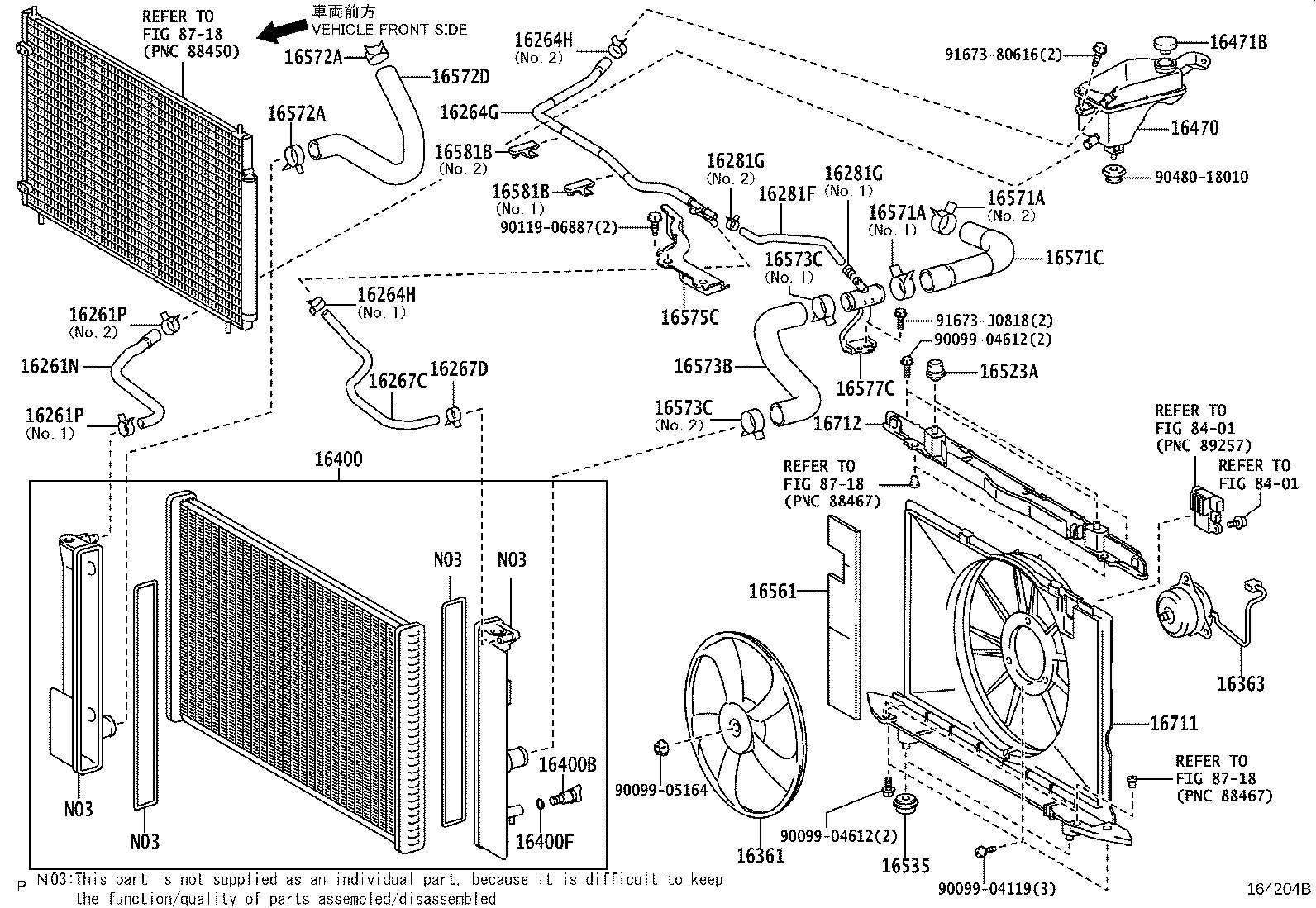

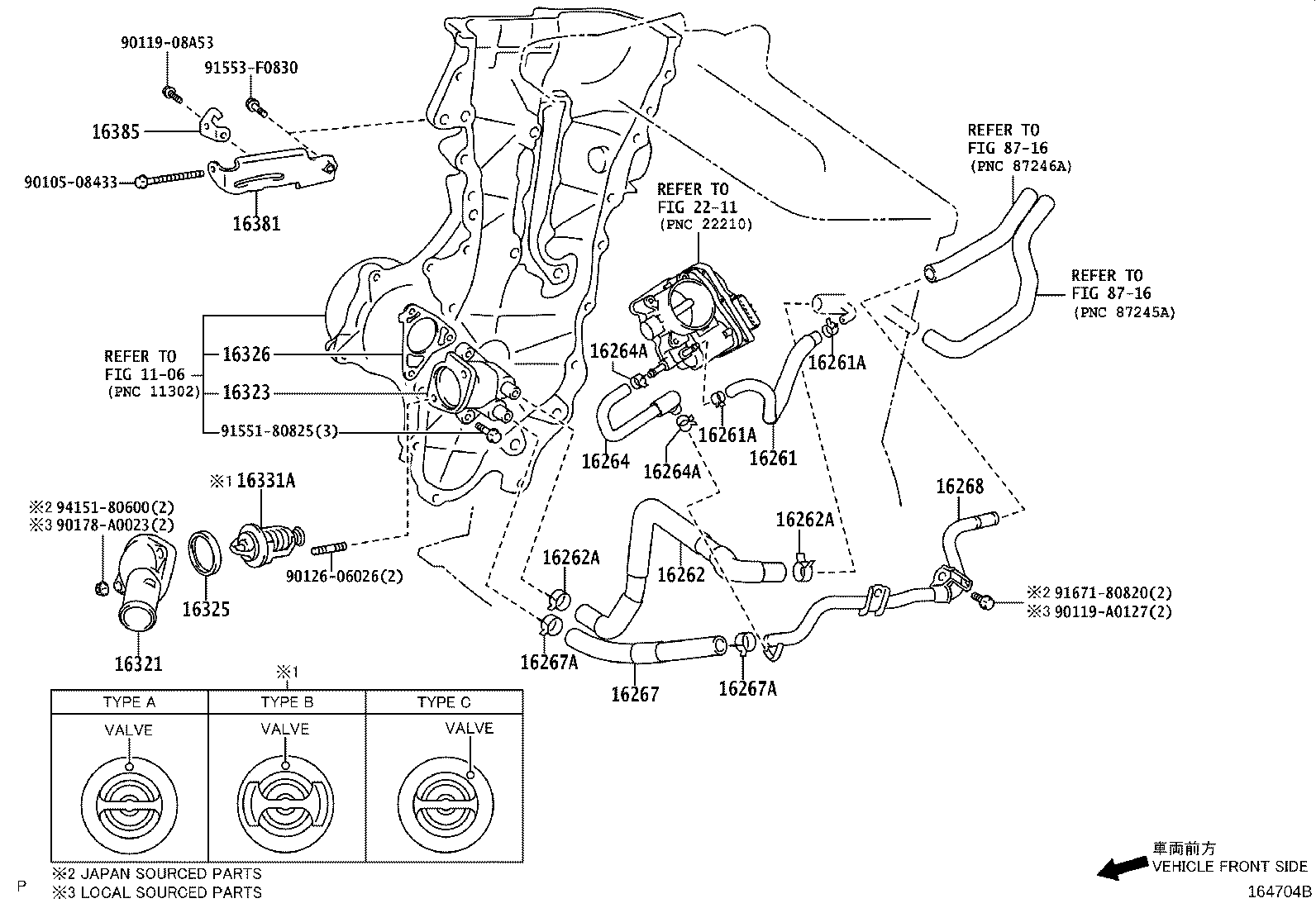

Radiator & Water Outlet
45 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16261 | Hose, Water By-pass |
| 16261A | Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) |
| 16261N | Hose, Water By-pass, NO.2 |
| 16261P | Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16262 | Hose, Water Inlet |
| 16262A | Clip(FOR WATER INLET HOSE) |
| 16264 | Hose, Water By-pass, NO.2 |
| 16264A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) |
| 16264G | Hose, Water By-pass, NO.3 |
| 16264H | Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267 | Hose, Water By-pass, NO.3 |
| 16267A | Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3) |
| 16267C | Hose, Water By-pass, NO.4 |
| 16267D | Clip(FOR WATER BY-PASS HOSE NO.4) |
| 16268 | Pipe, Water By-pass, NO.1 |
| 16281F | Hose, Water By-pass, NO.5 |
| 16281G | Clip(FOR WATER BY-PASS HOSE NO.5) |
| 16321 | Inlet, Water |
| 16323 | Housing, Water Inlet |
| 16325 | Gasket, Water Inlet Housing, NO.1 |
| 16326 | Gasket, Water Inlet Housing, NO.2 |
| 16331A | Thermostat |
| 16361 | Fan |
| 16363 | Motor, Cooling Fan |
| 16381 | Bar, Fan Belt Adjusting |
| 16385 | Slider, Fan Belt Adjusting |
| 16400 | Radiator Assy |
| 16400B | Plug, Radiator Drain Cock |
| 16400F | Packing(FOR RADIATOR DRAIN COCK) |
| 16470 | Tank Assy, Radiator Reserve |
| 16471B | Cap, Reserve Tank |
| 16523A | Cushion, Radiator Support |
| 16535 | Support, Radiator, Lower |
| 16561 | Seal, Radiator TO Support, NO.1 |
| 16571A | Clamp OR Clip, Hose(FOR RADIATOR INLET) |
| 16571C | Hose, Radiator, NO.1 |
| 16572A | Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) |
| 16572D | Hose, Radiator, NO.2 |
| 16573B | Hose, Radiator, NO.3 |
| 16573C | Clamp OR Clip, Radiator Hose, NO.3 |
| 16575C | Bracket, Water Hose Clamp, NO.1 |
| 16577C | Pipe, Radiator |
| 16581B | Clamp, Hose(FOR RADIATOR HOSE) |
| 16711 | Shroud, Fan |
| 16712 | Shroud, Fan, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
