Toyota Corolla HB

2007-03 → 2012-08 · chassis ZRE152 · catalogue 165310 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

8 part groups · 2 illustrations

Illustrations

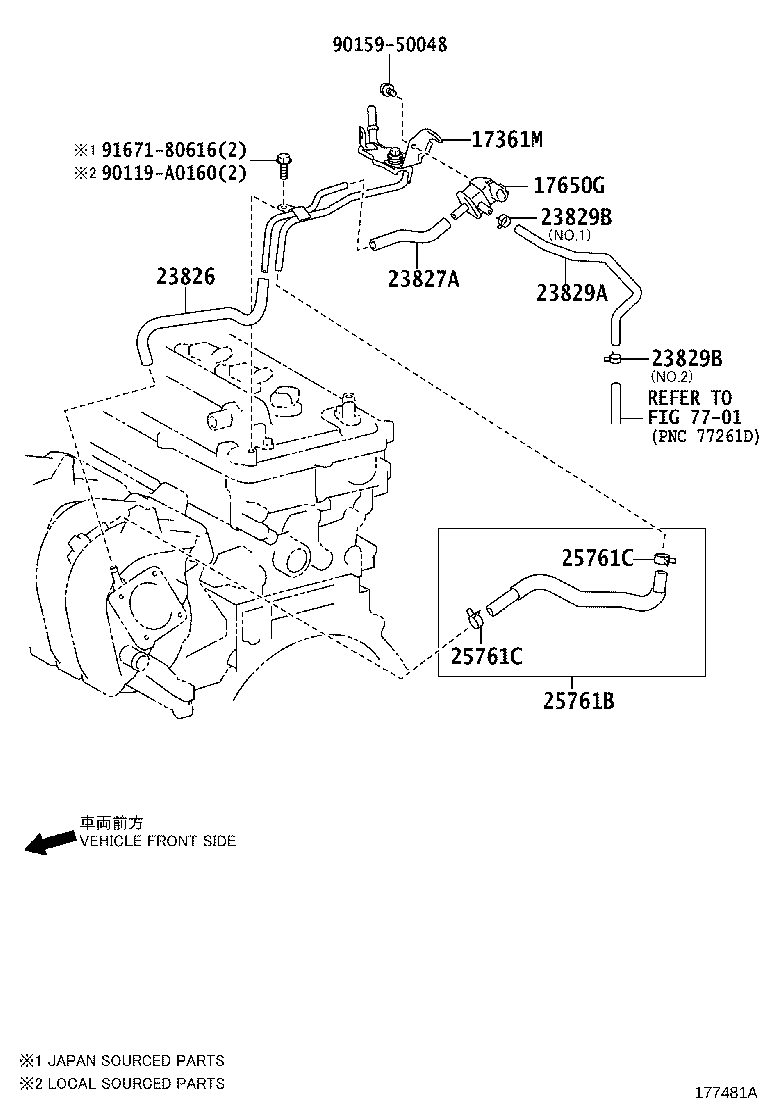

Figure 175526D 175526D 2007-03 → 2009-09 Figure 177481A 177481A 2009-10 → —

Part groups

PNCDescription
17361M Tube, Air
17650G Valve, Duty Vacuum Switching
23826 Hose, Fuel Vapor Feed, NO.1
23827A Hose, Fuel Vapor Feed, NO.2
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
25761B Hose, Vaccum Transmitting, NO.1
25761C Clip(VACCUM TRANSMITTING HOSE NO.1)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
