Toyota Corolla HB
2007-03 → 2012-08 · chassis ZRE152 · catalogue 165310 · General
Supported model
Data version 2013-01

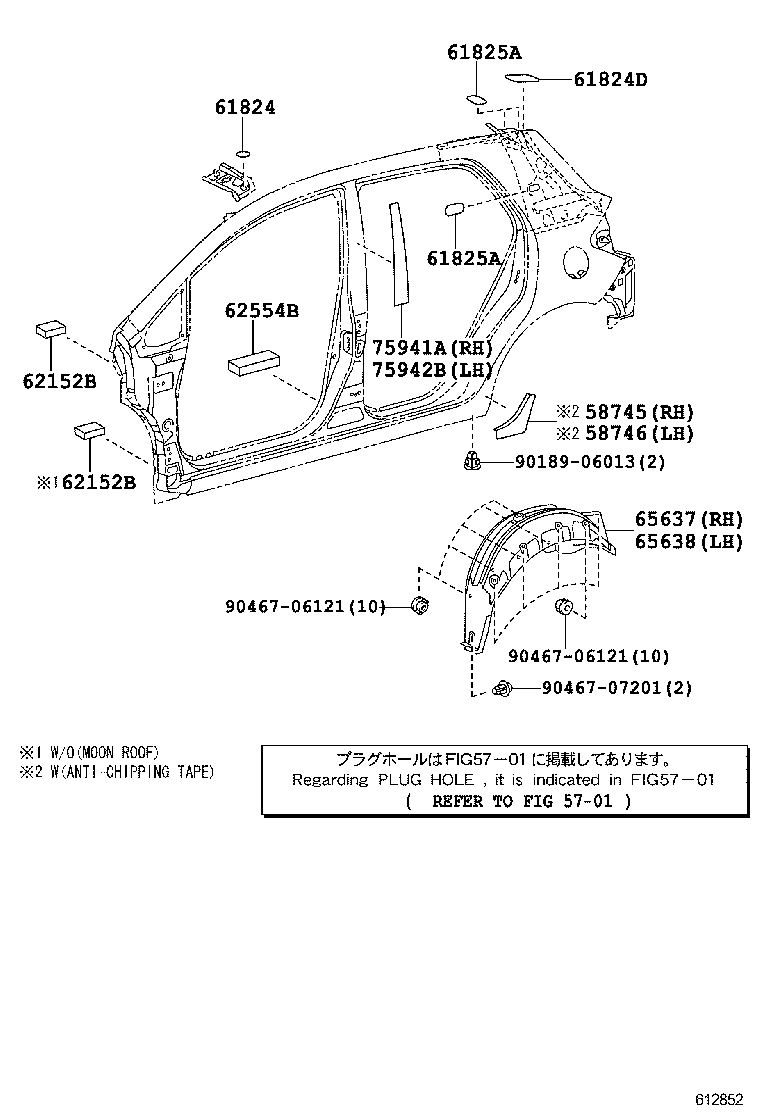

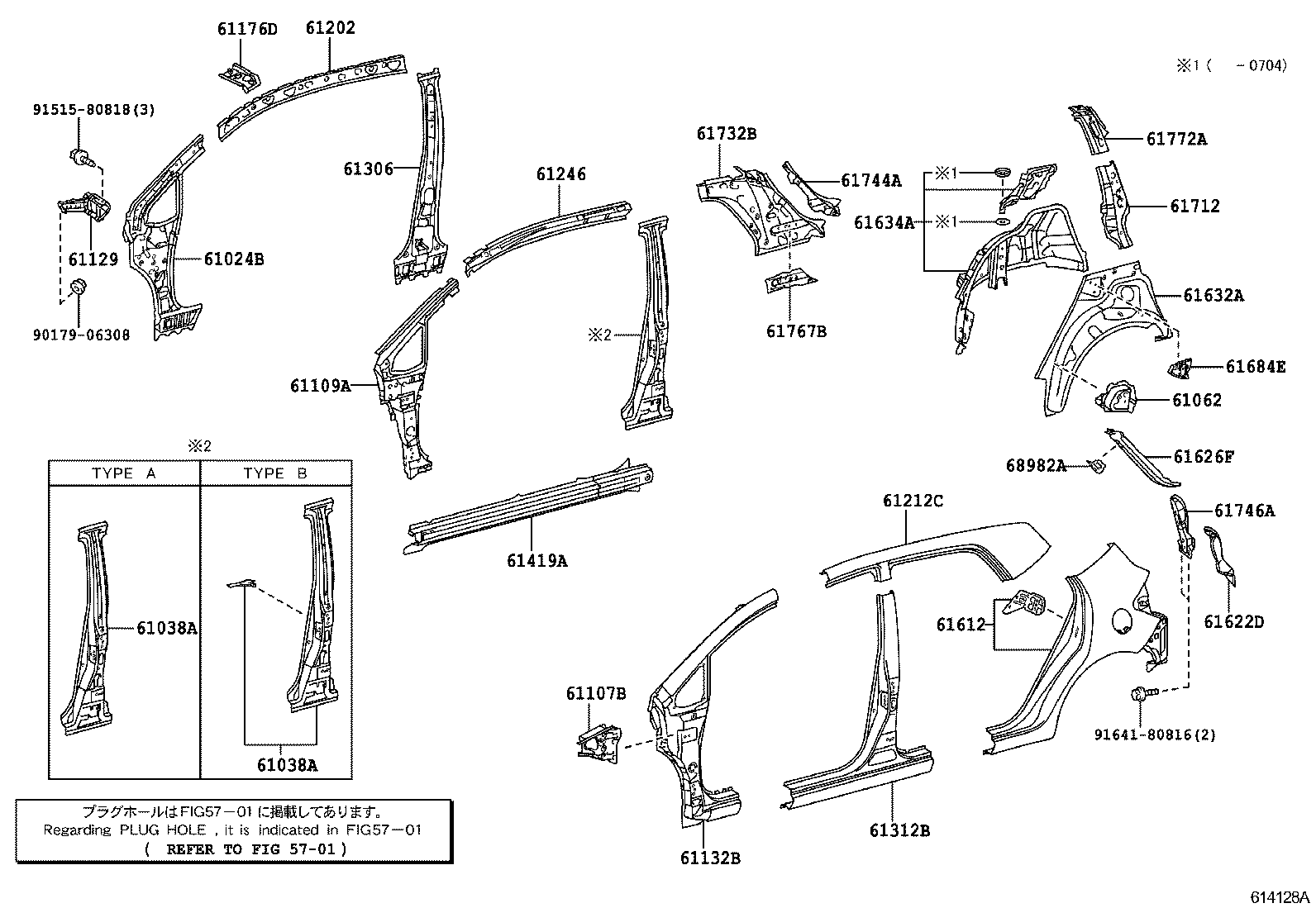

Side Member
66 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58709A | Carrier Sub-assy, Jack |
| 58745 | Protector, Quarter Panel, Front RH |
| 58746 | Protector, Quarter Panel, Front LH |
| 61023B | Pillar Sub-assy, Front Body, Inner RH |
| 61024B | Pillar Sub-assy, Front Body, Inner LH |
| 61037A | Reinforcement Sub-assy, Center Body Pillar, RH |
| 61038A | Reinforcement Sub-assy, Center Body Pillar, LH |
| 61061 | Reinforcement Sub-assy, Wheel House, RH |
| 61062 | Reinforcement Sub-assy, Wheel House, LH |
| 61106A | Reinforce Sub-assy, Front Body Pillar, Upper RH |
| 61107B | Reinforce Sub-assy, Front Body Pillar, Upper LH |
| 61108A | Reinforce Sub-assy, Front Body Pillar, Lower RH |
| 61109A | Reinforce Sub-assy, Front Body Pillar, Lower LH |
| 61128 | Reinforcement, Cowl Side Panel, RH |
| 61129 | Reinforcement, Cowl Side Panel, LH |
| 61131C | Pillar, Front Body, Outer RH |
| 61132B | Pillar, Front Body, Outer LH |
| 61175A | Reinforcement, Front Pillar, Upper Outer NO.2 RH |
| 61176D | Reinforce, Front Body Pillar, Upper Out NO.2 LH |
| 61201 | Rail Sub-assy, Roof Side, RH |
| 61202 | Rail Sub-assy, Roof Side, LH |
| 61211C | Rail, Roof Side, RH |
| 61212C | Rail, Roof Side, LH |
| 61245 | Reinforcement, Roof Side Rail, Outer RH |
| 61246 | Reinforcement, Roof Side Rail, Outer LH |
| 61305 | Reinforce Sub-assy, Center Body Pillar, Lower RH |
| 61306 | Reinforce Sub-assy, Center Body Pillar, Lower LH |
| 61311B | Pillar, Center Body, Outer RH |
| 61312B | Pillar, Center Body, Outer LH |
| 61418A | Reinforcement, Rocker Panel, RH |
| 61419A | Reinforcement, Rocker Panel, LH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61621D | Trough, Back Door Opening, RH |
| 61622D | Trough, Back Door Opening, LH |
| 61625F | Extension, Quarter Panel, Upper RH |
| 61626F | Extension, Quarter Panel, Upper LH |
| 61631A | Panel, Quarter Wheel House, Outer RH |
| 61632A | Panel, Quarter Wheel House, Outer LH |
| 61633A | Panel, Quarter Wheel House, Inner RH |
| 61634A | Panel, Quarter Wheel House, Inner LH |
| 61683E | Plate, Quarter Panel, Lower NO.3 |
| 61684E | Plate, Quarter Panel, Lower NO.4 |
| 61711 | Panel, Roof Side, Outer RH |
| 61712 | Panel, Roof Side, Outer LH |
| 61731B | Panel, Roof Side, Inner RH |
| 61732B | Panel, Roof Side, Inner LH |
| 61743A | Reinforcement, Back Door Opening Side, RH |
| 61744A | Reinforcement, Back Door Opening Side, LH |
| 61745A | Reinforcement, Back Door Opening, Lower RH |
| 61746A | Reinforcement, Back Door Opening, Lower LH |
| 61766B | Reinforcement, Belt Anchor TO Roof Side, Inner RH |
| 61767B | Reinforcement, Belt Anchor TO Roof Side, Inner LH |
| 61771A | Gusset, Back Window Opening, RH |
| 61772A | Gusset, Back Window Opening, LH |
| 61824 | Plate, Noise Control, NO.1 |
| 61824D | Plate, Noise Control, NO.1 |
| 61825A | Plate, Noise Control, NO.2 |
| 62152B | Pad, Cowl Side Silencer, NO.2 |
| 62554B | Pad, Pillar, NO.4 |
| 65637 | Liner, Rear Wheel House, RH |
| 65638 | Liner, Rear Wheel House, LH |
| 68981A | Retainer, Back Door Stay, RH |
| 68982A | Retainer, Back Door Stay, LH |
| 75941A | Stripe, Center Pillar, RH |
| 75942B | Stripe, Center Pillar, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
