Toyota Corolla HB

2007-03 → 2012-08 · chassis ZRE152 · catalogue 165310 · General

Supported model Data version 2013-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

11 part groups · 2 illustrations

Illustrations

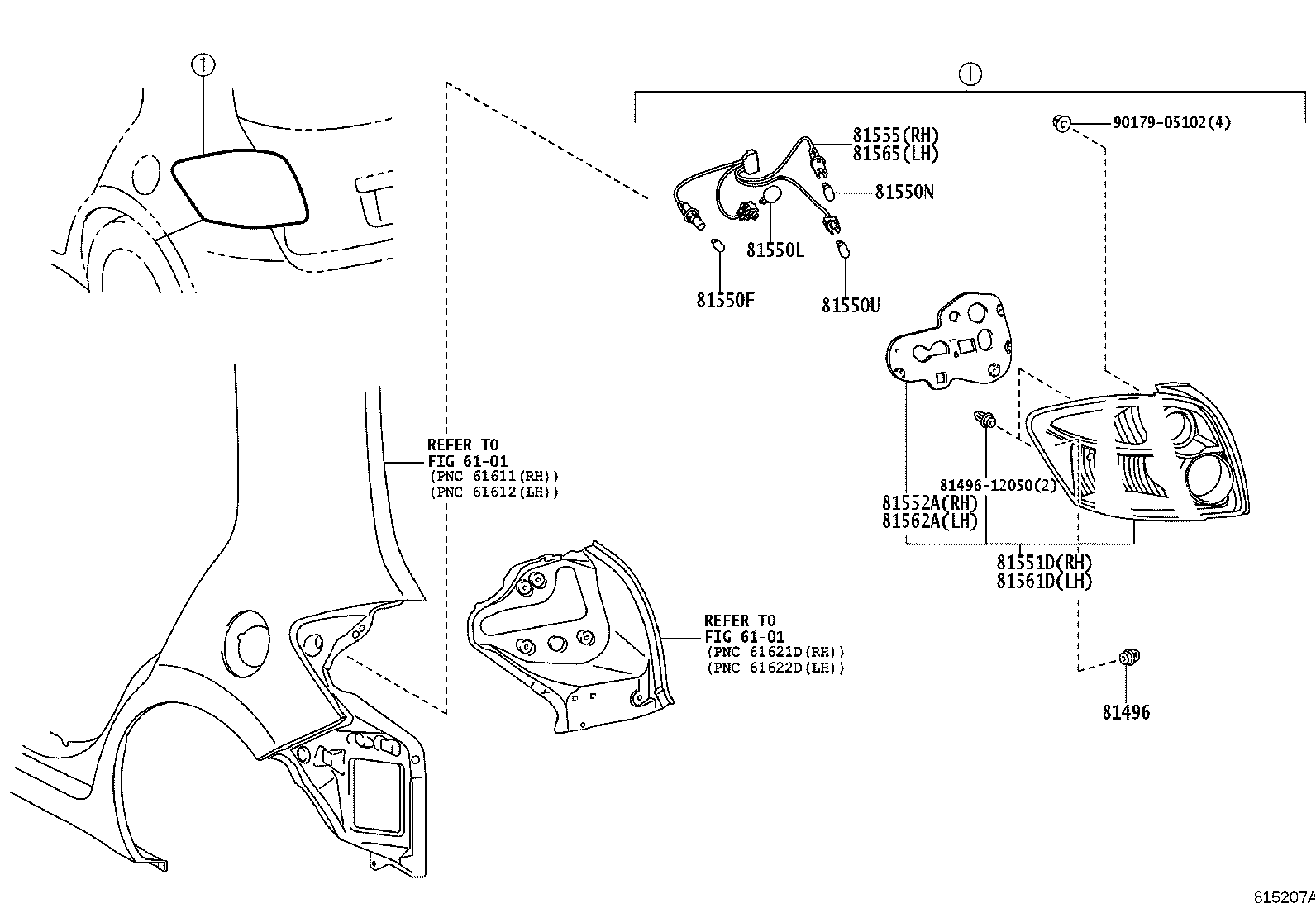

Figure 814174B 814174B 2007-03 → 2009-10 Figure 815207A 815207A 2009-10 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81550F Bulb, Taillamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550U Bulb, Stop Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81552A Gasket, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81562A Gasket, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
