Toyota Corolla HB
2007-03 → 2012-08 · chassis ZRE152 · catalogue 165310 · General
Supported model
Data version 2013-01

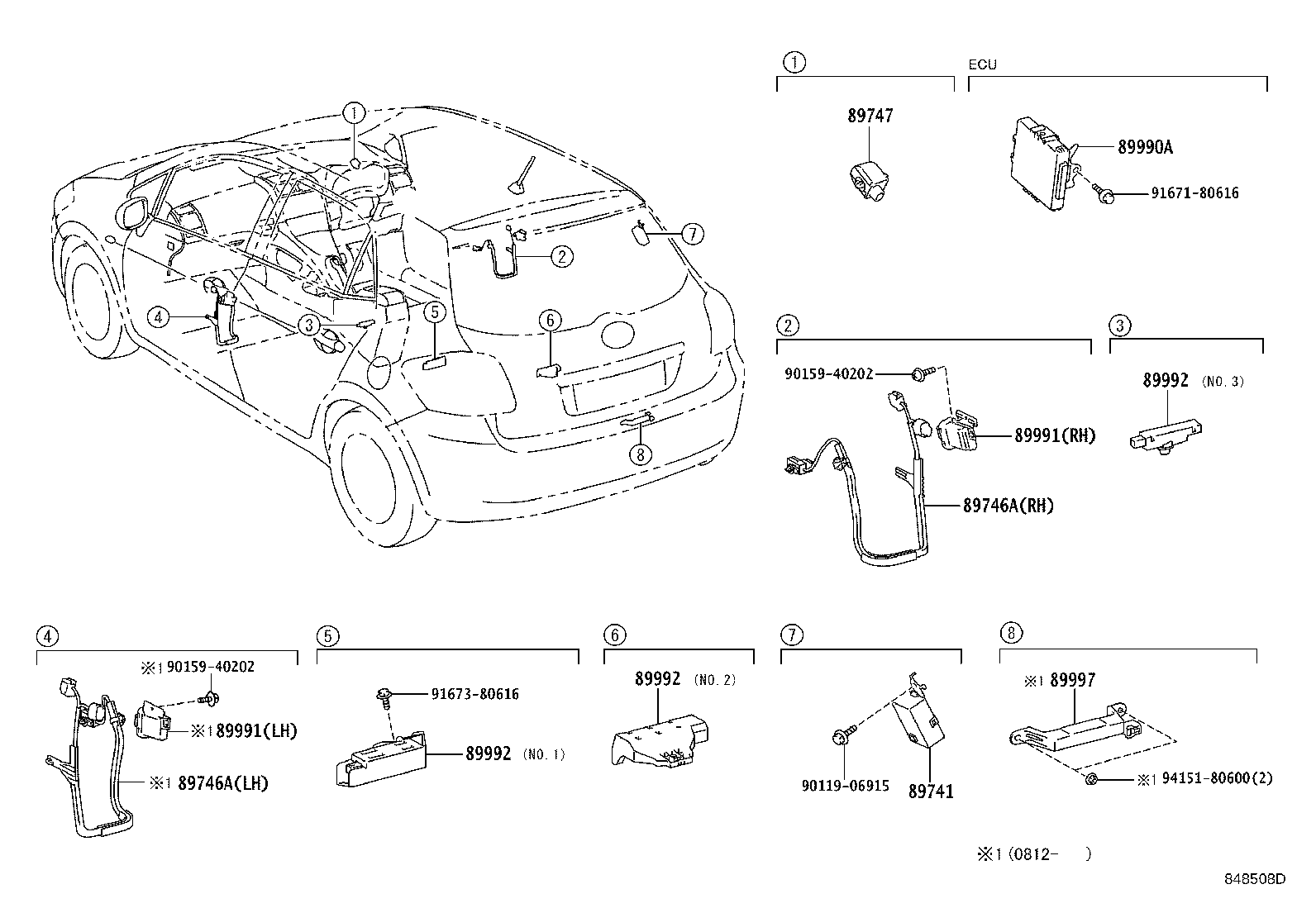

Wireless Door Lock
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89741 | Receiver, Door Control |
| 89746A | Harness, Electrical Key Wire |
| 89747 | Buzzer, Wireless Door Lock |
| 89990A | Computer Assy, Smart Key |
| 89991 | Oscillator, Door Electrical Key |
| 89992 | Oscillator, Indoor Electrical Key |
| 89997 | Antenna, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
