Toyota Corolla HB
2007-03 → 2012-08 · chassis ZRE152 · catalogue 165310 · General
Supported model
Data version 2013-01

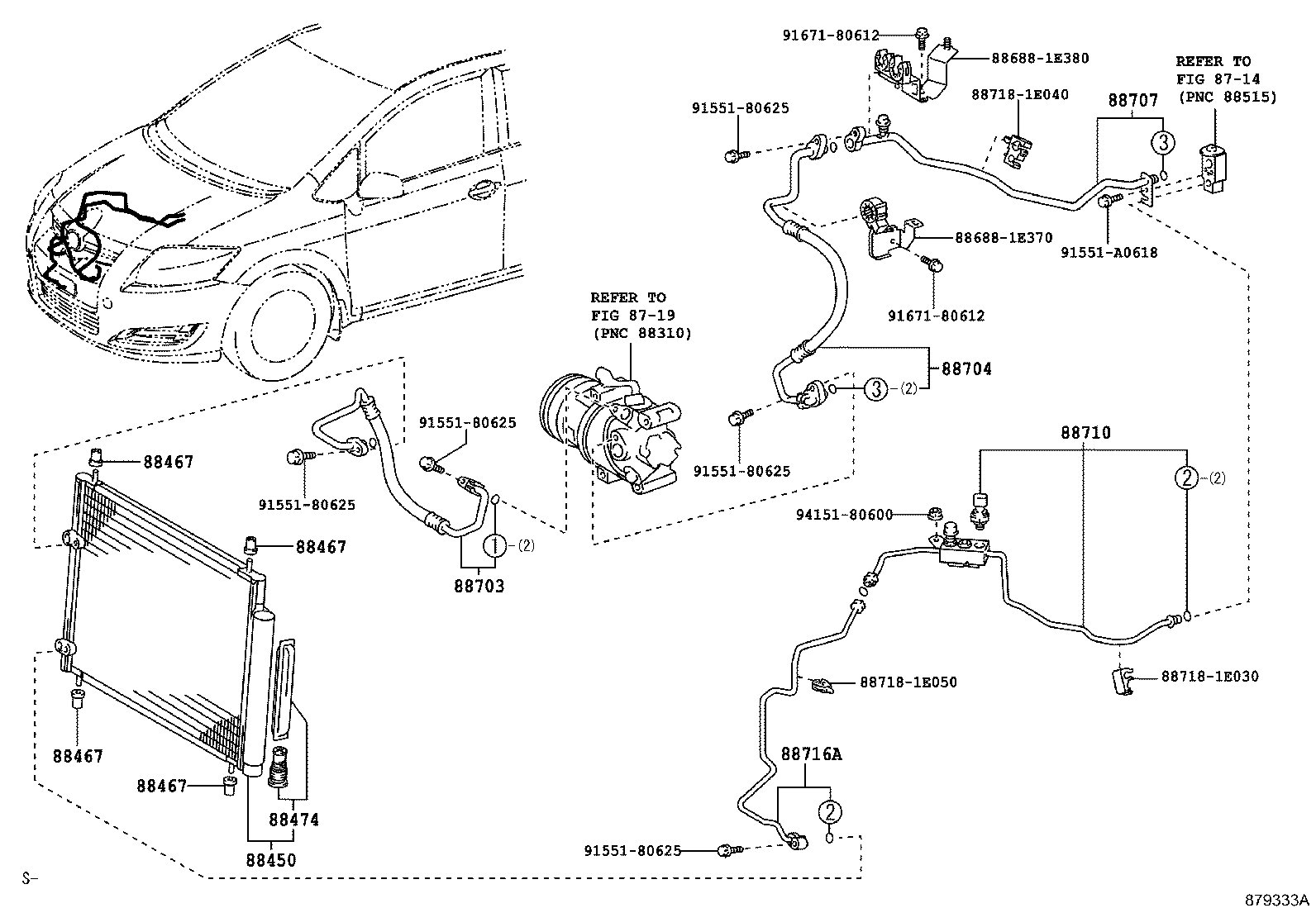

Heating & Air Conditioning - Cooler Piping
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 88450 | Condenser Assy, W/Receiver |
| 88467 | Cushion, Cooler Condenser, NO.1 |
| 88474 | Dryer, Cooler |
| 88703 | Hose Sub-assy, Discharge |
| 88704 | Hose Sub-assy, Suction |
| 88707 | Pipe Sub-assy, Suction |
| 88710 | Tube Assy, Air Conditioner |
| 88716A | Pipe, Cooler Refrigerant Liquid, A |
| 88719A | Sensor, Air Conditioner Pressure |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
