Toyota Corolla/Auris (JPP)

2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

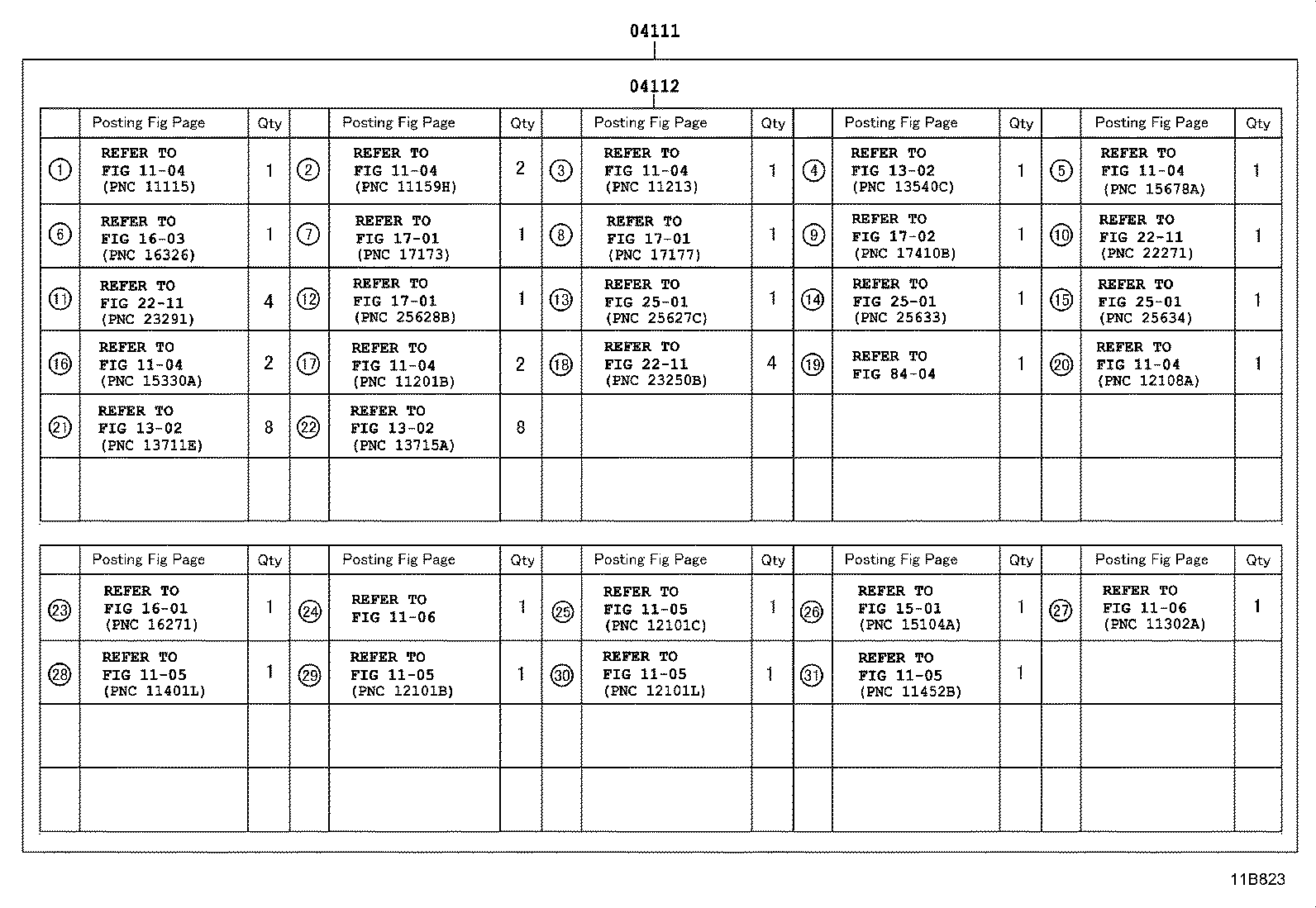

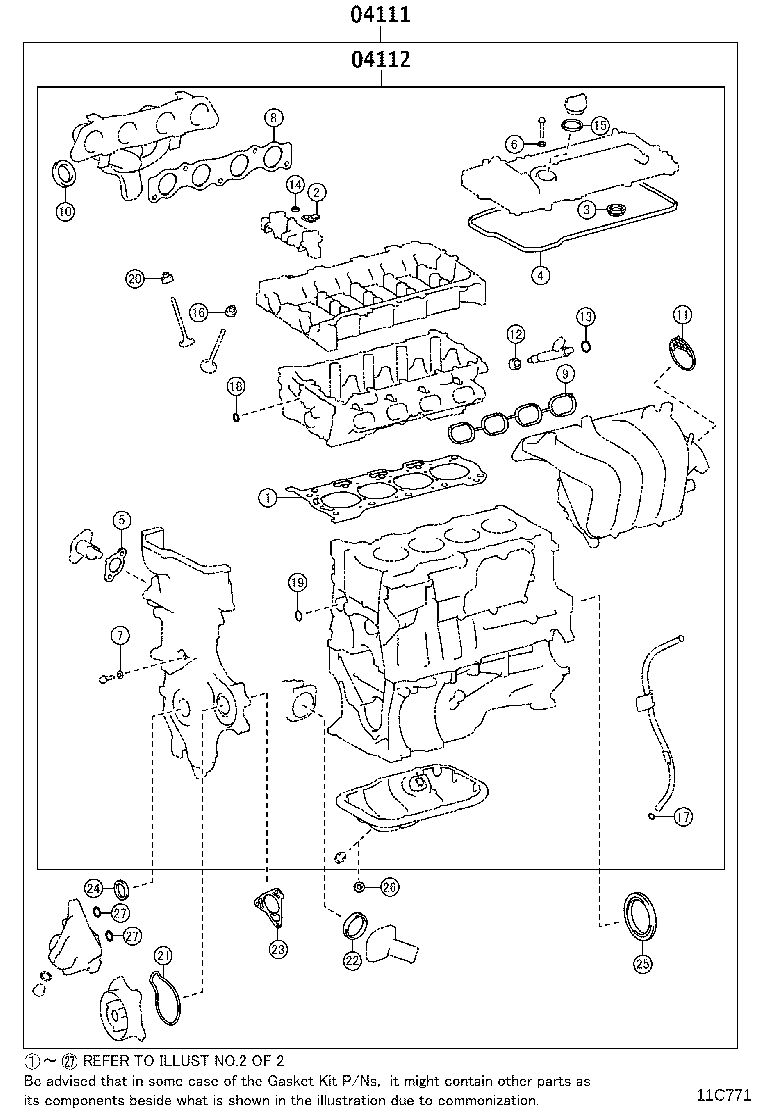

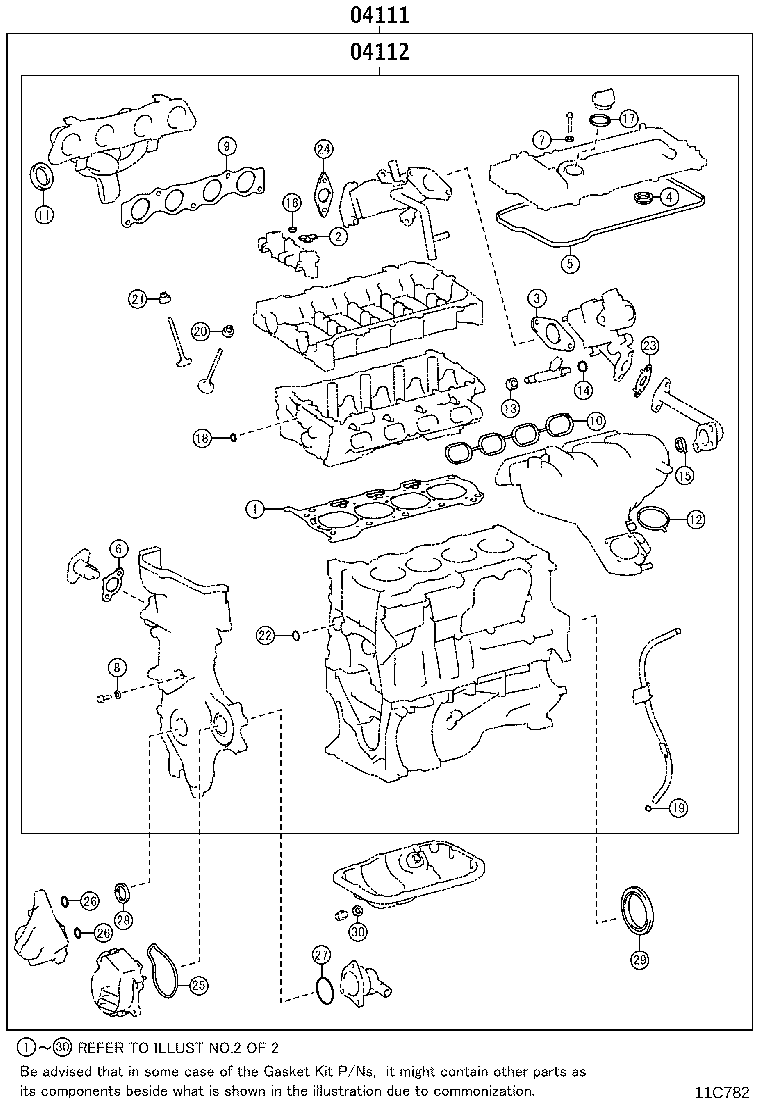

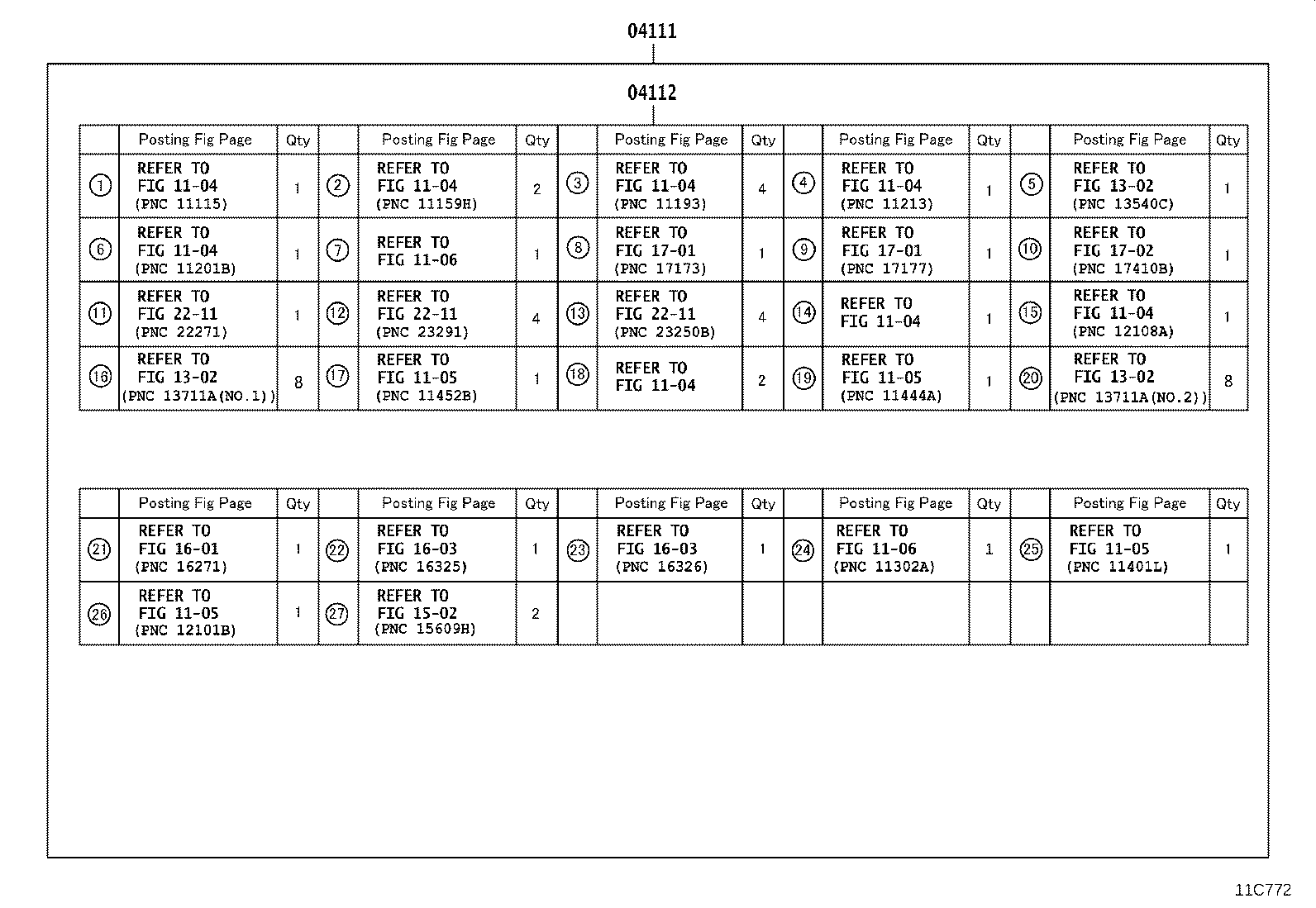

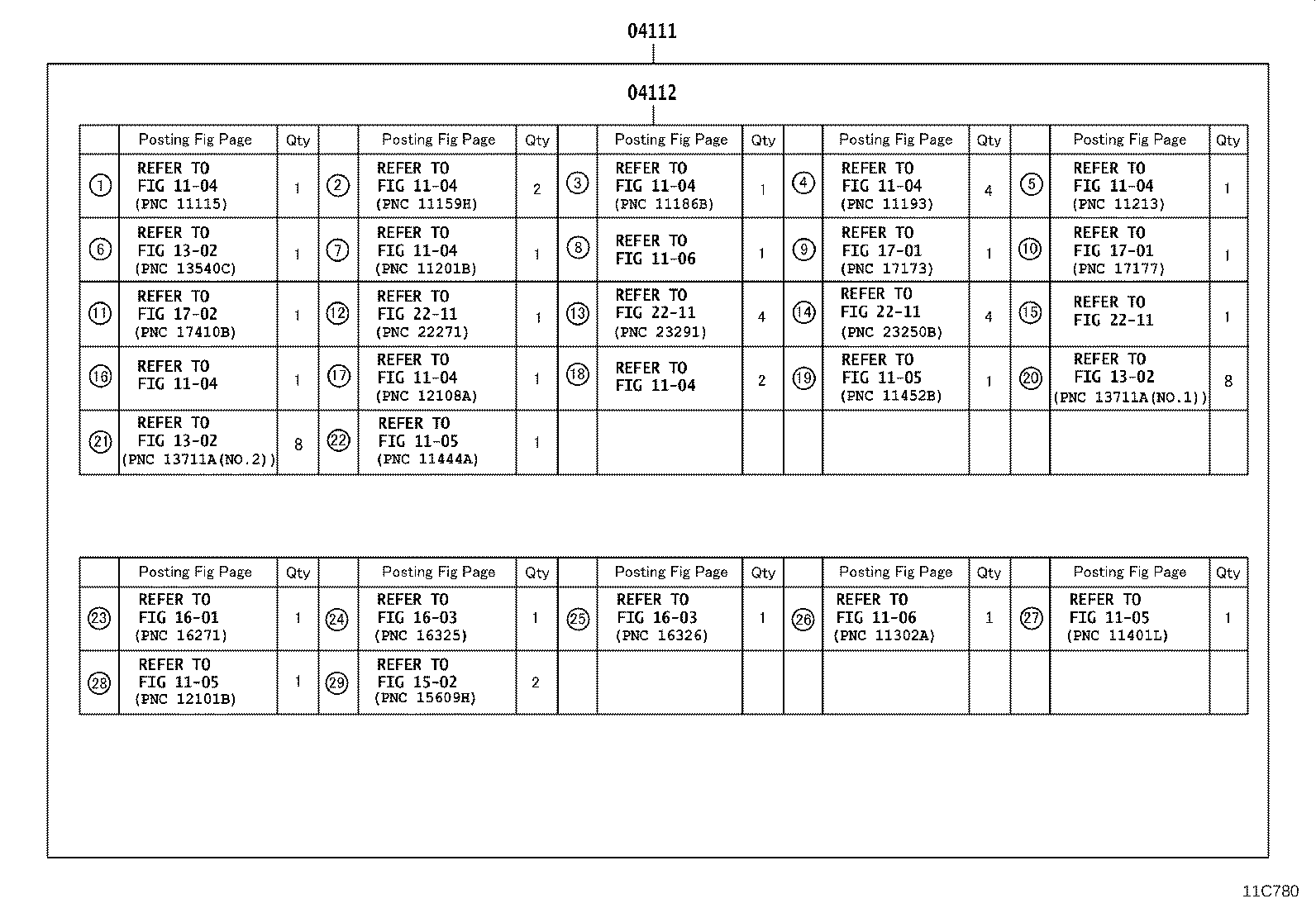

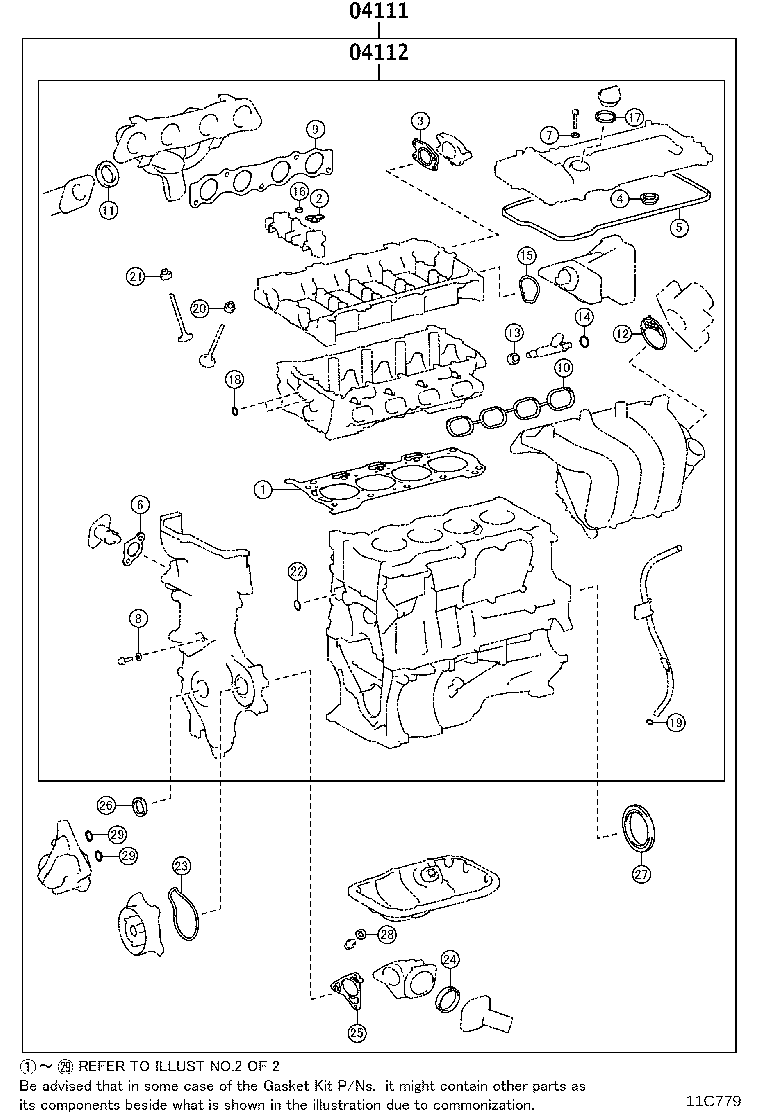

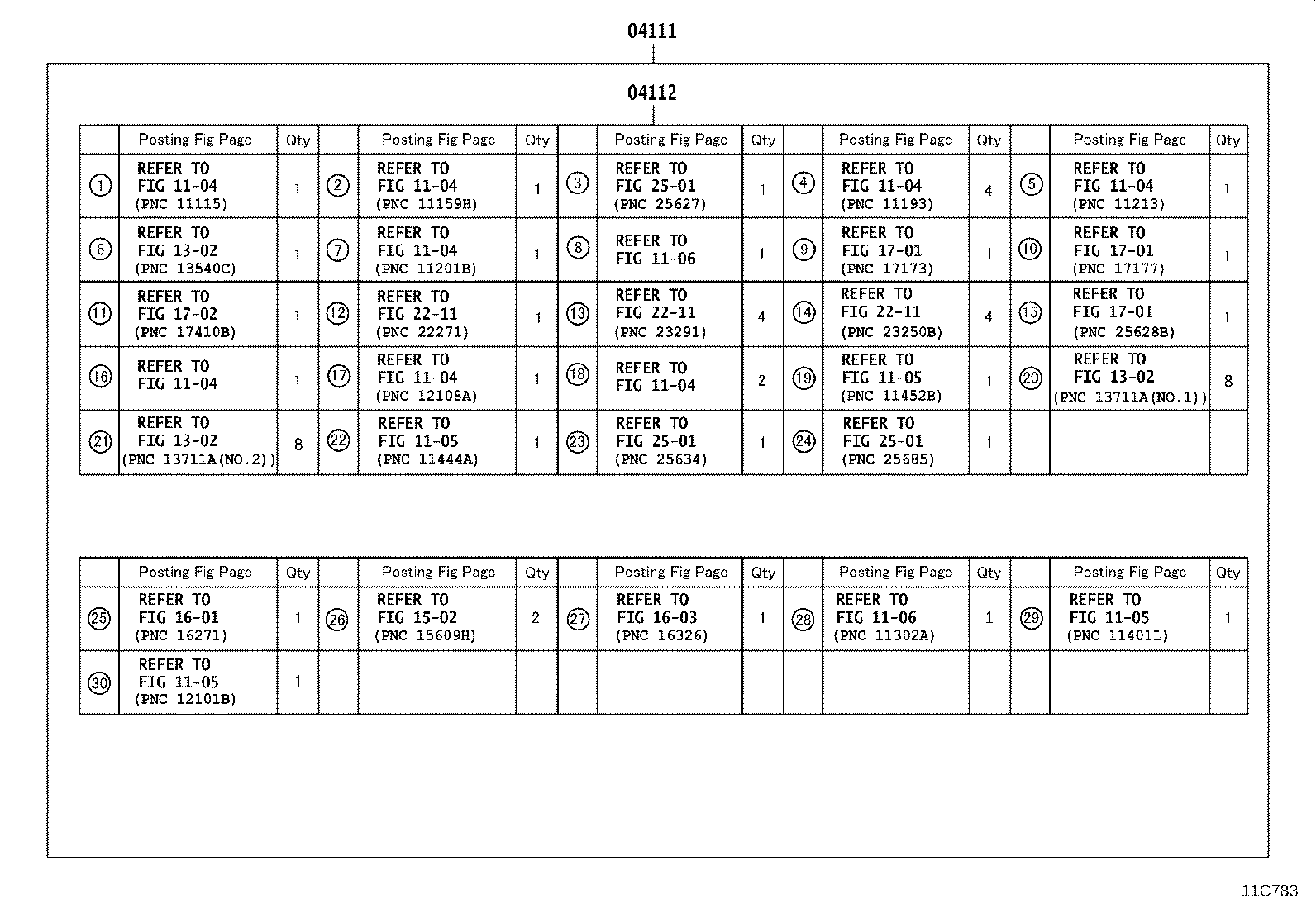

Figure 117653C 117653C 2012-08 → — Figure 11B823 11B823 2012-08 → — Figure 11C771 11C771 2012-08 → — Figure 11C772 11C772 2012-08 → — Figure 11C779 11C779 2012-08 → — Figure 11C780 11C780 2012-08 → — Figure 11C782 11C782 2016-04 → — Figure 11C783 11C783 2016-04 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
