Toyota Corolla/Auris (JPP)

2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

4 part groups · 3 illustrations

Illustrations

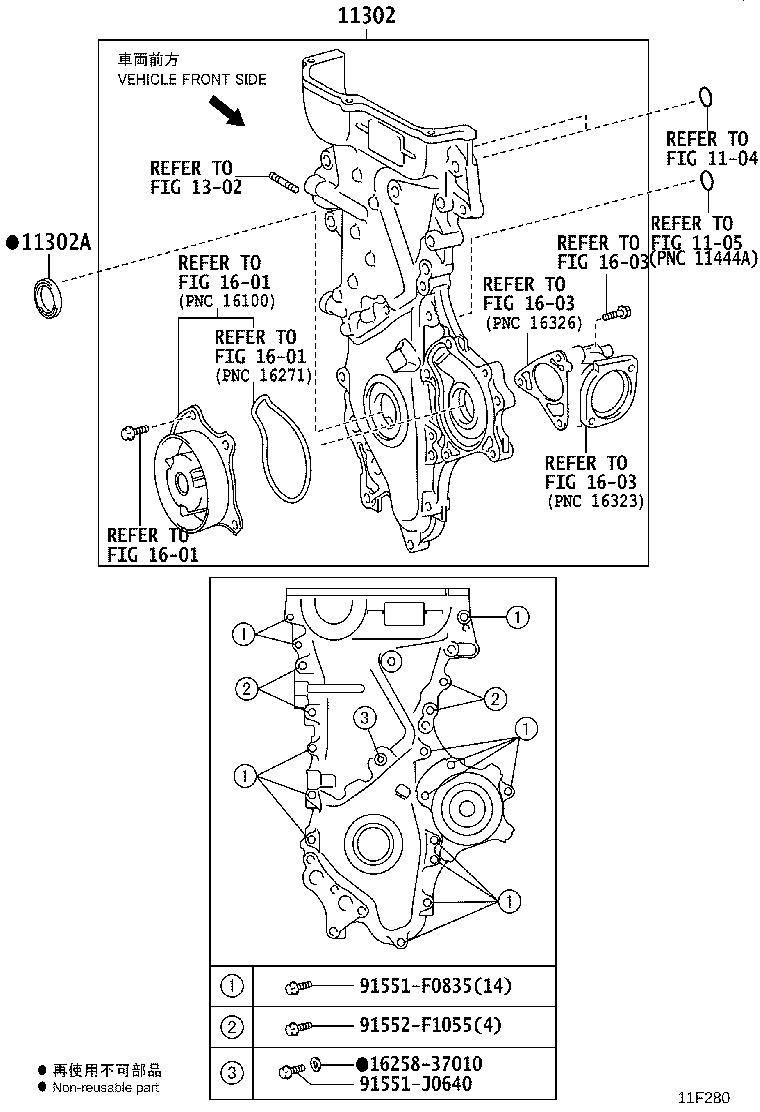

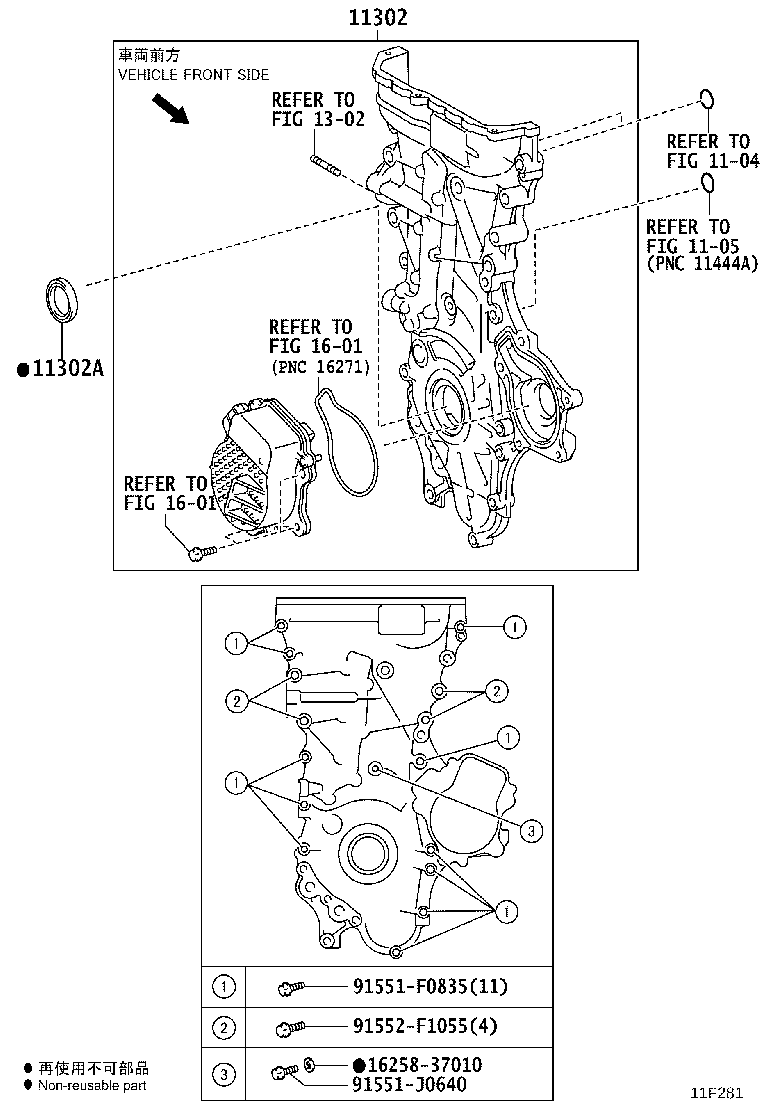

Figure 117651E 117651E 2012-08 → — Figure 11F280 11F280 2012-08 → — Figure 11F281 11F281 2016-04 → —

Part groups

PNCDescription
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11310A Plug, Taper Screw(FOR TIMING CHAIN COVER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
