Toyota Corolla/Auris (JPP)
2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General
Supported model
Data version 2018-11

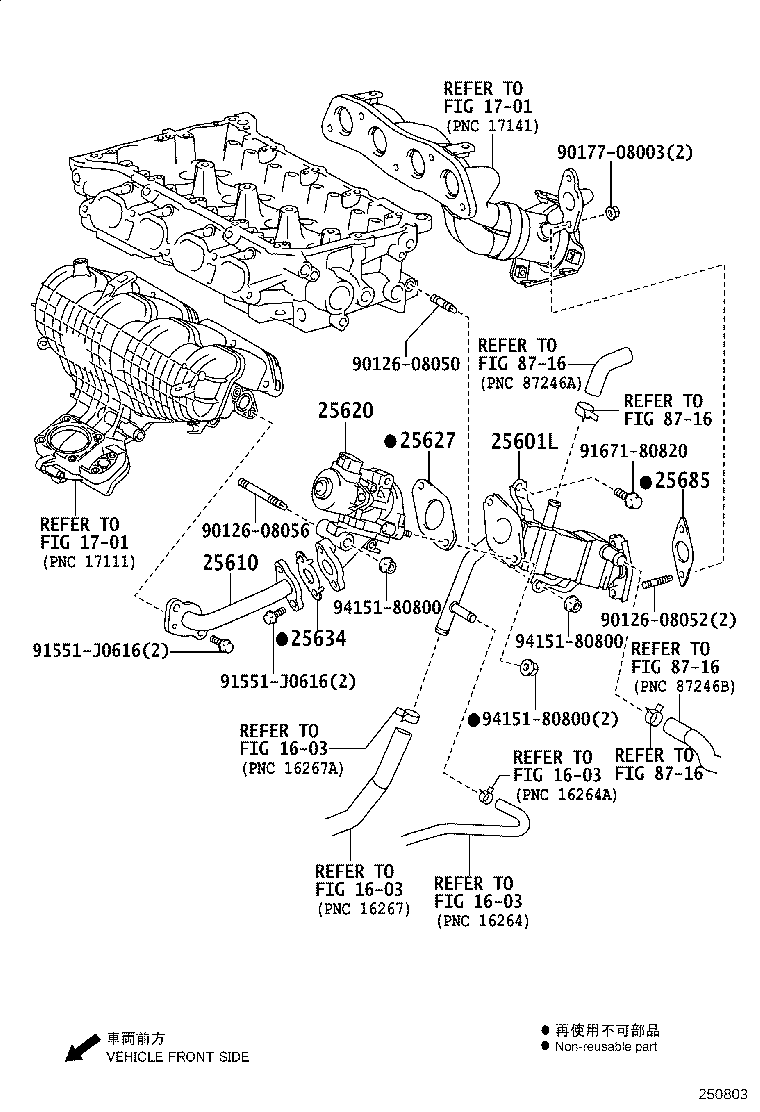

Exhaust Gas Recirculation System
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 25601L | Pipe Sub-assy, Egr W/Cooler |
| 25610 | Pipe Assy, Egr |
| 25611A | Pipe, Egr, NO.1 |
| 25620 | Valve Assy, Egr |
| 25620A | Bolt, Stud(FOR EGR VALVE) |
| 25627 | Gasket, Egr Valve |
| 25627C | Gasket(FOR EGR PIPE NO.2) |
| 25633 | Gasket, Egr Valve |
| 25634 | Gasket, Egr Pipe |
| 25685 | Gasket, Egr Cooler, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
