Toyota Corolla/Auris (JPP)
2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General
Supported model
Data version 2018-11

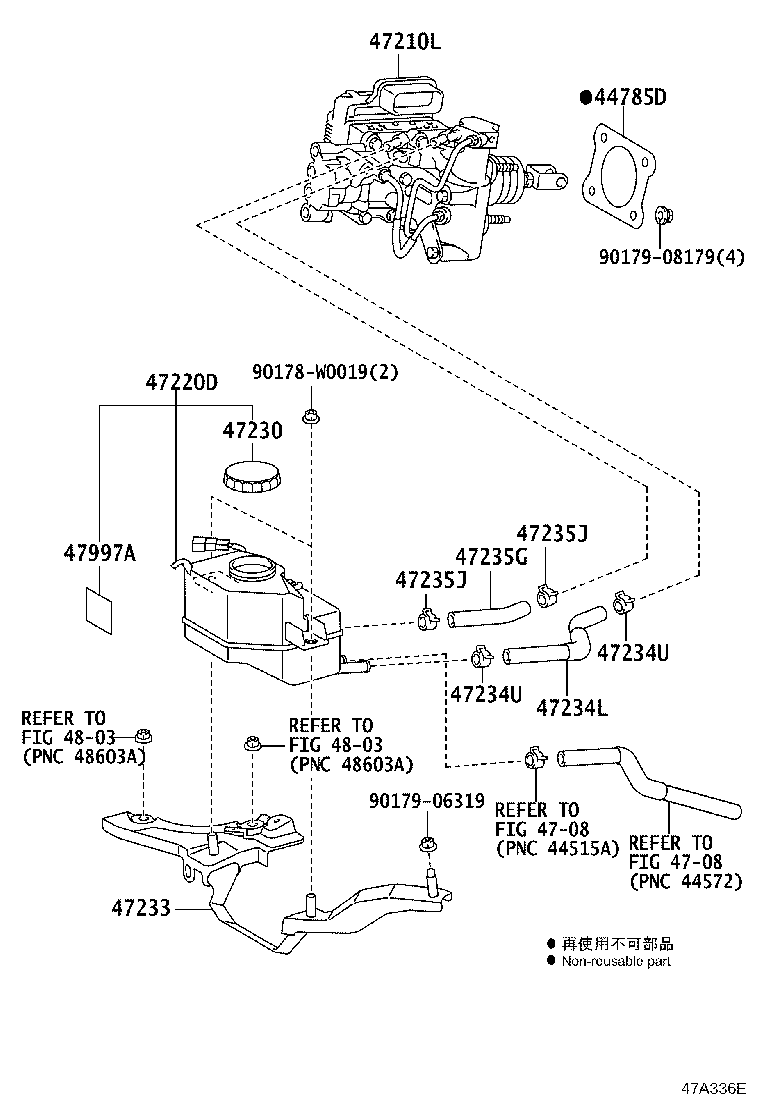

Brake Master Cylinder
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 44785D | Gasket, Brake Master Cylinder |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47201C | Ring Pin, Brake Master Cylinder |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47220D | Reservoir Assy, Brake Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47233 | Bracket, Reservoir |
| 47234L | Hose, Reservoir, NO.1 |
| 47234U | Clip(FOR RESERVOIR HOSE NO.1) |
| 47235G | Hose, Reservoir, NO.2 |
| 47235J | Clip(FOR RESERVOIR HOSE NO.2) |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47287 | Label, Brake Fluid Information |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
| 47997A | Label, Accumulator Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
