Toyota Corolla/Auris (JPP)
2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General
Supported model
Data version 2018-11

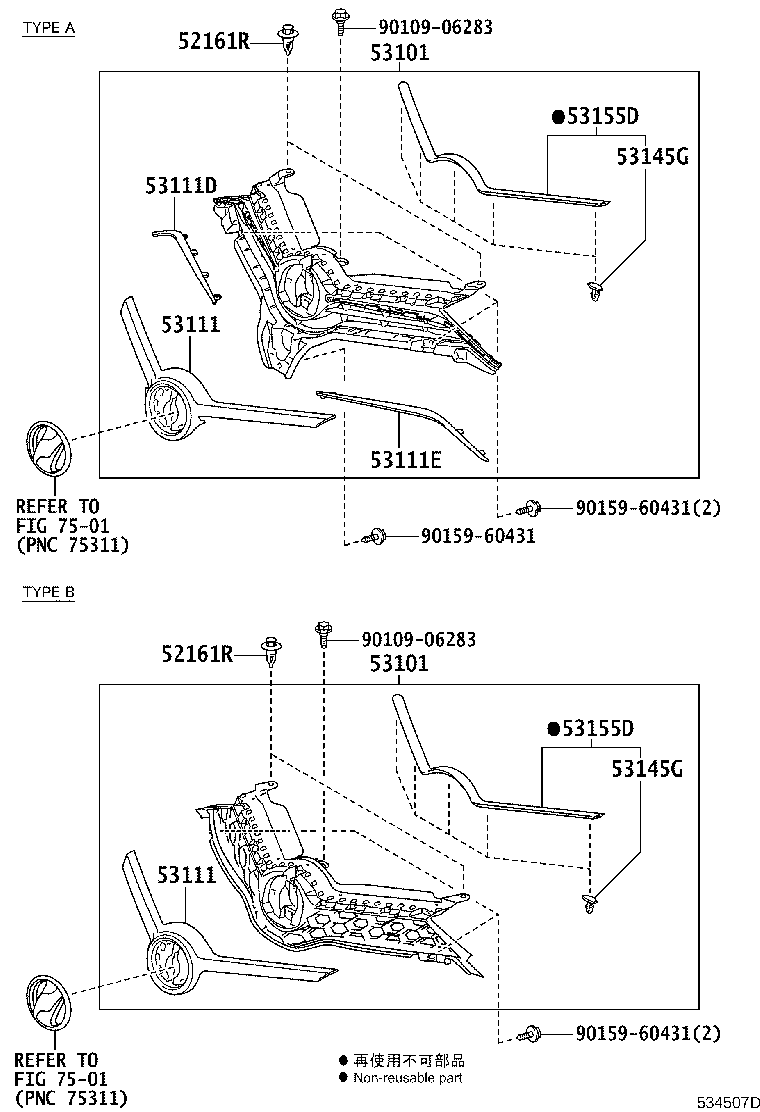

Radiator Grille
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52161R | Piece, Front Bumper |
| 53101 | Grille Sub-assy, Radiator |
| 53111 | Grille, Radiator |
| 53111D | Moulding, Radiator Grille, RH |
| 53111E | Moulding, Radiator Grille, LH |
| 53145G | Clip, Radiator Grille |
| 53155D | Seal, Radiator Grille, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
