Toyota Corolla/Auris (JPP)

2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

22 part groups · 2 illustrations

Illustrations

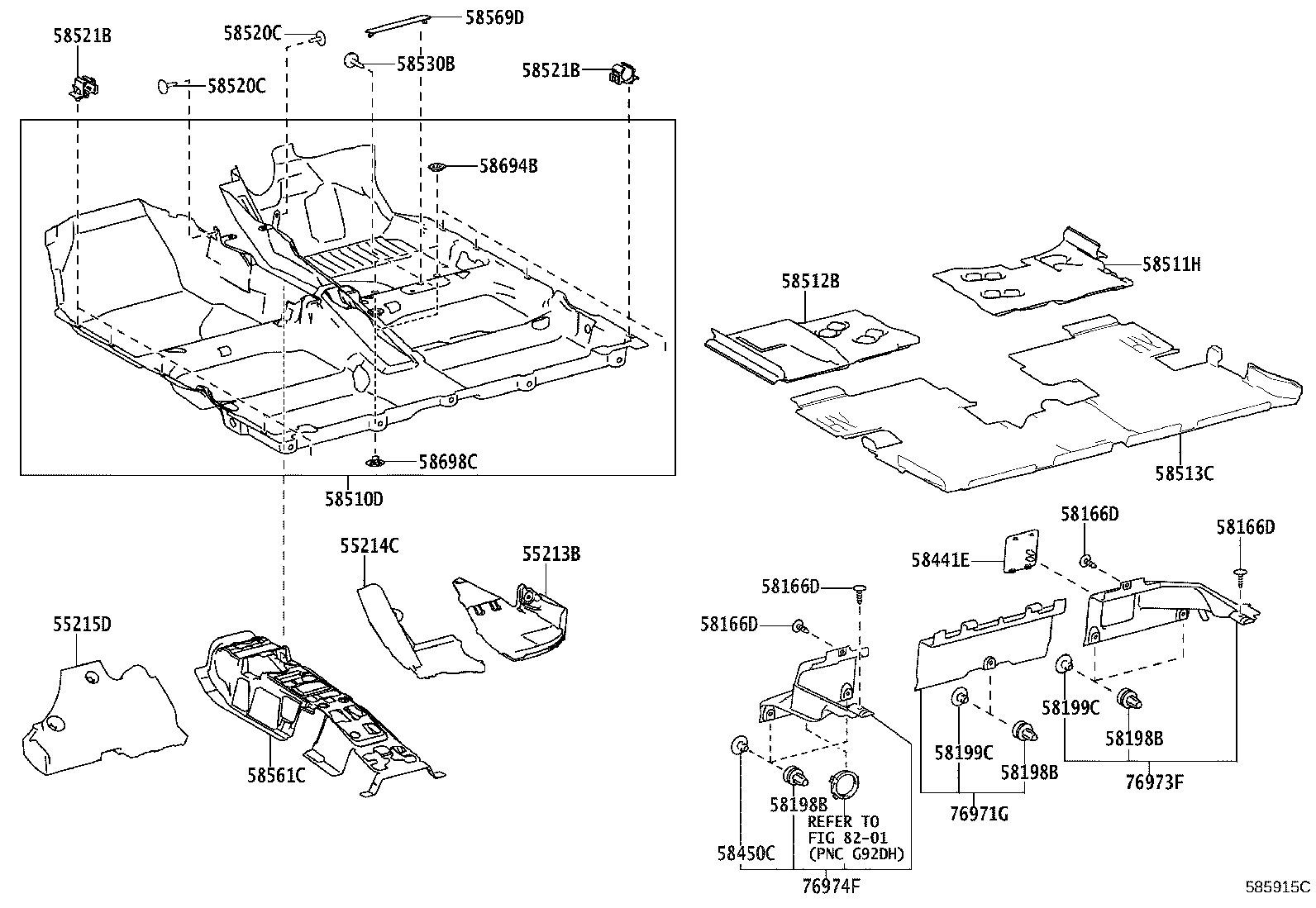

Figure 584617A 584617A 2012-08 → — Figure 585915C 585915C 2016-04 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58166D Clip, Floor Cover
58198B Clip, Footrest, NO.1
58199C Clip, Footrest, NO.2
58441E Cover, Battery Service Hole
58450C Clip
58510D Carpet Assy, Floor, Front
58511H Mat, Floor, Front RH
58512B Mat, Floor, Front LH
58513C Mat, Floor, Front Center
58520C Clip(FOR FRONT FLOOR CARPET)
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58561C Silencer, Front Floor, NO.1
58569D Cover, Front Floor Caution Plate
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
76971G Cover, Rear Under
76973F Cover, Rear Under Side, RH
76974F Cover, Rear Under Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
