Toyota Corolla/Auris (JPP)

2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

17 part groups · 2 illustrations

Illustrations

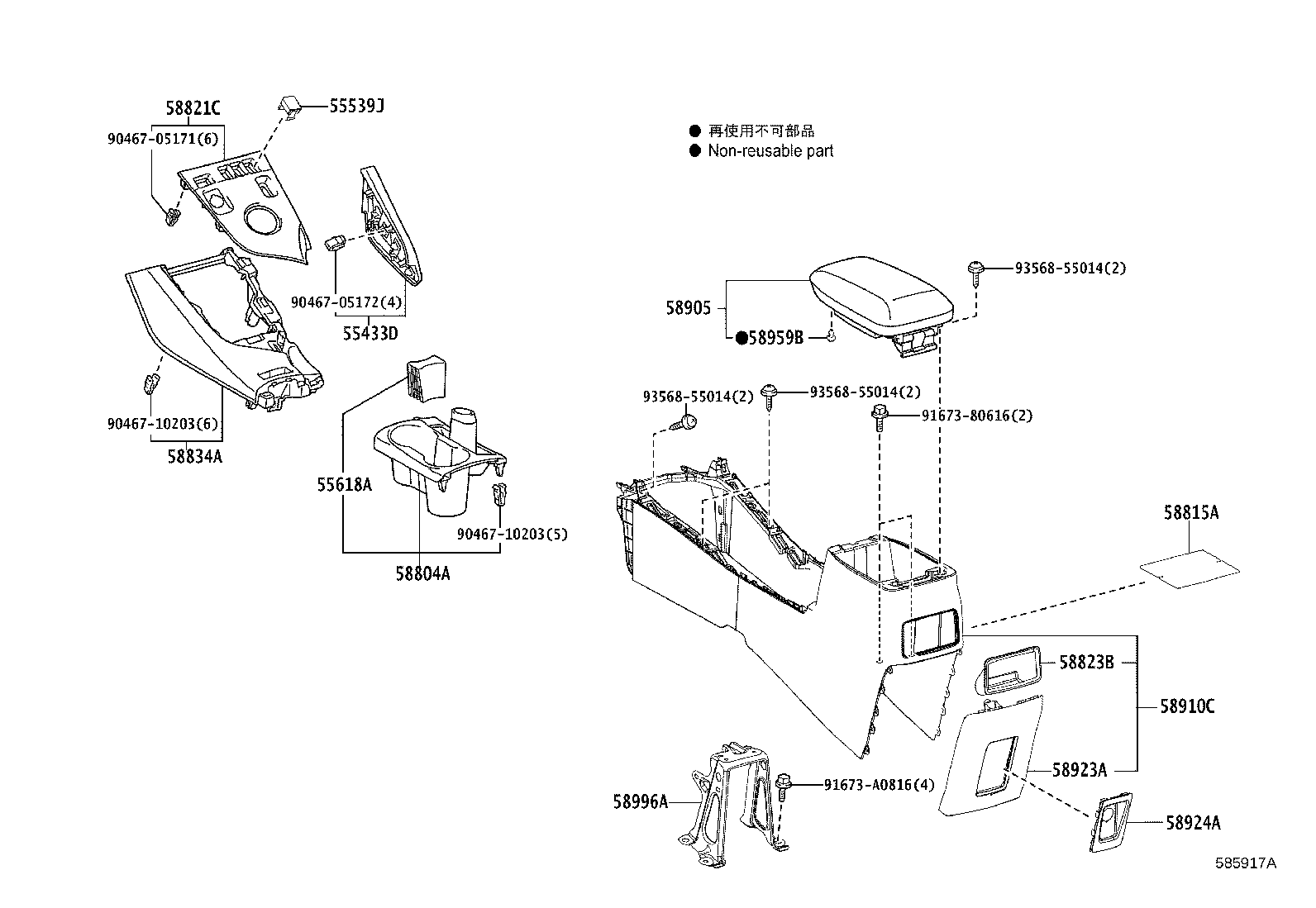

Figure 584619D 584619D 2012-08 → — Figure 585917A 585917A 2016-04 → —

Part groups

PNCDescription
55433D Panel, Instrument Panel Finish, Lower NO.2
55539A Cover, Spare Switch Hole
55539J Cover, Spare Switch Hole
55618A Holder, Console Box Cup
58804A Panel Sub-assy, Console, Upper
58808 Cover Sub-assy, Shifting Hole
58815A Carpet, Console Box
58821C Panel, Console, Upper
58823B Box, Console Compartment
58834A Cover, Console, Lower
58843 Bezel, Shifting Hole
58905 Door Sub-assy, Console Compartment
58910C Box Assy, Console, Rear
58923A Panel, Console Rear End
58924A Panel, Console Rear End, NO.2
58959B Cushion, Console Compartment Door
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
