Toyota Corolla/Auris (JPP)
2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General
Supported model
Data version 2018-11

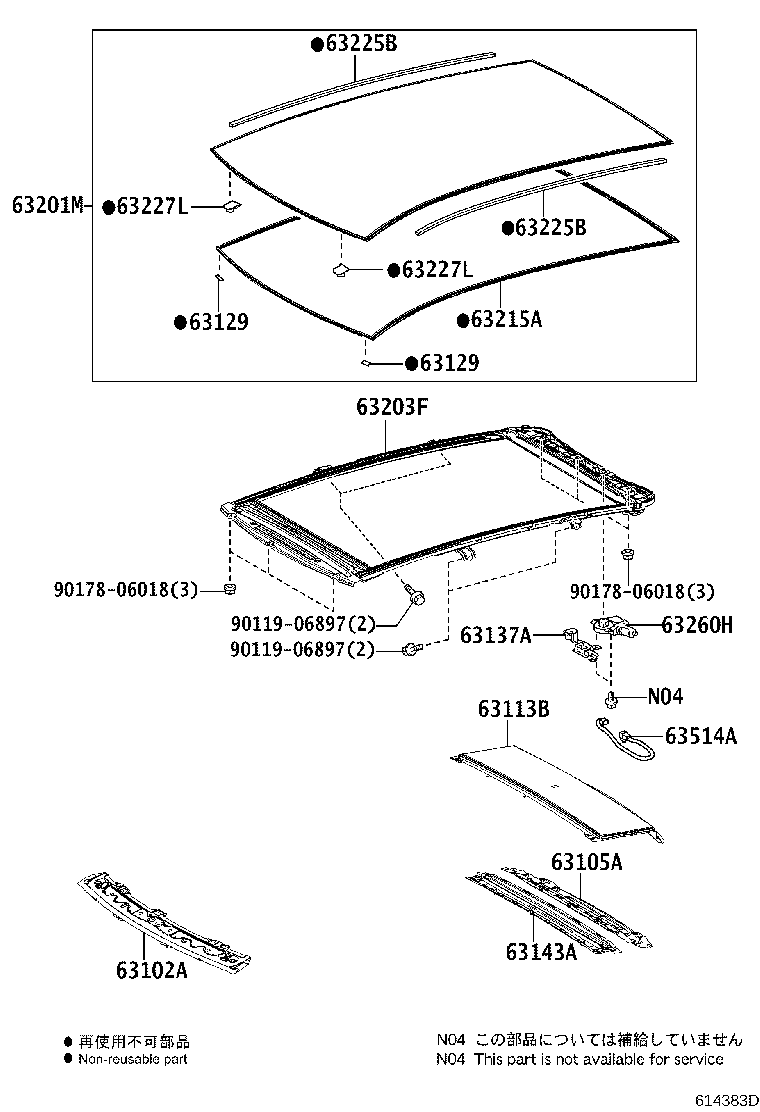

Roof Panel & Back Window Glass
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 61247F | Reinforcement, Roof Side Rail, Inner |
| 61248F | Reinforcement, Roof Side Rail, Inner, LH |
| 63102A | Panel Sub-assy, Windshield Header |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63113B | Panel, Roof, Rear |
| 63127 | Reinforcement, Roof Panel, NO.5 |
| 63129 | Protector, Windshield Header |
| 63137A | Bracket, Dome Lamp, NO.1 |
| 63142A | Reinforcement, Roof Panel, NO.2 |
| 63143A | Reinforcement, Roof Panel |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63201M | Glass Sub-assy, Roof Window, NO.1 |
| 63203F | Housing Sub-assy, Sliding Roof |
| 63215A | Moulding, Roof Window, Upper |
| 63225B | Protector, Roof Window Moulding, Upper |
| 63227L | Clip, Roof Window |
| 63260H | Gear Assy, Sliding Roof Drive |
| 63514A | Wire, Connector |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
