Toyota Corolla/Auris (JPP)
2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General
Supported model
Data version 2018-11

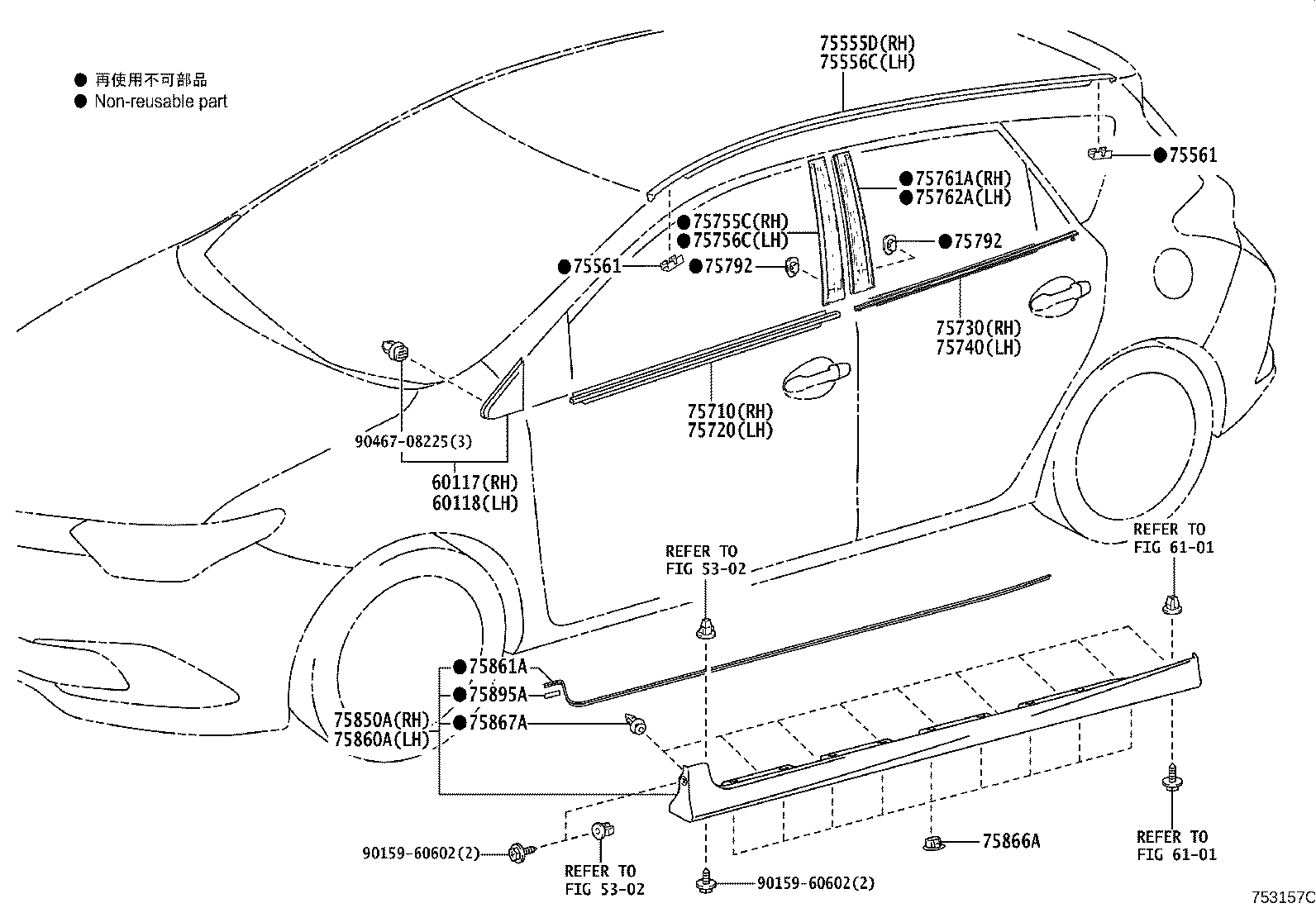

Side Moulding
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561 | Clip, Roof Drip Side Finish Moulding, NO.1 |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75755C | Moulding, Front Door Window Frame, Rear RH |
| 75756C | Moulding, Front Door Window Frame, Rear LH |
| 75761A | Moulding, Rear Door Window Frame, Front RH |
| 75762A | Moulding, Rear Door Window Frame, Front LH |
| 75792 | Clip, Door Window Frame Moulding |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75851 | Moulding, Rocker Panel, RH |
| 75852 | Moulding, Rocker Panel, LH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75861A | Protector, Rocker Panel Moulding, NO.1 |
| 75866A | Retainer, Rocker Panel Moulding |
| 75867A | Clip, Rocker Panel Moulding |
| 75895A | Tape, Moulding, NO.1 |
| 76924G | Retainer, Rocker Panel Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
