Toyota Corolla/Auris (JPP)

2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

6 part groups · 2 illustrations

Illustrations

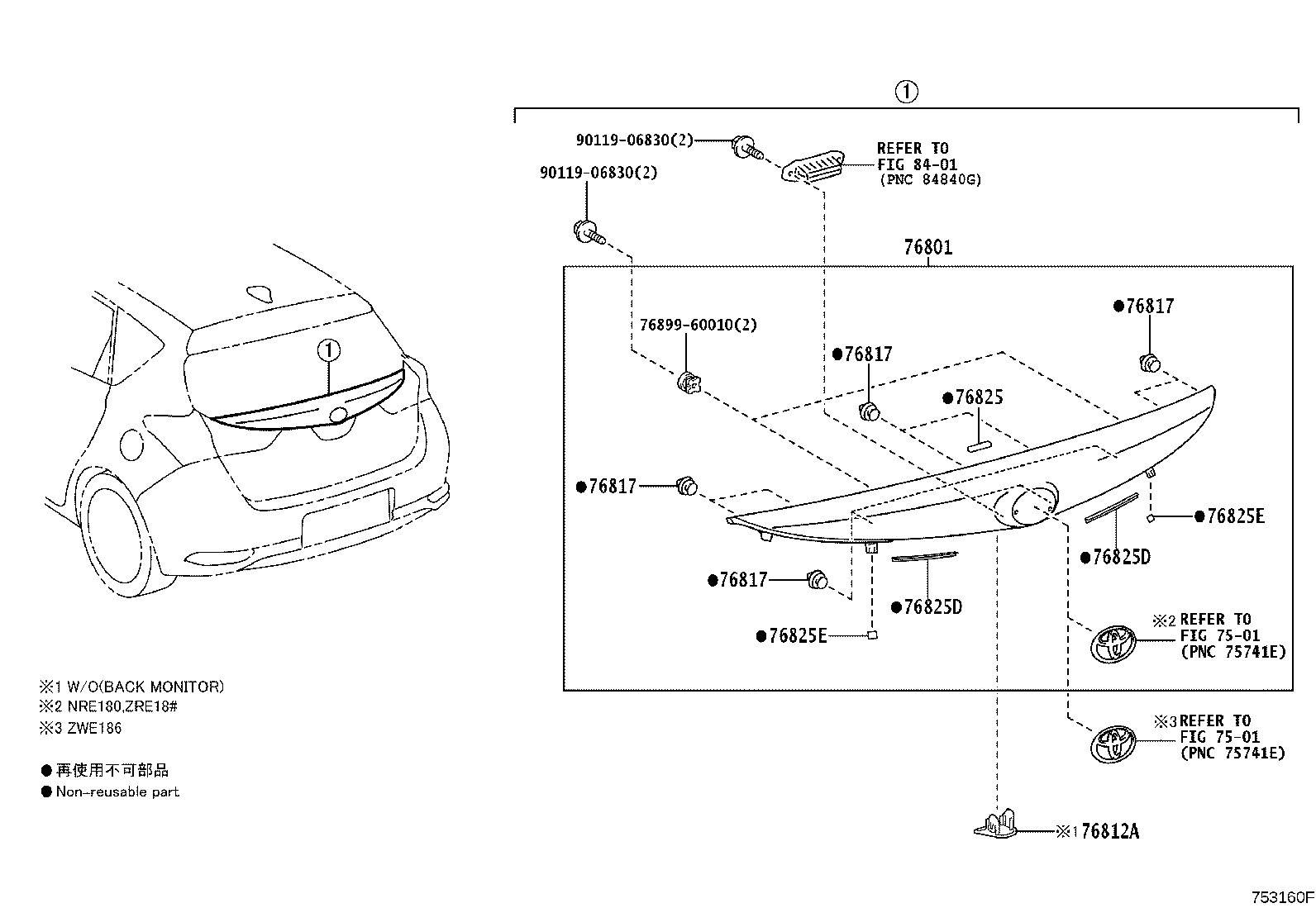

Figure 753641B 753641B 2012-08 → 2015-03 Figure 753160F 753160F 2015-03 → —

Part groups

PNCDescription
76801 Garnish Sub-assy, Back Door, Outside
76812A Garnish, Back Door, Outside NO.2
76817 Clip, Back Door Outside Garnish
76825 Protector, Back Door Outside Garnish
76825D Protector, Back Door Outside Garnish, NO.1
76825E Protector, Back Door Outside Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
