Toyota Corolla/Auris (JPP)
2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General
Supported model
Data version 2018-11
Switch & Relay & Computer
109 part groups · 12 illustrations

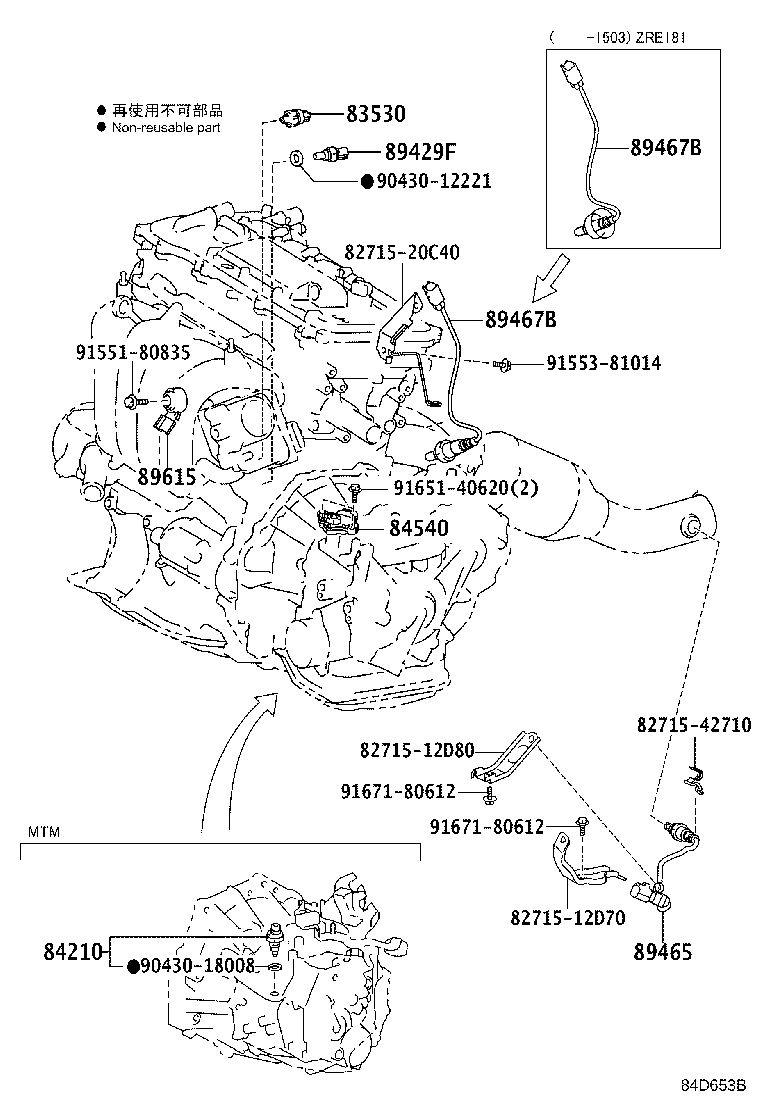

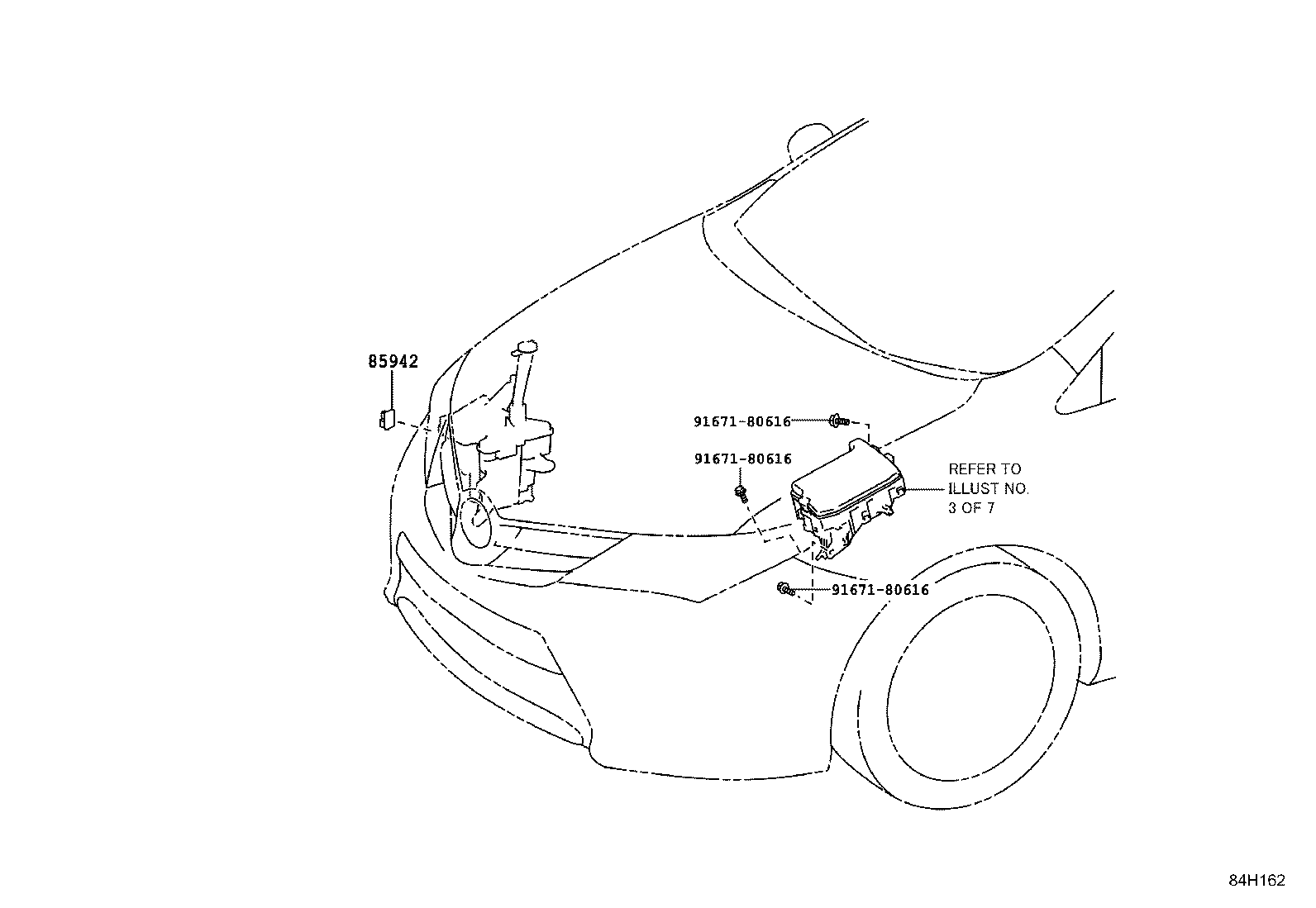

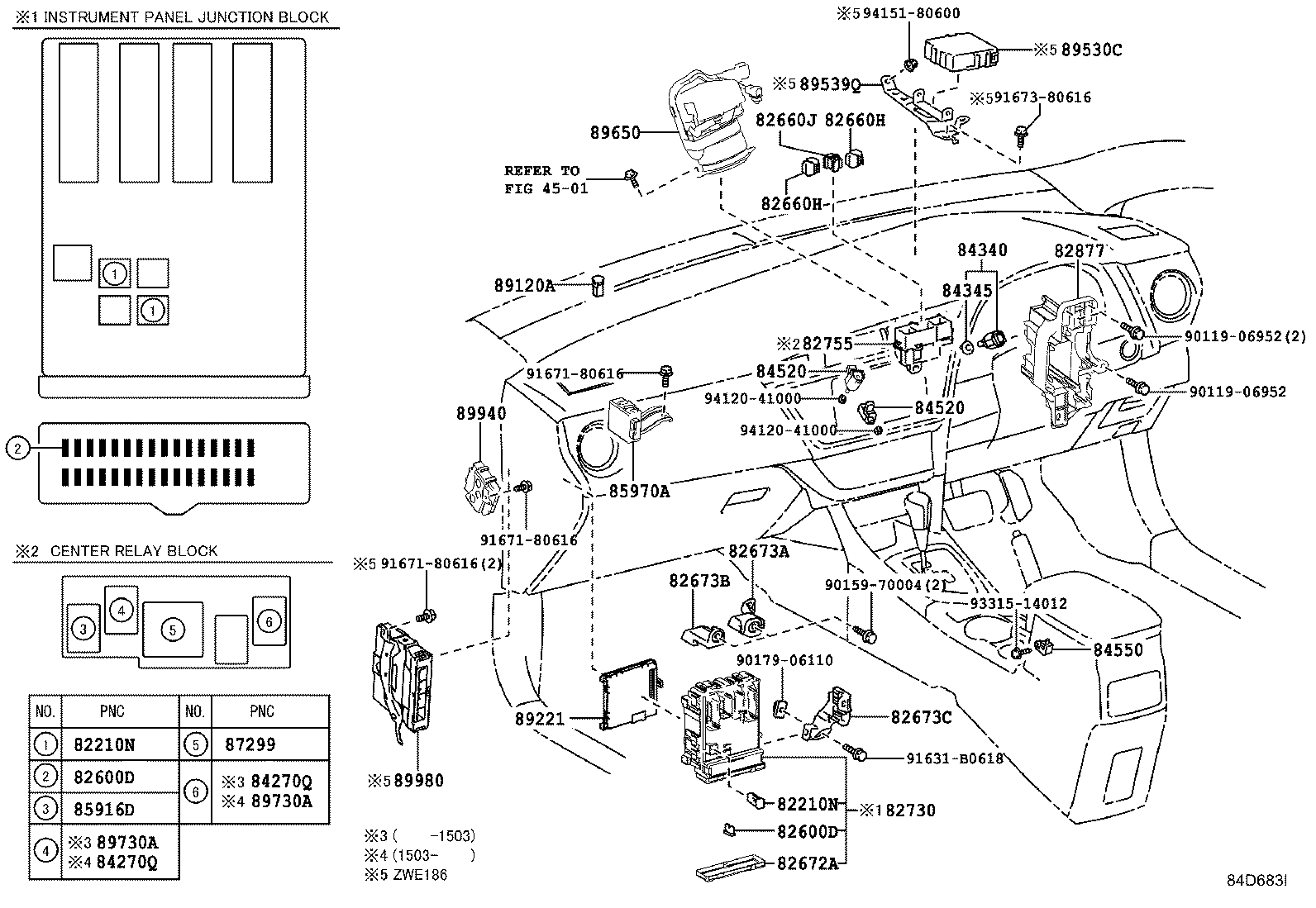

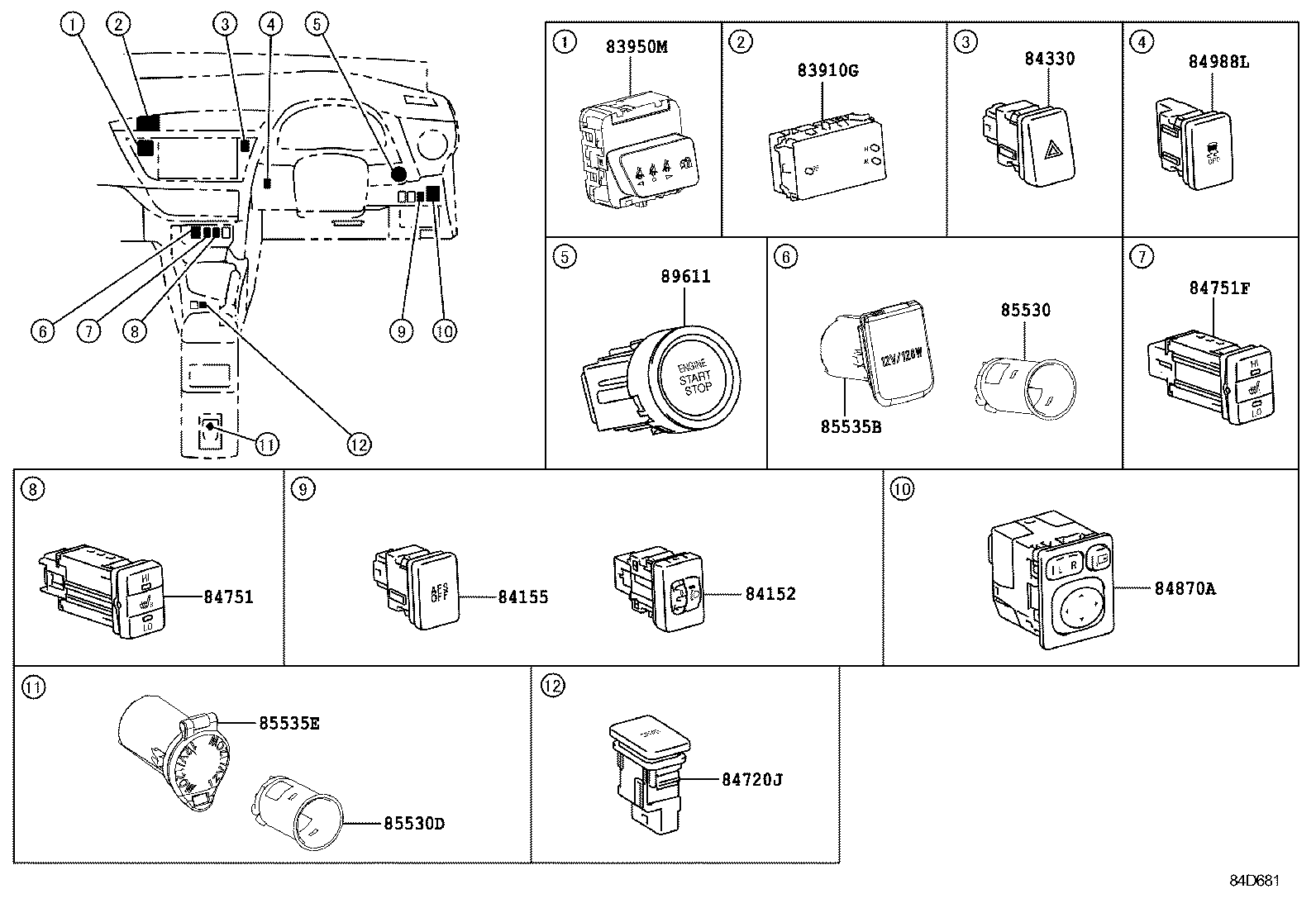

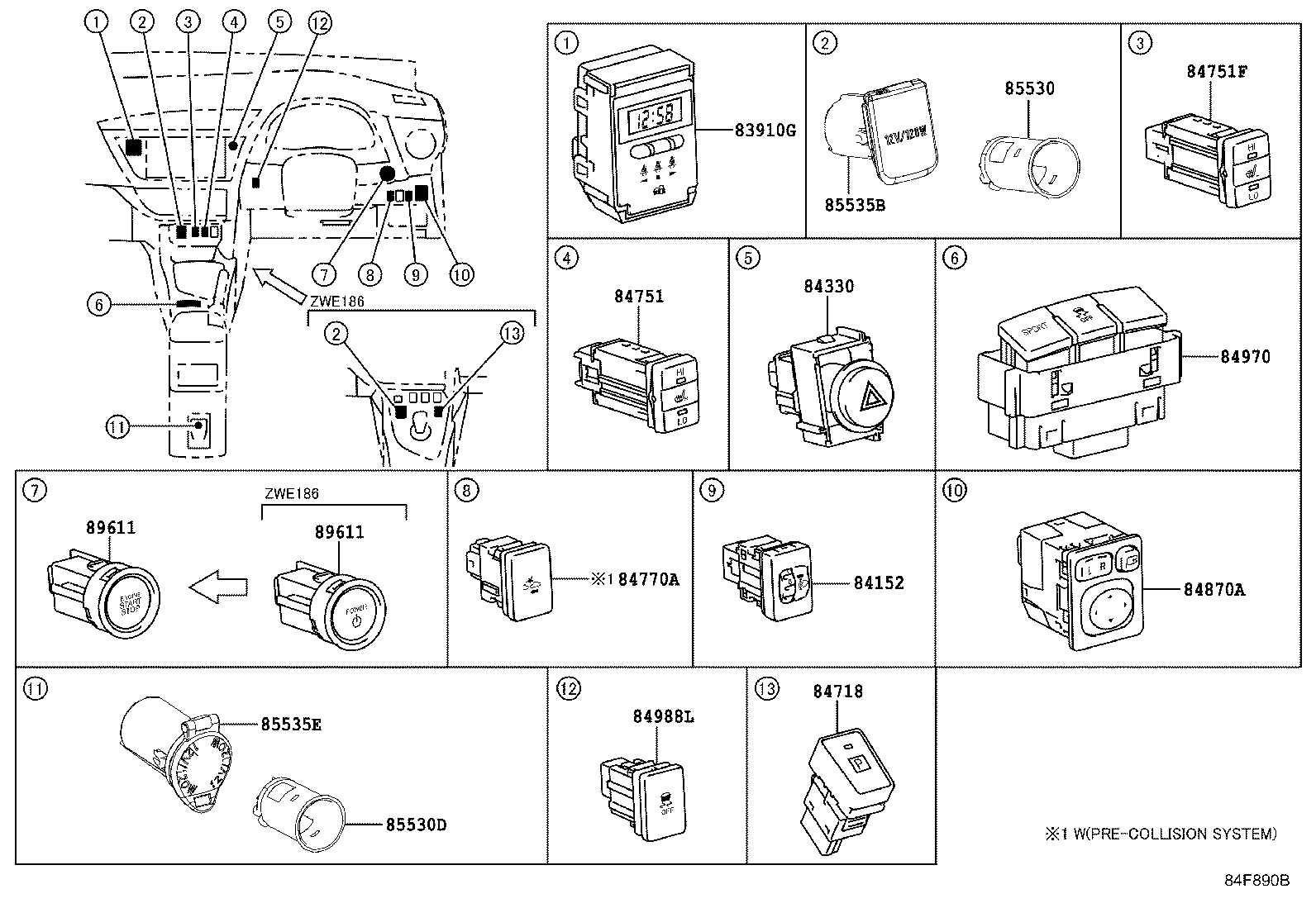

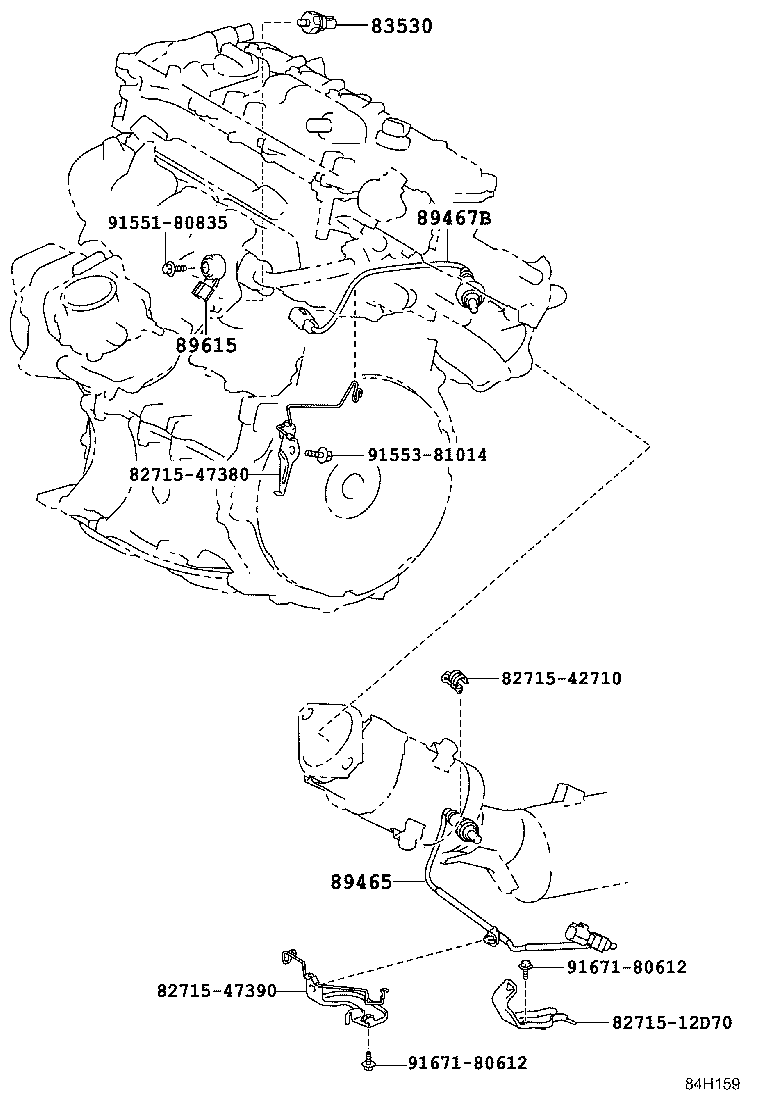

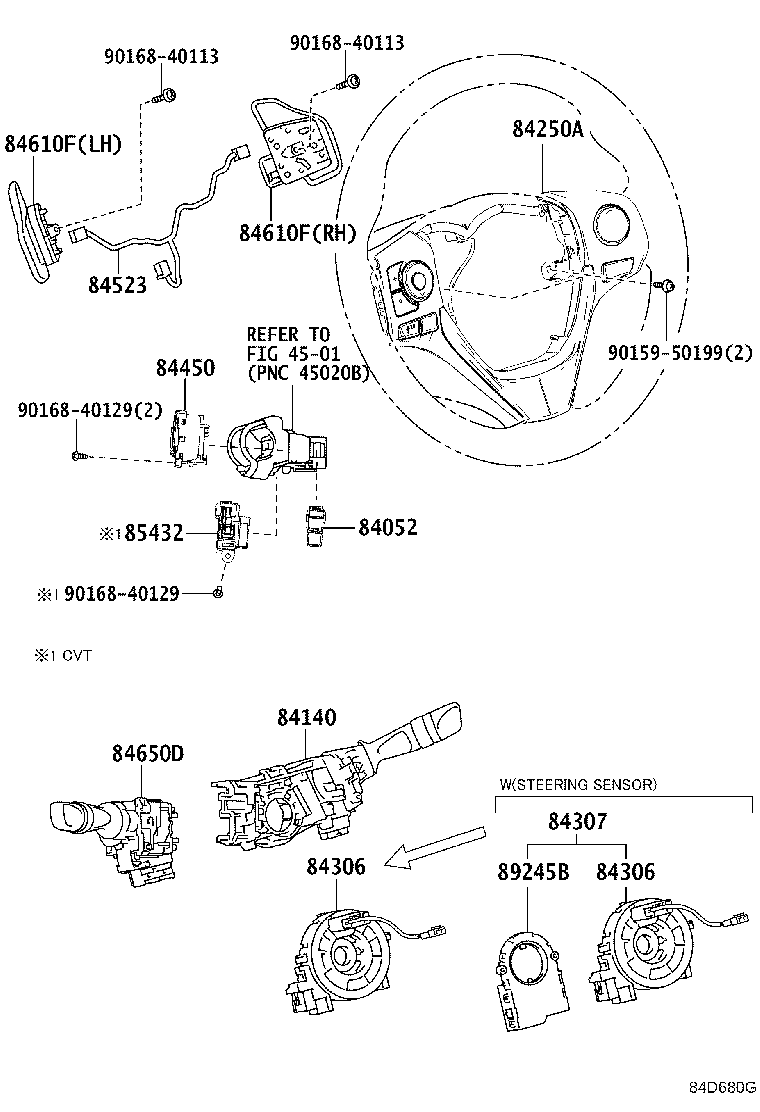

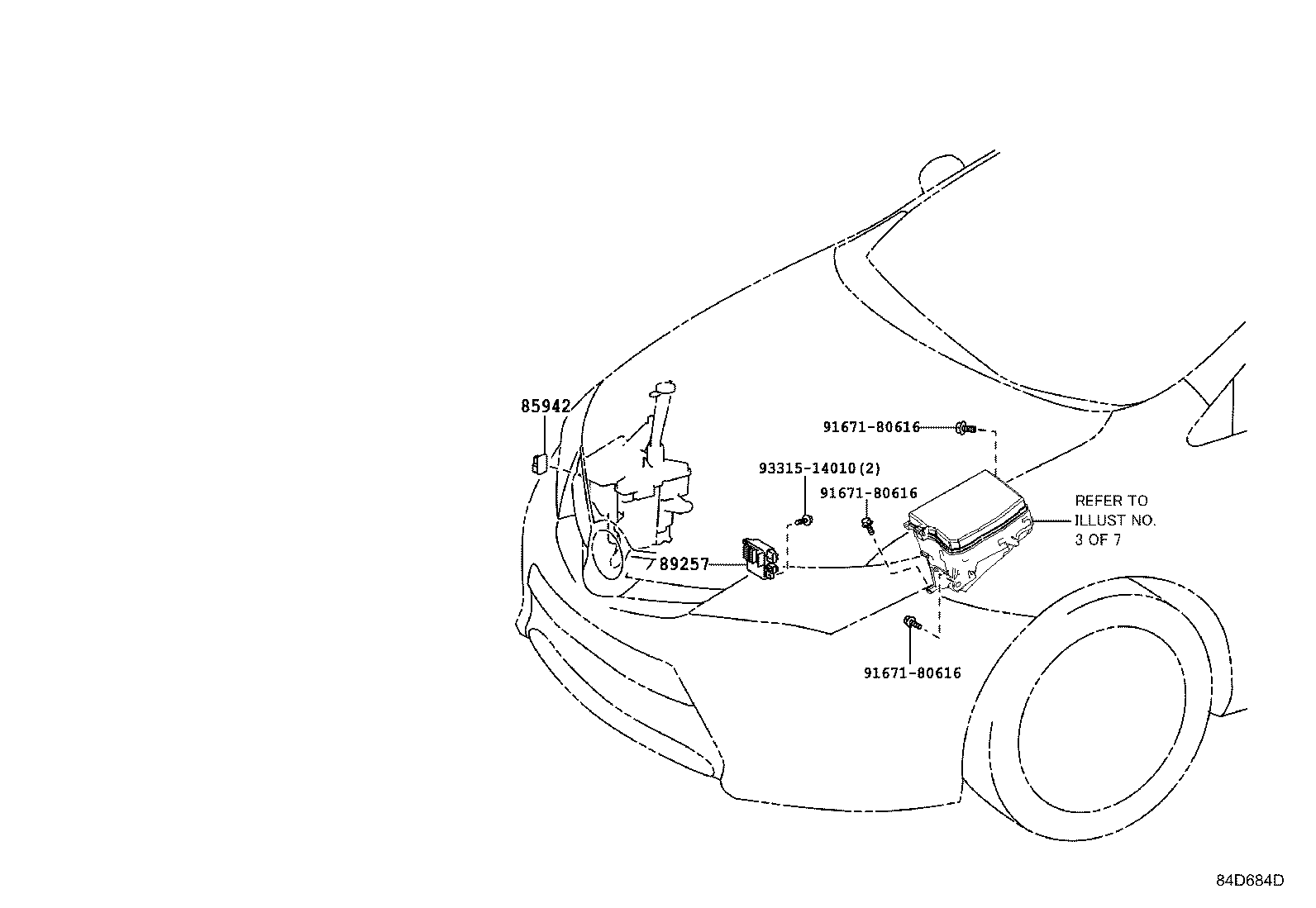

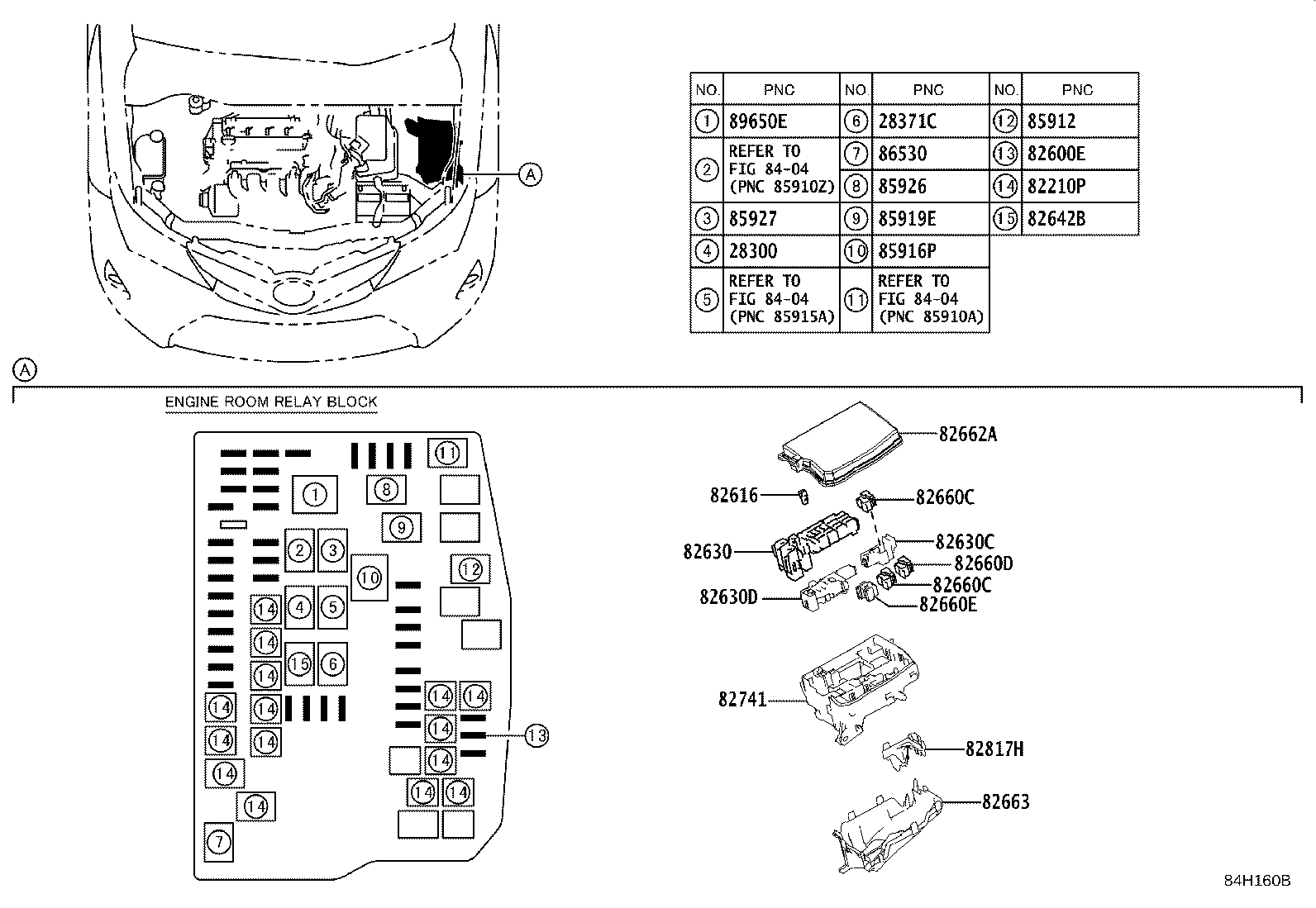

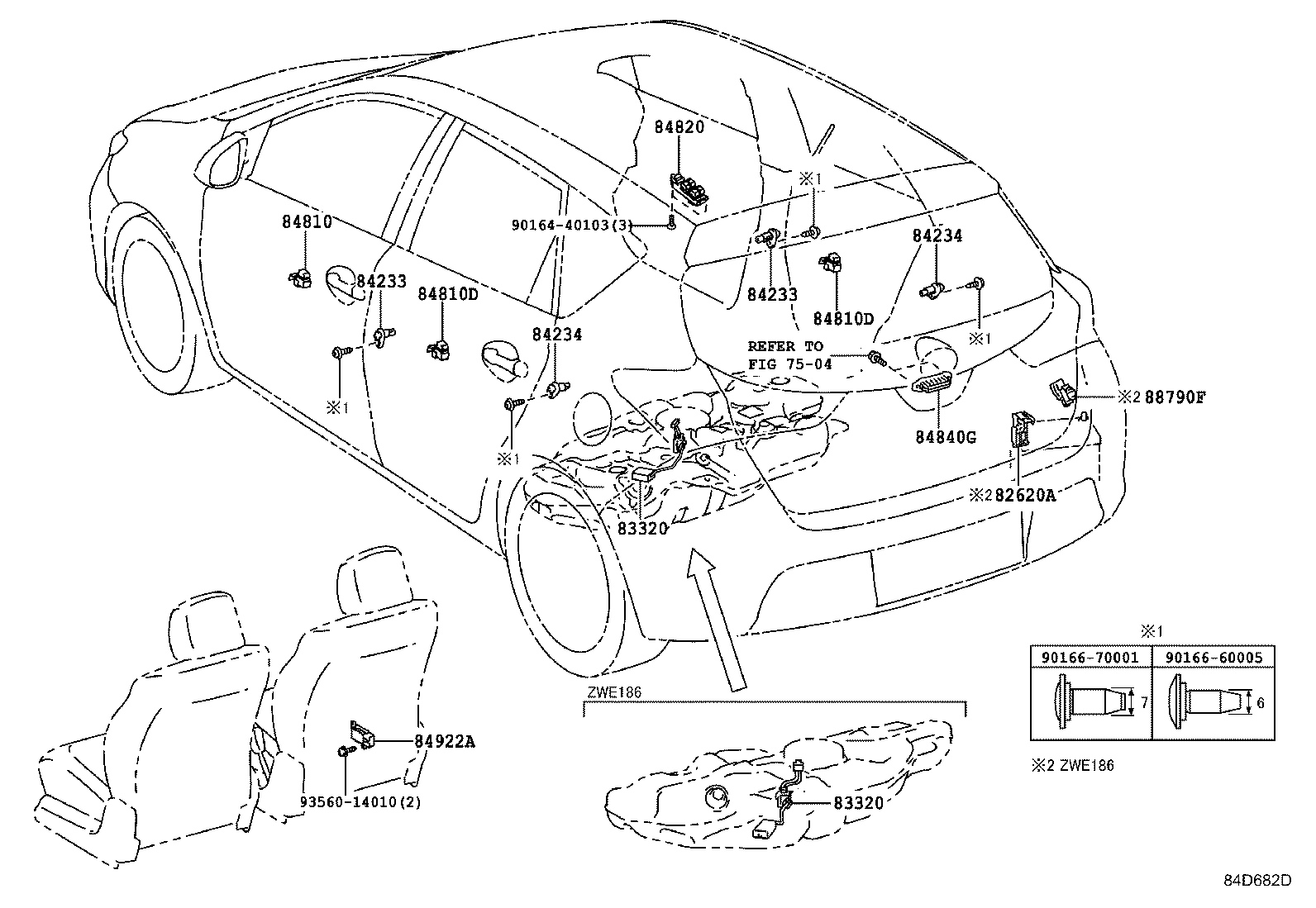

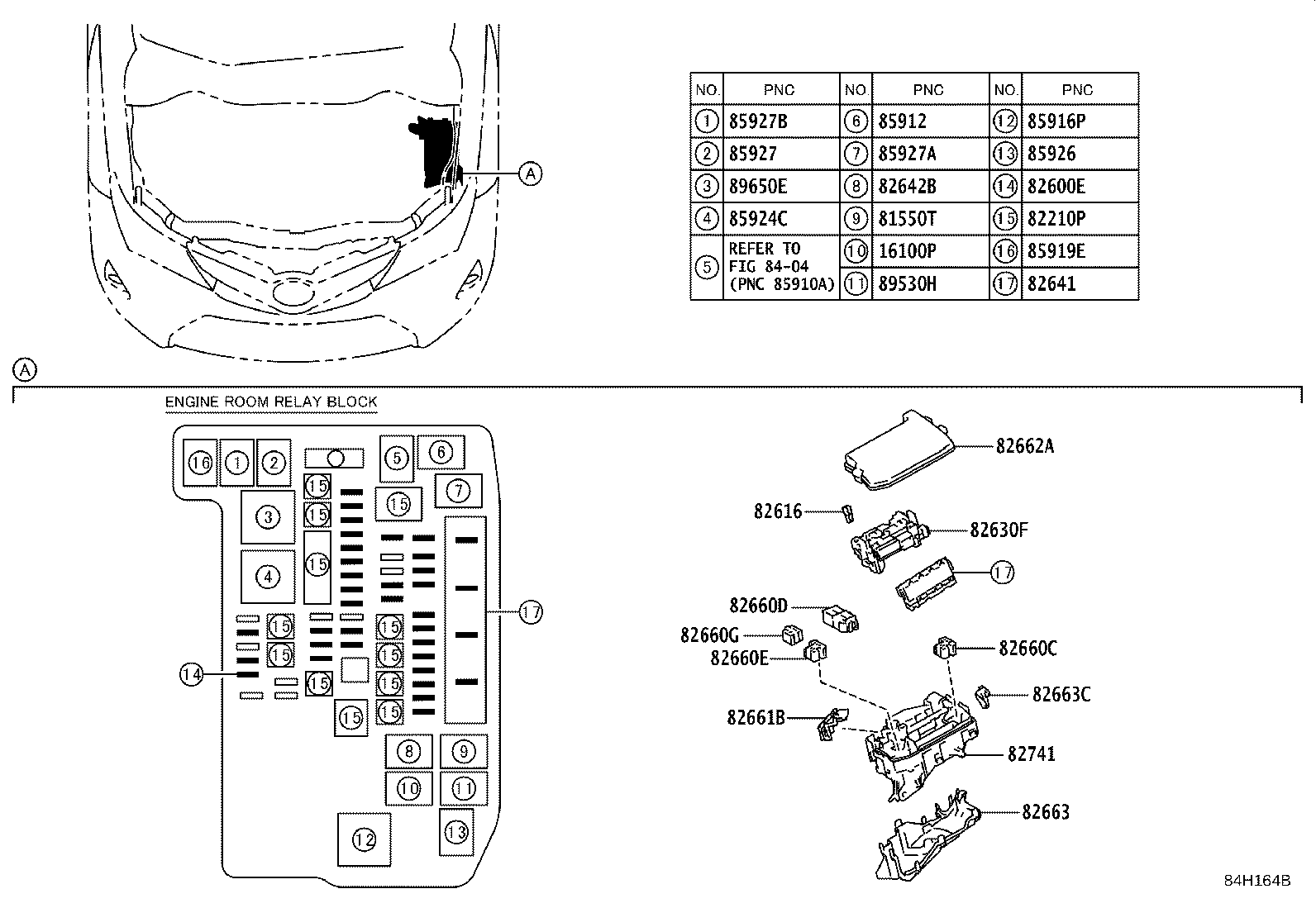

Illustrations
Part groups
| PNC | Description |
|---|---|
| 16100P | Relay, Water Pump |
| 28300 | Relay Assy, Starter |
| 28371C | Relay, Ignition, NO.2 |
| 81550T | Relay, Back UP Lamp |
| 82210N | Instrument Panel Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82630 | Holder Assy, Fuse |
| 82630C | Holder Assy, Fuse |
| 82630D | Holder, Fuse |
| 82630F | Holder, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82642B | Relay, Day Time Running Light, NO.1 |
| 82660C | Block Assy, Relay |
| 82660D | Block Assy, Relay |
| 82660E | Block Assy, Relay |
| 82660G | Block Assy, Relay |
| 82660H | Block Assy, Relay |
| 82660J | Block Assy, Relay |
| 82661B | Cover, Relay Block, NO.3 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82672A | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82673C | Bracket, Junction Block |
| 82730 | Block Assy, Instrument Panel Junction |
| 82741 | Block, Engine Room Relay |
| 82755 | Block, Center Relay |
| 82817H | Protector, Wiring Harness |
| 82877 | Box, Computer Integration, RH |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83910G | Clock Assy |
| 83950M | Lamp Assy, Telltale |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84155 | Switch, Headlamp Swivel Main |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84270Q | Relay, Lamp Cut |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84523 | Wire, Switch NO.1 |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84610F | Switch Assy, Transmission Shift |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84718 | Switch, Transmission Shift Main |
| 84720J | Switch Assy, Pattern Select |
| 84751 | Switch, Seat Heater |
| 84751F | Switch, Seat Heater |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84922A | Switch, Front Power Seat(FOR LUMBAR) |
| 84970 | Switch Assy, Combination |
| 84988L | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85535E | Cover, Power Outlet Socket, NO.2 |
| 85912 | Relay, Defogger |
| 85916D | Relay, Fog Lamp |
| 85916P | Relay, Headlamp |
| 85919E | Relay, Stop Lamp |
| 85924C | Relay, Igct |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85942 | Relay, Headlamp Cleaner Control |
| 85970A | Relay Assy, Double Lock Door Control |
| 86530 | Relay Assy, Horn |
| 87299 | Relay, Heater |
| 88790F | Thermistor Assy |
| 89120A | Sensor, Automatic Light Control |
| 89221 | Computer, Multiplex Network Body |
| 89245B | Sensor, Steering |
| 89257 | Computer, Cooling Fan |
| 89429F | Sensor, Temperature |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89530C | Computer Assy, Transmission Control |
| 89530H | Relay, Transaxle Parking Look Control |
| 89539Q | Bracket, Computer |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89650E | Relay, Electric Power Steering |
| 89730A | Relay(FOR SECURITY WARNING) |
| 89940 | Computer Assy, Headlamp Swivel |
| 89980 | Computer Assy, Hybrid Vehicle Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
