Toyota Corolla/Auris (JPP)

2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

7 part groups · 2 illustrations

Illustrations

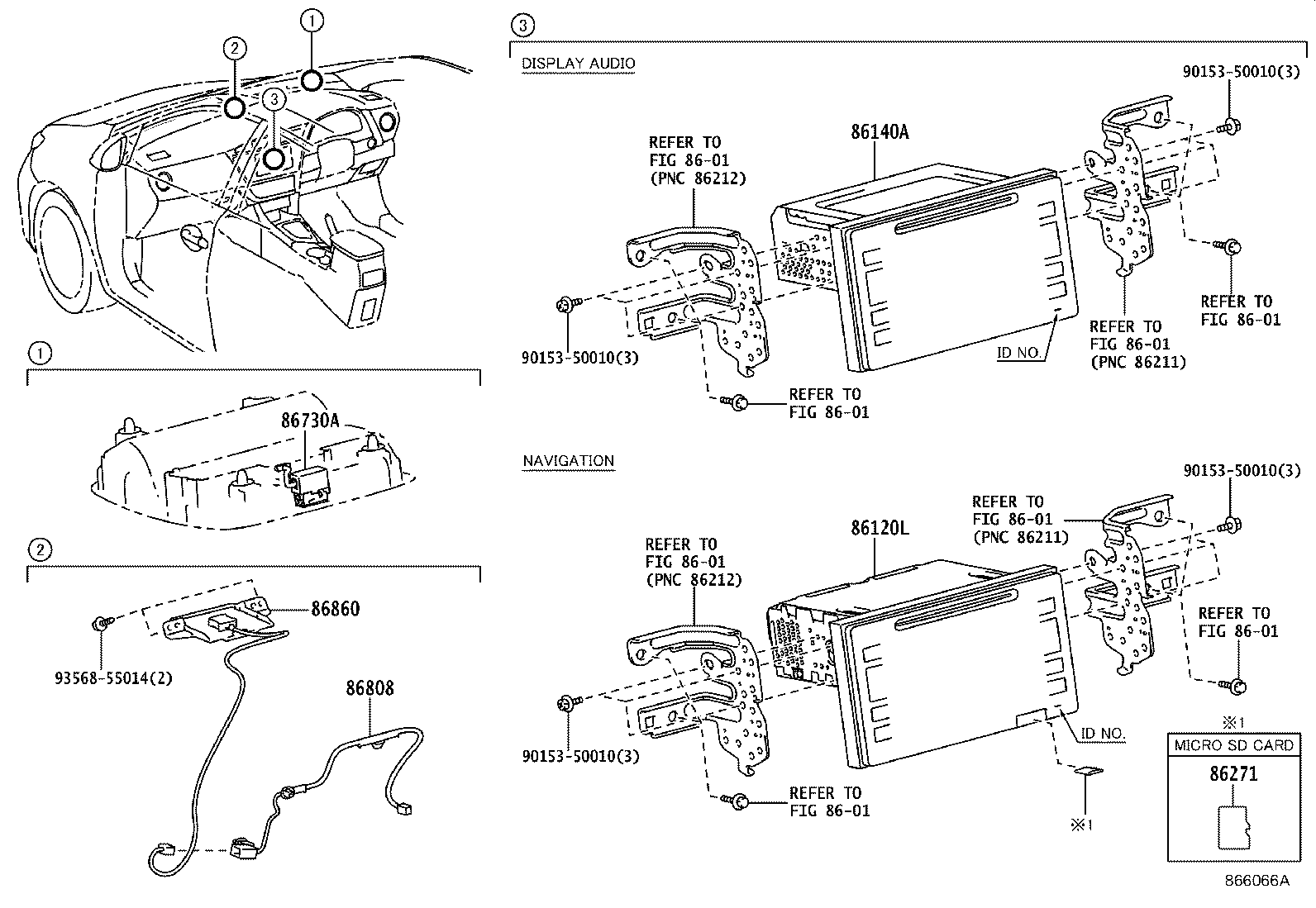

Figure 865098A 865098A 2012-08 → 2015-03 Figure 866066A 866066A 2015-03 → —

Part groups

PNCDescription
86120L Receiver Assy, Navigation
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86271 Disc, Disc Player
86730A Microphone Assy, Telephone
86808 Cord Sub-assy, Navigation Antenna, NO.1
86860 Antenna Assy, Navigation
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
