Toyota Corolla/Auris (JPP)

2012-08 → 2018-05 · chassis NRE180,ZRE18#,ZWE186 · catalogue 165320 · General

Supported model Data version 2018-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

7 part groups · 4 illustrations

Illustrations

Figure 87D108C

87D108C 2012-08 → —

Figure 87D106B

87D106B 2012-08 → —

Figure 87D107B

87D107B 2012-08 → —

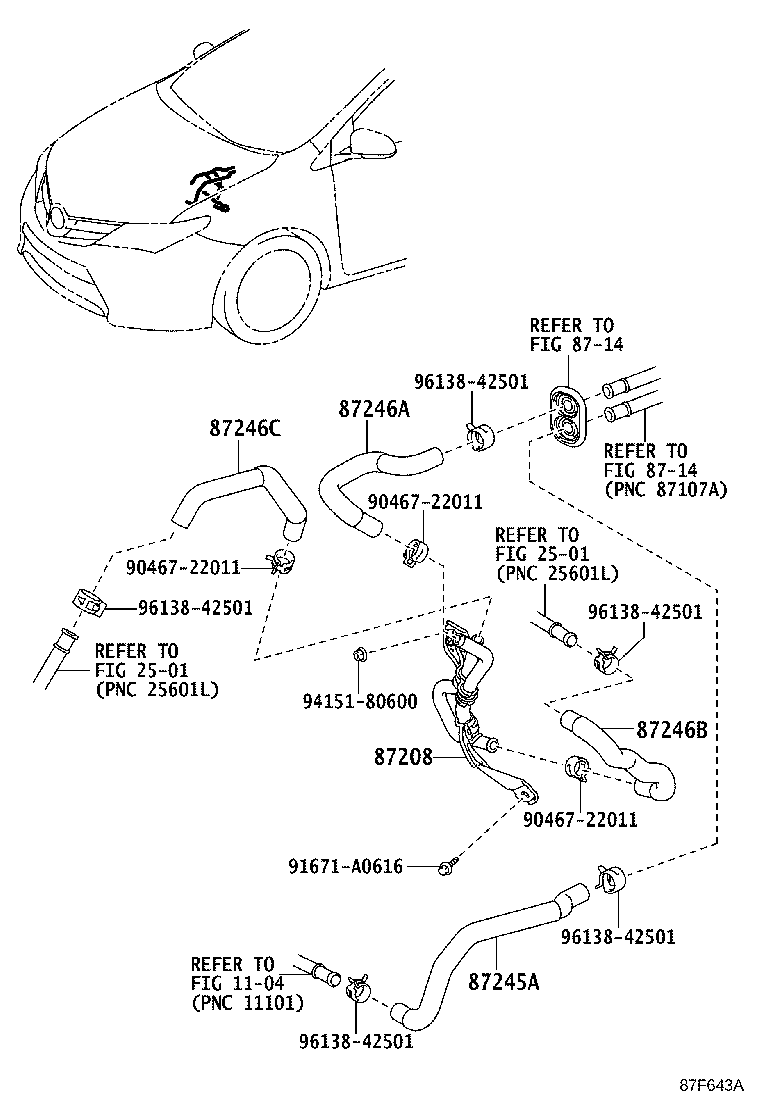

Figure 87F643A

87F643A 2016-04 → —

Part groups

PNC	Description
87101A	Bracket Sub-assy, Heater NO.1
87208	Pipe Sub-assy, Heater Water
87245A	Hose, Heater Water, Inlet A
87246A	Hose, Heater Water, Outlet A
87246B	Hose, Heater Water, Outlet B
87246C	Hose, Heater Water, Outlet C
87251D	Joint, Water, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
