Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

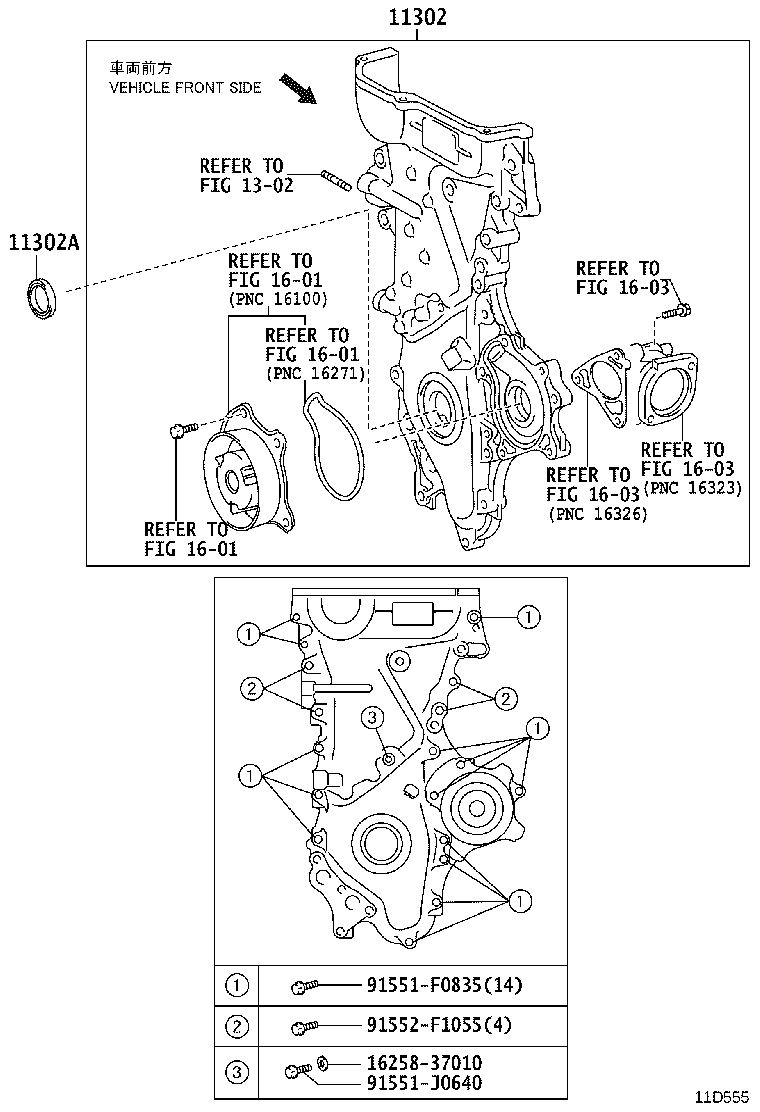

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 11302 — Cover Sub-assy, Timing Chain OR Belt | ||||
| 11302-0R011 |
Cover Sub-assy, Timing Chain OR Belt
2007-06 → 2008-09
ended
|
1ADFTV ADE150 | — | |
| 11302-0R020 |
Cover Sub-assy, Timing Chain OR Belt
2008-09 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 11310-0T070 note |
Cover Sub-assy, Timing Chain OR Belt
2008-10 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 11310-37010 note |
Cover Sub-assy, Timing Chain OR Belt
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 11321-0D020 note |
Cover Sub-assy, Timing Chain OR Belt
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11321-22021 note |
Cover Sub-assy, Timing Chain OR Belt
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 11302-0R020 |
Cover Sub-assy, Timing Chain OR Belt
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 11310-0T070 note |
Cover Sub-assy, Timing Chain OR Belt
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 11310-37010 note |
Cover Sub-assy, Timing Chain OR Belt
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 11310-47010 |
Cover Sub-assy, Timing Chain OR Belt
2008-11 → 2009-07
ended
|
1NRFE NRE150 | — | |
| 11310-47011 |
Cover Sub-assy, Timing Chain OR Belt
2009-07 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 11302-0R020 |
Cover Sub-assy, Timing Chain OR Belt
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 11310-0T070 note |
Cover Sub-assy, Timing Chain OR Belt
2009-12 → 2012-11
ended
|
1ZRFAE ZRE151 | — | |
| 11310-37010 note |
Cover Sub-assy, Timing Chain OR Belt
2009-12 → 2012-01
ended
|
1ZRFAE ZRE151 | — | |
| 11310-37011 note |
Cover Sub-assy, Timing Chain OR Belt
2012-01 → 2012-11
ended
|
1ZRFAE ZRE151 | — | |
| 11310-47011 |
Cover Sub-assy, Timing Chain OR Belt
2009-12 → 2012-10
ended
|
1NRFE NRE150 TERRA | — | |
| 11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90080-31060 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90311-38059 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90311-38089 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90311-W0012 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2008-10 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90311-25031 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 90311-38089 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90311-W0012 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90311-25021 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2011-04 → 2012-10
ended
|
1NRFE NRE150 | — | |
| 90311-25031 |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2009-12 → 2011-04
ended
|
1NRFE NRE150 TERRA | — | |
| 90311-38089 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 90311-W0012 note |
Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
2009-12 → —
|
1ZRFAE ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
