Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

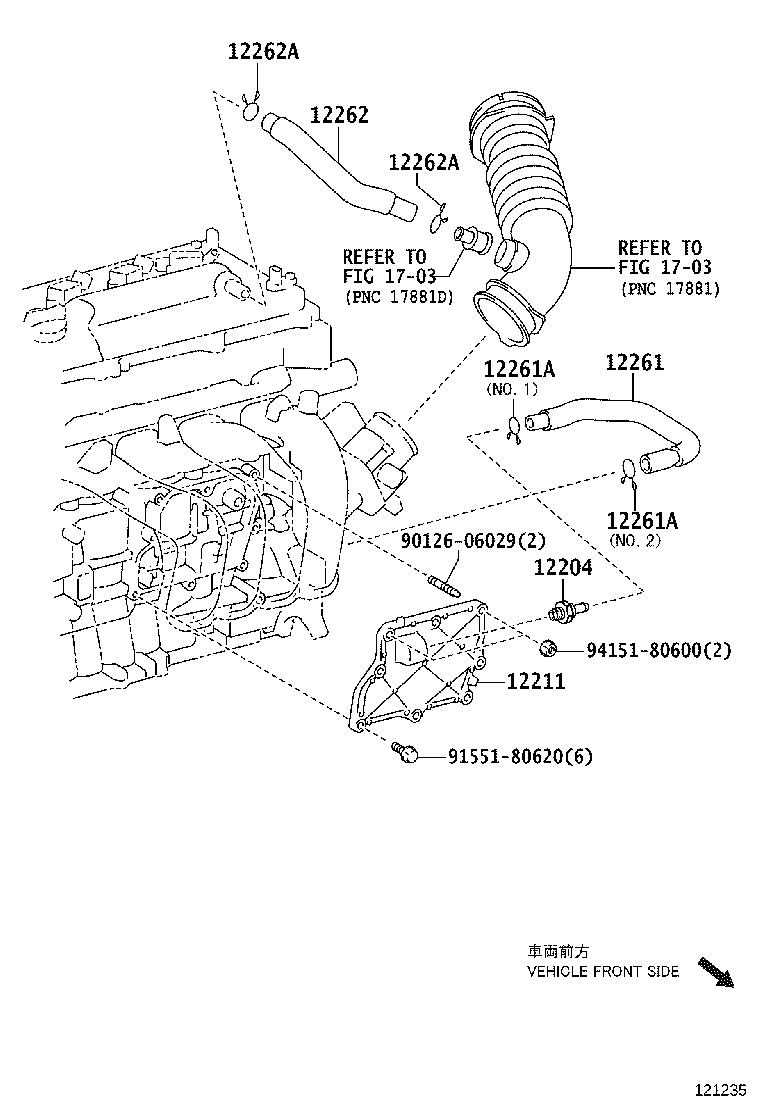

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 12204 — Valve Sub-assy, Ventilation | ||||
| 12204-22051 |
Valve Sub-assy, Ventilation
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 12204-37010 |
Valve Sub-assy, Ventilation
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 12204-37010 |
Valve Sub-assy, Ventilation
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 12204-47010 |
Valve Sub-assy, Ventilation
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 12204-37010 |
Valve Sub-assy, Ventilation
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 12204-47010 |
Valve Sub-assy, Ventilation
2009-12 → —
|
1NRFE NRE150 TERRA | — | |
| 12211 — Case, Ventilation, NO.1 | ||||
| 12211-0T010 note |
Case, Ventilation, NO.1
2008-10 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 12211-37010 note |
Case, Ventilation, NO.1
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 12211-0T010 note |
Case, Ventilation, NO.1
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 12211-37010 note |
Case, Ventilation, NO.1
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 12211-0T010 note |
Case, Ventilation, NO.1
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 12211-37010 note |
Case, Ventilation, NO.1
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 12261 — Hose, Ventilation | ||||
| 12261-0D070 note |
Hose, Ventilation
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 12261-0R020 |
Hose, Ventilation
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 12261-22050 note |
Hose, Ventilation
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 12261-37040 |
Hose, Ventilation
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 12261-0R020 |
Hose, Ventilation
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 12261-37040 |
Hose, Ventilation
2009-02 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 12261-37050 |
Hose, Ventilation
2009-02 → 2010-01
ended
|
1ZRFAE ZRE151 6FS | — | |
| 12261-47010 |
Hose, Ventilation
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 12261-0R020 |
Hose, Ventilation
2009-12 → 2011-10
ended
|
1ADFTV ADE150 RX | — | |
| 12261-0R030 |
Hose, Ventilation
2011-10 → —
|
1ADFTV ADE150 | — | |
| 12261-37050 |
Hose, Ventilation
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 12261-47010 |
Hose, Ventilation
2009-12 → 2012-10
ended
|
1NRFE NRE150 TERRA | — | |
| 12261A — Clip OR Clamp(FOR VENTILATION HOSE) | ||||
| 90466-23003 |
Clip OR Clamp(FOR VENTILATION HOSE)
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 90467-15120 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90467-21152 |
Clip OR Clamp(FOR VENTILATION HOSE)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90467-22010 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2007-06 → 2008-09
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90467-23002 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2008-09 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90466-23003 |
Clip OR Clamp(FOR VENTILATION HOSE)
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 90467-15120 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90467-16035 |
Clip OR Clamp(FOR VENTILATION HOSE)
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 90467-23002 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90466-23003 |
Clip OR Clamp(FOR VENTILATION HOSE)
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 90467-15120 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 90467-16035 |
Clip OR Clamp(FOR VENTILATION HOSE)
2009-12 → —
|
1NRFE NRE150 TERRA | — | |
| 90467-23002 note |
Clip OR Clamp(FOR VENTILATION HOSE)
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 12262 — Hose, Ventilation, NO.2 | ||||
| 12262-0D080 note |
Hose, Ventilation, NO.2
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 12262-22060 note |
Hose, Ventilation, NO.2
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 12262-37020 |
Hose, Ventilation, NO.2
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 12262-0Y010 |
Hose, Ventilation, NO.2
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 12262-37020 |
Hose, Ventilation, NO.2
2009-02 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 12262-37030 |
Hose, Ventilation, NO.2
2009-02 → 2010-01
ended
|
1ZRFAE ZRE151 6FS | — | |
| 12262-0Y010 |
Hose, Ventilation, NO.2
2009-12 → 2012-10
ended
|
1NRFE NRE150 TERRA | — | |
| 12262-37030 |
Hose, Ventilation, NO.2
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 12262A — Clip(FOR VENTILATION HOSE NO.2) | ||||
| 90467-13103 note |
Clip(FOR VENTILATION HOSE NO.2)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90467-19003 note |
Clip(FOR VENTILATION HOSE NO.2)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2009-12 → 2012-10
ended
|
1NRFE NRE150 TERRA | — | |
| 90467-21004 |
Clip(FOR VENTILATION HOSE NO.2)
2009-12 → —
|
1ZRFAE ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
