Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

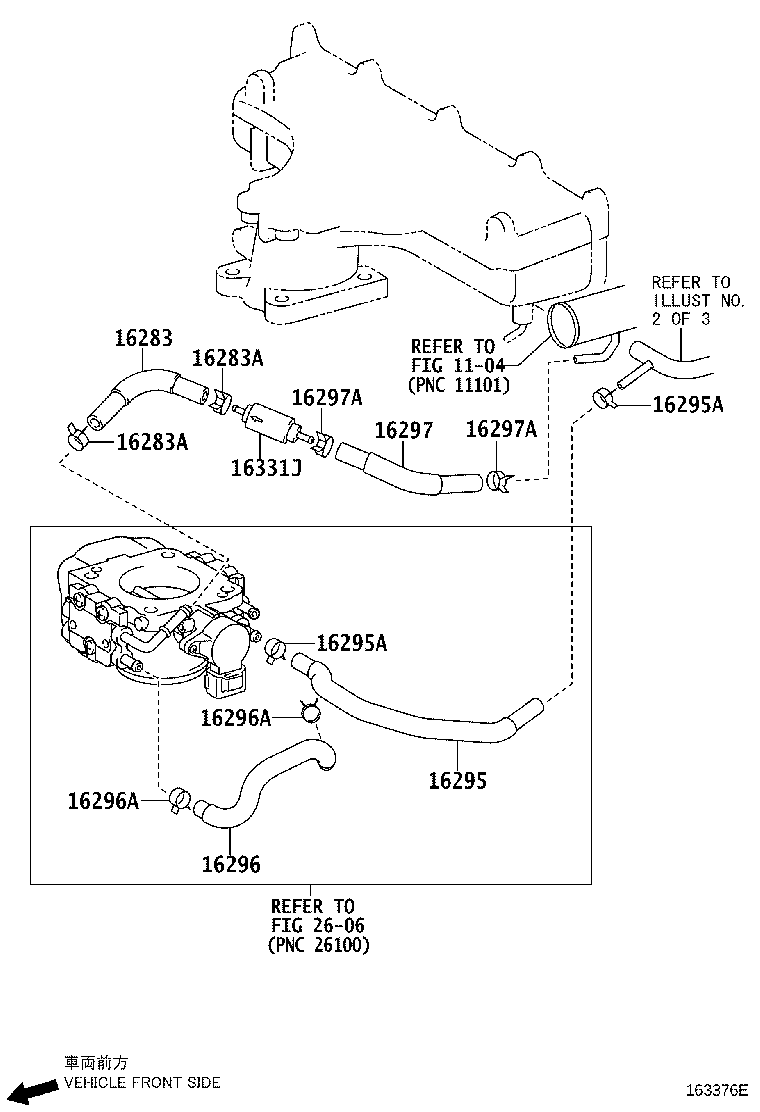

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16283 — Hose, Water By-pass, NO.6 | ||||
| 16283-26011 |
Hose, Water By-pass, NO.6
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 16283-0R010 |
Hose, Water By-pass, NO.6
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 16283-0R010 |
Hose, Water By-pass, NO.6
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16283A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16295 — Hose, Water By-pass, NO.7 | ||||
| 16295-26020 |
Hose, Water By-pass, NO.7
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 16295-0R010 |
Hose, Water By-pass, NO.7
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 16295-0R010 |
Hose, Water By-pass, NO.7
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16295A — Clip(FOR WATER BY-PASS HOSE NO.7) | ||||
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.7)
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.7)
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.7)
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16296 — Hose, Water By-pass, NO.8 | ||||
| 16296-26010 |
Hose, Water By-pass, NO.8
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 16296-26020 |
Hose, Water By-pass, NO.8
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 16296-26020 |
Hose, Water By-pass, NO.8
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16296A — Clip(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.8)
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16297 — Hose, Water By-pass, NO.9 | ||||
| 16297-26011 |
Hose, Water By-pass, NO.9
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 16297A — Clip(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-41501 |
Clip(FOR WATER BY-PASS HOSE NO.9)
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 16331J — Thermostat, Manifold | ||||
| 90916-03141 |
Thermostat, Manifold
2008-02 → 2009-03
ended
|
1ADFTV ADE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
