Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

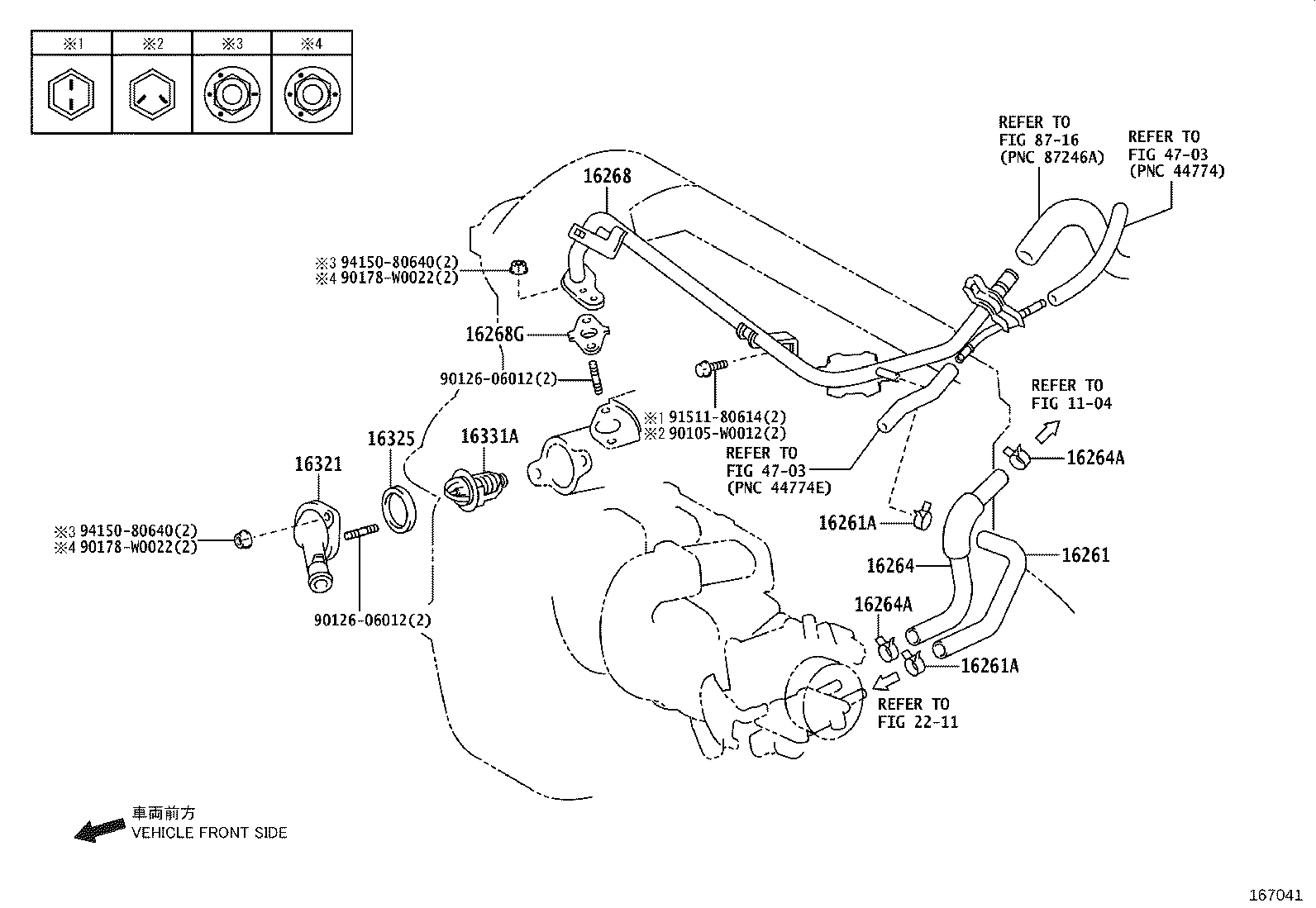

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-0D080 note |
Hose, Water By-pass
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 16261-22100 note |
Hose, Water By-pass
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 16261-37021 note |
Hose, Water By-pass
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 16261-0R081 |
Hose, Water By-pass
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 16261-37021 |
Hose, Water By-pass
2009-02 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 16261-37051 |
Hose, Water By-pass
2009-02 → 2009-12
ended
|
1ZRFAE ZRE151 | — | |
| 16261-47010 |
Hose, Water By-pass
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 16261-0R081 |
Hose, Water By-pass
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16261-37051 |
Hose, Water By-pass
2009-12 → 2011-01
ended
|
1ZRFAE ZRE151 | — | |
| 16261-37052 |
Hose, Water By-pass
2011-01 → —
|
1ZRFAE ZRE151 | — | |
| 16261-47010 |
Hose, Water By-pass
2009-12 → 2012-10
ended
|
1NRFE NRE150 TERRA | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90466-W0002 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90467-21006 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 96136-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90467-21006 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 96136-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2009-12 → 2012-10
ended
|
1NRFE NRE150 TERRA | — | |
| 96137-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-0D090 note |
Hose, Water By-pass, NO.2
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 16264-22110 note |
Hose, Water By-pass, NO.2
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 16264-37021 |
Hose, Water By-pass, NO.2
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 16264-26080 |
Hose, Water By-pass, NO.2
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 16264-37021 |
Hose, Water By-pass, NO.2
2009-02 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 16264-37041 |
Hose, Water By-pass, NO.2
2009-02 → 2009-12
ended
|
1ZRFAE ZRE151 | — | |
| 16264-26080 |
Hose, Water By-pass, NO.2
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16264-37041 |
Hose, Water By-pass, NO.2
2009-12 → 2011-01
ended
|
1ZRFAE ZRE151 | — | |
| 16264-37042 |
Hose, Water By-pass, NO.2
2011-01 → —
|
1ZRFAE ZRE151 | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90466-W0002 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90467-15022 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 96137-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-0D020 note |
Pipe, Water By-pass, NO.1
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 16268-22100 note |
Pipe, Water By-pass, NO.1
2007-06 → 2008-06
ended
|
4ZZFE ZZE150 | — | |
| 16268-22101 note |
Pipe, Water By-pass, NO.1
2008-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 16268-37030 |
Pipe, Water By-pass, NO.1
2007-06 → 2008-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2008-02 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 16268-47030 |
Pipe, Water By-pass, NO.1
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 16268-37031 |
Pipe, Water By-pass, NO.1
2009-12 → 2012-10
ended
|
1ZRFAE ZRE151 | — | |
| 16268-47030 |
Pipe, Water By-pass, NO.1
2009-12 → 2012-10
ended
|
1NRFE NRE150 TERRA | — | |
| 16268G — Gasket(FOR WATER BY-PASS PIPE) | ||||
| 16258-22010 |
Gasket(FOR WATER BY-PASS PIPE)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 16321 — Inlet, Water | ||||
| 16321-0D030 |
Inlet, Water
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 16321-0R011 note |
Inlet, Water
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 16321-0T010 note |
Inlet, Water
2008-10 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 16321-26010 note |
Inlet, Water
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 16321-37010 note |
Inlet, Water
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 16321-0R020 note |
Inlet, Water
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 16321-0T010 note |
Inlet, Water
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 16321-26030 note |
Inlet, Water
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 16321-37010 note |
Inlet, Water
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 16321-47010 |
Inlet, Water
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 16321-0R020 note |
Inlet, Water
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16321-0T010 note |
Inlet, Water
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 16321-26030 note |
Inlet, Water
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16321-37010 note |
Inlet, Water
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 16321-47010 |
Inlet, Water
2009-12 → 2010-09
ended
|
1NRFE NRE150 TERRA | — | |
| 16321-47011 |
Inlet, Water
2010-09 → 2012-10
ended
|
1NRFE NRE150 | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-0D010 note |
Gasket, Water Inlet Housing, NO.1
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 16325-26011 note |
Gasket, Water Inlet Housing, NO.1
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2008-12 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 16325-62010 note |
Gasket, Water Inlet Housing, NO.1
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 16325-62010 note |
Gasket, Water Inlet Housing, NO.1
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2007-06 → 2008-12
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 16325-26011 note |
Gasket, Water Inlet Housing, NO.1
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 16325-62010 note |
Gasket, Water Inlet Housing, NO.1
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 16325-26011 note |
Gasket, Water Inlet Housing, NO.1
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16325-28010 |
Gasket, Water Inlet Housing, NO.1
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 16325-62010 note |
Gasket, Water Inlet Housing, NO.1
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 16331A — Thermostat | ||||
| 90916-03125 note |
Thermostat
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 90916-03129 note |
Thermostat
2007-06 → 2008-08
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90916-03129 note |
Thermostat
2007-06 → 2008-10
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90916-03129 note |
Thermostat
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90916-03144 note |
Thermostat
2008-08 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90916-03144 note |
Thermostat
2008-10 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90916-03145 note |
Thermostat
2009-01 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90916-03125 note |
Thermostat
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 90916-03144 note |
Thermostat
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90916-03145 note |
Thermostat
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90916-03147 note |
Thermostat
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 90916-03125 note |
Thermostat
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 90916-03144 note |
Thermostat
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 90916-03145 note |
Thermostat
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 90916-03147 note |
Thermostat
2009-12 → 2012-10
ended
|
1NRFE NRE150 TERRA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
