Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

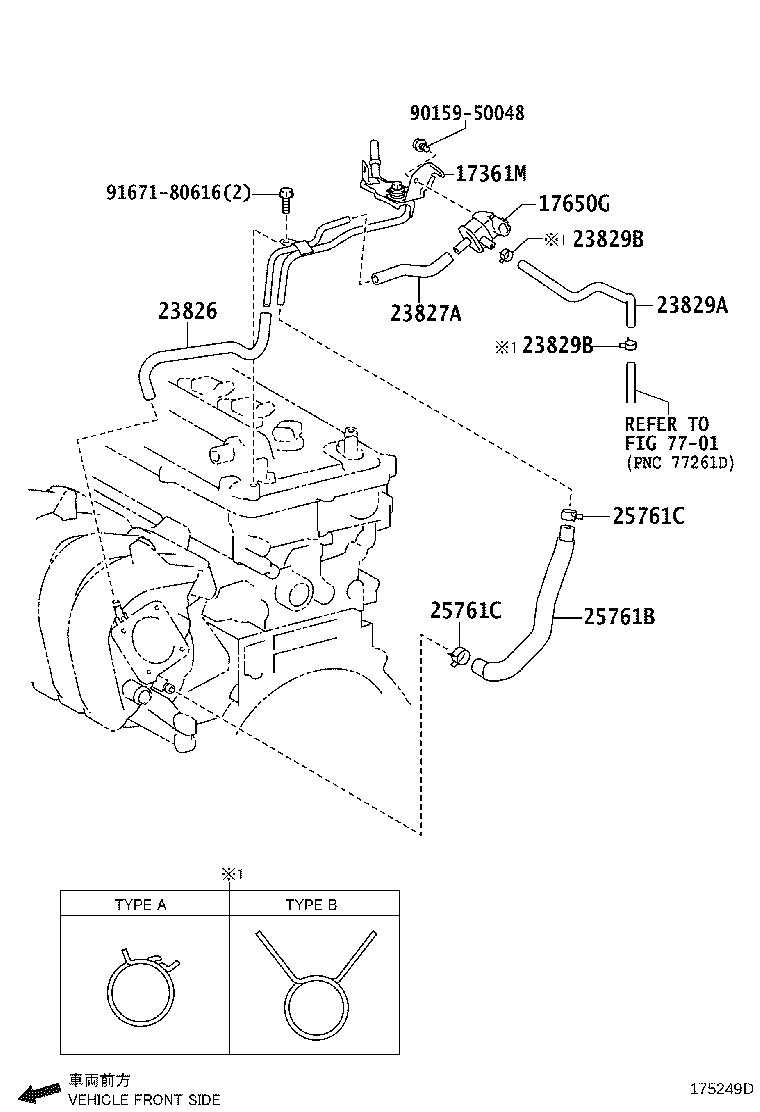

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17361M — Tube, Air | ||||
| 17361-37010 |
Tube, Air
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17361-37010 |
Tube, Air
2009-02 → 2009-09
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17361-37011 |
Tube, Air
2009-09 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17361-37020 |
Tube, Air
2009-02 → 2009-12
ended
|
1ZRFAE ZRE151 | — | |
| 17361-37020 |
Tube, Air
2010-01 → 2012-10
ended
|
1ZRFAE ZRE151 | — | |
| 17650G — Valve, Duty Vacuum Switching | ||||
| 90910-12276 note |
Valve, Duty Vacuum Switching
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90910-TC001 note |
Valve, Duty Vacuum Switching
2008-01 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90910-12276 note |
Valve, Duty Vacuum Switching
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90910-TC001 note |
Valve, Duty Vacuum Switching
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90910-12276 note |
Valve, Duty Vacuum Switching
2010-01 → —
|
1ZRFAE ZRE151 | — | |
| 90910-TC001 note |
Valve, Duty Vacuum Switching
2010-01 → —
|
1ZRFAE ZRE151 | — | |
| 23826 — Hose, Fuel Vapor Feed, NO.1 | ||||
| 23826-0D070 |
Hose, Fuel Vapor Feed, NO.1
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 23826-37020 |
Hose, Fuel Vapor Feed, NO.1
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 23826-0Y021 |
Hose, Fuel Vapor Feed, NO.1
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 23826-37020 |
Hose, Fuel Vapor Feed, NO.1
2009-02 → 2009-09
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 23826-37021 |
Hose, Fuel Vapor Feed, NO.1
2009-10 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 23826-37050 |
Hose, Fuel Vapor Feed, NO.1
2009-02 → 2009-12
ended
|
1ZRFAE ZRE151 | — | |
| 23826-0Y021 |
Hose, Fuel Vapor Feed, NO.1
2009-12 → —
|
1NRFE NRE150 TERRA | — | |
| 23826-37050 |
Hose, Fuel Vapor Feed, NO.1
2010-01 → —
|
1ZRFAE ZRE151 | — | |
| 23827A — Hose, Fuel Vapor Feed, NO.2 | ||||
| 23827-37020 |
Hose, Fuel Vapor Feed, NO.2
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 23827-0Y020 |
Hose, Fuel Vapor Feed, NO.2
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 23827-37020 |
Hose, Fuel Vapor Feed, NO.2
2009-02 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 23827-37030 |
Hose, Fuel Vapor Feed, NO.2
2009-02 → 2009-12
ended
|
1ZRFAE ZRE151 | — | |
| 23827-0Y020 |
Hose, Fuel Vapor Feed, NO.2
2009-12 → —
|
1NRFE NRE150 TERRA | — | |
| 23827-37030 |
Hose, Fuel Vapor Feed, NO.2
2010-01 → —
|
1ZRFAE ZRE151 | — | |
| 23829A — Hose, Fuel Vapor Feed | ||||
| 23826-0D090 |
Hose, Fuel Vapor Feed
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 23826-0T051 |
Hose, Fuel Vapor Feed
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 23826-0T051 |
Hose, Fuel Vapor Feed
2009-12 → 2012-10
ended
|
1ZRFAE ZRE151 | — | |
| 23829B — Clip(FOR FUEL VAPOR FEED HOSE) | ||||
| 90466-W0005 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2007-06 → 2008-03
ended
|
4ZZFE ZZE150 | — | |
| 90466-W0005 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 96132-51300 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2008-03 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 96132-51300 |
Clip(FOR FUEL VAPOR FEED HOSE)
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 96132-51300 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 96136-41501 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 96132-51300 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2009-12 → 2012-10
ended
|
1ZRFAE ZRE151 | — | |
| 96136-41501 note |
Clip(FOR FUEL VAPOR FEED HOSE)
2009-12 → 2012-10
ended
|
1ZRFAE ZRE151 | — | |
| 25761B — Hose, Vaccum Transmitting, NO.1 | ||||
| 25761-26030 |
Hose, Vaccum Transmitting, NO.1
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 25761-37010 |
Hose, Vaccum Transmitting, NO.1
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 25761-26030 |
Hose, Vaccum Transmitting, NO.1
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25761-37010 |
Hose, Vaccum Transmitting, NO.1
2009-02 → 2009-09
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 25761-37011 |
Hose, Vaccum Transmitting, NO.1
2009-10 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 25761-26030 |
Hose, Vaccum Transmitting, NO.1
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 25761C — Clip(VACCUM TRANSMITTING HOSE NO.1) | ||||
| 96136-41801 |
Clip(VACCUM TRANSMITTING HOSE NO.1)
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 96133-41500 |
Clip(VACCUM TRANSMITTING HOSE NO.1)
2009-10 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 96136-41801 |
Clip(VACCUM TRANSMITTING HOSE NO.1)
2009-02 → 2009-09
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
