Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

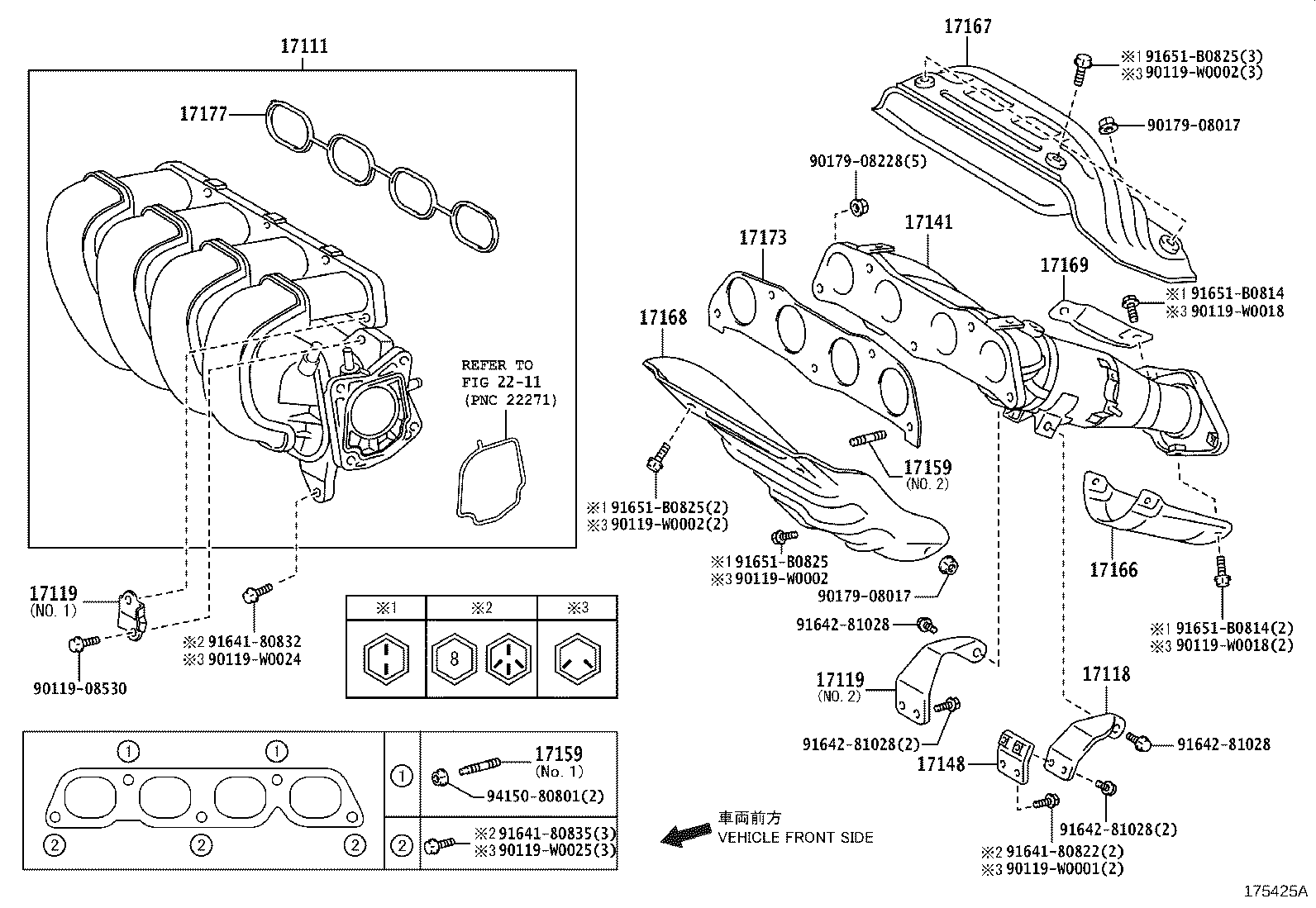

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17111 — Manifold, Intake | ||||
| 17101-0R010 |
Manifold, Intake
2007-06 → 2008-07
ended
|
1ADFTV ADE150 | — | |
| 17101-0R011 |
Manifold, Intake
2008-07 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17120-0D031 |
Manifold, Intake
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17120-37020 note |
Manifold, Intake
2007-06 → 2008-05
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17120-37021 note |
Manifold, Intake
2008-05 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17101-0R020 |
Manifold, Intake
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 17120-0T030 |
Manifold, Intake
2009-02 → 2009-12
ended
|
1ZRFAE ZRE151 | — | |
| 17120-37021 |
Manifold, Intake
2009-02 → 2009-09
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17120-37022 |
Manifold, Intake
2009-10 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17120-47010 |
Manifold, Intake
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 17101-0R020 |
Manifold, Intake
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 17120-0T030 |
Manifold, Intake
2010-01 → 2012-10
ended
|
1ZRFAE ZRE151 | — | |
| 17120-47010 |
Manifold, Intake
2009-12 → 2011-11
ended
|
1NRFE NRE150 TERRA | — | |
| 17120-47011 |
Manifold, Intake
2011-11 → —
|
1NRFE NRE150 | — | |
| 17118 — Stay, Manifold | ||||
| 17118-0R010 |
Stay, Manifold
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17118-0T020 note |
Stay, Manifold
2008-10 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17118-22090 |
Stay, Manifold
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17118-37010 note |
Stay, Manifold
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17118-0R010 |
Stay, Manifold
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 17118-0T020 note |
Stay, Manifold
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 17118-37010 note |
Stay, Manifold
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 17118-47010 |
Stay, Manifold
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 17118-0R010 |
Stay, Manifold
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 17118-0T020 note |
Stay, Manifold
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 17118-37010 note |
Stay, Manifold
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 17118-47010 |
Stay, Manifold
2009-12 → —
|
1NRFE NRE150 TERRA | — | |
| 17119 — Stay, Manifold, NO.2 | ||||
| 17119-0R010 |
Stay, Manifold, NO.2
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17119-22070 note |
Stay, Manifold, NO.2
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17139-22050 note |
Stay, Manifold, NO.2
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17119-0R030 |
Stay, Manifold, NO.2
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 17119-0R030 |
Stay, Manifold, NO.2
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 17141 — Manifold, Exhaust | ||||
| 17104-0D101 note |
Manifold, Exhaust
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17141-0R010 |
Manifold, Exhaust
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17141-0T050 note |
Manifold, Exhaust
2008-10 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17141-37051 note |
Manifold, Exhaust
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17141-0R010 note |
Manifold, Exhaust
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 17141-0T050 note |
Manifold, Exhaust
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 17141-26100 note |
Manifold, Exhaust
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 17141-37051 note |
Manifold, Exhaust
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 17141-0R010 note |
Manifold, Exhaust
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 17141-0T050 note |
Manifold, Exhaust
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 17141-26100 note |
Manifold, Exhaust
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 17141-37051 note |
Manifold, Exhaust
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 17148 — Plate, Exhaust Manifold(FOR EGR INLET) | ||||
| 17148-22030 |
Plate, Exhaust Manifold(FOR EGR INLET)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90126-08043 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90126-08052 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 90126-10024 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90126-08052 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 90126-10024 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 90126-08026 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 90126-08052 note |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 90126-10024 |
Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 17166 — Insulator, Exhaust Manifold Heat,NO.4 | ||||
| 17166-22011 |
Insulator, Exhaust Manifold Heat,NO.4
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17167 — Insulator, Exhaust Manifold Heat, NO.1 | ||||
| 17167-0D052 |
Insulator, Exhaust Manifold Heat, NO.1
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17167-0T020 note |
Insulator, Exhaust Manifold Heat, NO.1
2008-10 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17167-37011 note |
Insulator, Exhaust Manifold Heat, NO.1
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17167-0T020 note |
Insulator, Exhaust Manifold Heat, NO.1
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 17167-37011 note |
Insulator, Exhaust Manifold Heat, NO.1
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 17167-47010 |
Insulator, Exhaust Manifold Heat, NO.1
2008-11 → 2009-12
ended
|
1NRFE NRE150 | — | |
| 17167-47011 |
Insulator, Exhaust Manifold Heat, NO.1
2009-12 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 17167-0T020 note |
Insulator, Exhaust Manifold Heat, NO.1
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 17167-37011 note |
Insulator, Exhaust Manifold Heat, NO.1
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 17167-47011 |
Insulator, Exhaust Manifold Heat, NO.1
2009-12 → —
|
1NRFE NRE150 TERRA | — | |
| 17168 — Insulator, Exhaust Manifold Heat, NO.2 | ||||
| 17168-0T030 note |
Insulator, Exhaust Manifold Heat, NO.2
2008-10 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17168-22120 |
Insulator, Exhaust Manifold Heat, NO.2
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17168-37030 note |
Insulator, Exhaust Manifold Heat, NO.2
2007-06 → 2007-09
ended
|
2ZRFE ZRE152 | — | |
| 17168-37060 note |
Insulator, Exhaust Manifold Heat, NO.2
2007-06 → 2007-09
ended
|
1ZRFE ZRE151 | — | |
| 17168-37100 note |
Insulator, Exhaust Manifold Heat, NO.2
2007-09 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17168-0T030 note |
Insulator, Exhaust Manifold Heat, NO.2
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 17168-37100 note |
Insulator, Exhaust Manifold Heat, NO.2
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 17168-47010 |
Insulator, Exhaust Manifold Heat, NO.2
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 17168-0T030 note |
Insulator, Exhaust Manifold Heat, NO.2
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 17168-37100 note |
Insulator, Exhaust Manifold Heat, NO.2
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 17168-47010 |
Insulator, Exhaust Manifold Heat, NO.2
2009-12 → —
|
1NRFE NRE150 TERRA | — | |
| 17169 — Insulator, Exhaust Manifold Heat, NO.3 | ||||
| 17169-0D010 |
Insulator, Exhaust Manifold Heat, NO.3
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17173 — Gasket, Exhaust Manifold TO Head | ||||
| 17173-0R010 |
Gasket, Exhaust Manifold TO Head
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17173-0T020 note |
Gasket, Exhaust Manifold TO Head
2008-10 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17173-22010 |
Gasket, Exhaust Manifold TO Head
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17173-37010 note |
Gasket, Exhaust Manifold TO Head
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17173-0R010 |
Gasket, Exhaust Manifold TO Head
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 17173-0T020 note |
Gasket, Exhaust Manifold TO Head
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 17173-37010 note |
Gasket, Exhaust Manifold TO Head
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 17173-47020 |
Gasket, Exhaust Manifold TO Head
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 17173-0R010 |
Gasket, Exhaust Manifold TO Head
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 17173-0T020 note |
Gasket, Exhaust Manifold TO Head
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 17173-37010 note |
Gasket, Exhaust Manifold TO Head
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 17173-47020 |
Gasket, Exhaust Manifold TO Head
2009-12 → 2010-09
ended
|
1NRFE NRE150 TERRA | — | |
| 17173-47021 |
Gasket, Exhaust Manifold TO Head
2010-09 → —
|
1NRFE NRE150 | — | |
| 17177 — Gasket, Intake Manifold TO Head, NO.1 | ||||
| 17171-0D030 note |
Gasket, Intake Manifold TO Head, NO.1
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17171-0R010 |
Gasket, Intake Manifold TO Head, NO.1
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 17171-22030 note |
Gasket, Intake Manifold TO Head, NO.1
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 17177-37030 |
Gasket, Intake Manifold TO Head, NO.1
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17171-0R010 |
Gasket, Intake Manifold TO Head, NO.1
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 17177-0T030 note |
Gasket, Intake Manifold TO Head, NO.1
2009-02 → 2009-12
ended
|
1ZRFAE ZRE151 | — | |
| 17177-37030 |
Gasket, Intake Manifold TO Head, NO.1
2009-02 → 2009-09
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17177-37030 note |
Gasket, Intake Manifold TO Head, NO.1
2009-02 → 2009-12
ended
|
1ZRFAE ZRE151 | — | |
| 17177-37030 |
Gasket, Intake Manifold TO Head, NO.1
2009-10 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 17177-47010 |
Gasket, Intake Manifold TO Head, NO.1
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 17171-0R010 |
Gasket, Intake Manifold TO Head, NO.1
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 17177-0T030 note |
Gasket, Intake Manifold TO Head, NO.1
2010-01 → 2012-10
ended
|
1ZRFAE ZRE151 | — | |
| 17177-37030 note |
Gasket, Intake Manifold TO Head, NO.1
2010-01 → 2012-10
ended
|
1ZRFAE ZRE151 | — | |
| 17177-47010 |
Gasket, Intake Manifold TO Head, NO.1
2009-12 → 2011-11
ended
|
1NRFE NRE150 TERRA | — | |
| 17177-47011 |
Gasket, Intake Manifold TO Head, NO.1
2011-11 → —
|
1NRFE NRE150 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
