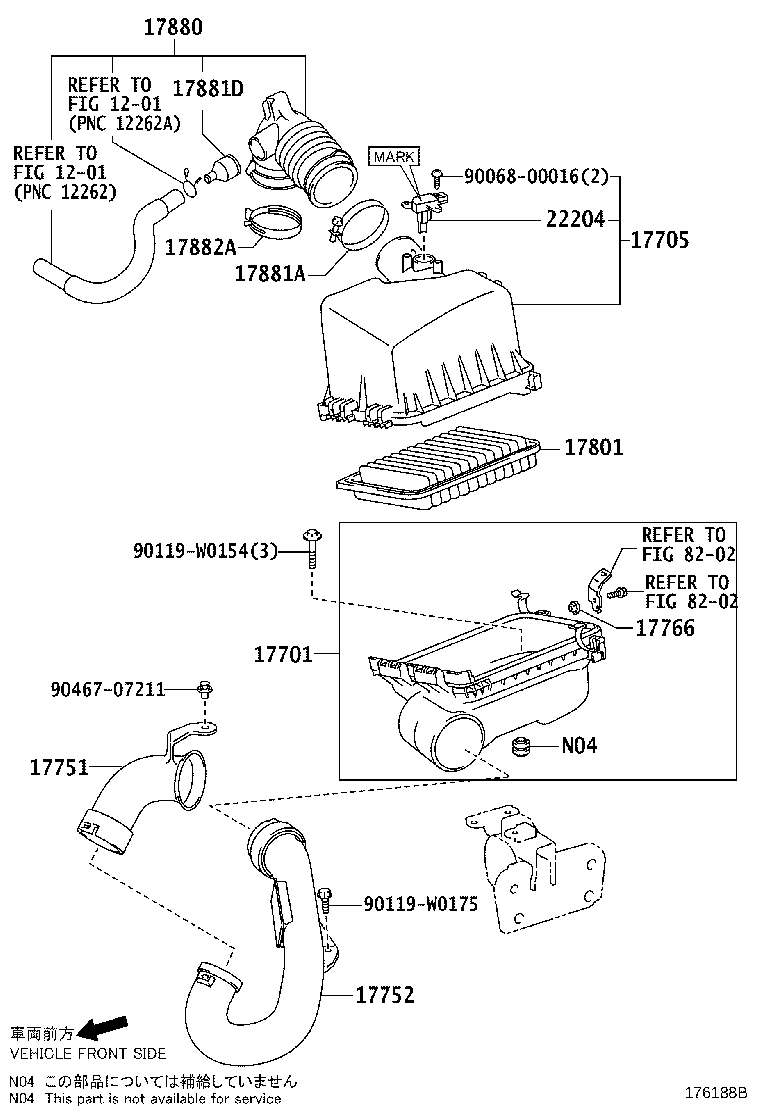

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

102 parts on this figure

Part number	Description	Fitment	Price
17701 — Case Sub-assy, Air Cleaner
17701-0D140	Case Sub-assy, Air Cleaner 2007-06 → 2009-02 ended	1ZRFE,2ZRFE ZRE15#	—
17701-0D140	Case Sub-assy, Air Cleaner 2007-06 → 2008-11 ended	4ZZFE ZZE150	—
17701-0R020	Case Sub-assy, Air Cleaner 2007-06 → 2009-03 ended	1ADFTV ADE150	—
17701-0R020	Case Sub-assy, Air Cleaner 2009-03 → 2010-01 ended	1ADFTV ADE150	—
17701-0T080	Case Sub-assy, Air Cleaner 2008-11 → 2010-01 ended	1NRFE NRE150	—
17701-0T080	Case Sub-assy, Air Cleaner 2009-02 → 2010-01 ended	1ZR#,2ZRFE ZRE15# RS,RT,RX	—
17701-0R020	Case Sub-assy, Air Cleaner 2009-12 → —	1ADFTV ADE150 RX	—
17701-0T080	Case Sub-assy, Air Cleaner 2009-12 → —	1NRFE NRE150 TERRA	—
17701-0T080	Case Sub-assy, Air Cleaner 2009-12 → —	1ZRFAE ZRE151	—
17705 — Cap Sub-assy, Air Cleaner
17705-0D141	Cap Sub-assy, Air Cleaner 2007-06 → 2008-11 ended	4ZZFE ZZE150	—
17705-0D201	Cap Sub-assy, Air Cleaner 2007-06 → 2009-02 ended	1ZRFE,2ZRFE ZRE15#	—
17705-0R020	Cap Sub-assy, Air Cleaner 2007-06 → 2007-12 ended	1ADFTV ADE150	—
17705-0R021	Cap Sub-assy, Air Cleaner 2008-01 → 2008-03 ended	1ADFTV ADE150	—
17705-0R022	Cap Sub-assy, Air Cleaner 2008-04 → 2009-03 ended	1ADFTV ADE150	—
17705-0R040	Cap Sub-assy, Air Cleaner 2009-03 → 2010-01 ended	1ADFTV ADE150	—
17705-0T050	Cap Sub-assy, Air Cleaner 2009-02 → 2010-01 ended	1ZR#,2ZRFE ZRE15# RS,RT,RX	—
17705-0Y020	Cap Sub-assy, Air Cleaner 2008-11 → 2010-01 ended	1NRFE NRE150	—
17705-0R040	Cap Sub-assy, Air Cleaner 2009-12 → —	1ADFTV ADE150 RX	—
17705-0T050	Cap Sub-assy, Air Cleaner 2009-12 → 2012-01 ended	1ZRFAE ZRE151	—
17705-0T051	Cap Sub-assy, Air Cleaner 2012-01 → —	1ZRFAE ZRE151	—
17705-0Y020	Cap Sub-assy, Air Cleaner 2009-12 → 2011-12 ended	1NRFE NRE150 TERRA	—
17705-0Y021	Cap Sub-assy, Air Cleaner 2012-01 → —	1NRFE NRE150	—
17751 — Inlet, Air Cleaner, NO.1
17751-0R020	Inlet, Air Cleaner, NO.1 2007-06 → 2009-03 ended	1ADFTV ADE150	—
17751-21170	Inlet, Air Cleaner, NO.1 2007-06 → 2008-11 ended	4ZZFE ZZE150	—
17751-37050	Inlet, Air Cleaner, NO.1 2007-06 → 2009-02 ended	1ZRFE,2ZRFE ZRE15#	—
17751-0R020	Inlet, Air Cleaner, NO.1 2009-03 → 2010-01 ended	1ADFTV ADE150	—
17751-0Y020	Inlet, Air Cleaner, NO.1 2008-11 → 2010-01 ended	1NRFE NRE150	—
17751-37050	Inlet, Air Cleaner, NO.1 2009-02 → 2010-01 ended	1ZR#,2ZRFE ZRE15# RS,RT,RX	—
17751-0R020	Inlet, Air Cleaner, NO.1 2009-12 → —	1ADFTV ADE150 RX	—
17751-0Y020	Inlet, Air Cleaner, NO.1 2009-12 → —	1NRFE NRE150 TERRA	—
17751-37050	Inlet, Air Cleaner, NO.1 2009-12 → —	1ZRFAE ZRE151	—
17752 — Inlet, Air Cleaner, NO.2
17752-0R010	Inlet, Air Cleaner, NO.2 2007-06 → 2009-03 ended	1ADFTV ADE150	—
17752-21060	Inlet, Air Cleaner, NO.2 2007-06 → 2008-11 ended	4ZZFE ZZE150	—
17752-37030	Inlet, Air Cleaner, NO.2 2007-06 → 2009-02 ended	1ZRFE,2ZRFE ZRE15#	—
17752-0R010	Inlet, Air Cleaner, NO.2 2009-03 → 2010-01 ended	1ADFTV ADE150	—
17752-0Y010	Inlet, Air Cleaner, NO.2 2008-11 → 2010-01 ended	1NRFE NRE150	—
17752-37030	Inlet, Air Cleaner, NO.2 2009-02 → 2010-01 ended	1ZR#,2ZRFE ZRE15# RS,RT,RX	—
17752-0R010	Inlet, Air Cleaner, NO.2 2009-12 → —	1ADFTV ADE150 RX	—
17752-0Y010	Inlet, Air Cleaner, NO.2 2009-12 → —	1NRFE NRE150 TERRA	—
17752-37030	Inlet, Air Cleaner, NO.2 2009-12 → —	1ZRFAE ZRE151	—
17766 — Stay, Air Cleaner, NO.2
17706-22010	Stay, Air Cleaner, NO.2 2007-06 → 2008-11 ended	4ZZFE ZZE150	—
17706-22010	Stay, Air Cleaner, NO.2 2007-06 → 2009-02 ended	1ZRFE,2ZRFE ZRE15#	—
17706-21010 note	Stay, Air Cleaner, NO.2 2009-06 → 2010-01 ended	1NRFE NRE150	—
17706-21010 note	Stay, Air Cleaner, NO.2 2009-08 → 2010-01 ended	1NRFE NRE150	—
17706-21010	Stay, Air Cleaner, NO.2 2009-08 → 2010-01 ended	1ZR#,2ZRFE ZRE15# RS,RT,RX	—
17706-22010 note	Stay, Air Cleaner, NO.2 2008-11 → 2009-06 ended	1NRFE NRE150	—
17706-22010 note	Stay, Air Cleaner, NO.2 2008-11 → 2009-08 ended	1NRFE NRE150	—
17706-22010	Stay, Air Cleaner, NO.2 2009-02 → 2009-08 ended	1ZR#,2ZRFE ZRE15# RS,RT,RX	—
17706-21010	Stay, Air Cleaner, NO.2 2009-12 → —	1NRFE NRE150 TERRA	—
17706-21010	Stay, Air Cleaner, NO.2 2009-12 → —	1ZRFAE ZRE151	—
17801 — Element Sub-assy, Air Cleaner Filter
17801-0D060	Element Sub-assy, Air Cleaner Filter 2007-06 → 2009-02 ended	1ZRFE,2ZRFE ZRE15#	—
17801-0D060	Element Sub-assy, Air Cleaner Filter 2007-06 → 2008-11 ended	4ZZFE ZZE150	—
17801-0R030	Element Sub-assy, Air Cleaner Filter 2007-06 → 2009-03 ended	1ADFTV ADE150	—
17801-0D060	Element Sub-assy, Air Cleaner Filter 2009-02 → 2010-01 ended	1ZR#,2ZRFE ZRE15# RS,RT,RX	—
17801-0D060	Element Sub-assy, Air Cleaner Filter 2008-11 → 2010-01 ended	1NRFE NRE150	—
17801-0R030	Element Sub-assy, Air Cleaner Filter 2009-03 → 2010-01 ended	1ADFTV ADE150	—
17801-0D060	Element Sub-assy, Air Cleaner Filter 2009-12 → —	1NRFE NRE150 TERRA	—
17801-0D060	Element Sub-assy, Air Cleaner Filter 2009-12 → —	1ZRFAE ZRE151	—
17801-0R030	Element Sub-assy, Air Cleaner Filter 2009-12 → —	1ADFTV ADE150 RX	—
17880 — Hose Assy, Air Cleaner
17880-0R040	Hose Assy, Air Cleaner 2009-03 → 2010-01 ended	1ADFTV ADE150	—
17880-0Y020	Hose Assy, Air Cleaner 2008-11 → 2010-01 ended	1NRFE NRE150	—
17880-0R040 note	Hose Assy, Air Cleaner 2009-12 → 2011-10 ended	1ADFTV ADE150 RX	—
17880-0R050 note	Hose Assy, Air Cleaner 2011-10 → —	1ADFTV ADE150	—
17880-0Y020	Hose Assy, Air Cleaner 2009-12 → —	1NRFE NRE150 TERRA	—
17881A — Clamp(FOR AIR CLEANER HOSE, NO.1)
96111-10800	Clamp(FOR AIR CLEANER HOSE, NO.1) 2007-06 → 2008-11 ended	4ZZFE ZZE150	—
96111-10830	Clamp(FOR AIR CLEANER HOSE, NO.1) 2007-06 → 2009-02 ended	1ZRFE,2ZRFE ZRE15#	—
96111-10850	Clamp(FOR AIR CLEANER HOSE, NO.1) 2007-06 → 2009-03 ended	1ADFTV ADE150	—
96111-10750	Clamp(FOR AIR CLEANER HOSE, NO.1) 2008-11 → 2010-01 ended	1NRFE NRE150	—
96111-10750	Clamp(FOR AIR CLEANER HOSE, NO.1) 2009-02 → 2010-01 ended	1ZR#,2ZRFE ZRE15# RS,RT,RX	—
96111-10850	Clamp(FOR AIR CLEANER HOSE, NO.1) 2009-03 → 2010-01 ended	1ADFTV ADE150	—
96111-10750	Clamp(FOR AIR CLEANER HOSE, NO.1) 2009-12 → —	1NRFE NRE150 TERRA	—
96111-10750	Clamp(FOR AIR CLEANER HOSE, NO.1) 2009-12 → —	1ZRFAE ZRE151	—
96111-10850	Clamp(FOR AIR CLEANER HOSE, NO.1) 2009-12 → —	1ADFTV ADE150 RX	—
17881D — Tube, Union(FOG AIR CLEANER HOSE)
12229-21010	Tube, Union(FOG AIR CLEANER HOSE) 2007-06 → 2009-02 ended	1ZRFE,2ZRFE ZRE15#	—
12229-21010	Tube, Union(FOG AIR CLEANER HOSE) 2009-02 → 2010-01 ended	1ZR#,2ZRFE ZRE15# RS,RT,RX	—
90904-06008	Tube, Union(FOG AIR CLEANER HOSE) 2008-11 → 2010-01 ended	1NRFE NRE150	—
12229-21010	Tube, Union(FOG AIR CLEANER HOSE) 2009-12 → —	1ZRFAE ZRE151	—
90904-06008	Tube, Union(FOG AIR CLEANER HOSE) 2009-12 → —	1NRFE NRE150 TERRA	—
17882A — Clamp(FOR AIR CLEANER HOSE, NO.2)
90466-62002	Clamp(FOR AIR CLEANER HOSE, NO.2) 2007-06 → 2009-03 ended	1ADFTV ADE150	—
96111-10730	Clamp(FOR AIR CLEANER HOSE, NO.2) 2007-06 → 2008-11 ended	4ZZFE ZZE150	—
96111-10780	Clamp(FOR AIR CLEANER HOSE, NO.2) 2007-06 → 2009-02 ended	1ZRFE,2ZRFE ZRE15#	—
90466-62002	Clamp(FOR AIR CLEANER HOSE, NO.2) 2008-11 → 2010-01 ended	1NRFE NRE150	—
90466-62002	Clamp(FOR AIR CLEANER HOSE, NO.2) 2009-03 → 2010-01 ended	1ADFTV ADE150	—
96111-10780	Clamp(FOR AIR CLEANER HOSE, NO.2) 2009-02 → 2010-01 ended	1ZR#,2ZRFE ZRE15# RS,RT,RX	—
90466-62002	Clamp(FOR AIR CLEANER HOSE, NO.2) 2009-12 → —	1ADFTV ADE150 RX	—
90466-62002	Clamp(FOR AIR CLEANER HOSE, NO.2) 2009-12 → —	1NRFE NRE150 TERRA	—
96111-10780	Clamp(FOR AIR CLEANER HOSE, NO.2) 2009-12 → —	1ZRFAE ZRE151	—
22204 — Meter Sub-assy, Intake Air Flow
22204-0N010	Meter Sub-assy, Intake Air Flow 2007-06 → 2009-03 ended	1ADFTV ADE150	—
22204-31020	Meter Sub-assy, Intake Air Flow 2007-06 → 2009-02 ended	1ZRFE,2ZRFE ZRE15#	—
22204-31020	Meter Sub-assy, Intake Air Flow 2007-06 → 2008-11 ended	4ZZFE ZZE150	—
22204-26010	Meter Sub-assy, Intake Air Flow 2009-03 → 2010-01 ended	1ADFTV ADE150	—
22204-37010	Meter Sub-assy, Intake Air Flow 2008-11 → 2010-01 ended	1NRFE NRE150	—
22204-37010	Meter Sub-assy, Intake Air Flow 2009-02 → 2010-01 ended	1ZR#,2ZRFE ZRE15# RS,RT,RX	—
22204-0V010 note	Meter Sub-assy, Intake Air Flow 2012-01 → —	1NRFE NRE150	—
22204-0V010 note	Meter Sub-assy, Intake Air Flow 2012-01 → —	1ZRFAE ZRE151	—
22204-0V020 note	Meter Sub-assy, Intake Air Flow 2012-01 → —	1NRFE NRE150	—
22204-0V020 note	Meter Sub-assy, Intake Air Flow 2012-01 → —	1ZRFAE ZRE151	—
22204-26010	Meter Sub-assy, Intake Air Flow 2009-12 → —	1ADFTV ADE150 RX	—
22204-28010 note	Meter Sub-assy, Intake Air Flow 2012-01 → —	1NRFE NRE150	—
22204-28010 note	Meter Sub-assy, Intake Air Flow 2012-01 → —	1ZRFAE ZRE151	—
22204-37010	Meter Sub-assy, Intake Air Flow 2009-12 → 2011-12 ended	1NRFE NRE150 TERRA	—
22204-37010	Meter Sub-assy, Intake Air Flow 2009-12 → 2012-01 ended	1ZRFAE ZRE151	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
