Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

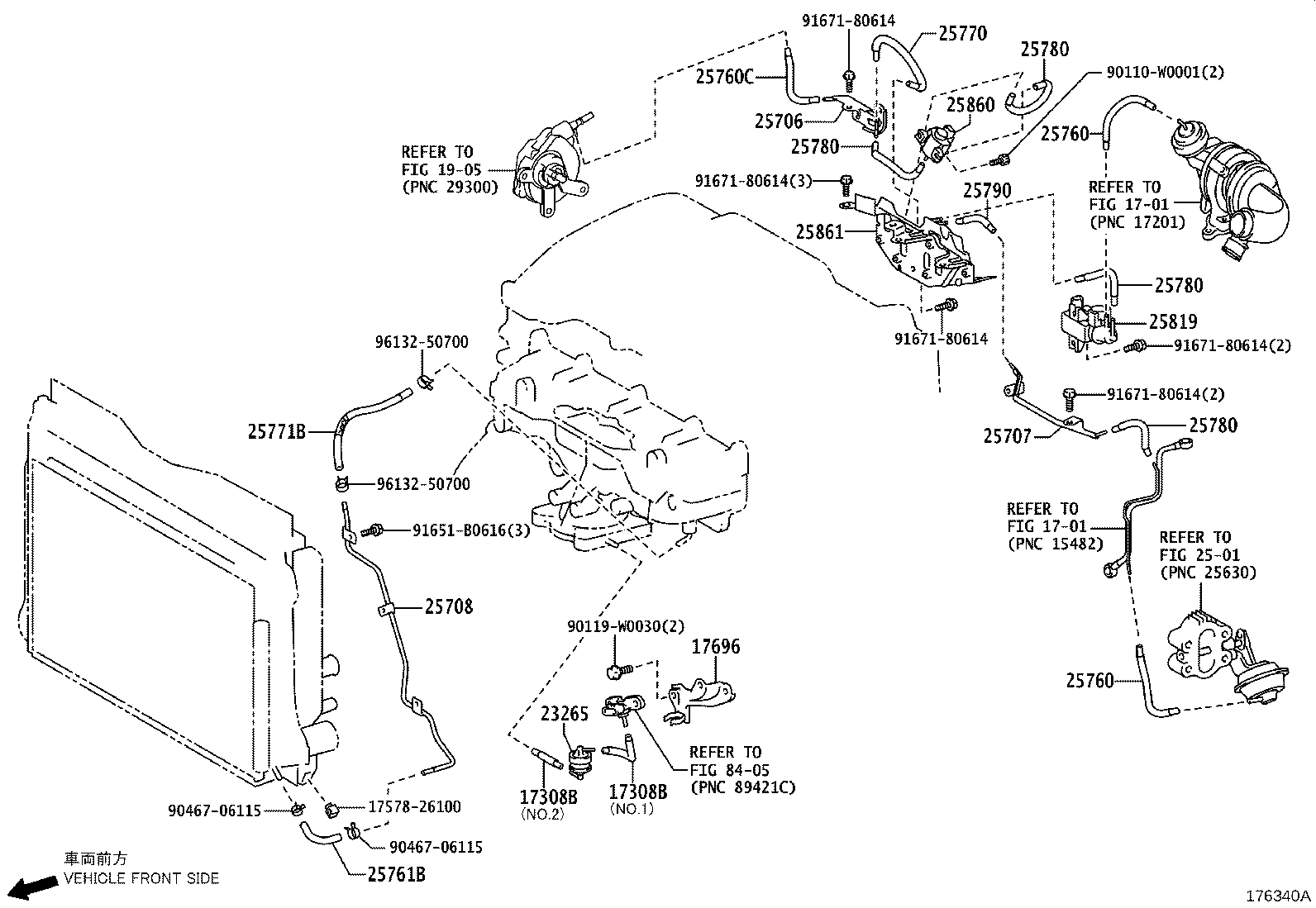

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17308B — Hose Sub-assy, Vacuum | ||||
| 17308-26030 note |
Hose Sub-assy, Vacuum
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 17308-26040 note |
Hose Sub-assy, Vacuum
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 17308-26030 note |
Hose Sub-assy, Vacuum
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 17308-26040 note |
Hose Sub-assy, Vacuum
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 17696 — Bracket, Gas Filter | ||||
| 17696-26010 |
Bracket, Gas Filter
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 17696-26010 |
Bracket, Gas Filter
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 23265 — Filter, Gas, NO.1 | ||||
| 90917-11022 |
Filter, Gas, NO.1
2009-02 → 2010-01
ended
|
1ZRFAE ZRE151 6FS | — | |
| 90917-11044 |
Filter, Gas, NO.1
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 90917-11022 |
Filter, Gas, NO.1
2010-01 → —
|
1ZRFAE ZRE151 | — | |
| 90917-11044 |
Filter, Gas, NO.1
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 25706 — Pipe Sub-assy, Vacuum Transmitting, NO.1 | ||||
| 25706-26010 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 25706-26010 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25706-26010 |
Pipe Sub-assy, Vacuum Transmitting, NO.1
2009-12 → 2011-10
ended
|
1ADFTV ADE150 RX | — | |
| 25707 — Pipe Sub-assy, Vacuum Transmitting, NO.2 | ||||
| 25707-26010 |
Pipe Sub-assy, Vacuum Transmitting, NO.2
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25707-26010 |
Pipe Sub-assy, Vacuum Transmitting, NO.2
2009-12 → 2011-10
ended
|
1ADFTV ADE150 RX | — | |
| 25708 — Pipe Sub-assy, Vacuum Transmitting, NO.3 | ||||
| 25736-26030 |
Pipe Sub-assy, Vacuum Transmitting, NO.3
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 25736-0R010 note |
Pipe Sub-assy, Vacuum Transmitting, NO.3
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25736-0R020 note |
Pipe Sub-assy, Vacuum Transmitting, NO.3
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25736-0R010 note |
Pipe Sub-assy, Vacuum Transmitting, NO.3
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 25736-0R020 note |
Pipe Sub-assy, Vacuum Transmitting, NO.3
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 25760 — Hose Assy, Vacuum Transmitting | ||||
| 25760-26021 |
Hose Assy, Vacuum Transmitting
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 25760-26021 |
Hose Assy, Vacuum Transmitting
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25760-26021 |
Hose Assy, Vacuum Transmitting
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 25760C — Hose Assy, Vacuum Transmitting, NO.3 | ||||
| 25760-26120 |
Hose Assy, Vacuum Transmitting, NO.3
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 25760-26120 |
Hose Assy, Vacuum Transmitting, NO.3
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25760-26120 |
Hose Assy, Vacuum Transmitting, NO.3
2009-12 → 2011-10
ended
|
1ADFTV ADE150 RX | — | |
| 25760-26200 |
Hose Assy, Vacuum Transmitting, NO.3
2011-10 → 2012-02
ended
|
1ADFTV ADE150 | — | |
| 25760-26200 |
Hose Assy, Vacuum Transmitting, NO.3
2012-05 → —
|
1ADFTV ADE150 | — | |
| 25760-26201 |
Hose Assy, Vacuum Transmitting, NO.3
2012-02 → 2012-05
ended
|
1ADFTV ADE150 | — | |
| 25761B — Hose, Vaccum Transmitting, NO.1 | ||||
| 25761-26030 |
Hose, Vaccum Transmitting, NO.1
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 25761-37010 |
Hose, Vaccum Transmitting, NO.1
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 25761-26030 |
Hose, Vaccum Transmitting, NO.1
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25761-37010 |
Hose, Vaccum Transmitting, NO.1
2009-02 → 2009-09
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 25761-37011 |
Hose, Vaccum Transmitting, NO.1
2009-10 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 25761-26030 |
Hose, Vaccum Transmitting, NO.1
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 25770 — Hose Assy, Vacuum Transmitting, NO.2 | ||||
| 25770-26020 |
Hose Assy, Vacuum Transmitting, NO.2
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25770-26020 |
Hose Assy, Vacuum Transmitting, NO.2
2009-12 → 2011-10
ended
|
1ADFTV ADE150 RX | — | |
| 25770-26171 |
Hose Assy, Vacuum Transmitting, NO.2
2011-10 → 2011-12
ended
|
1ADFTV ADE150 | — | |
| 25770-26172 |
Hose Assy, Vacuum Transmitting, NO.2
2011-12 → —
|
1ADFTV ADE150 | — | |
| 25771B — Hose, Vaccum Transmitting, NO.2 | ||||
| 25771-26060 note |
Hose, Vaccum Transmitting, NO.2
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25771-26070 note |
Hose, Vaccum Transmitting, NO.2
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25771-26060 note |
Hose, Vaccum Transmitting, NO.2
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 25771-26070 note |
Hose, Vaccum Transmitting, NO.2
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 25780 — Hose Assy, Vacuum Transmitting, NO.3 | ||||
| 25780-26011 |
Hose Assy, Vacuum Transmitting, NO.3
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25780-26011 |
Hose Assy, Vacuum Transmitting, NO.3
2009-12 → 2011-10
ended
|
1ADFTV ADE150 RX | — | |
| 25790 — Hose Assy, Vacuum Transmitting, NO.4 | ||||
| 25790-26011 |
Hose Assy, Vacuum Transmitting, NO.4
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25790-26011 |
Hose Assy, Vacuum Transmitting, NO.4
2009-12 → 2011-10
ended
|
1ADFTV ADE150 RX | — | |
| 25819 — Valve Assy, Vacuum Regulating | ||||
| 25819-0R011 |
Valve Assy, Vacuum Regulating
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 25819-0R011 |
Valve Assy, Vacuum Regulating
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25819-0R011 |
Valve Assy, Vacuum Regulating
2009-12 → 2012-08
ended
|
1ADFTV ADE150 RX | — | |
| 25819-0R012 |
Valve Assy, Vacuum Regulating
2012-08 → —
|
1ADFTV ADE150 | — | |
| 25860 — Valve Assy, Vacuum Switching, NO.1 | ||||
| 25860-21100 |
Valve Assy, Vacuum Switching, NO.1
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 25860-0R010 |
Valve Assy, Vacuum Switching, NO.1
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25860-0Y020 |
Valve Assy, Vacuum Switching, NO.1
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2009-02 → 2010-01
ended
|
1ZRFAE ZRE151 6FS | — | |
| 25860-0R010 |
Valve Assy, Vacuum Switching, NO.1
2009-12 → 2012-08
ended
|
1ADFTV ADE150 RX | — | |
| 25860-0R011 |
Valve Assy, Vacuum Switching, NO.1
2012-08 → —
|
1ADFTV ADE150 | — | |
| 25860-0Y020 |
Valve Assy, Vacuum Switching, NO.1
2009-12 → —
|
1NRFE NRE150 TERRA | — | |
| 90910-12281 |
Valve Assy, Vacuum Switching, NO.1
2010-01 → —
|
1ZRFAE ZRE151 | — | |
| 25861 — Bracket, Vacuum Switching Valve | ||||
| 25861-26010 |
Bracket, Vacuum Switching Valve
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 25861-26070 |
Bracket, Vacuum Switching Valve
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 25861-37010 |
Bracket, Vacuum Switching Valve
2009-02 → 2010-01
ended
|
1ZRFAE ZRE151 6FS | — | |
| 25861-26070 |
Bracket, Vacuum Switching Valve
2009-12 → 2011-10
ended
|
1ADFTV ADE150 RX | — | |
| 25861-37010 |
Bracket, Vacuum Switching Valve
2010-01 → —
|
1ZRFAE ZRE151 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
