Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

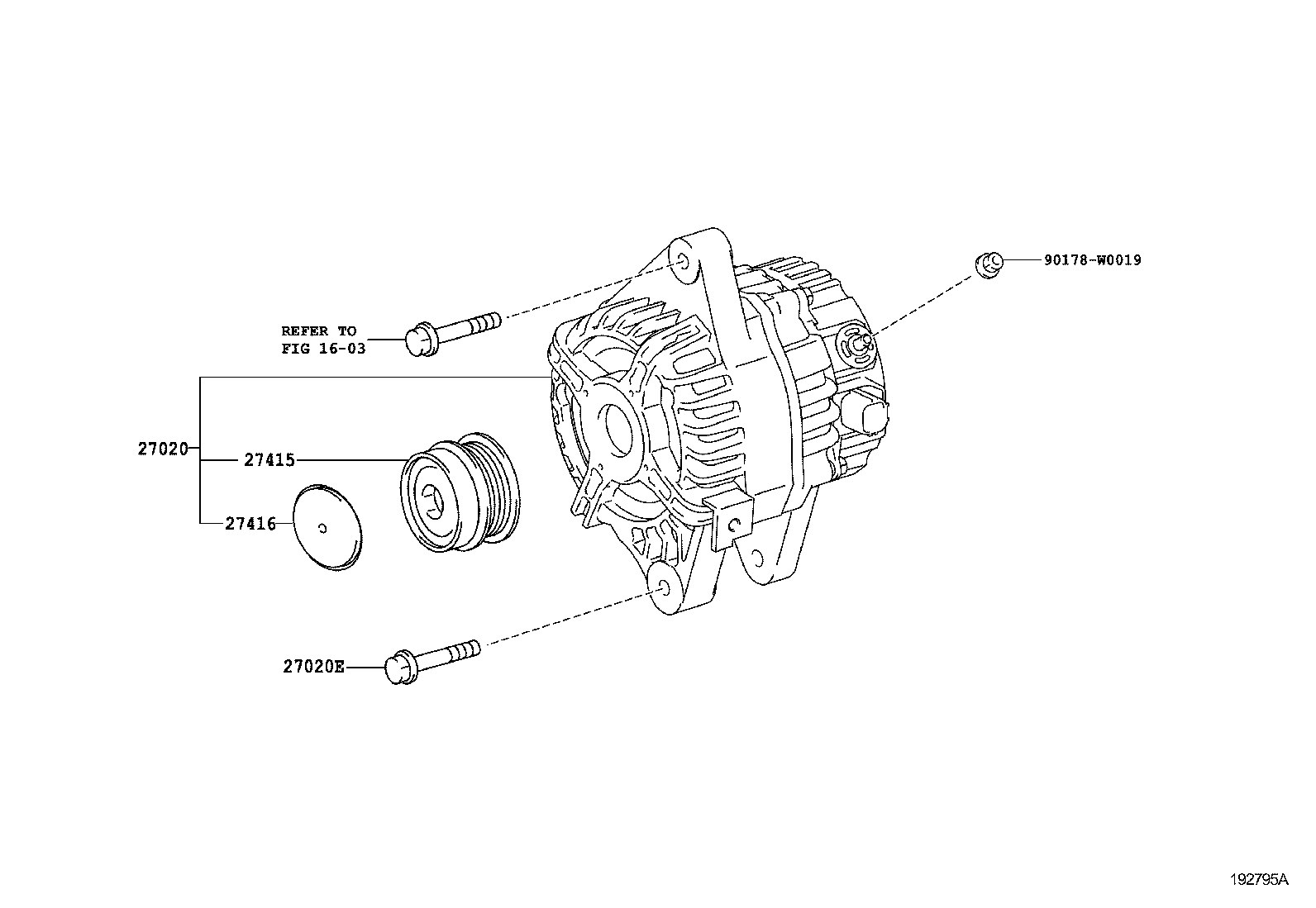

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 27020 — Alternator Assy | ||||
| 27060-0D190 note |
Alternator Assy
2007-06 → 2008-10
ended
|
4ZZFE ZZE150 | — | |
| 27060-0R011 note |
Alternator Assy
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 27060-0T010 note |
Alternator Assy
2007-06 → 2009-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 27060-0G011 note |
Alternator Assy
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 27060-0T010 note |
Alternator Assy
2009-02 → 2010-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 27060-0T080 note |
Alternator Assy
2009-02 → 2009-12
ended
|
1ZRFAE ZRE151 6FS | — | |
| 27060-0Y050 note |
Alternator Assy
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 27060-0G011 note |
Alternator Assy
2009-12 → —
|
1ADFTV ADE150 RX | — | |
| 27060-0T080 note |
Alternator Assy
2009-12 → 2010-10
ended
|
1ZRFAE ZRE151 | — | |
| 27060-0T081 note |
Alternator Assy
2010-10 → —
|
1ZRFAE ZRE151 | — | |
| 27060-0Y050 note |
Alternator Assy
2009-12 → —
|
1NRFE NRE150 TERRA | — | |
| 27020E — Bolt(FOR ALTERNATOR) | ||||
| 90105-10075 note |
Bolt(FOR ALTERNATOR)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90105-10307 |
Bolt(FOR ALTERNATOR)
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 91511-80830 note |
Bolt(FOR ALTERNATOR)
2007-06 → 2008-11
ended
|
4ZZFE ZZE150 | — | |
| 90105-10307 |
Bolt(FOR ALTERNATOR)
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 91552-81075 |
Bolt(FOR ALTERNATOR)
2008-11 → 2010-01
ended
|
1NRFE NRE150 | — | |
| 90105-10307 |
Bolt(FOR ALTERNATOR)
2009-12 → —
|
1ZRFAE ZRE151 | — | |
| 90119-W0165 |
Bolt(FOR ALTERNATOR)
2010-10 → 2012-01
ended
|
1NRFE NRE150 | — | |
| 91552-81075 |
Bolt(FOR ALTERNATOR)
2009-12 → 2010-10
ended
|
1NRFE NRE150 TERRA | — | |
| 91671-00845 |
Bolt(FOR ALTERNATOR)
2012-01 → —
|
1NRFE NRE150 | — | |
| 27415 — Pulley, Alternator W/Clutch | ||||
| 27415-0T020 |
Pulley, Alternator W/Clutch
2007-06 → 2009-01
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 27415-26010 |
Pulley, Alternator W/Clutch
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 27415-0T020 |
Pulley, Alternator W/Clutch
2009-02 → 2009-03
ended
|
1ZR#,2ZRFE ZRE15# | — | |
| 27415-0T021 |
Pulley, Alternator W/Clutch
2009-03 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 27415-26010 |
Pulley, Alternator W/Clutch
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 27415-0T020 |
Pulley, Alternator W/Clutch
2009-12 → 2010-10
ended
|
1ZRFAE ZRE151 | — | |
| 27415-0T021 |
Pulley, Alternator W/Clutch
2010-10 → 2012-10
ended
|
1ZRFAE ZRE151 | — | |
| 27415-26010 |
Pulley, Alternator W/Clutch
2009-12 → 2012-10
ended
|
1ADFTV ADE150 RX | — | |
| 27416 — Cap, Alternator Pulley | ||||
| 27416-0W020 |
Cap, Alternator Pulley
2007-06 → 2009-02
ended
|
1ZRFE,2ZRFE ZRE15# | — | |
| 27416-27010 |
Cap, Alternator Pulley
2007-06 → 2009-03
ended
|
1ADFTV ADE150 | — | |
| 27416-0W020 |
Cap, Alternator Pulley
2009-02 → 2010-01
ended
|
1ZR#,2ZRFE ZRE15# RS,RT,RX | — | |
| 27416-27010 |
Cap, Alternator Pulley
2009-03 → 2010-01
ended
|
1ADFTV ADE150 | — | |
| 27416-0W020 |
Cap, Alternator Pulley
2009-12 → 2012-10
ended
|
1ZRFAE ZRE151 | — | |
| 27416-27010 |
Cap, Alternator Pulley
2009-12 → 2012-10
ended
|
1ADFTV ADE150 RX | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
