Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

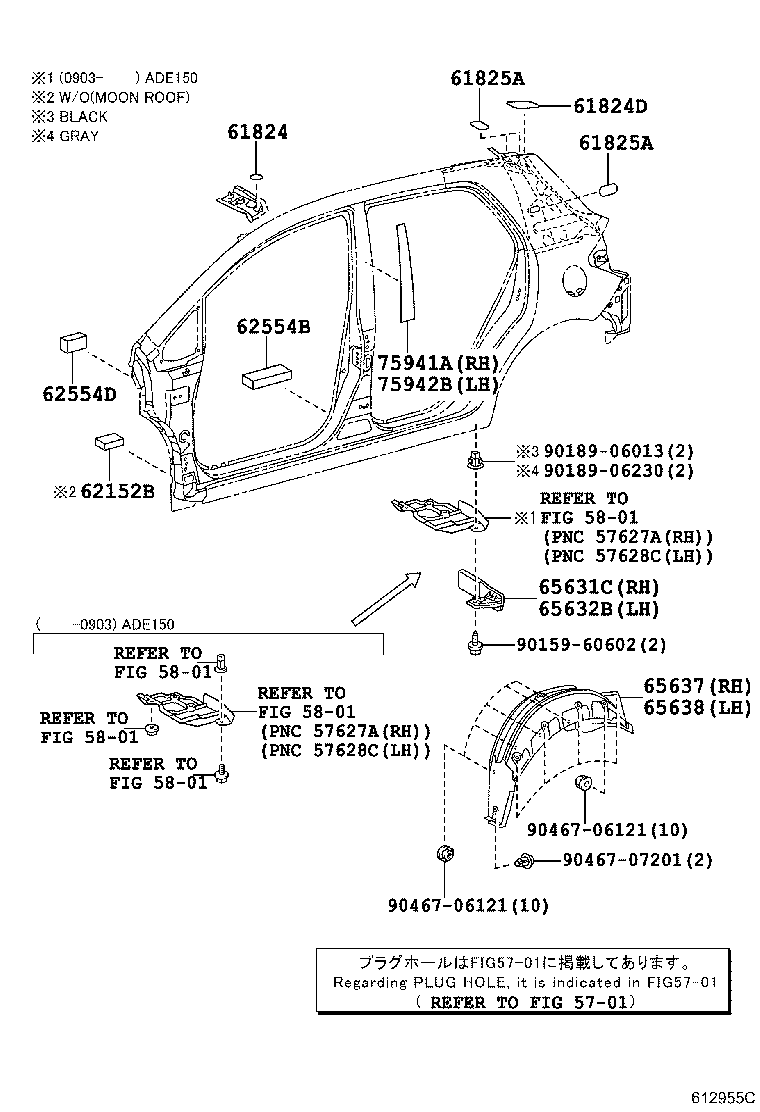

Exploded illustration 612955C 5801 — not listed in this catalogue 5801 — not listed in this catalogue 5801 — not listed in this catalogue 5801 — not listed in this catalogue 61824 — PLATE, NOISE CONTROL, NO.1 (5 parts) 61824D — PLATE, NOISE CONTROL, NO.1 (5 parts) 61825A — PLATE, NOISE CONTROL, NO.2 (5 parts) 62152B — PAD, COWL SIDE SILENCER, NO.2 (10 parts) 62554D — PAD, FRONT PILLER (6 parts) 62554B — PAD, PILLAR, NO.4 (12 parts) 65637 — LINER, REAR WHEEL HOUSE, RH (5 parts) 65638 — LINER, REAR WHEEL HOUSE, LH (5 parts) 75941A — STRIPE, CENTER PILLAR, RH (5 parts) 75942B — STRIPE, CENTER PILLAR, LH (5 parts) 9046706121 — not listed in this catalogue 9046706121 — not listed in this catalogue 9046707201 — not listed in this catalogue 9018906013 — not listed in this catalogue 9018906230 — not listed in this catalogue 61825A — PLATE, NOISE CONTROL, NO.2 (5 parts) 65631C — PLATE, REAR WHEEL HOUSE, FRONT RH (3 parts) 9015960602 — not listed in this catalogue 65632B — PLATE, REAR WHELL HOUSE, FRONT LH (4 parts) 5801 — not listed in this catalogue 5701 — not listed in this catalogue
612955C · 13 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
70 parts on this figure
Part number Description Fitment Price
61824 — Plate, Noise Control, NO.1
61824-52030 Plate, Noise Control, NO.1
2007-06 → 2009-02 ended
ZRE15# —
61824-52030 Plate, Noise Control, NO.1
2007-06 → 2008-11 ended
ZZE150 —
61824-52030 Plate, Noise Control, NO.1
2007-06 → 2009-03 ended
ADE150 —
61824-52030 Plate, Noise Control, NO.1
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
61824-52030 Plate, Noise Control, NO.1
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
61824D — Plate, Noise Control, NO.1
61815-02030 Plate, Noise Control, NO.1
2007-06 → 2008-11 ended
ZZE150 —
61815-02030 Plate, Noise Control, NO.1
2007-06 → 2009-02 ended
ZRE15# —
61815-02030 Plate, Noise Control, NO.1
2007-06 → 2009-03 ended
ADE150 —
61815-02030 Plate, Noise Control, NO.1
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
61815-02030 Plate, Noise Control, NO.1
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
61825A — Plate, Noise Control, NO.2
61825-52060 Plate, Noise Control, NO.2
2007-06 → 2009-02 ended
ZRE15# —
61825-52060 Plate, Noise Control, NO.2
2007-06 → 2009-03 ended
ADE150 —
61825-52060 Plate, Noise Control, NO.2
2007-06 → 2008-11 ended
ZZE150 —
61825-52060 Plate, Noise Control, NO.2
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
61825-52060 Plate, Noise Control, NO.2
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
62152B — Pad, Cowl Side Silencer, NO.2
62152-12050 note Pad, Cowl Side Silencer, NO.2
2007-06 → 2008-11 ended
ZZE150 —
62152-12050 note Pad, Cowl Side Silencer, NO.2
2007-06 → 2009-02 ended
ZRE15# —
62152-12050 note Pad, Cowl Side Silencer, NO.2
2007-06 → 2009-03 ended
ADE150 —
62554-02050 note Pad, Cowl Side Silencer, NO.2
2007-06 → 2008-06 ended
ADE150,ZRE15#,ZZE150 —
62554-02190 note Pad, Cowl Side Silencer, NO.2
2008-07 → 2009-02 ended
ZRE15# —
62554-02190 note Pad, Cowl Side Silencer, NO.2
2008-07 → 2009-03 ended
ADE150 —
62554-02190 note Pad, Cowl Side Silencer, NO.2
2008-07 → 2008-11 ended
ZZE150 —
62152-12050 note Pad, Cowl Side Silencer, NO.2
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
62554-02190 note Pad, Cowl Side Silencer, NO.2
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
62554-02190 Pad, Cowl Side Silencer, NO.2
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
62554B — Pad, Pillar, NO.4
62554-02030 note Pad, Pillar, NO.4
2007-06 → 2008-11 ended
ZZE150 RS —
62554-02030 note Pad, Pillar, NO.4
2007-06 → 2008-11 ended
ZZE150 RS —
62554-02030 note Pad, Pillar, NO.4
2007-06 → 2008-11 ended
ZZE150 RS —
62554-02030 note Pad, Pillar, NO.4
2007-06 → 2009-02 ended
ZRE15# RS,RX —
62554-02030 note Pad, Pillar, NO.4
2007-06 → 2009-02 ended
ZRE15# RS,RX —
62554-02030 note Pad, Pillar, NO.4
2007-06 → 2009-02 ended
ZRE15# RS,RX —
62554-02030 note Pad, Pillar, NO.4
2007-06 → 2009-03 ended
ADE150 RX —
62554-02030 note Pad, Pillar, NO.4
2007-06 → 2009-03 ended
ADE150 RX —
62554-02030 note Pad, Pillar, NO.4
2007-06 → 2009-03 ended
ADE150 —
62554-02030 Pad, Pillar, NO.4
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
62554-02030 note Pad, Pillar, NO.4
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
62554-02180 note Pad, Pillar, NO.4
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
62554D — Pad, Front Piller
62554-02050 Pad, Front Piller
2007-06 → 2008-06 ended
ADE150,ZRE15#,ZZE150 —
62554-02190 Pad, Front Piller
2008-07 → 2008-11 ended
ZZE150 —
62554-02190 Pad, Front Piller
2008-07 → 2009-02 ended
ZRE15# —
62554-02190 Pad, Front Piller
2008-07 → 2009-03 ended
ADE150 —
62554-02190 Pad, Front Piller
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
62554-02190 Pad, Front Piller
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
65631C — Plate, Rear Wheel House, Front RH
65631-02080 Plate, Rear Wheel House, Front RH
2007-06 → 2009-02 ended
ZRE15#,ZZE150 —
65631-02080 Plate, Rear Wheel House, Front RH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
65631-02080 Plate, Rear Wheel House, Front RH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
65632B — Plate, Rear Whell House, Front LH
65632-02080 Plate, Rear Whell House, Front LH
2007-06 → 2008-11 ended
ZZE150 —
65632-02080 Plate, Rear Whell House, Front LH
2007-06 → 2009-02 ended
ZRE15# —
65632-02080 Plate, Rear Whell House, Front LH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
65632-02080 Plate, Rear Whell House, Front LH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
65637 — Liner, Rear Wheel House, RH
65637-02040 Liner, Rear Wheel House, RH
2007-06 → 2008-11 ended
ZZE150 —
65637-02040 Liner, Rear Wheel House, RH
2007-06 → 2009-02 ended
ZRE15# —
65637-02040 Liner, Rear Wheel House, RH
2007-06 → 2009-03 ended
ADE150 —
65637-02040 Liner, Rear Wheel House, RH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
65637-02040 Liner, Rear Wheel House, RH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
65638 — Liner, Rear Wheel House, LH
65638-02040 Liner, Rear Wheel House, LH
2007-06 → 2008-11 ended
ZZE150 —
65638-02040 Liner, Rear Wheel House, LH
2007-06 → 2009-02 ended
ZRE15# —
65638-02040 Liner, Rear Wheel House, LH
2007-06 → 2009-03 ended
ADE150 —
65638-02040 Liner, Rear Wheel House, LH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
65638-02040 Liner, Rear Wheel House, LH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
75941A — Stripe, Center Pillar, RH
75941-02050 Stripe, Center Pillar, RH
2007-06 → 2008-11 ended
ZZE150 —
75941-02050 Stripe, Center Pillar, RH
2007-06 → 2009-02 ended
ZRE15# —
75941-02050 Stripe, Center Pillar, RH
2007-06 → 2009-03 ended
ADE150 —
75941-02050 Stripe, Center Pillar, RH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
75941-02050 Stripe, Center Pillar, RH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
75942B — Stripe, Center Pillar, LH
75942-02050 Stripe, Center Pillar, LH
2007-06 → 2008-11 ended
ZZE150 —
75942-02050 Stripe, Center Pillar, LH
2007-06 → 2009-02 ended
ZRE15# —
75942-02050 Stripe, Center Pillar, LH
2007-06 → 2009-03 ended
ADE150 —
75942-02050 Stripe, Center Pillar, LH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
75942-02050 Stripe, Center Pillar, LH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
