Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

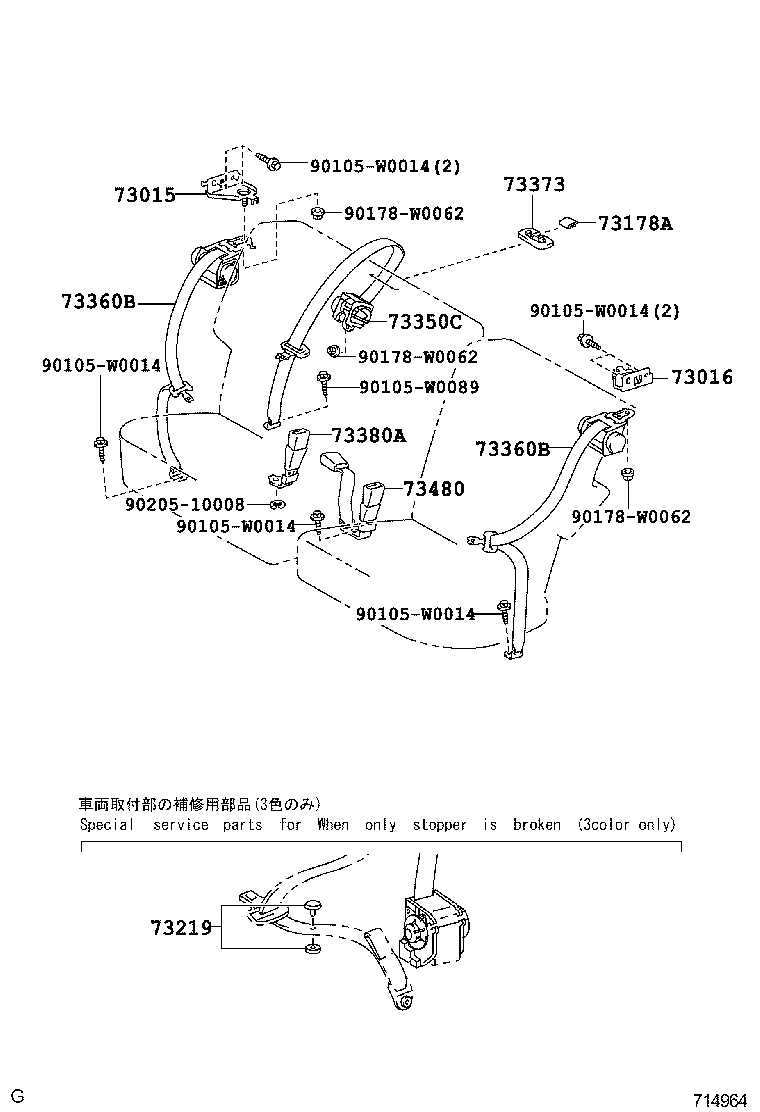

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 73015 — Bracket Sub-assy, Belt Outer Anchor, RH | ||||
| 73015-02030 |
Bracket Sub-assy, Belt Outer Anchor, RH
2007-06 → 2009-02
ended
|
ZRE15# | — | |
| 73015-02030 |
Bracket Sub-assy, Belt Outer Anchor, RH
2007-06 → 2008-11
ended
|
ZZE150 | — | |
| 73015-02030 |
Bracket Sub-assy, Belt Outer Anchor, RH
2007-06 → 2009-03
ended
|
ADE150 | — | |
| 73015-02030 |
Bracket Sub-assy, Belt Outer Anchor, RH
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73015-02030 |
Bracket Sub-assy, Belt Outer Anchor, RH
2009-12 → —
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73016 — Bracket Sub-assy, Belt Outer Anchor, LH | ||||
| 73016-02030 |
Bracket Sub-assy, Belt Outer Anchor, LH
2007-06 → 2008-11
ended
|
ZZE150 | — | |
| 73016-02030 |
Bracket Sub-assy, Belt Outer Anchor, LH
2007-06 → 2009-02
ended
|
ZRE15# | — | |
| 73016-02030 |
Bracket Sub-assy, Belt Outer Anchor, LH
2007-06 → 2009-03
ended
|
ADE150 | — | |
| 73016-02030 |
Bracket Sub-assy, Belt Outer Anchor, LH
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73016-02030 |
Bracket Sub-assy, Belt Outer Anchor, LH
2009-12 → —
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73178A — Cap, Seat Belt Anchor Cover | ||||
| 73178-02030-B0 note |
Cap, Seat Belt Anchor Cover
2007-06 → 2009-03
ended
|
ZRE151 5F,5FS;ADE150,ZRE152,ZZE150 | — | |
| 73178-02030-E0 note |
Cap, Seat Belt Anchor Cover
2007-06 → 2009-03
ended
|
ADE150,ZRE152 RX;ZRE151 (5F,5FS) RS | — | |
| 73178-12060-B0 note |
Cap, Seat Belt Anchor Cover
2007-06 → 2009-03
ended
|
ZRE151 5F,5FS;ADE150,ZRE152,ZZE150 | — | |
| 73178-12060-E0 note |
Cap, Seat Belt Anchor Cover
2007-06 → 2009-03
ended
|
ADE150,ZRE152 RX;ZRE151 (5F,5FS) RS | — | |
| 73178-02030-B0 note |
Cap, Seat Belt Anchor Cover
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73178-02030-E0 note |
Cap, Seat Belt Anchor Cover
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 73178-12060-B0 note |
Cap, Seat Belt Anchor Cover
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73178-12060-E0 note |
Cap, Seat Belt Anchor Cover
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 73178-02030-B0 note |
Cap, Seat Belt Anchor Cover
2009-12 → 2012-10
ended
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73178-02030-E0 note |
Cap, Seat Belt Anchor Cover
2009-12 → 2012-10
ended
|
ADE150,ZRE151 RX,SOL | — | |
| 73178-12060-B0 note |
Cap, Seat Belt Anchor Cover
2009-12 → 2012-10
ended
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73178-12060-E0 note |
Cap, Seat Belt Anchor Cover
2009-12 → 2012-10
ended
|
ADE150,ZRE151 RX,SOL | — | |
| 73219 — Stopper, Tongue Plate | ||||
| 73219-33010 note |
Stopper, Tongue Plate
2007-06 → 2009-03
ended
|
ADE150 | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2007-06 → 2009-02
ended
|
ZRE15# | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2007-06 → 2008-11
ended
|
ZZE150 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2007-06 → 2008-11
ended
|
ZZE150 | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2007-06 → 2009-02
ended
|
ZRE15# | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2007-06 → 2009-03
ended
|
ADE150 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2007-06 → 2008-11
ended
|
ZZE150 | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2007-06 → 2009-02
ended
|
ZRE15# | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2007-06 → 2009-03
ended
|
ADE150 | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73219-33010 note |
Stopper, Tongue Plate
2009-12 → —
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73219-33020 note |
Stopper, Tongue Plate
2009-12 → —
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73219-33030 note |
Stopper, Tongue Plate
2009-12 → —
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73350C — Belt Assy, Rear Seat, Outer Center | ||||
| 73350-02070-B0 note |
Belt Assy, Rear Seat, Outer Center
2007-06 → 2009-03
ended
|
ZRE151 5F,5FS;ADE150,ZRE152,ZZE150 | — | |
| 73350-02070-E0 note |
Belt Assy, Rear Seat, Outer Center
2007-06 → 2009-03
ended
|
ADE150,ZRE152 RX;ZRE151 (5F,5FS) RS | — | |
| 73350-02070-B0 note |
Belt Assy, Rear Seat, Outer Center
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73350-02070-E0 note |
Belt Assy, Rear Seat, Outer Center
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 73350-02120-C1 note |
Belt Assy, Rear Seat, Outer Center
2009-12 → 2012-10
ended
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73350-02120-E0 note |
Belt Assy, Rear Seat, Outer Center
2009-12 → 2012-10
ended
|
ADE150,ZRE151 RX,SOL | — | |
| 73360B — Belt Assy, Rear Seat, Outer | ||||
| 73360-02270-C0 note |
Belt Assy, Rear Seat, Outer
2007-06 → 2009-03
ended
|
ZRE151 5F,5FS;ADE150,ZRE152,ZZE150 | — | |
| 73360-02270-E0 note |
Belt Assy, Rear Seat, Outer
2007-06 → 2009-03
ended
|
ZRE152 RX;ADE150,ZZE150 RS,RX;ZRE151 (5F,5FS) +1 | — | |
| 73360-02270-C0 note |
Belt Assy, Rear Seat, Outer
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73360-02270-E0 note |
Belt Assy, Rear Seat, Outer
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 73360-02510-C1 note |
Belt Assy, Rear Seat, Outer
2009-12 → 2012-10
ended
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73360-02510-E0 note |
Belt Assy, Rear Seat, Outer
2009-12 → 2012-10
ended
|
ADE150,ZRE151 RX,SOL | — | |
| 73373 — Cover, Rear Seat Shoulder Belt | ||||
| 73373-02060-B0 note |
Cover, Rear Seat Shoulder Belt
2007-06 → 2009-03
ended
|
ZRE151 5F,5FS;ADE150,ZRE152,ZZE150 | — | |
| 73373-02060-E0 note |
Cover, Rear Seat Shoulder Belt
2007-06 → 2009-03
ended
|
ADE150,ZRE152 RX;ZRE151 (5F,5FS) RS | — | |
| 73373-12020-B0 note |
Cover, Rear Seat Shoulder Belt
2007-06 → 2009-03
ended
|
ZRE151 5F,5FS;ADE150,ZRE152,ZZE150 | — | |
| 73373-12020-E0 note |
Cover, Rear Seat Shoulder Belt
2007-06 → 2009-03
ended
|
ADE150,ZRE152 RX;ZRE151 (5F,5FS) RS | — | |
| 73373-02060-B0 note |
Cover, Rear Seat Shoulder Belt
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73373-02060-E0 note |
Cover, Rear Seat Shoulder Belt
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 73373-12020-B0 note |
Cover, Rear Seat Shoulder Belt
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73373-12020-E0 note |
Cover, Rear Seat Shoulder Belt
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 73373-02060-B0 note |
Cover, Rear Seat Shoulder Belt
2009-12 → 2012-10
ended
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73373-02060-E0 note |
Cover, Rear Seat Shoulder Belt
2009-12 → 2012-10
ended
|
ADE150,ZRE151 RX,SOL | — | |
| 73373-12020-B0 note |
Cover, Rear Seat Shoulder Belt
2009-12 → 2012-10
ended
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73373-12020-E0 note |
Cover, Rear Seat Shoulder Belt
2009-12 → 2012-10
ended
|
ADE150,ZRE151 RX,SOL | — | |
| 73380A — Belt Assy, Rear Seat, Inner | ||||
| 73380-02040-B0 note |
Belt Assy, Rear Seat, Inner
2007-06 → 2009-03
ended
|
ZRE151 5F,5FS;ADE150,ZRE152,ZZE150 | — | |
| 73380-02040-E0 note |
Belt Assy, Rear Seat, Inner
2007-06 → 2009-03
ended
|
ZRE152 RX;ADE150,ZZE150 RS,RX;ZRE151 (5F,5FS) +1 | — | |
| 73380-02040-B0 note |
Belt Assy, Rear Seat, Inner
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73380-02040-E0 note |
Belt Assy, Rear Seat, Inner
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 73380-02040-C0 note |
Belt Assy, Rear Seat, Inner
2009-12 → 2012-10
ended
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73380-02040-E0 note |
Belt Assy, Rear Seat, Inner
2009-12 → 2012-10
ended
|
ADE150,ZRE151 RX,SOL | — | |
| 73480 — Belt Assy, Rear Seat Inner W/Center, LH | ||||
| 73480-02190-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2007-06 → 2009-03
ended
|
ZRE151 5F,5FS;ADE150,ZRE152,ZZE150 | — | |
| 73480-02190-E1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2007-06 → 2009-03
ended
|
ADE150,ZRE152 RX;ZRE151 (5F,5FS) RS | — | |
| 73480-02190-C0 note |
Belt Assy, Rear Seat Inner W/Center, LH
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 73480-02190-E1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 73480-02190-C1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2009-12 → 2012-10
ended
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 73480-02190-E1 note |
Belt Assy, Rear Seat Inner W/Center, LH
2009-12 → 2012-10
ended
|
ADE150,ZRE151 RX,SOL | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
