Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

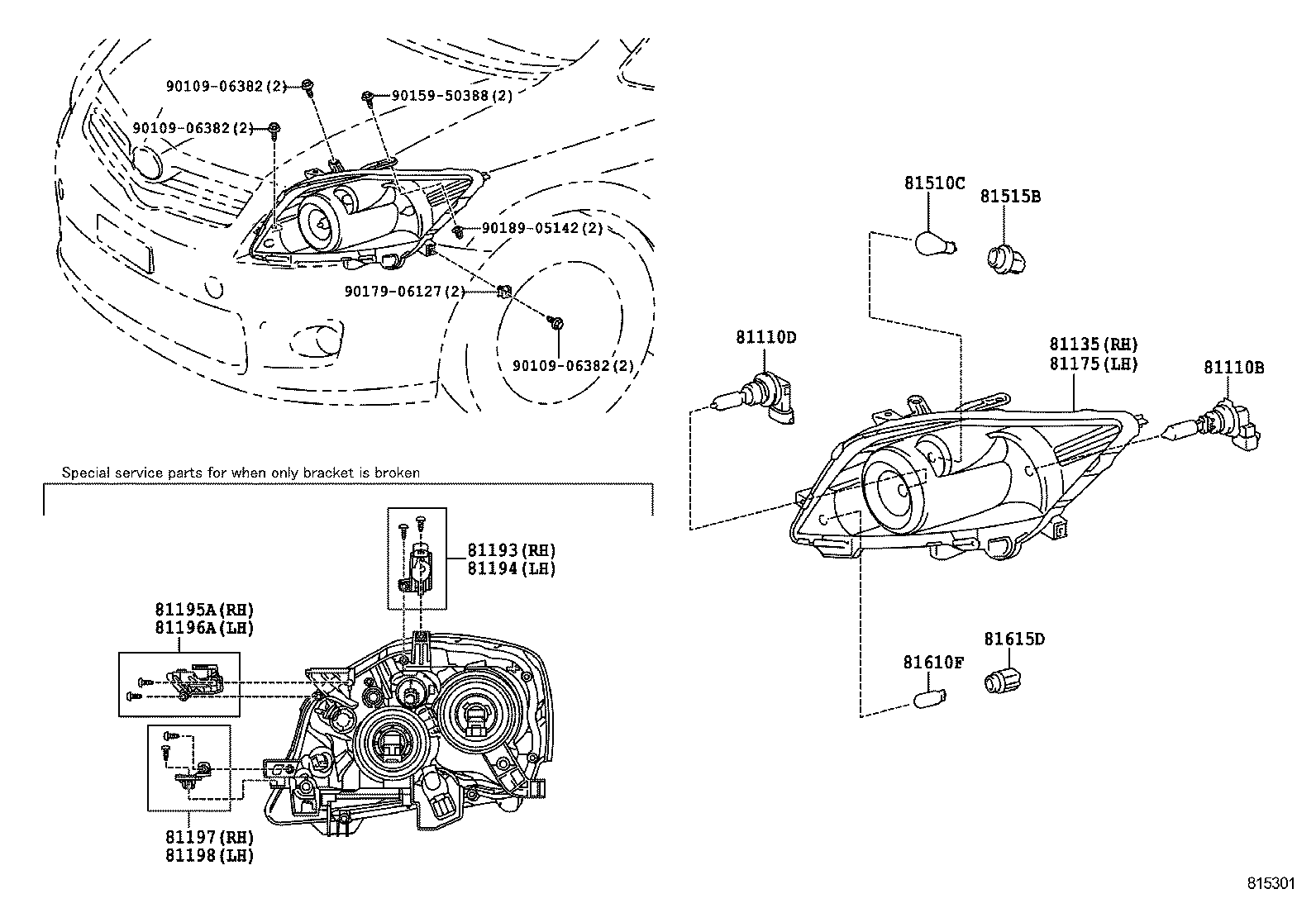

Exploded illustration 815301 81110D — BULB(FOR HEADLAMP, NO.2) (3 parts) 81110B — BULB(FOR HEADLAMP, NO.1) (5 parts) 81510C — BULB (FOR FRONT TURN SIGNAL LAMP) (5 parts) 81610F — BULB(FOR CLEARANCE LAMP) (5 parts) 9010906382 — not listed in this catalogue 9010906382 — not listed in this catalogue 9015950388 — not listed in this catalogue 9018905142 — not listed in this catalogue 9017906127 — not listed in this catalogue 9010906382 — not listed in this catalogue 81195A — RETAINER, HEADLAMP PROTECTOR, LOWER RH (5 parts) 81196A — RETAINER, HEADLAMP PROTECTOR, LOWER LH (5 parts) 81197 — BRACKET, HEADLAMP, LOWER RH (5 parts) 81198 — BRACKET, HEADLAMP, LWR LH (5 parts) 81193 — RETAINER, HEADLAMP PROTECTOR, UPPER RH (5 parts) 81194 — RETAINER, HEADLAMP PROTECTOR, UPPER LH (5 parts) 81135 — UNIT ASSY, HEADLAMP, RH (9 parts) 81175 — UNIT ASSY, HEADLAMP, LH (9 parts) 81615D — SOCKET, CLEARANCE LAMP (5 parts) 81515B — SOCKET, FRONT TURN SIGNAL LAMP (5 parts)
815301 · 14 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
76 parts on this figure
Part number Description Fitment Price
81110B — Bulb(FOR HEADLAMP, NO.1)
90981-13046 note Bulb(FOR HEADLAMP, NO.1)
2007-06 → 2009-02 ended
ZRE15# —
90981-13046 note Bulb(FOR HEADLAMP, NO.1)
2007-06 → 2008-11 ended
ZZE150 —
90981-13046 note Bulb(FOR HEADLAMP, NO.1)
2007-06 → 2009-03 ended
ADE150 —
90981-13046 note Bulb(FOR HEADLAMP, NO.1)
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
90981-13046 note Bulb(FOR HEADLAMP, NO.1)
2009-12 → 2012-10 ended
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81110D — Bulb(FOR HEADLAMP, NO.2)
90981-13081 note Bulb(FOR HEADLAMP, NO.2)
2007-06 → 2009-03 ended
ZRE151 5F,5FS;ADE150,ZRE152,ZZE150 —
90981-13081 note Bulb(FOR HEADLAMP, NO.2)
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
90981-13081 note Bulb(FOR HEADLAMP, NO.2)
2009-12 → 2012-11 ended
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81135 — Unit Assy, Headlamp, RH
81130-02480 Unit Assy, Headlamp, RH
2007-06 → 2009-03 ended
ADE150 —
81130-02480 Unit Assy, Headlamp, RH
2007-06 → 2009-02 ended
ZRE15# —
81130-02480 Unit Assy, Headlamp, RH
2007-06 → 2008-11 ended
ZZE150 —
81140-02500 note Unit Assy, Headlamp, RH
2007-06 → 2009-02 ended
ZRE151 RS;ZRE152 RX —
81140-02500 note Unit Assy, Headlamp, RH
2007-06 → 2009-03 ended
ADE150 RX —
81130-02480 Unit Assy, Headlamp, RH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
81140-02500 note Unit Assy, Headlamp, RH
2009-02 → 2010-01 ended
ZRE151 RS;ADE150,ZRE152 RX —
81130-02A60 note Unit Assy, Headlamp, RH
2009-12 → 2012-10 ended
ADE150,ZRE151 RX,SOL —
81130-02A90 Unit Assy, Headlamp, RH
2009-12 → 2012-10 ended
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81175 — Unit Assy, Headlamp, LH
81070-02490 note Unit Assy, Headlamp, LH
2007-06 → 2009-02 ended
ZRE151 RS;ZRE152 RX —
81070-02490 note Unit Assy, Headlamp, LH
2007-06 → 2009-03 ended
ADE150 RX —
81170-02470 Unit Assy, Headlamp, LH
2007-06 → 2009-02 ended
ZRE15# —
81170-02470 Unit Assy, Headlamp, LH
2007-06 → 2009-03 ended
ADE150 —
81170-02470 Unit Assy, Headlamp, LH
2007-06 → 2008-11 ended
ZZE150 —
81070-02490 note Unit Assy, Headlamp, LH
2009-02 → 2010-01 ended
ZRE151 RS;ADE150,ZRE152 RX —
81170-02470 Unit Assy, Headlamp, LH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
81170-02A50 note Unit Assy, Headlamp, LH
2009-12 → 2012-10 ended
ADE150,ZRE151 RX,SOL —
81170-02A80 Unit Assy, Headlamp, LH
2009-12 → 2012-10 ended
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81193 — Retainer, Headlamp Protector, Upper RH
81193-12040 Retainer, Headlamp Protector, Upper RH
2007-06 → 2008-11 ended
ZZE150 —
81193-12040 Retainer, Headlamp Protector, Upper RH
2007-06 → 2009-02 ended
ZRE15# —
81193-12040 Retainer, Headlamp Protector, Upper RH
2007-06 → 2009-03 ended
ADE150 —
81193-12040 Retainer, Headlamp Protector, Upper RH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
81193-12060 Retainer, Headlamp Protector, Upper RH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81194 — Retainer, Headlamp Protector, Upper LH
81194-12040 Retainer, Headlamp Protector, Upper LH
2007-06 → 2008-11 ended
ZZE150 —
81194-12040 Retainer, Headlamp Protector, Upper LH
2007-06 → 2009-02 ended
ZRE15# —
81194-12040 Retainer, Headlamp Protector, Upper LH
2007-06 → 2009-03 ended
ADE150 —
81194-12040 Retainer, Headlamp Protector, Upper LH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
81194-12100 Retainer, Headlamp Protector, Upper LH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81195A — Retainer, Headlamp Protector, Lower RH
81195-12040 Retainer, Headlamp Protector, Lower RH
2007-06 → 2009-03 ended
ADE150 —
81195-12040 Retainer, Headlamp Protector, Lower RH
2007-06 → 2008-11 ended
ZZE150 —
81195-12040 Retainer, Headlamp Protector, Lower RH
2007-06 → 2009-02 ended
ZRE15# —
81195-12040 Retainer, Headlamp Protector, Lower RH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
81195-12130 Retainer, Headlamp Protector, Lower RH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81196A — Retainer, Headlamp Protector, Lower LH
81196-12040 Retainer, Headlamp Protector, Lower LH
2007-06 → 2008-11 ended
ZZE150 —
81196-12040 Retainer, Headlamp Protector, Lower LH
2007-06 → 2009-02 ended
ZRE15# —
81196-12040 Retainer, Headlamp Protector, Lower LH
2007-06 → 2009-03 ended
ADE150 —
81196-12040 Retainer, Headlamp Protector, Lower LH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
81196-12130 Retainer, Headlamp Protector, Lower LH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81197 — Bracket, Headlamp, Lower RH
81197-12040 Bracket, Headlamp, Lower RH
2007-06 → 2009-02 ended
ZRE15# —
81197-12040 Bracket, Headlamp, Lower RH
2007-06 → 2009-03 ended
ADE150 —
81197-12040 Bracket, Headlamp, Lower RH
2007-06 → 2008-11 ended
ZZE150 —
81197-12040 Bracket, Headlamp, Lower RH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
81197-12030 Bracket, Headlamp, Lower RH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81198 — Bracket, Headlamp, Lwr LH
81198-12040 Bracket, Headlamp, Lwr LH
2007-06 → 2008-11 ended
ZZE150 —
81198-12040 Bracket, Headlamp, Lwr LH
2007-06 → 2009-02 ended
ZRE15# —
81198-12040 Bracket, Headlamp, Lwr LH
2007-06 → 2009-03 ended
ADE150 —
81198-12040 Bracket, Headlamp, Lwr LH
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
81198-12030 Bracket, Headlamp, Lwr LH
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81510C — Bulb (FOR FRONT TURN SIGNAL LAMP)
90981-WF003 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2007-06 → 2008-11 ended
ZZE150 —
90981-WF003 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2007-06 → 2009-03 ended
ADE150 —
90981-WF003 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2007-06 → 2009-02 ended
ZRE15# —
90981-WF003 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
90981-WF003 note Bulb (FOR FRONT TURN SIGNAL LAMP)
2009-12 → 2012-10 ended
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81515B — Socket, Front Turn Signal Lamp
90069-81052 Socket, Front Turn Signal Lamp
2007-06 → 2008-11 ended
ZZE150 —
90069-81052 Socket, Front Turn Signal Lamp
2007-06 → 2009-02 ended
ZRE15# —
90069-81052 Socket, Front Turn Signal Lamp
2007-06 → 2009-03 ended
ADE150 —
90069-81052 Socket, Front Turn Signal Lamp
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
90069-81052 Socket, Front Turn Signal Lamp
2009-12 → 2012-10 ended
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81610F — Bulb(FOR CLEARANCE LAMP)
90981-WB003 note Bulb(FOR CLEARANCE LAMP)
2007-06 → 2009-02 ended
ZRE15# —
90981-WB003 note Bulb(FOR CLEARANCE LAMP)
2007-06 → 2009-03 ended
ADE150 —
90981-WB003 note Bulb(FOR CLEARANCE LAMP)
2007-06 → 2008-11 ended
ZZE150 —
90981-WB003 note Bulb(FOR CLEARANCE LAMP)
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
90981-WB003 note Bulb(FOR CLEARANCE LAMP)
2009-12 → 2012-10 ended
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
81615D — Socket, Clearance Lamp
81275-02070 Socket, Clearance Lamp
2007-06 → 2008-11 ended
ZZE150 —
81275-02070 Socket, Clearance Lamp
2007-06 → 2009-02 ended
ZRE15# —
81275-02070 Socket, Clearance Lamp
2007-06 → 2009-03 ended
ADE150 —
81275-02070 Socket, Clearance Lamp
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
81275-02070 Socket, Clearance Lamp
2009-12 → 2012-10 ended
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
