Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

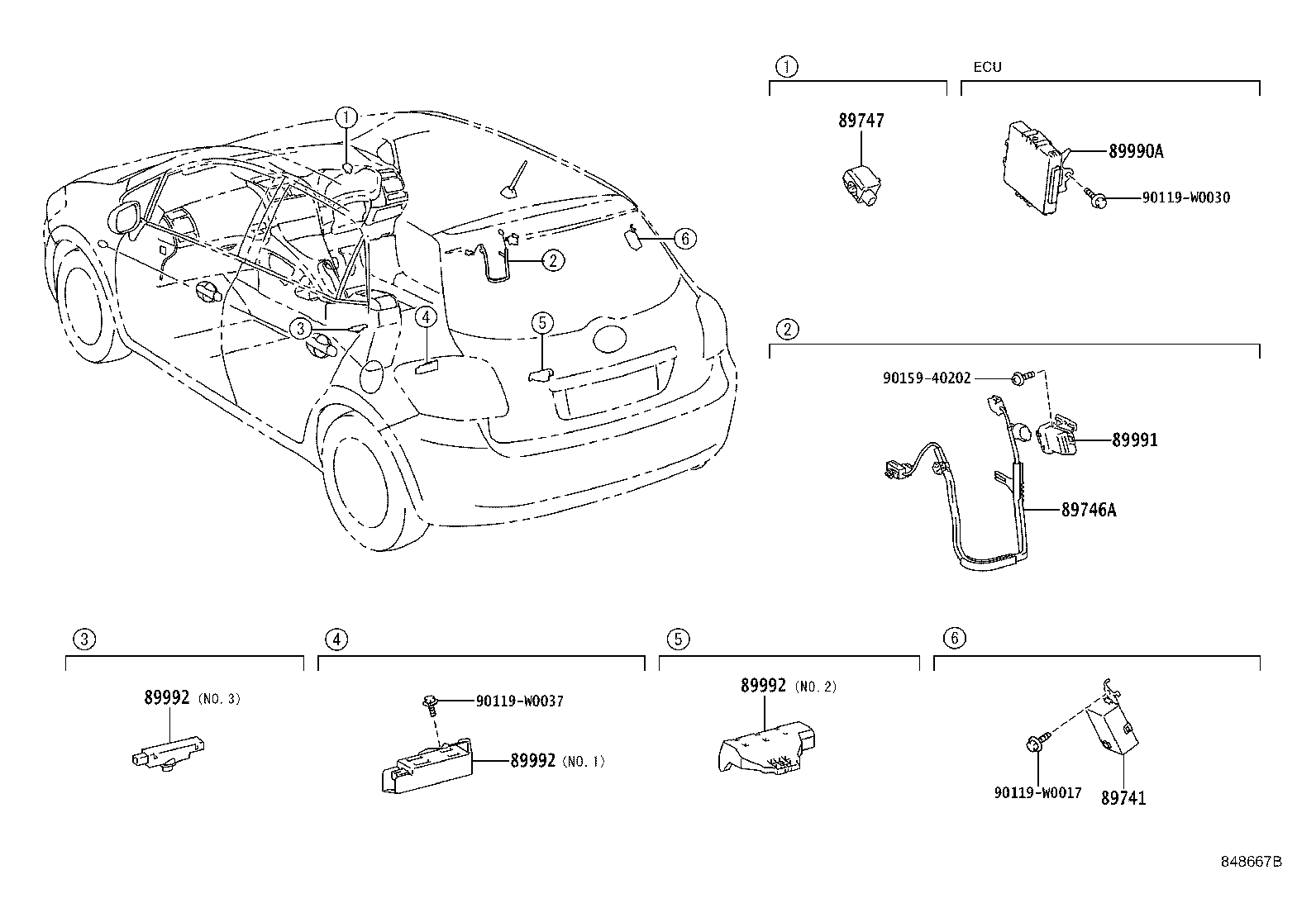

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89741 — Receiver, Door Control | ||||
| 89740-02010 note |
Receiver, Door Control
2007-06 → 2008-06
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89740-02011 note |
Receiver, Door Control
2008-07 → 2009-03
ended
|
ADE150 RX | — | |
| 89740-02011 note |
Receiver, Door Control
2008-07 → 2009-02
ended
|
ZRE151 RS;ZRE152 RX | — | |
| 89741-02130 |
Receiver, Door Control
2007-06 → 2008-11
ended
|
ZZE150 | — | |
| 89741-02130 note |
Receiver, Door Control
2007-06 → 2009-03
ended
|
ADE150 RX | — | |
| 89741-02130 note |
Receiver, Door Control
2007-06 → 2009-02
ended
|
ZRE151 RS;ZRE152 RX | — | |
| 89741-02130 |
Receiver, Door Control
2007-06 → 2009-02
ended
|
ZRE15# | — | |
| 89741-02130 |
Receiver, Door Control
2007-06 → 2009-03
ended
|
ADE150 | — | |
| 89740-02011 note |
Receiver, Door Control
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89741-02130 |
Receiver, Door Control
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 89741-02130 note |
Receiver, Door Control
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89740-02011 note |
Receiver, Door Control
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 89741-02130 note |
Receiver, Door Control
2009-12 → —
|
ADE150 RX | — | |
| 89741-02130 note |
Receiver, Door Control
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 89741-02130 |
Receiver, Door Control
2009-12 → —
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
| 89746A — Harness, Electrical Key Wire | ||||
| 89746-02010 note |
Harness, Electrical Key Wire
2007-06 → 2009-02
ended
|
ZRE151 RS;ZRE152 RX | — | |
| 89746-02010 note |
Harness, Electrical Key Wire
2007-06 → 2009-03
ended
|
ADE150 RX | — | |
| 89746-02010 note |
Harness, Electrical Key Wire
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89746-02020 note |
Harness, Electrical Key Wire
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89746-02010 note |
Harness, Electrical Key Wire
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 89746-02020 note |
Harness, Electrical Key Wire
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-52010 note |
Buzzer, Wireless Door Lock
2007-06 → 2009-02
ended
|
ZRE151 RS;ZRE152 RX | — | |
| 89747-52010 note |
Buzzer, Wireless Door Lock
2007-06 → 2009-03
ended
|
ADE150 RX | — | |
| 89747-52010 note |
Buzzer, Wireless Door Lock
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89747-52010 note |
Buzzer, Wireless Door Lock
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 89990A — Computer Assy, Smart Key | ||||
| 89990-02010 note |
Computer Assy, Smart Key
2007-06 → 2008-03
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89990-02011 note |
Computer Assy, Smart Key
2008-04 → 2009-02
ended
|
ZRE151 RS;ZRE152 RX | — | |
| 89990-02011 note |
Computer Assy, Smart Key
2008-04 → 2009-03
ended
|
ADE150 RX | — | |
| 89990-02070 note |
Computer Assy, Smart Key
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89990-02040 note |
Computer Assy, Smart Key
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 89991 — Oscillator, Door Electrical Key | ||||
| 89991-30040 note |
Oscillator, Door Electrical Key
2007-06 → 2009-03
ended
|
ADE150,ZRE152 RX;ZRE151 (5F,5FS) RS | — | |
| 89991-30040 note |
Oscillator, Door Electrical Key
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89991-30050 note |
Oscillator, Door Electrical Key
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89991-30040 note |
Oscillator, Door Electrical Key
2009-12 → 2012-10
ended
|
ADE150,ZRE151 RX,SOL | — | |
| 89991-30050 note |
Oscillator, Door Electrical Key
2009-12 → 2012-10
ended
|
ADE150,ZRE151 RX,SOL | — | |
| 89992 — Oscillator, Indoor Electrical Key | ||||
| 89992-02020 note |
Oscillator, Indoor Electrical Key
2007-06 → 2009-02
ended
|
ZRE151 RS;ZRE152 RX | — | |
| 89992-02020 note |
Oscillator, Indoor Electrical Key
2007-06 → 2009-03
ended
|
ADE150 RX | — | |
| 89992-02030 note |
Oscillator, Indoor Electrical Key
2007-06 → 2009-02
ended
|
ZRE151 RS;ZRE152 RX | — | |
| 89992-02030 note |
Oscillator, Indoor Electrical Key
2007-06 → 2009-03
ended
|
ADE150 RX | — | |
| 89992-0D020 note |
Oscillator, Indoor Electrical Key
2007-06 → 2009-02
ended
|
ZRE151 RS;ZRE152 RX | — | |
| 89992-0D020 note |
Oscillator, Indoor Electrical Key
2007-06 → 2009-03
ended
|
ADE150 RX | — | |
| 89992-02020 note |
Oscillator, Indoor Electrical Key
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89992-02030 note |
Oscillator, Indoor Electrical Key
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89992-0D020 note |
Oscillator, Indoor Electrical Key
2009-02 → 2010-01
ended
|
ZRE151 RS;ADE150,ZRE152 RX | — | |
| 89992-02020 note |
Oscillator, Indoor Electrical Key
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 89992-02030 note |
Oscillator, Indoor Electrical Key
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 89992-0D010 note |
Oscillator, Indoor Electrical Key
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
