Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

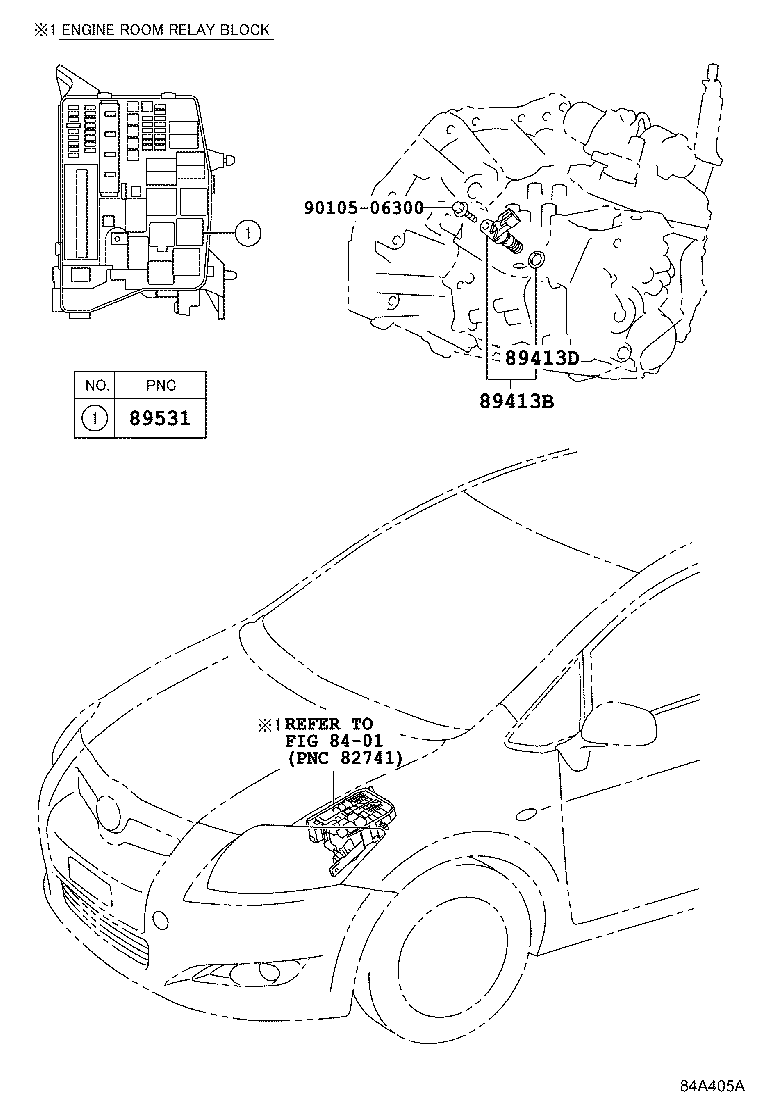

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89413B — Sensor, Transmission Revolution | ||||
| 89413-64010 |
Sensor, Transmission Revolution
2007-06 → 2009-02
ended
|
ZRE151 5FS | — | |
| 89413-22010 |
Sensor, Transmission Revolution
2009-02 → 2009-12
ended
|
ZRE151 6FS | — | |
| 89413D — Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) | ||||
| 90301-11008 |
Ring, O(FOR TRANSMISSION REVOLUTION SENSOR)
2009-02 → 2010-01
ended
|
ZRE151 6FS | — | |
| 89531 — Relay, Transmission Control | ||||
| 90080-87030 |
Relay, Transmission Control
2007-06 → 2009-02
ended
|
ZRE151 5FS | — | |
| 90080-87030 |
Relay, Transmission Control
2009-02 → 2010-01
ended
|
ZRE151 6FS | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
