Toyota Auris (UKP)

2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General

Supported model Data version 2013-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

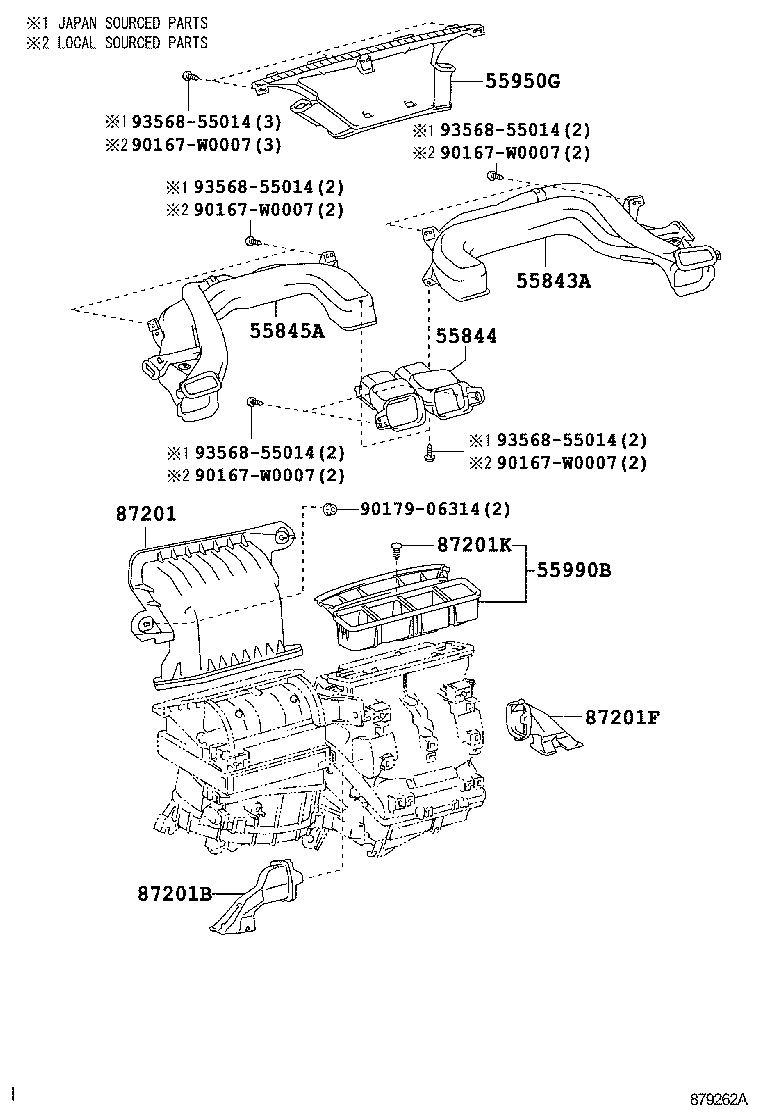

Exploded illustration 879262A 55990B — NOZZLE ASSY, DEFROSTER, LOWER (10 parts) 87201K — CLIP (FOR AIR DUCT) (3 parts) 87201 — DUCT SUB-ASSY, AIR, NO.1 (5 parts) 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9356855014 — not listed in this catalogue 90167W0007 — not listed in this catalogue 9017906314 — not listed in this catalogue 55950G — NOZZLE ASSY, DEFROSTER (10 parts) 87201F — DUCT SUB-ASSY, AIR, NO.3 (5 parts) 87201B — DUCT SUB-ASSY, AIR, NO.2 (5 parts) 55843A — DUCT, HEATER TO REGISTER, NO.1 (3 parts) 55845A — DUCT, HEATER TO REGISTER, NO.3 (5 parts) 55844 — DUCT, HEATER TO REGISTER, NO.2 (9 parts)
879262A · 9 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
55843A — Duct, Heater TO Register, NO.1
55843-02210 Duct, Heater TO Register, NO.1
2007-06 → 2009-03 ended
ZRE151 5F,5FS;ADE150,ZRE152,ZZE150 —
55843-02210 Duct, Heater TO Register, NO.1
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
55843-02210 Duct, Heater TO Register, NO.1
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
55844 — Duct, Heater TO Register, NO.2
55844-02180 Duct, Heater TO Register, NO.2
2007-06 → 2008-11 ended
ZZE150 —
55844-02180 Duct, Heater TO Register, NO.2
2007-06 → 2009-02 ended
ZRE15# RS,RT —
55844-02180 Duct, Heater TO Register, NO.2
2007-06 → 2009-03 ended
ADE150 RS —
55844-02210 Duct, Heater TO Register, NO.2
2007-06 → 2009-02 ended
ZRE152 RX —
55844-02210 Duct, Heater TO Register, NO.2
2007-06 → 2009-03 ended
ADE150 RX —
55844-02180 Duct, Heater TO Register, NO.2
2008-11 → 2010-01 ended
ZRE151 (6F,6FS) (RS,RT);ADE150,NRE150,ZRE152 RS,SOL,TERRA —
55844-02210 Duct, Heater TO Register, NO.2
2009-02 → 2010-01 ended
ADE150,ZRE152 RX —
55844-02180 Duct, Heater TO Register, NO.2
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
55844-02210 note Duct, Heater TO Register, NO.2
2009-12 → 2011-05 ended
ADE150,ZRE151 RX,SOL —
55845A — Duct, Heater TO Register, NO.3
55845-02110 Duct, Heater TO Register, NO.3
2007-06 → 2009-03 ended
ADE150 —
55845-02110 Duct, Heater TO Register, NO.3
2007-06 → 2009-02 ended
ZRE15# —
55845-02110 Duct, Heater TO Register, NO.3
2007-06 → 2008-11 ended
ZZE150 —
55845-02110 Duct, Heater TO Register, NO.3
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
55845-02110 Duct, Heater TO Register, NO.3
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
55950G — Nozzle Assy, Defroster
55950-02130 note Nozzle Assy, Defroster
2007-06 → 2008-11 ended
ZZE150 —
55950-02130 note Nozzle Assy, Defroster
2007-06 → 2009-02 ended
ZRE15# —
55950-02130 note Nozzle Assy, Defroster
2007-06 → 2009-03 ended
ADE150 —
55950-02150 note Nozzle Assy, Defroster
2007-06 → 2008-11 ended
ZZE150 —
55950-02150 note Nozzle Assy, Defroster
2007-06 → 2009-02 ended
ZRE15# —
55950-02150 note Nozzle Assy, Defroster
2007-06 → 2009-03 ended
ADE150 —
55950-02130 note Nozzle Assy, Defroster
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
55950-02150 note Nozzle Assy, Defroster
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
55950-02130 note Nozzle Assy, Defroster
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
55950-02150 note Nozzle Assy, Defroster
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
55990B — Nozzle Assy, Defroster, Lower
55990-02050 note Nozzle Assy, Defroster, Lower
2007-06 → 2008-11 ended
ZZE150 —
55990-02050 note Nozzle Assy, Defroster, Lower
2007-06 → 2009-03 ended
ADE150 —
55990-02050 note Nozzle Assy, Defroster, Lower
2007-06 → 2009-02 ended
ZRE15# —
55990-02070 note Nozzle Assy, Defroster, Lower
2007-06 → 2009-02 ended
ZRE15# —
55990-02070 note Nozzle Assy, Defroster, Lower
2007-06 → 2008-11 ended
ZZE150 —
55990-02070 note Nozzle Assy, Defroster, Lower
2007-06 → 2009-03 ended
ADE150 —
55990-02050 note Nozzle Assy, Defroster, Lower
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
55990-02070 note Nozzle Assy, Defroster, Lower
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
55990-02050 note Nozzle Assy, Defroster, Lower
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
55990-02070 note Nozzle Assy, Defroster, Lower
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
87201 — Duct Sub-assy, Air, NO.1
87220-02010 Duct Sub-assy, Air, NO.1
2007-06 → 2008-11 ended
ZZE150 —
87220-02010 Duct Sub-assy, Air, NO.1
2007-06 → 2009-02 ended
ZRE15# —
87220-02010 Duct Sub-assy, Air, NO.1
2007-06 → 2009-03 ended
ADE150 —
87220-02010 Duct Sub-assy, Air, NO.1
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
87220-02010 Duct Sub-assy, Air, NO.1
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
87201B — Duct Sub-assy, Air, NO.2
87211-02220 Duct Sub-assy, Air, NO.2
2007-06 → 2008-11 ended
ZZE150 —
87211-02220 Duct Sub-assy, Air, NO.2
2007-06 → 2009-03 ended
ADE150 —
87211-02220 Duct Sub-assy, Air, NO.2
2007-06 → 2009-02 ended
ZRE15# —
87211-02220 Duct Sub-assy, Air, NO.2
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
87211-02220 Duct Sub-assy, Air, NO.2
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
87201F — Duct Sub-assy, Air, NO.3
87211-02210 Duct Sub-assy, Air, NO.3
2007-06 → 2008-11 ended
ZZE150 —
87211-02210 Duct Sub-assy, Air, NO.3
2007-06 → 2009-02 ended
ZRE15# —
87211-02210 Duct Sub-assy, Air, NO.3
2007-06 → 2009-03 ended
ADE150 —
87211-02210 Duct Sub-assy, Air, NO.3
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
87211-02210 Duct Sub-assy, Air, NO.3
2009-12 → —
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
87201K — Clip (FOR AIR DUCT)
90467-05161-B0 note Clip (FOR AIR DUCT)
2007-06 → 2009-03 ended
ZRE151 5F,5FS;ADE150,ZRE152,ZZE150 —
90467-05161-B0 note Clip (FOR AIR DUCT)
2008-11 → 2010-01 ended
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) —
90467-05161-B0 note Clip (FOR AIR DUCT)
2009-12 → 2012-10 ended
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
