Toyota Auris (UKP)
2007-06 → 2012-10 · chassis ADE150,NRE150,ZRE15#,ZZE150 · catalogue 166310 · General
Supported model
Data version 2013-04

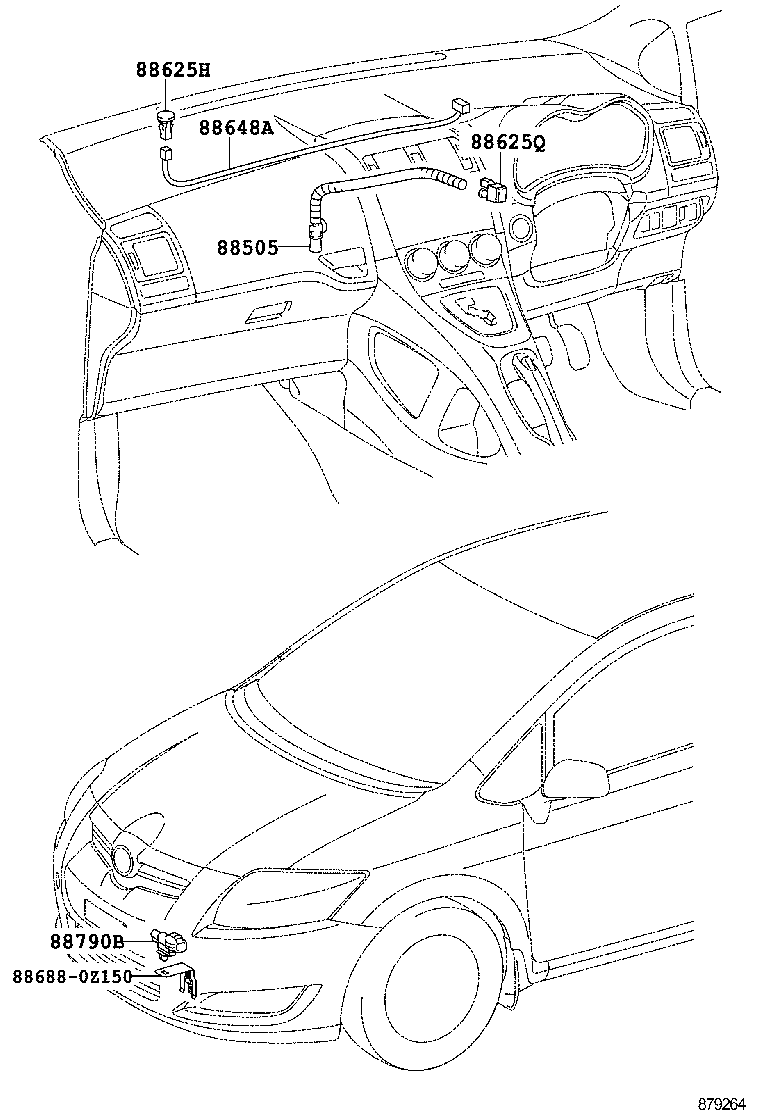

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88505 — Duct Sub-assy,Air Conditioner | ||||
| 88505-02010 |
Duct Sub-assy,Air Conditioner
2007-06 → 2009-03
ended
|
ADE150 RX | — | |
| 88505-02010 |
Duct Sub-assy,Air Conditioner
2007-06 → 2009-02
ended
|
ZRE152 RX | — | |
| 88505-02010 |
Duct Sub-assy,Air Conditioner
2009-02 → 2010-01
ended
|
ADE150,ZRE152 RX | — | |
| 88505-02010 note |
Duct Sub-assy,Air Conditioner
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 88625H — Thermistor, Cooler (SOLAR SENSOR) | ||||
| 88625-51010 |
Thermistor, Cooler (SOLAR SENSOR)
2007-06 → 2009-02
ended
|
ZRE152 RX | — | |
| 88625-51010 |
Thermistor, Cooler (SOLAR SENSOR)
2007-06 → 2009-03
ended
|
ADE150 RX | — | |
| 88625-51010 |
Thermistor, Cooler (SOLAR SENSOR)
2009-02 → 2010-01
ended
|
ADE150,ZRE152 RX | — | |
| 88625-51010 note |
Thermistor, Cooler (SOLAR SENSOR)
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 88625-51010 note |
Thermistor, Cooler (SOLAR SENSOR)
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 88625Q — Thermistor, Cooler (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2007-06 → 2009-02
ended
|
ZRE152 RX | — | |
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2007-06 → 2009-03
ended
|
ADE150 RX | — | |
| 88625-47021 |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2009-02 → 2010-01
ended
|
ADE150,ZRE152 RX | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 88625-47021 note |
Thermistor, Cooler (ROOM TEMP. SENSOR)
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 88648A — Wiring, Cooler | ||||
| 88648-02270 |
Wiring, Cooler
2007-06 → 2009-02
ended
|
ZRE152 RX | — | |
| 88648-02270 |
Wiring, Cooler
2007-06 → 2009-03
ended
|
ADE150 RX | — | |
| 88648-02270 |
Wiring, Cooler
2009-02 → 2010-01
ended
|
ADE150,ZRE152 RX | — | |
| 88648-02380 note |
Wiring, Cooler
2009-12 → —
|
ADE150,ZRE151 RX,SOL | — | |
| 88790B — Thermistor Assy | ||||
| 88790-22131 |
Thermistor Assy
2007-06 → 2008-11
ended
|
ZZE150 | — | |
| 88790-22131 |
Thermistor Assy
2007-06 → 2009-02
ended
|
ZRE15# | — | |
| 88790-22131 |
Thermistor Assy
2007-06 → 2009-03
ended
|
ADE150 | — | |
| 88790-22131 |
Thermistor Assy
2008-11 → 2010-01
ended
|
ADE150,NRE150,ZRE152;ZRE151 (6F,6FS) (RS,RT) | — | |
| 88790-22131 |
Thermistor Assy
2009-12 → —
|
ZRE151 SOL,TERRA;ADE150,NRE150 RX,TERRA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
